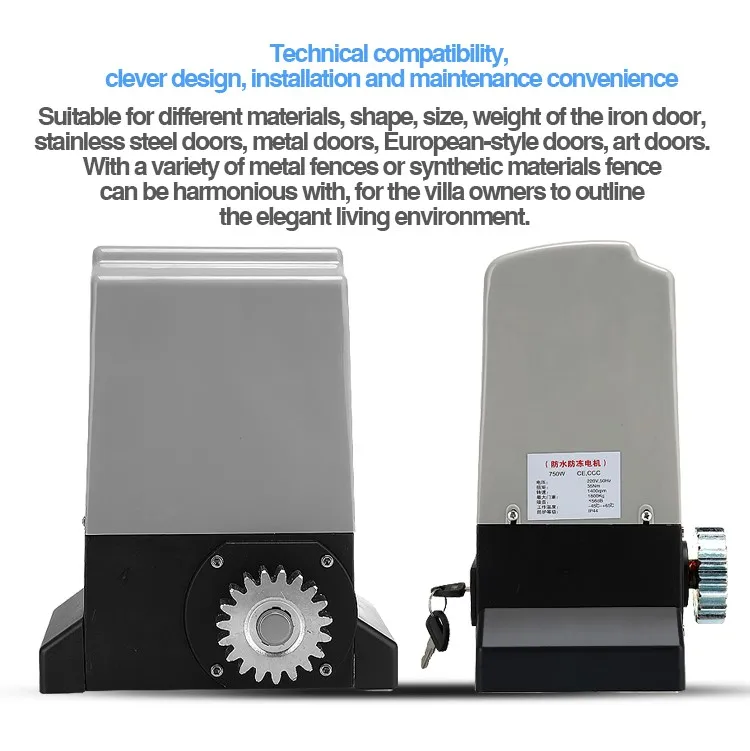

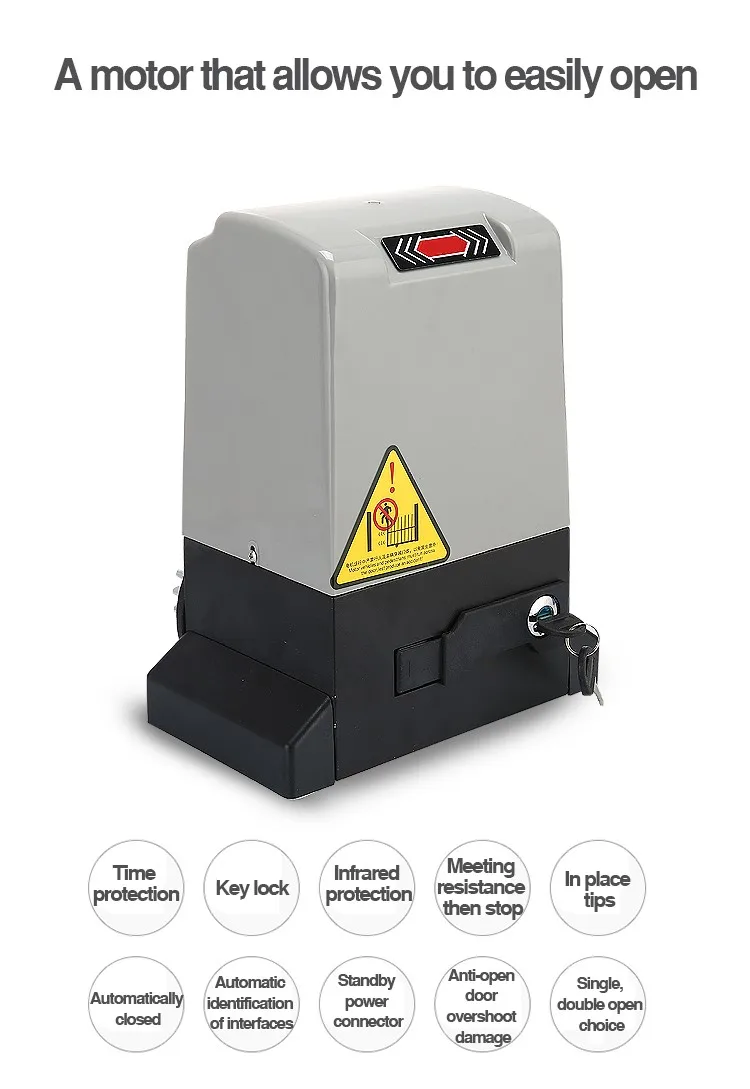

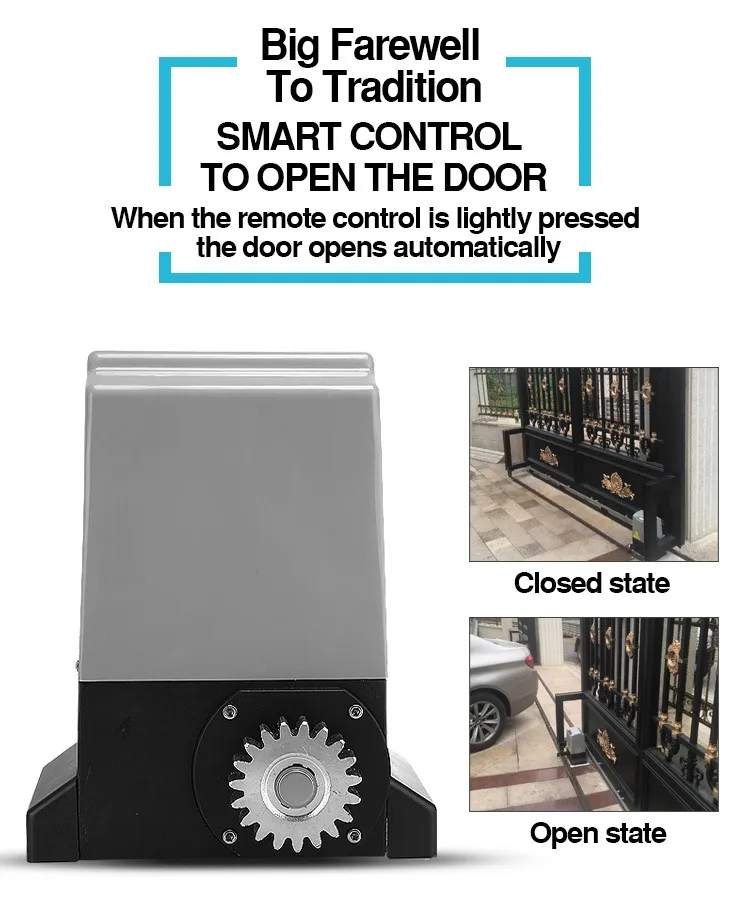

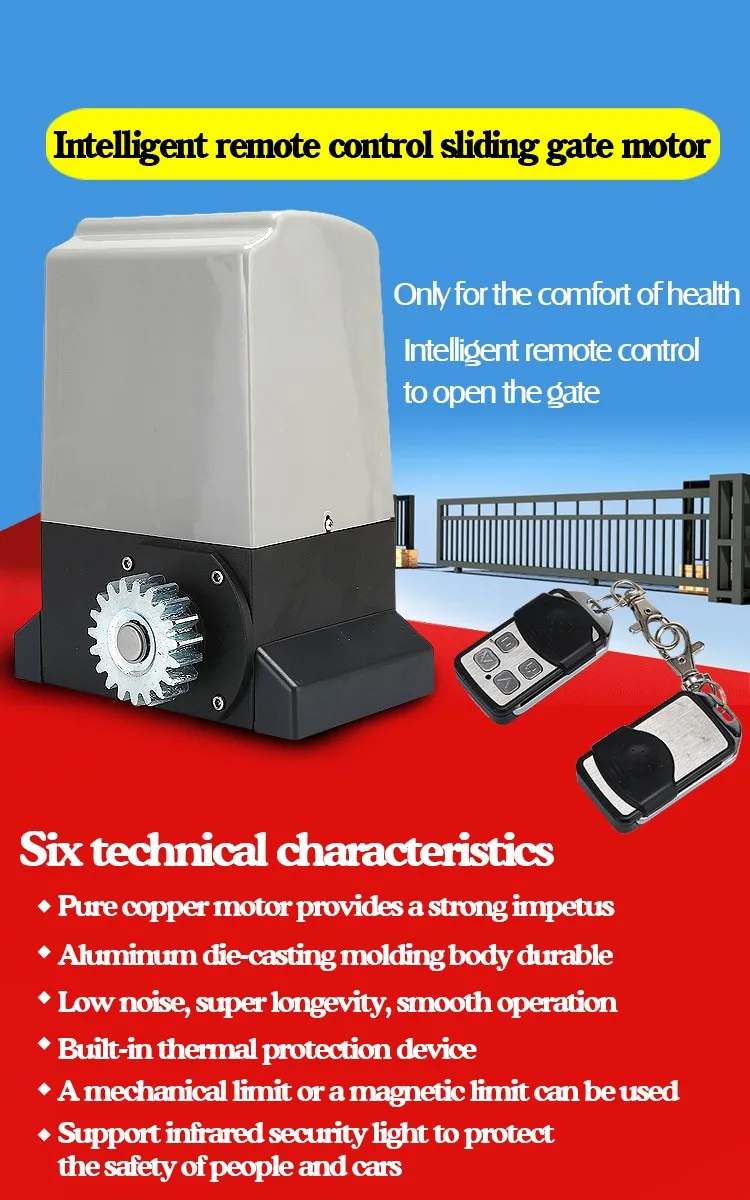

Bluetooth automatic sliding door motor controlled by App
Model | BW-JY | ||
Special Function | Bluetooth control the sliding door motor with smartphone | ||
Max. Gate Weight | 1000kg | ||
Application | smartdoor | ||
Motor Power | 550W | ||
Protection Class | IP44 | ||
Power Supply | AC220V | ||
Torque | 27Nm | ||
Motor Rotational Speed | 1400r/min | ||
Gate Speed | 12m/min | ||
Environment Temperature | -25℃~+65℃ |
Specifications for different powers

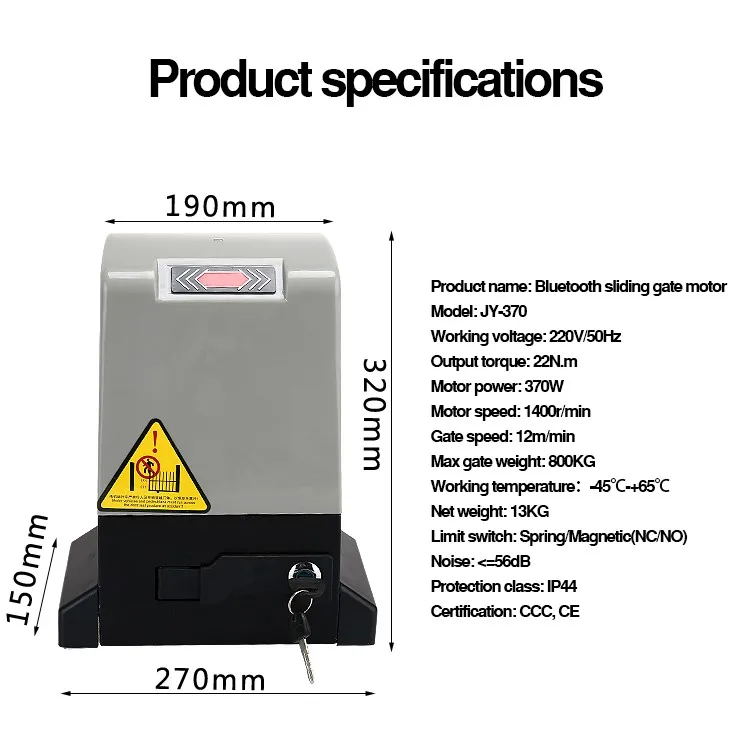

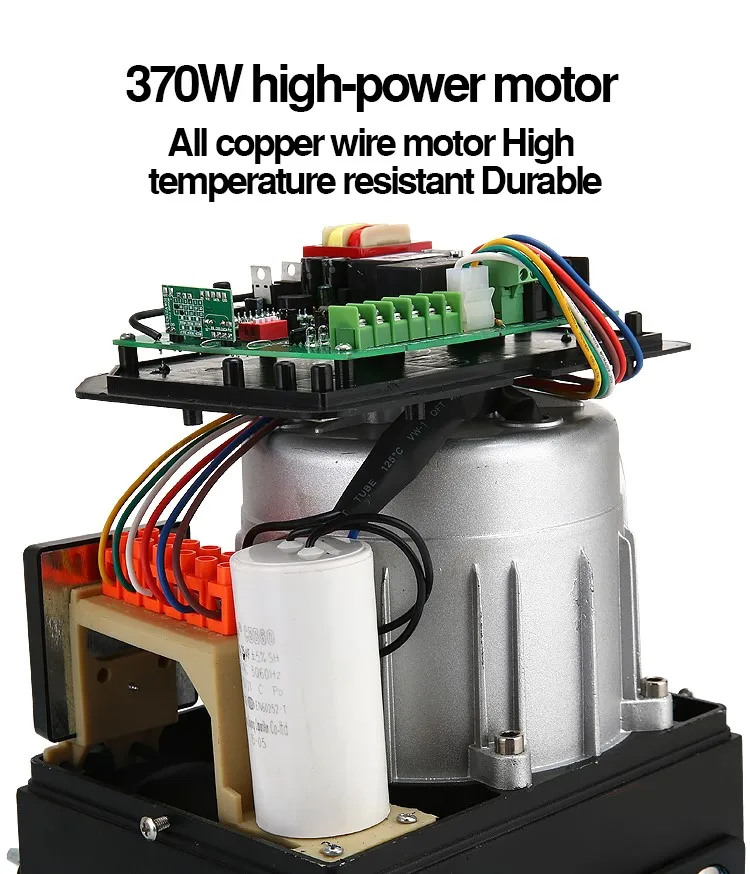

Model | JY-370 | JY-550 | JY-750 | JY-1200 |
Power | 370W | 550W | 750W | 1200W |
Power Supply | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz |
Output Torque | 22N.m | 27N.m | 35N.m | 45N.m |
Max Gate Weight | 800KG | 1000KG | 1500KG | 2000KG |
Motor Speed | 1400r/min | 1400r/min | 1400r/min | 1400r/min |
Gate Speed | 12m/min | 12m/min | 12m/min | 12m/min |
Limit Switch | Spring/Magnetic(NC/NO) | Spring/Magnetic(NC/NO) | Spring/Magnetic(NC/NO) | Spring/Magnetic(NC/NO) |
Noise | <=56dB | <=56dB | <=56dB | <=56dB |
Temperature | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ | -45℃~+65℃ |
Protection Class | IP44 | IP44 | IP44 | IP44 |
Certification | CCC,CE | CCC,CE | CCC,CE | CCC,CE |
App | smartdoor |
Package: Carton
Delivery:2-10 days
BoHui Electronics Technology (Zhangzhou) Co., Ltd Located in High-tech Zone, Jiuhu Town, Zhangzhou City, was found in 2012 by a technical team whose key members are R&D engineers from Huawei and Microsoft corporation, those people own rich experience in the field of developing networking, communication, WIFI on SOC system and BLE. After three years since the team established, our R&D team members have developed backend server, P2P transfer protocol, human image recognition technology, smartphone door control system, smart electric windows and security camera control system with independent intellectual property rights. Our team also develops a series of electric door controls, electric windows controls and human image recognition IP camera.
In 2015, BoHui Electronics Technology Co., Ltd gained the title of “Fujian Technological Enterprise”. Our R&D team also attends “The Third Fujian Innovation Contest” and has won the third rank. What’s more, our company has gained the title of “The Outstanding Enterprise” in “The Fourth China Innovation Contest”. We also have many national invention patents, utility model patents and software copyrights.
More details, please check: www.doorway.net.cn
1. The 22th China (Beijing) International Building Decoration & Building Material Exposition
2. The 13th China Cross-Straits Technology and Projects Fair(CSTPF)
3. The 17th International Building Decoration Exposition
4. The 12th China International & Medium Enterprises Fair
5. The 23th China (Beijing) International Building Decoration & Building Material Exposition
6. The 6th Guangzhou Sunshade Door & Windows Exposition
https://bhdzzz.en.alibaba.com/company_profile/trademarks_patents.html
https://bhdzzz.en.alibaba.com/company_profile/award_certification.html

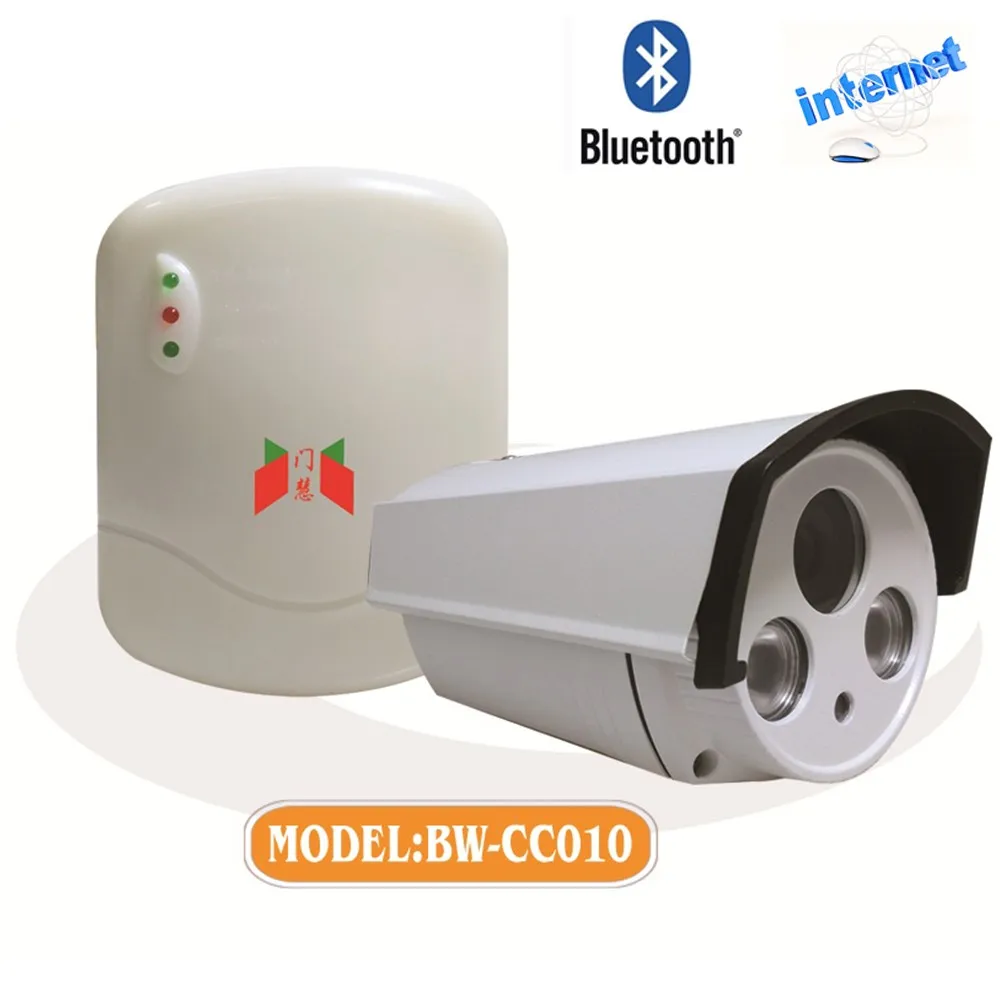

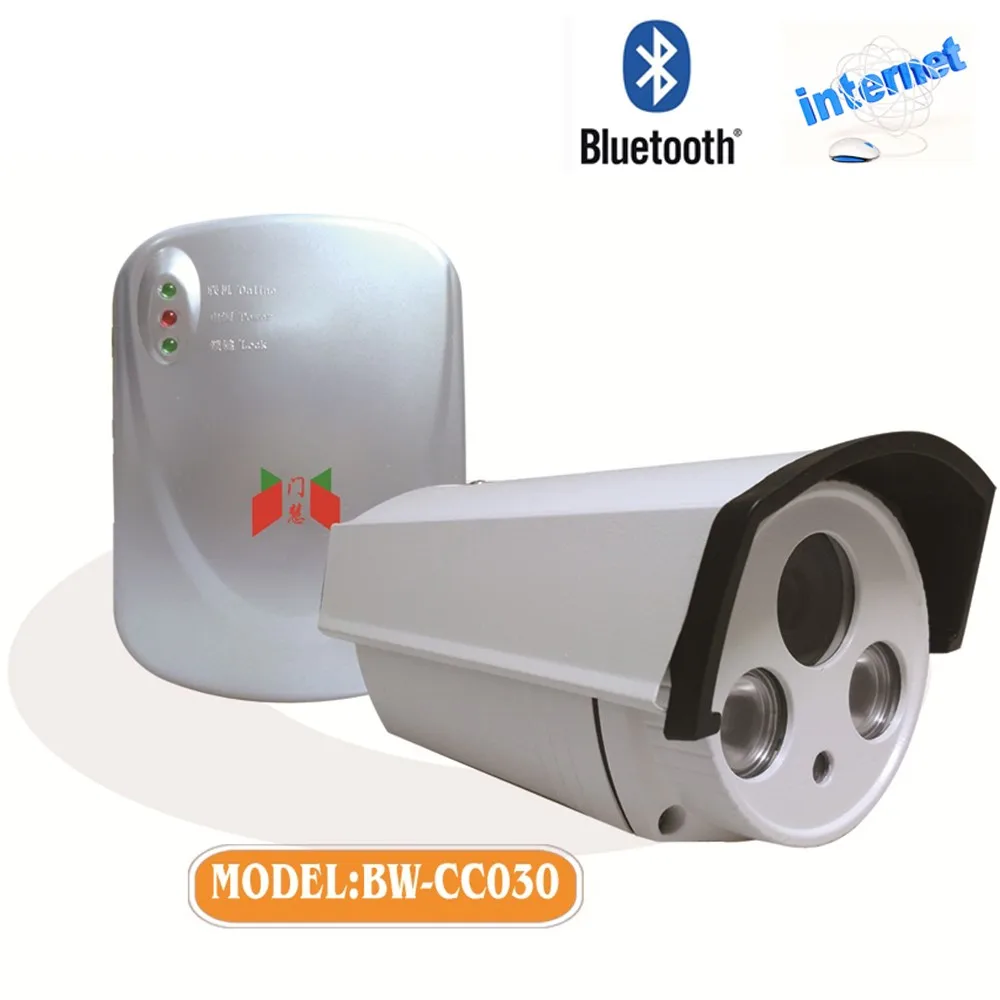

AC bluetooth remote control motor controller with bullet security camera

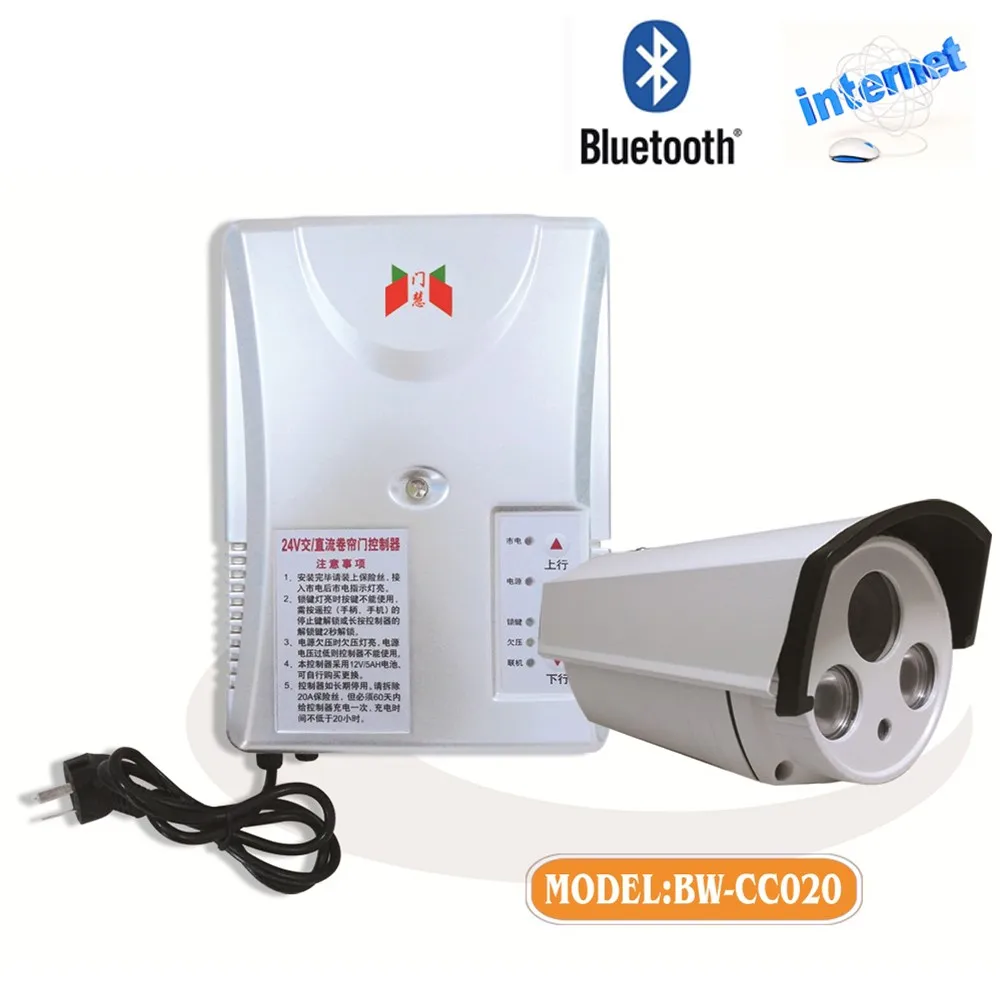

DC motor controller garage door opener with IP bullet camera
Bluetooth AC tubular motor controller with vandal-proof camera
Mobile control door lock AC side motor controller
Rolling door remote control DC motor controller with phone App

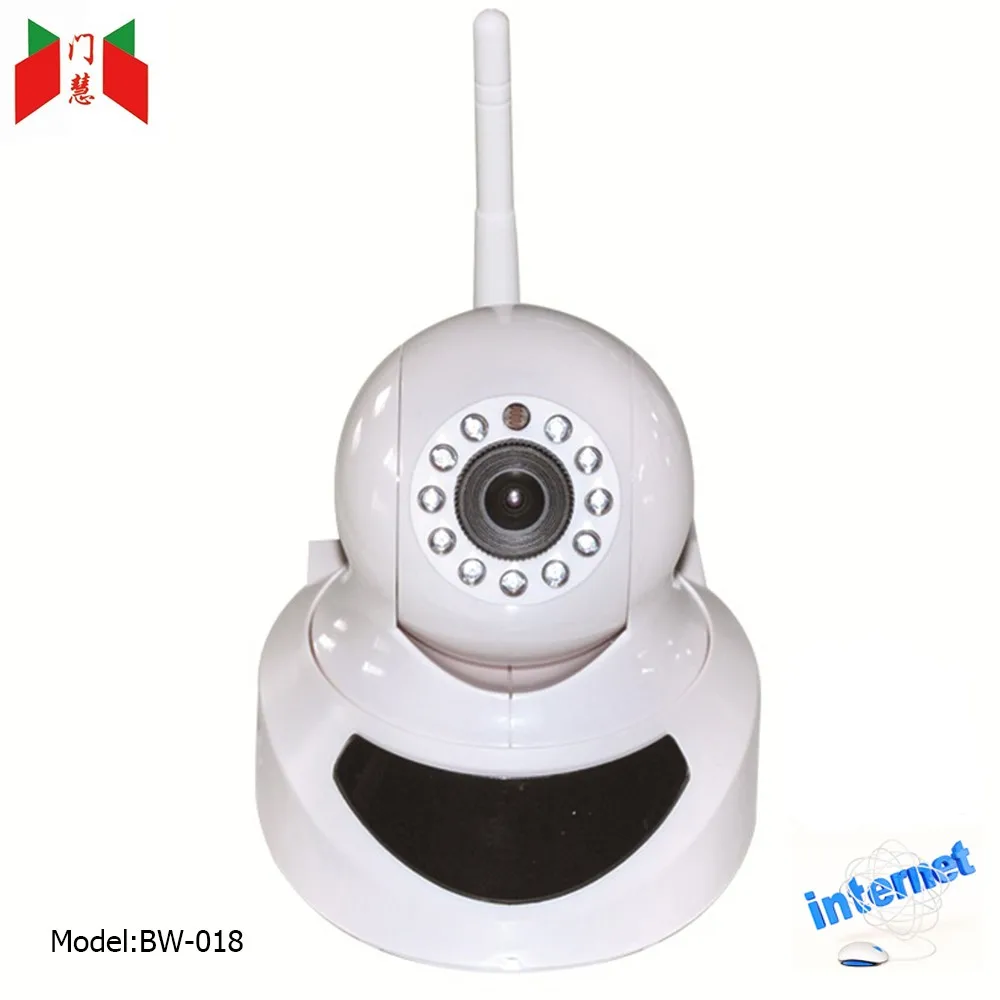

Wireless CCTV kit night vision 1080P WiFi smart dome IP security P2P rotatable camera
If you are interested in our products, please don't hesitate to contact Daniel.
Your enquiries are always welcome!
The contact information as follows:
Q:How can I get some samples?
A:We are honored to offer you samples. New clients are expected to pay for the courier and sample cost, sample charge could be returned when you place a mass order.
Q: What is your term of payment ?
A:T/T would be better with quick transfer and few bank fees. L/C could also be accepted, but the procedure is complex and the fee is high. You can also use Alibaba trade assurance or secure payment. Alibaba trade assurance can protect your deal and protect your money secure. For large quantity, sea shipping can be provided.
T/T: 30% deposit before production, 70% balance will be after copy B/L
Q: What is your delivery time?
A: Generally speaking, 2-3 working days for sample and within 2-10 days if the goods are in stock or 30-40 days if the goods are not in stock. It depends on your quantity.
