Powerful IGBT Inverter CNC Plasma Cutter
DIGI-CUT70CNC
Product Description
Functions: Plasma Cutting, CNC Plasma Cutting
Suitable Material: Carbon Steel, Stainless Steel
Main Features:
■ High frequency IGBT inverter Plasma Cutting
■ HF or without HF pilot arc
■ 2T/4T function
■ High quality cutting
■ Cutting Current digital display
■ Gas pressure sensor inside and display
■ Low gas pressure and flow protection
■ HF or without HF pilot arc
■ 2T/4T function
■ High quality cutting
■ Cutting Current digital display
■ Gas pressure sensor inside and display
■ Low gas pressure and flow protection
Optional:
■ CNC Socket
■ 110V/220V Dual Voltage
Main Parameters of CNC Plasma cutter
Model | DIGICUT70CNC | DIGICUT80CNC | DIGICUT100CNC |
Input Voltage | 1*230V 50/60Hz | 3x220V/380/400/415V, 50/60Hz | 3x220V/380/400/415V, 50/60Hz |
Input Power Capacity | 5.5KVA | 16KVA | 20KVA |
No Load Voltage | 250V | 250V | 250V |
Current Range | 20-70A | 20-80A | 20-100A |
Rate Duty Cycle | 60% | 60% | 60% |
Working Mode | Contact / non- contact | Contact / non- contact | Contact / non- contact |
Max. Cutting Thickness | 28mm | 32mm | 35mm |
Net Weight | 23kg | 24kg | 25kg |
Package Weight | 29kgs | 30kgs | 31kgs |
Machine Size (LWH) | 515x230x395mm | 515x230x395mm | 515x230x395mm |
Packing Size (LWH) | 640x400x550mm | 640x400x550mm | 640x400x550mm |

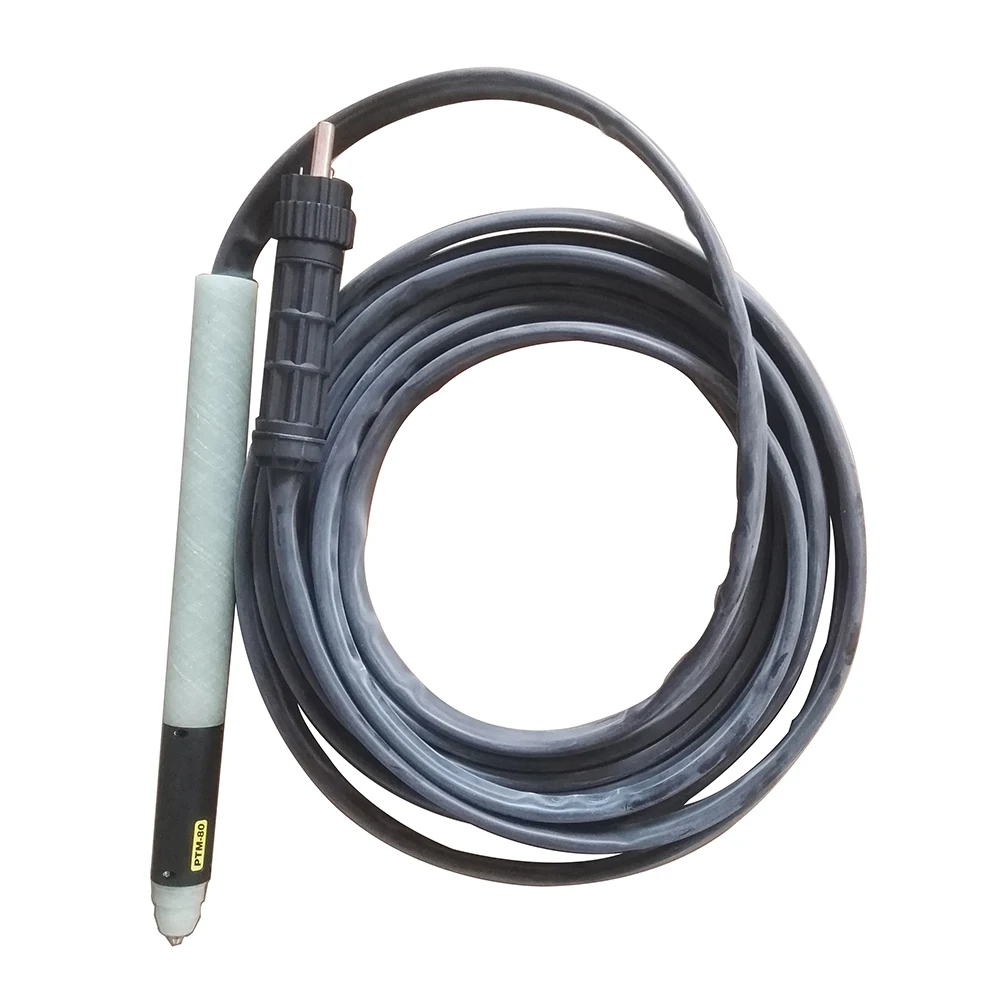

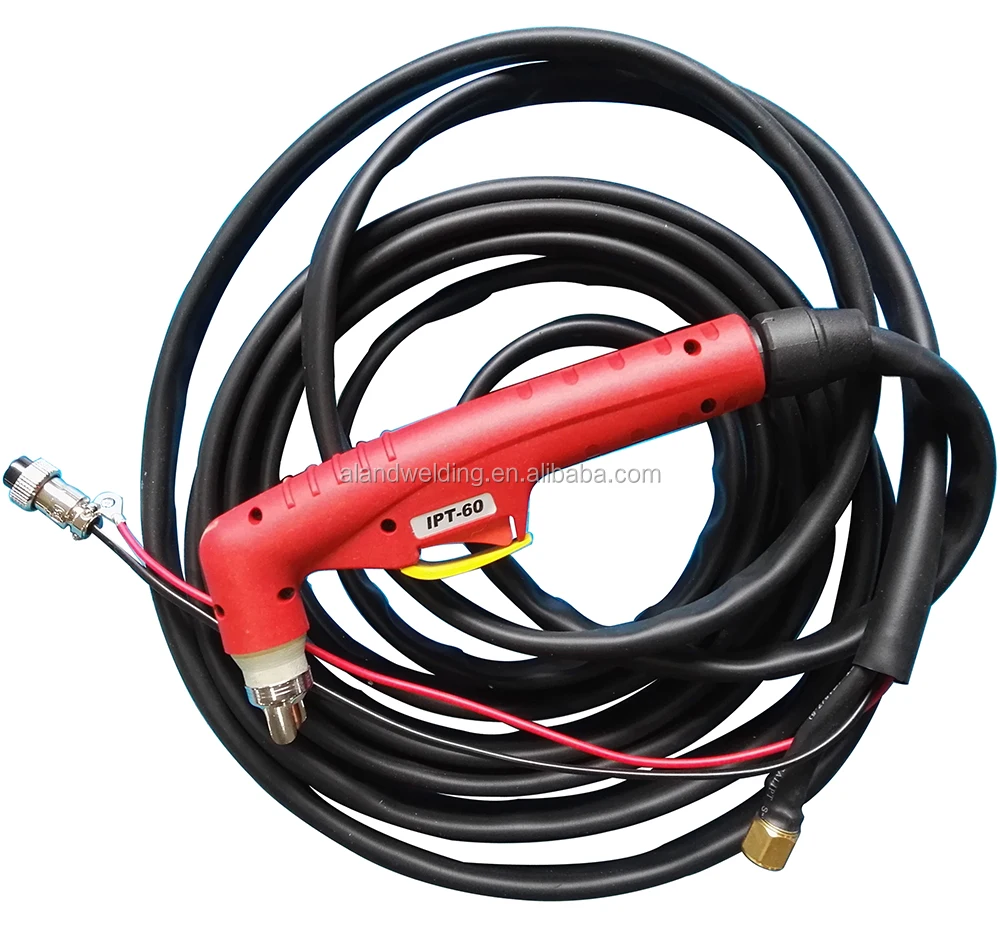

Accessories:
Production Workshop
FAQ.
1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens).
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
