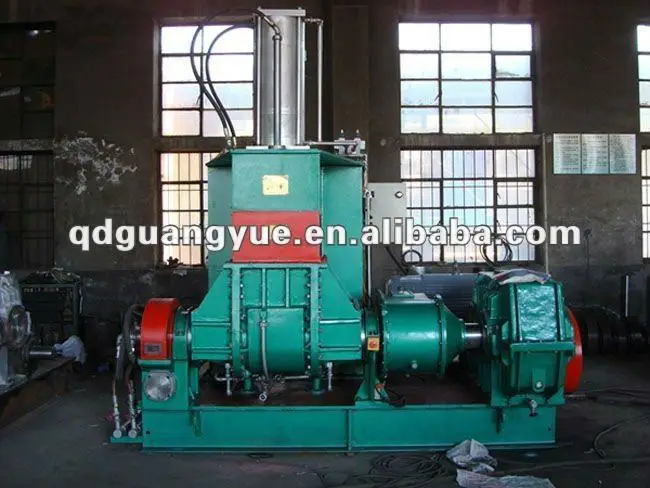

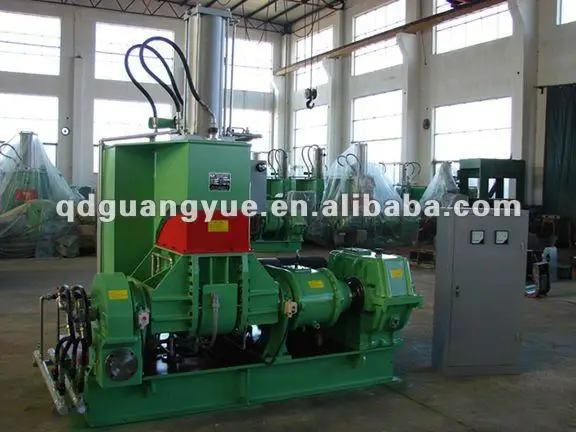

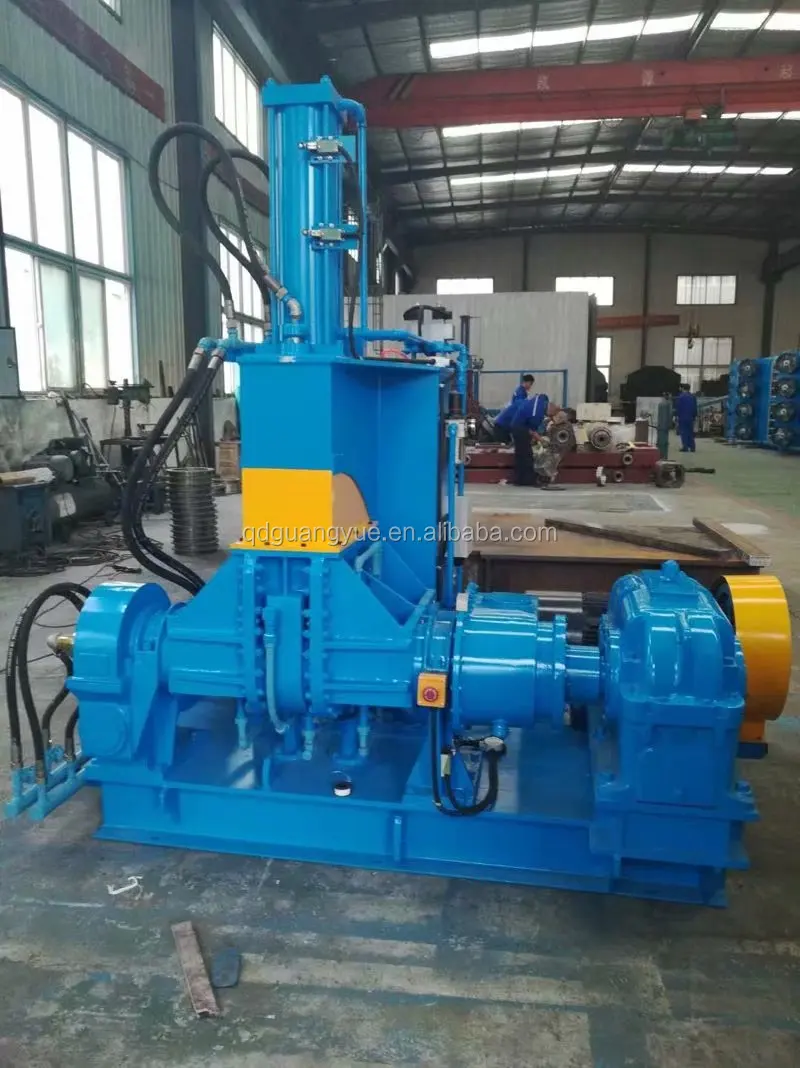

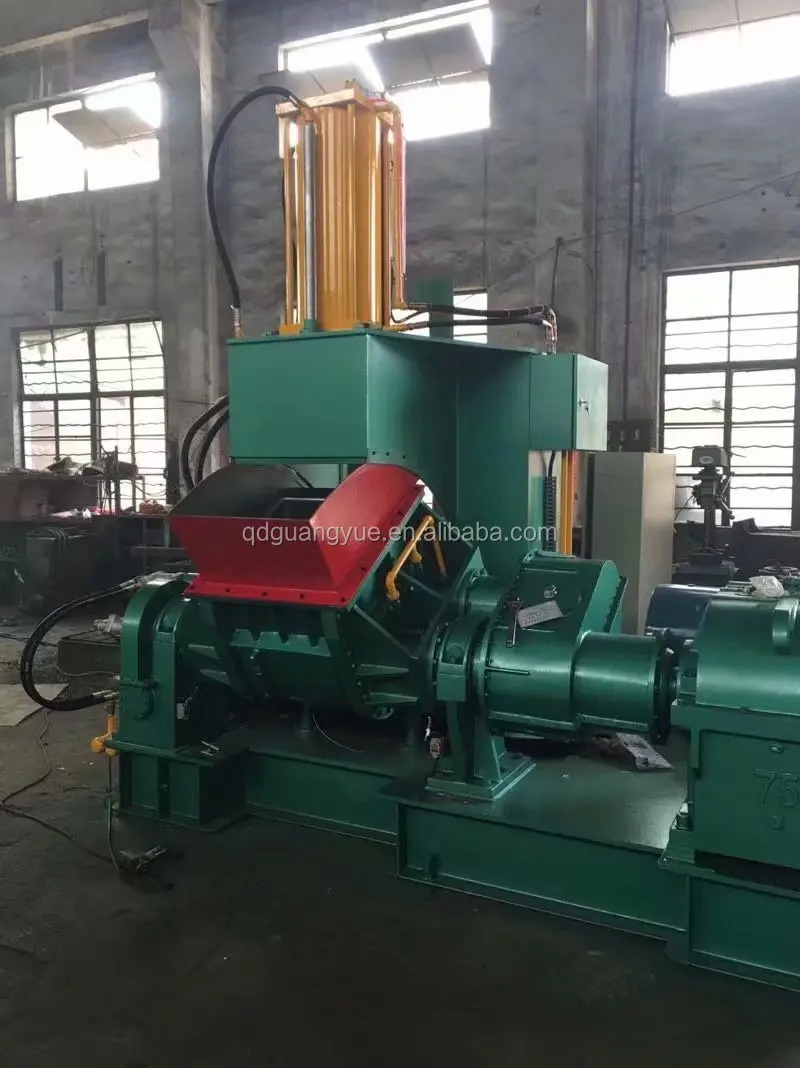

55L dough rubber kneader machine made in China
Features:
(1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
(2)No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
(3)Easy Cleaning & Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
(4)Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
(5)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.
(6)Construction

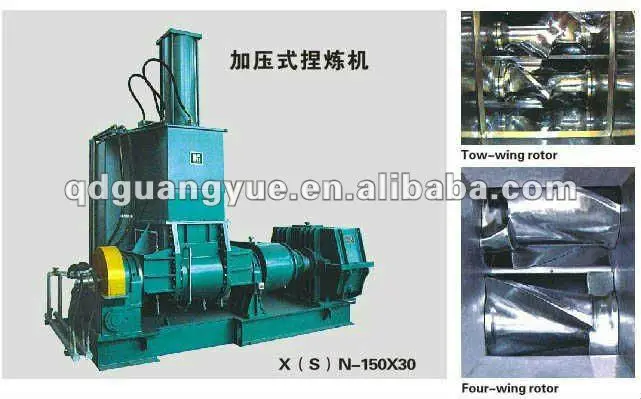

Mixing Chamber & Rotors: The mixing chamber is fabricated by alloy steel with W-shaped. The chamber is fitted with two rotary blades. The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating. The rotors are also made of special steel. The rotors are hard chromed, after the tips of the rotary blades are welded with stelite. These blades are coupled with rotary joints thus enabling to take steam or water.
Technical Parameter:
Parameters | VERSION | ||||
X(S)N-35/30 | X(S)N-55/30 | X(S)N-75/30 | X(S)N-110 | ||
Net chamber volume | 75 | 125 | 175 | 250 | |
Working volume | 35 | 55 | 75 | 110 | |
Front/back rotor friction ratio | 1.22 | 1:1.22 | 1:1.22 | 1.22 | |
Power | 55 | 75 | 110 | 160 | |
Main motor rotation speed | 985 | 985 | 985 | 985 | |
Turn angle | 140 | 140 | 140 | 140 | |
Size | 3200*1900*2950 | 3750*1950*3050 | 3760*2143*30500 | 3930*3000*3660 | |
Weight(kg) | 6500 | 7800 | 10000 | 16000 |
Qingdao guangyue rubber machine manufacturing Co.,ltd is one of the important backbone of enterprises in rubber machinery industry in China. It is one member of Shandong Machinery Union Company. The company owns powerful technical strength, advanced tchnics, the best design and strict quality guarantee system, which owns a high reputation in China rubber machine industry.
We have long-time business relations with seveal up-gread factorys for years in China. So we can find all the rubber machine you need in condition that you purchase lots of different machines , for your convenient and the price is considerate for you .
The main products are hydraulic press, rubber mixing mill, dispersion kneader, bale cutter, rubber machine, tyre machine, inner tube press, reclaimed rubber machine and rubber powder machine,etc.
All of the products are designed visually by three-dimension cad design, quikly built module, limited element analysis, analogue action and interfering inspection with certificates: CE , ISO9001 , SGS
Our machines share the markets in whole China and most countries and areas in all world, such like Kazakhstan, Uzbekistan, Russia, the United Kingdom, the United States, Germany ,etc.
We have customers in many countries,such as Europe and the United States,
Malaysia,Vietnam, India, South America and many other countries.
All the product are CE,ISO,SGS Approved
u Services of pre-sales :
1. Free Inquiry and consulting support about machine.
2. Sample send overseas support.
3. Factory visit arrangement in advance.
u Service of visit to factory and company:
1. Transportation :
We will pick you up in Qingdao liuting airport or qingdao train station with our own business car when you come.
We see you off in the airport or trian station when you leave .
2. Accommodation :
We will offer the meal for free all the time in your during time in our factory .
3. Business and language support :
We offer a Interpreter and experienced technologists around you all the time .
4. Entertainments :
I offer you free sightseeing tour in famous tourist resorts around the world in Qingdao after business talking if you like . One to two days .
In a conclude ,the only thing you need to do is pay your hotel here , other things you need not to worry about .
u Services of During-seles :
1. Design target machines up to your special requirements and send the drawing to confirm.
2. Take photos and videos to you for your information during process.

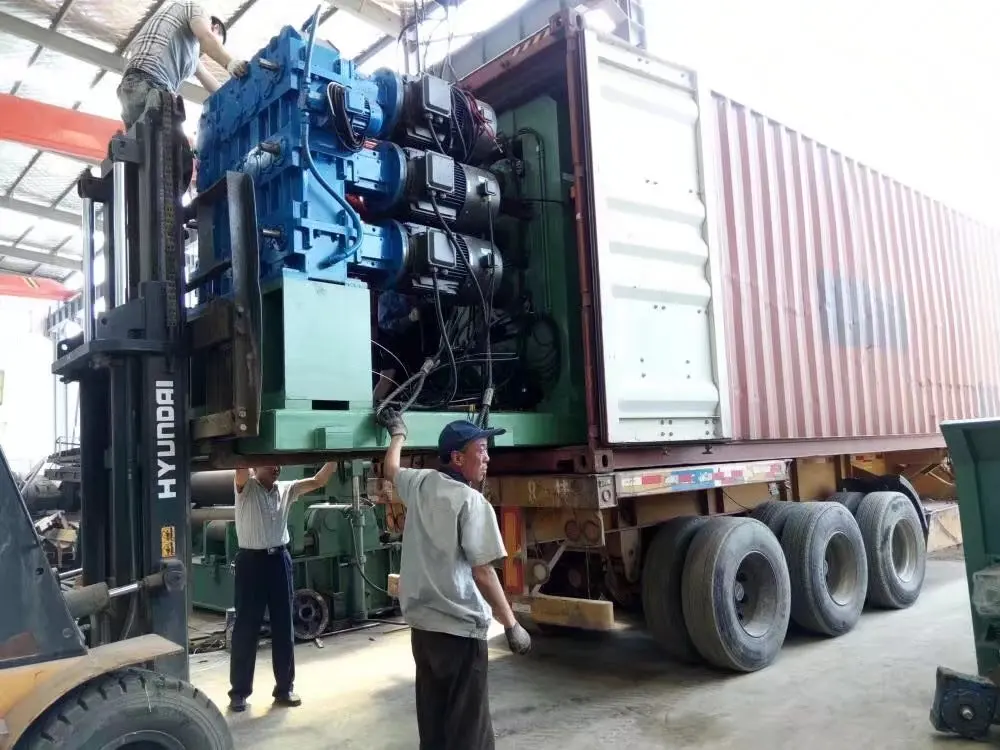

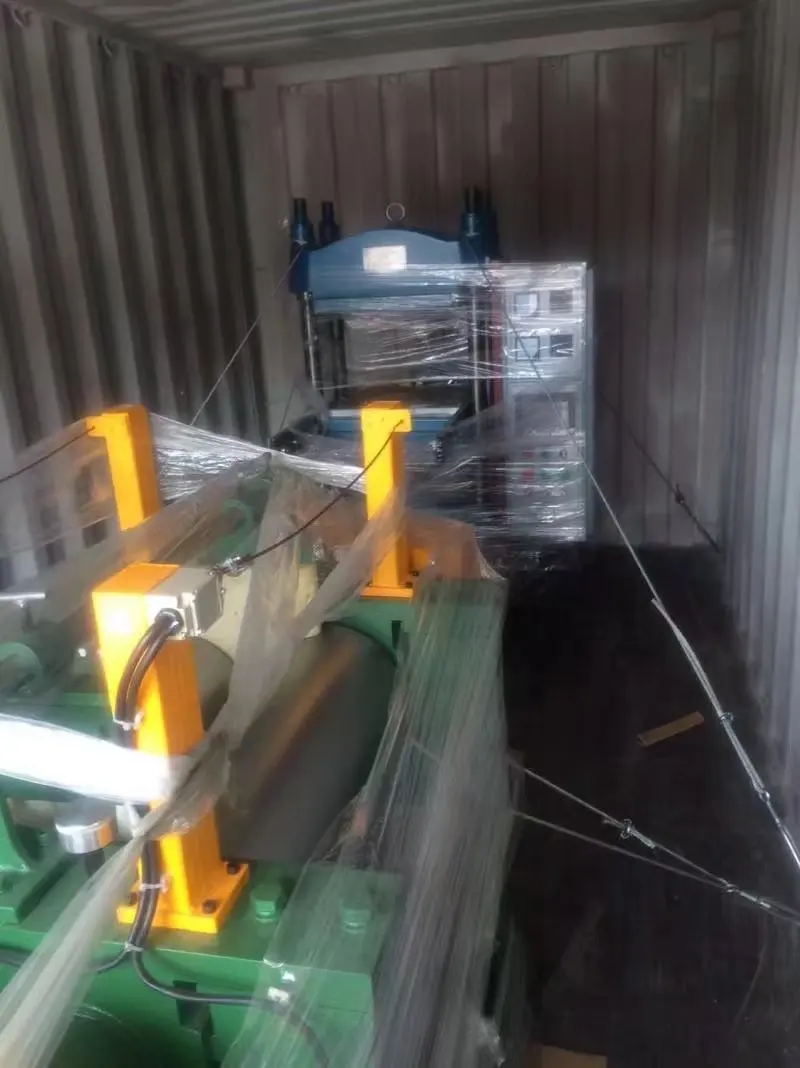

3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent in time after the delivery.
4. Free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. Test Machine Before Delivery, you only need to connect the wires to the outside the control cabinet.
6. Test running: The machines must pass inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection.
u Services of After-sales :
1. Training how to instal the machine, and how to use the machine.
2. overseas technical support , door to door .
2. Warranty: 2 years after installation
