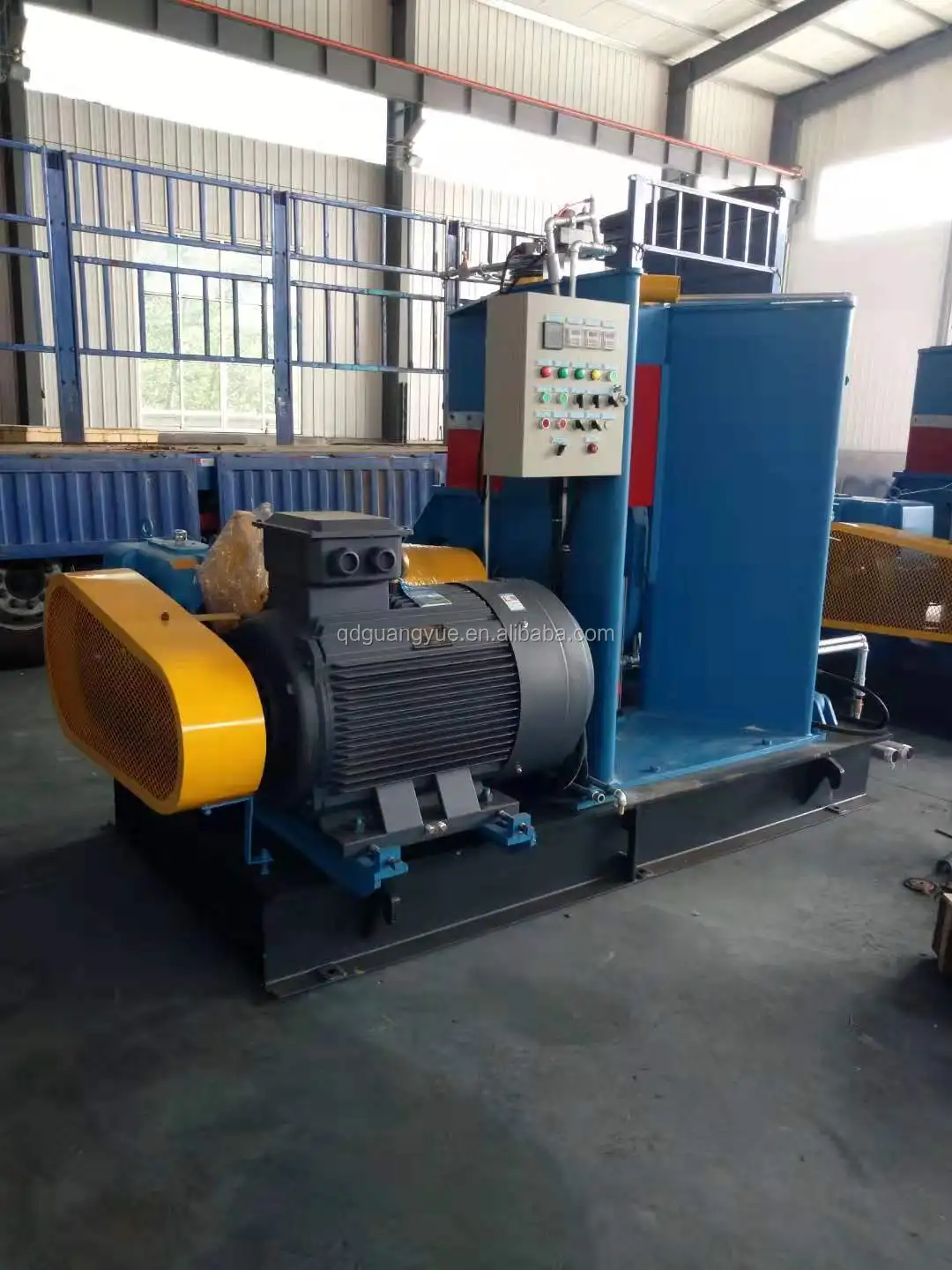

35L internal rubber dispersion kneader machine / rubber kneader mixer made in China



Features:
(1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

(2)No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.

(3)Easy Cleaning & Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made without trouble.

(4)Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.

(5)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

(6)Construction

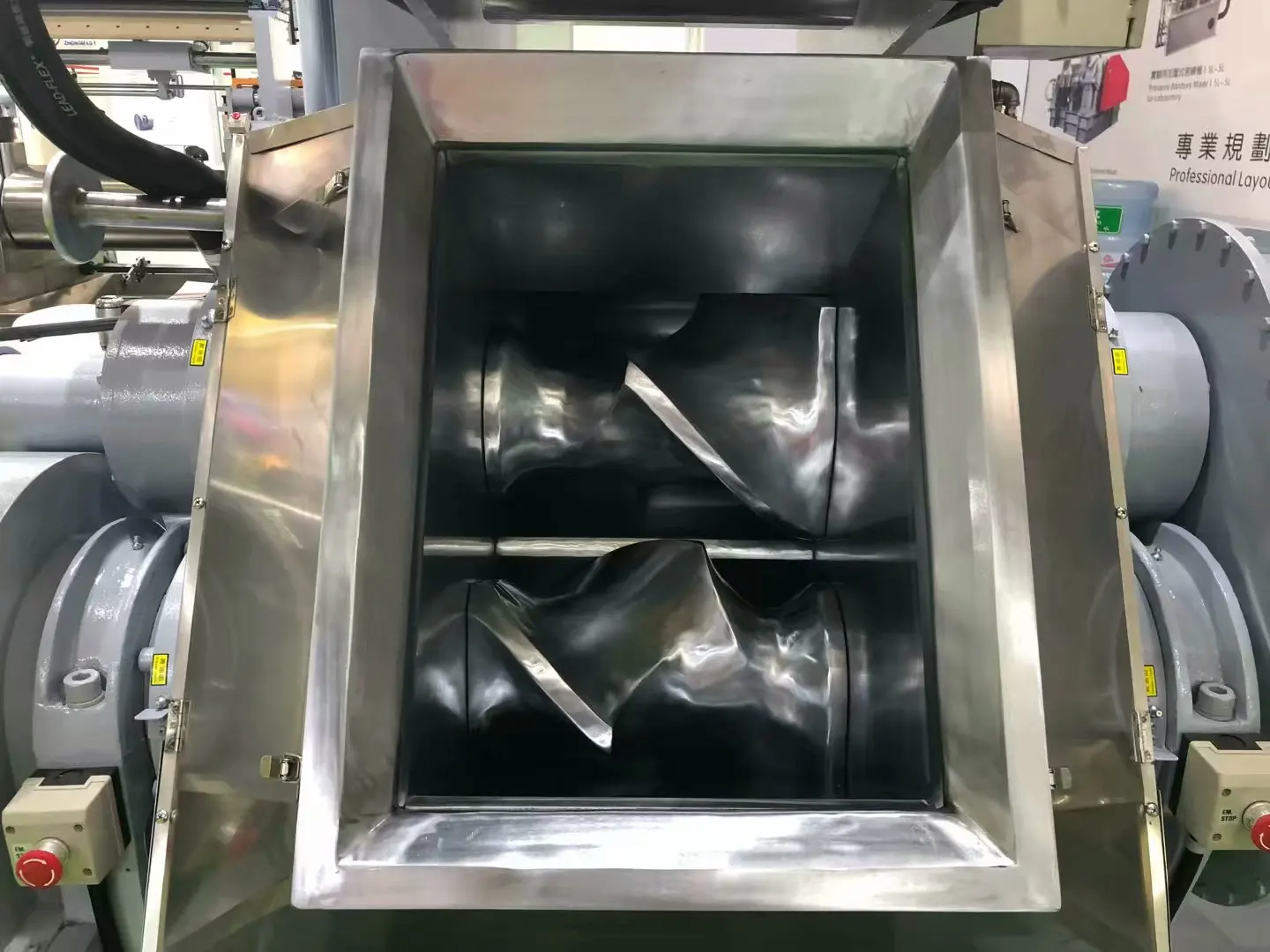

Mixing Chamber & Rotors: The mixing chamber is fabricated by alloy steel with W-shaped. The chamber is fitted with two rotary blades. The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating. The rotors are also made of special steel. The rotors are hard chromed, after the tips of the rotary blades are welded with stelite. These blades are coupled with rotary joints thus enabling to take steam or water.



 Technical Parameter:







Parameters	VERSION
	X(S)N-35/30	X(S)N-55/30	X(S)N-75/30	X(S)N-110
Net chamber volume	75	125	175	250
Working volume	35	55	75	110
Front/back rotor friction ratio	1.22	1:1.22	1:1.22	1.22
Power	55	75	110	160
Main motor rotation speed	985	985	985	985
Turn angle	140	140	140	140
Size	3200*1900*2950	3750*1950*3050	3760*2143*30500	3930*3000*3660
Weight(kg)	6500	7800	10000	16000
