RKL-02 Multiple output signal LCD display radar level transmitter
RKL-02 Radar Liquid Level Transmitter antenna emits extremely narrow microwave pulse. At the speed of light transmission in the space, the pulse reaches measured medium surface, some of its energy reflected back and received by the same antenna. Time interval between sending and receiving impulse and its speed is proportional to the distance from the antenna to measured medium surface. It can work with RK600-01 data logger or other general-used recording instruments.
FEATURES
- Small beam Angle, the energy concentration, strong anti-interference,high
- accuracy and reliability
- Range of up to 70 meters, covering large reservoir and other water level
- measurement
- Good stability
- Multiple output signal is optional
- Transmitted power is extremely low, no harm to human body and environment
- Easy Installation
APPLICATIONS
- River water level measurement
- Lake water level measurement
- Shallow water level measurement
- Hydrographic survey
- Environmental protection
SPECIFICATIONS
| Item | Technical specifications |
| Range | 10m,30m,50m,70m 70m |
| Output | 4-20mA, RS485(MODBUS-RTU) |
| Supply Voltage | 12VDC,24VDC,220VAC |
| Process connection | G1_1/2,support flange |
| Working frequency | Range <30m:6.8GHz , Range >30m<70m:26GHz |
| Accuracy | ±3mm |
| Display | 128*64LCD display resolution:1mm |
| Relay alarm | 250VAC/30VDC@5A Optional |
| Ingress Protection | IP67 |
| Medium temperature | -40~+150℃ |
| Medium pressure | -100~100kPa |
| Operating Temperature | -40℃~ +85℃ |
| Housing material | Aluminum alloy |
| Antenna material | 304ss |
| Shock | 10m/s²@10~150Hz |
| Storage Condition | 10℃-50℃@20%-90%RH |
Detailes Show :
Buying Guides
In order to recommend proper products to you, please tell me your information below:
1. What’s your testing medium ? -- water, waste water, oil, alcohol or dust.
2.What’s your medium temperature ? -- The standard is -40℃~ +150℃. If special demands, please specify.
3.Is there any pressure in the testing medium ? -- If yes, please specify the estimated pressure.
4.What’s your testing range ? -- It is 30m or 70m optional with different price.
5.What’s your required output signal ? -- It is 4-20mA or RS485 optional.
6.What’s your required power supply ? -- The standard is 24V. If you have other special demands, please specify.
7.What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
8.What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
9.Do you need LCD Display ? -- optional with different price.
10.Quantity?
11.Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
12.Your complete company name,address, post code,contact person, tel, fax etc.
 Submersible Level Sensor |  Ultrasonic Level sensor |  Data logger |
Testimonial
In order to recommend proper products to you, please tell me your information below:
1. What’s your testing medium ? -- water, waste water, oil, alcohol or dust.
2. What’s your medium temperature ? -- The standard is -40℃~ +150℃. If special demands, please specify.
3. Is there any pressure in the testing medium ? -- If yes, please specify the estimated pressure.
4. What’s your testing range ? -- It is 30m or 70m optional with different price.
5. What’s your required output signal ? -- It is 4-20mA or RS485 optional.
6. What’s your required power supply ? -- The standard is 24V. If you have other special demands, please specify.
7. What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
8. What’s your required process connection ? -- The standard is G1/2M, if you have special demands, please specify.
9. Do you need LCD Display ? -- optional with different price.
10. Quantity?
11. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calculation.
12. Your complete company name,address, post code,contact person, tel, fax etc.
Our applications
Company Information
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
Похожие товары

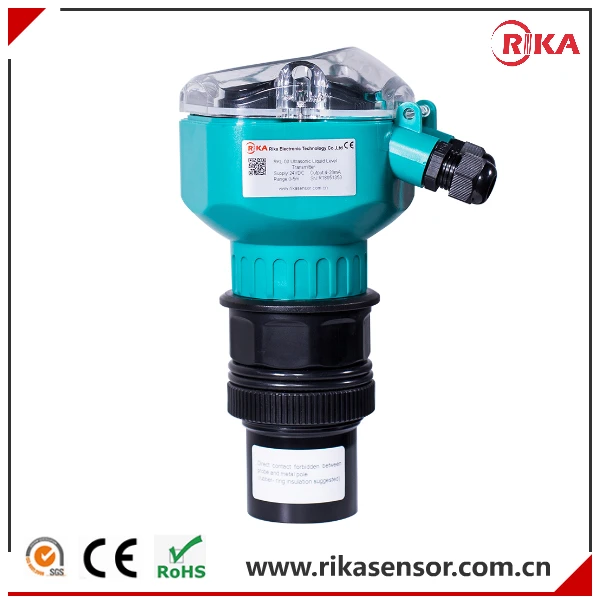

4-20 мА ультразвуковой датчик уровня для измерения резервуара для воды
