Product Description

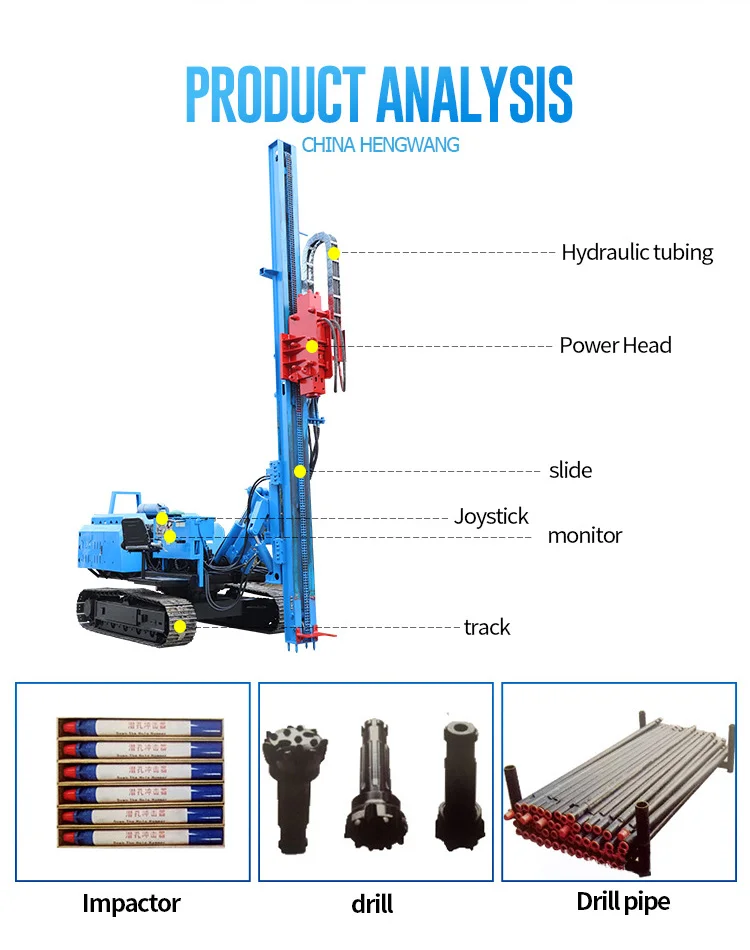

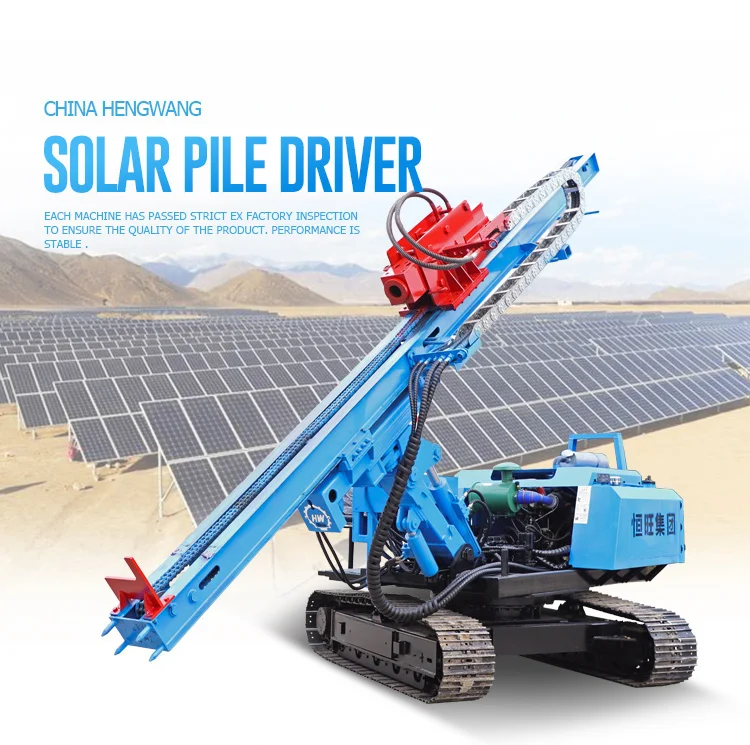

Rotary pile driver drop hammer piling machine solar pile driver price

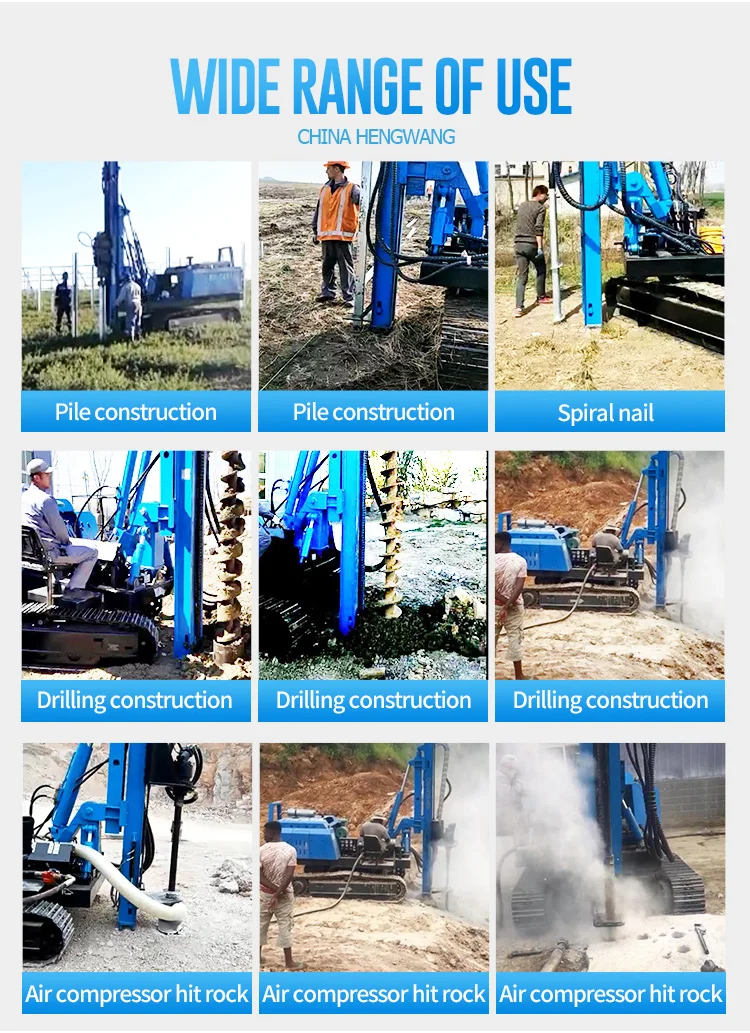

Rotary pile driver drop hammer piling machine solar pile driver price is mainly used for photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Product number | HWL300R |
Hydraulic hammer model (mm) | 75/85/100 optional |
Hydraulic hammer flow (L/min) | 50-110 |
Impact frequency (bmp) | 350-800 |
Drill rod diameter (mm) | 75/85/100 |
Walking motor torque (N.m) | <11500 |
Pile height (mm) | According to the slide |
Sliding guide frame inclination angle (°) | (Left) 5(Right) 5 |
Frame rotation angle (°) | 360 |
Hydraulic system pressure (mpa) | 22 |
Gear pump displacement (ml/r) | 40+40+25 |
Traveling speed (km/h) | 3 |
Vehicle weight (kg) | 6200 |
Engine power (kw) | 85 |
Engine rated speed (r/min) | 2600 |
Track shoe width (mm) | 350 |
Track single (section) | 42 |
Rotary pile driver hydraulic jack-in piling machine solar pile driver price
Main Features
1. There is no limit to the shape of the pile, just change the pile cap.
2. Easily operation, High-efficiency, Energy-saving.

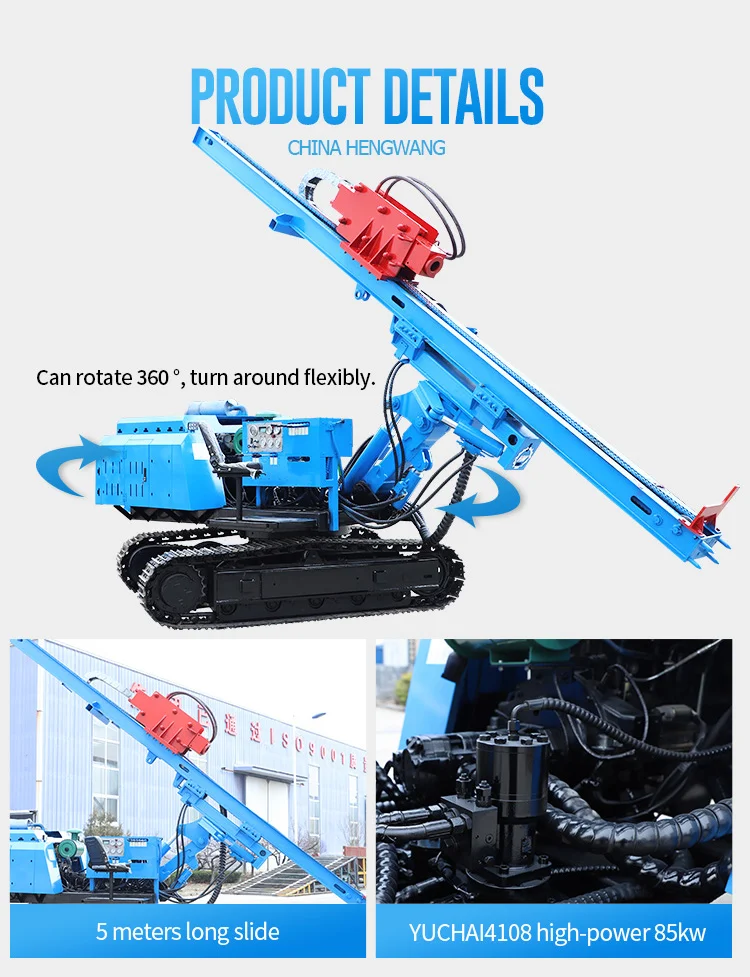

3. Can achieve 360 degrees rotation.
Packing & Delivery
Packaging: As per your requirements.
Shipping: 1. professional goods shipping forwarder;
2. port: Shanghai, Qingdao, Dalian, Ningbo.
Delivery: within 3-5 days after receiving the payment
