Shineco 16 CH DVB-T2/S2 to 16 frequency DVB-C QAM Transmodulator
---Latest Price please contact skype ID:nancydvb
Product Description
Outline
SNK6172C is a high performance and cost-effective QAM modulator designed by Dexin. It has 16 DVB-C (DVB-T/T2/S/S2, ATSC, ISDB-T optional) FTA tuner input to 16 non-adjacent carrier output with multiplexing, scrambling and QAM modulating included. It also supports maximum 512 IP input port and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports.
SNK6172C is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.
Key Features
* 16 DVB-C (DVB-T/T2/-S/S2, ATSC, ISDB-T Optional) FTA Tuner + 2 ASI input+512 IP (GE1 only) input over UDP and RTP protocol
* 16*DVB-C RF output
* Excellent RF output performance index, MER≥40db
* Support 16 groups multiplexing+16 groups scrambling +16 groups QAM modulating
* 1 IP(MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Support Web management, Updates via web
* Redundancy Power Supply (optional)
Specification
Input | 16 DVB-C (DVB-T/T2/-S/S2, ATSC, ISDB-T optional) FTA Tuner | |||
512 IP (GE1only)input over UDP and RTP protocol | ||||
2 ASI input, BNC interface | ||||
Tuner Section | DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | |
Frequency In | 30 MHz~1000 MHz | |||
Constellation | 16/32/64/128/256 QAM | |||
DVB-T/T2 | Frequency In | 30MHz ~999.999 MHz | ||
Bandwidth | 6/7/8 M bandwidth | |||
DVB-S/S2 | Input Frequency | 950-2150MHz | ||
Symbol rate | QPSK 2~45Mbauds QPSK 1~45Mbauds 8PSK 1~45Mbauds | |||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
Demodulation Mode | QPSK, 8PSK | |||
ISDB-T | Input Frequency | 30-1000MHz | ||
ATSC | Input Frequency | 54MHz~858MHz | ||
Bandwidth | 6M | |||
Multiplexing | Maximum PID Remapping | 128per input channel | ||
Function | PID remapping (automatically or manually) | |||
Accurate PCR adjusting | ||||
Generate PSI/SI table automatically | ||||
Scrambling Parameters | Max simulscrypt CA | 4 | ||
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | |||
Connection | Local/remote connection | |||
Modulation | QAM Channel | 16 | ||
Standard | EN300 429/ITU-T J.83A/B | |||
MER | ≥40db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RF output level | -20~+10dbm(87~107 dbµV),0.1db step | |||
Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepping | |||
Constellation | 16/32/64/128/256QAM | |||
| J.83A | J.83B | ||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
System | Remote management | Web NMS(10M/100M) | ||
RF Out | 16 DVB-C output | |||
IP Out | 1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only) As mirror of one carrier | |||
Language | English and Chinese | |||
Software Upgrading | Web | |||
General | Dimension (W*D*H) | 482mm×300mm×44.5mm | ||
Weight | 3.7kg | |||
Temperature | 0~45℃(Operation) ; -20~80℃(Storage) | |||
Power | AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ | |||
Consumption | 25W | |||

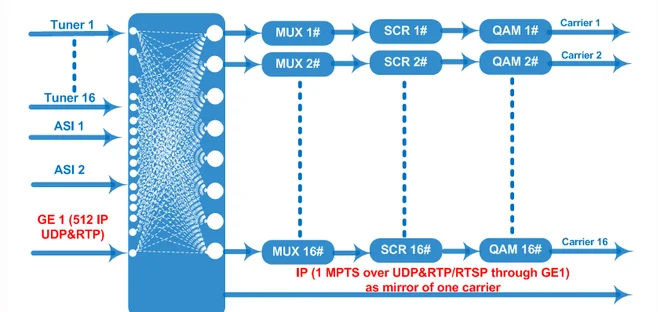

Principle Chart for DVB-S2 to DVB-T transmodulator

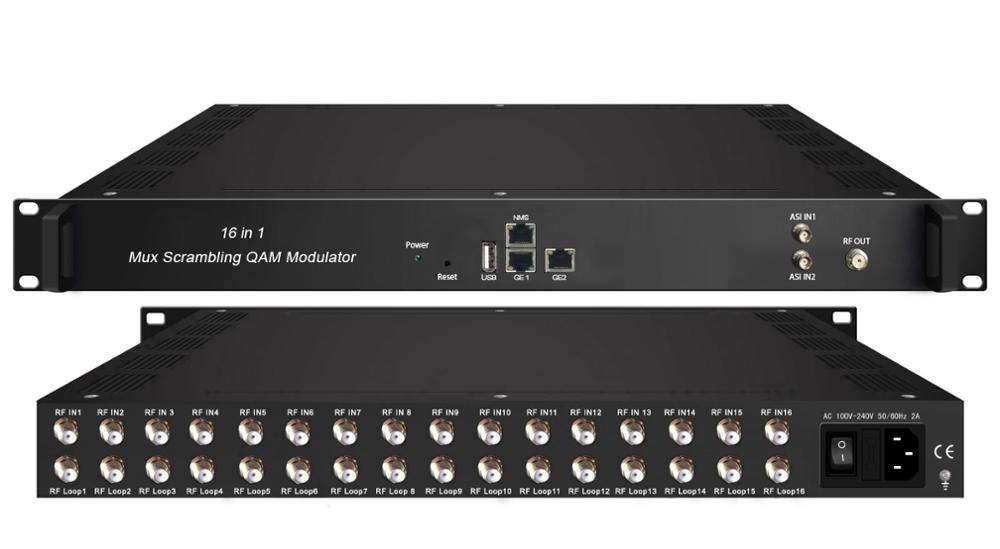

Closed Photo for DVB-S2 to QAM transmodulator
Typical Applications for DVB-S2 to QAM transmodulator
Company Information
About Shineco company advantage?
Chengdu Shineco Technology Company is above 11 years experience in Digital TV headend
DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services.
These added values make our products more worthy.
Shineco Team members are kind and warmly enough to help you find the best solution for your project and market,
we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve
a win-win situation in the future cooperation.
FAQ
FAQ For Shineco
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement, sample are not free charge.
Sample Delivery will take approximately 1-3 working days after payment received,bulk order lead time is about 5-15 days based on your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company in alibaba,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order:
Send your requirement to Nancy email or add skype: nancydvb for details or invoice.
Packaging & Shipping

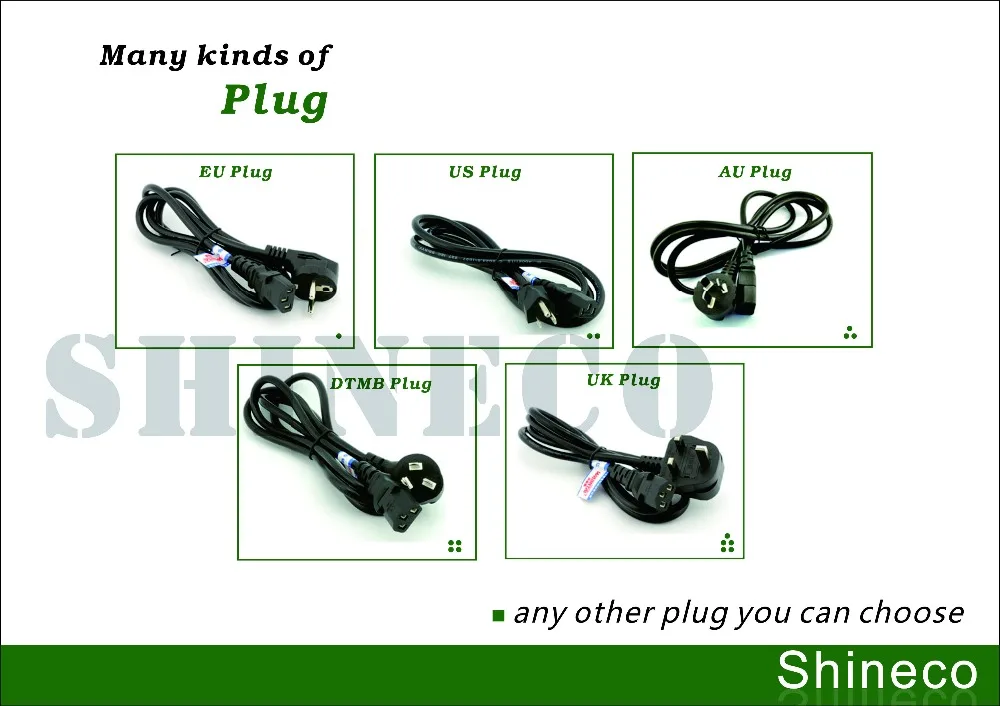

About the Packing and Power Plug:
1.By express, DHL/FEDEX/UPS/TNT/EMS for your choose
2.By Air for bulk goods, you pick up at Airport.
About the Solution and Construction
