Oxygen Flow Meter

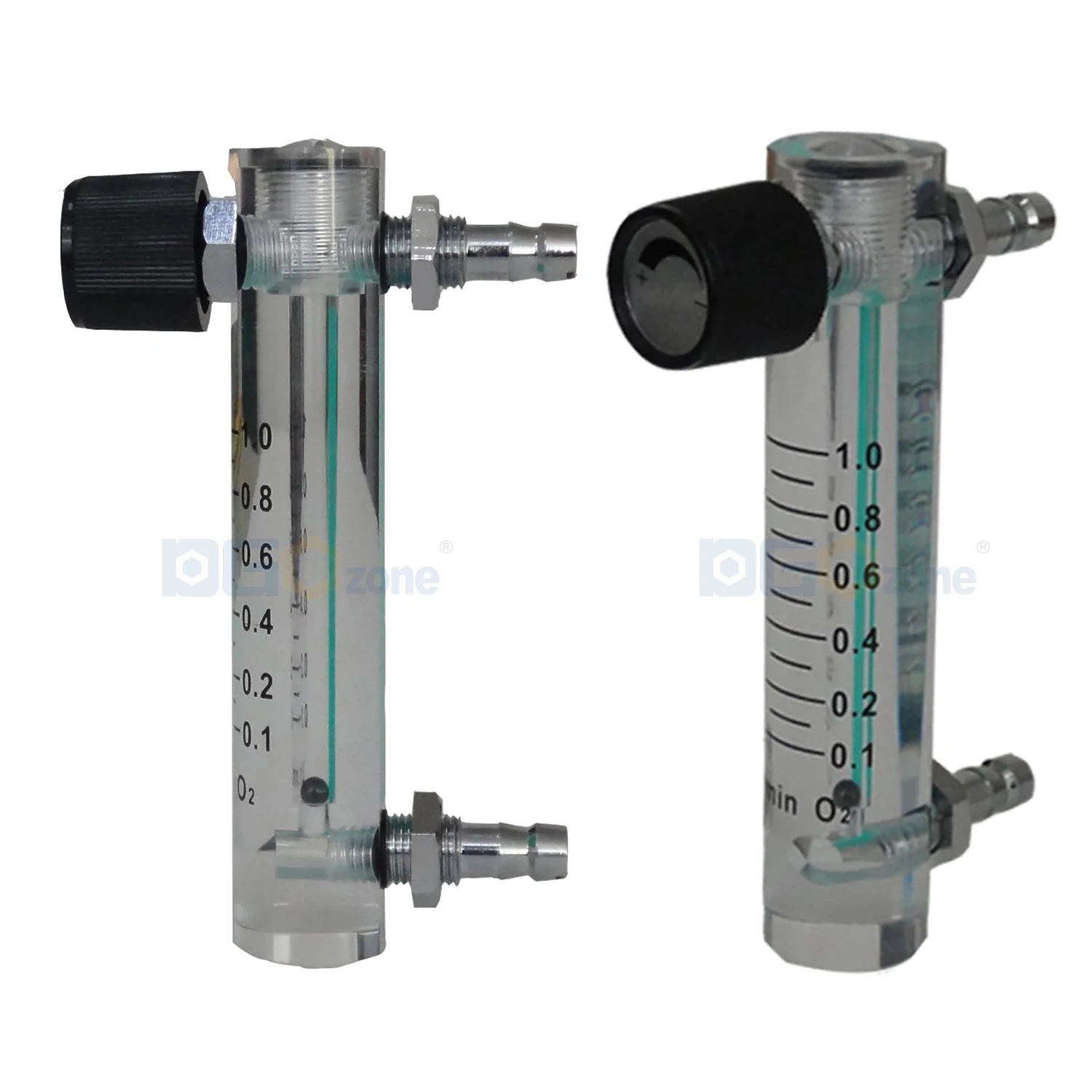

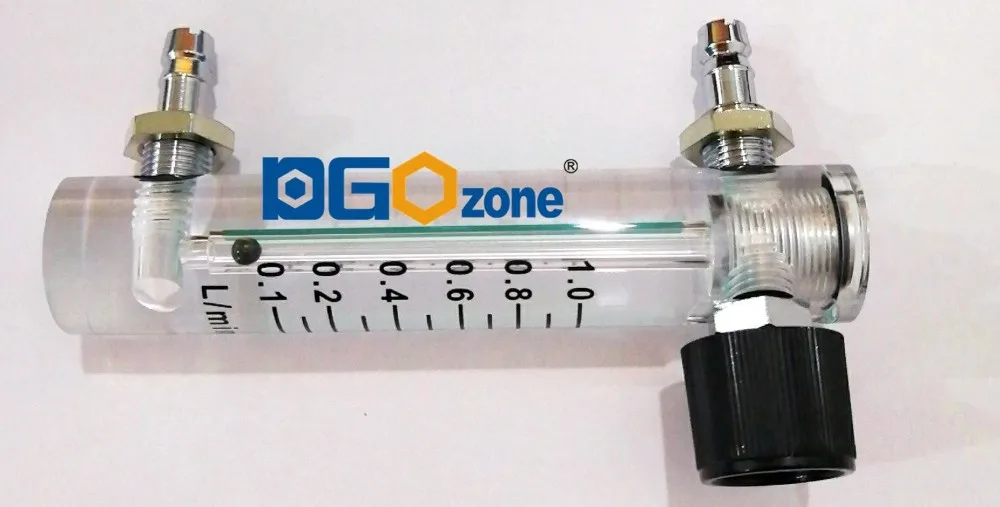

KH-OF0510 (0.5-10 L/Min) Panel oxygen flow meter with valve
KH-OF0510 (0.5-10 L/Min) Panel oxygen flow meter can be used for medical equipments, with adjustable valve, simple, compact and portable. Besides, 316L stainless steel regulating valve and brass fastening screw make it durable.

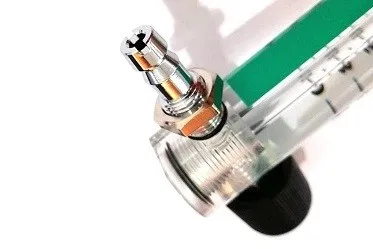

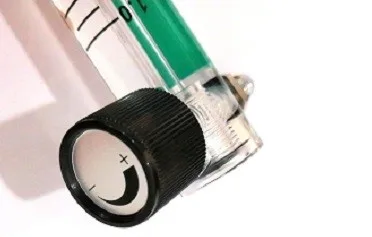

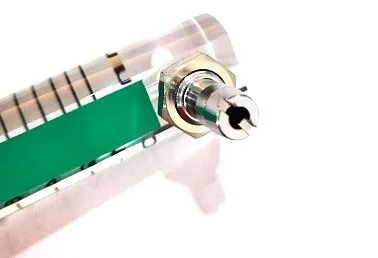

Detailed Images






Body Material: Acrylic







O-ring Material: NBR











Regulating Valve: 316L stainless steel









                          Fastening Screw: Brass




Flow Meters


--------------------------------------- Air or Water Flow Meters ----------------------------------






Model/Items
Measuring range
Medium
Remark
KHL-08A01M-V
1~10SCFH/0.5~5LPM




Air







With Valve
KHL-08A02M-V
2~20SCFH/1~10LPM
KHL-08A04M-V
4~40SCFH/2~20LPM
KHL-08A08M-V
10~80SCFH/4~40LPM
KHL-08A10M-V
10~100SCFH/5~50LPM
KHL-08A20M-V
20~200SCFH/10~100LPM
KHL-0802M-V
2-20L/H


Water
KHL-0804M-V
4-40L/H
KHL-0806M-V
6-60L/H
KHL-0810M-V
10-100L/H
A). Accuracy: ±4%FS
B). Multiplicity: ±0.25%FS
C). Maximum pressure: 1MPa/150psig
D). Maximum temperature: 80℃/176°F
E). Basal body: Acrylic
F). Float ball: 316L
G). Guide rod:316L
H). Fastening Screw:Copper
I). O-ring: Silicon rubber



----------------------------------------- Oxygen Flow Meters---------------------------------------





Models/Items
Measuring range
Medium
Remark
KH-OF05
0-5 L/Min





Oxygen





With Valve
KH-OF15
1-5 L/Min
KH-OF011
0.1-1 L/Min
KH-OF210
2-10 L/Min
KH-OF0510
0.5-10 L/Min
KH-OF0514
0.5-14 L/Min
KH-OF425
4-25 L/Min
A). Accuracy: ±5%
B). Body: Acrylic
C). Float ball: Agate
D). O-ring: NBR
E). Nozzle: Brass
F). Fastening Screw:Brass
G). Regulating valve: 316L stainless steel


FEATURES

1) Low installation costs with easy mounting .
2) Long operation life with durable construction.
3) Precision molding enables high repeatability.
4) White back on the flow tube allows for better visibility of the float increasing reading accuracy .
5) Side printed scale graduations allows for instantaneous flow reading saving time.
6) Compact bodies require minimal panel space freeing valuable space.



APPLICATIONS

• Medical equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging Detailed Image



Plastic Rotameter


Big measuring range water flow meter plastic rotameter 3000l/h water flowmeter







Different type and size to choose




Diameter(mm)

Model
Measuring range
Long Tube
Short Tube





15





KHL-ZS15
2-20L/H
5-50L/H
10-100L/H
10-100L/H
16-160L/H
16-160L/H
25-250L/H
25-250L/H
40-400L/H
40-400L/H
60-600L/H
60-600L/H

100-1000L/H


25


KHL-ZS25
100-1000L/H
100-1000L/H
160-1600L/H
160-1600L/H
250-2500L/H
250-2500L/H
300-3000L/H
300-3000L/H

32

KHL-ZS32

0.4-4m³/H

0.6-6m³/H

1-10m³/H






Model
Size (mm)
Match
with
Hose
(mm)
Long Tube
Short Tube
L
D1
D2
L
D1
D2
KHL-ZS15
280
20
45
202
20
45
15 or 20
KHL-ZS25
380
32
68
226
32
60
25 or 32
KHL-ZS32



288
40
74
32 or 40
