Product Description
1. Tungsten Milling Tools 6 Flutes Uncoated Solid Carbide Reamer
2. 6 Flutes
3. 1mm-25mm / 1/16" to 3/4 "- Metric or Inch
4. DIN 6539 Standard
2. 6 Flutes
3. 1mm-25mm / 1/16" to 3/4 "- Metric or Inch
4. DIN 6539 Standard
5. Precision: High Precision
6. Suitable for: Wood, Plastic, Aluminum
6. Suitable for: Wood, Plastic, Aluminum
Detailed Images
1. Surface Uncoated
2. Strength2500-4000N/mm2 Controling ModeCNC
3. UsageMetal Chemical Composition6%-12%Co-WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.
9. Served industries: Aerospace,Transportation, Medical Equipment,Military Manufacturing,Mold Development,etc.
Specifications
Z(Teeth) | d1(mm) | d(mm) | I(mm) | I1(mm) | I2(mm) |
4.0 | 4.0 | 4 | 75 | 20 | 30 |
4.0 | 4.5 | 5 | 75 | 20 | 30 |
6.0 | 5.0 | 5 | 100 | 30 | 40 |
6.0 | 5.5 | 6 | 100 | 30 | 40 |
6.0 | 6.0 | 6 | 100 | 30 | 40 |
6.0 | 6.5 | 8 | 100 | 30 | 40 |
6.0 | 7.0 | 8 | 100 | 30 | 40 |
6.0 | 8.0 | 8 | 100 | 30 | 40 |
6.0 | 9.0 | 10 | 100 | 30 | 40 |
6.0 | 10.0 | 10 | 100 | 30 | 40 |
6.0 | 11.0 | 12 | 150 | 50 | 50 |
6.0 | 12.0 | 12 | 150 | 50 | 50 |
6.0 | 13.0 | 14 | 150 | 50 | 50 |
8.0 | 14.0 | 14 | 150 | 50 | 50 |
8.0 | 15.0 | 16 | 150 | 50 | 50 |
8.0 | 16.0 | 16 | 150 | 50 | 50 |
8.0 | 17.0 | 18 | 150 | 50 | 50 |
8.0 | 18.0 | 18 | 200 | 60 | 60 |
8.0 | 19.0 | 20 | 200 | 60 | 60 |
8.0 | 20.0 | 20 | 200 | 60 | 60 |

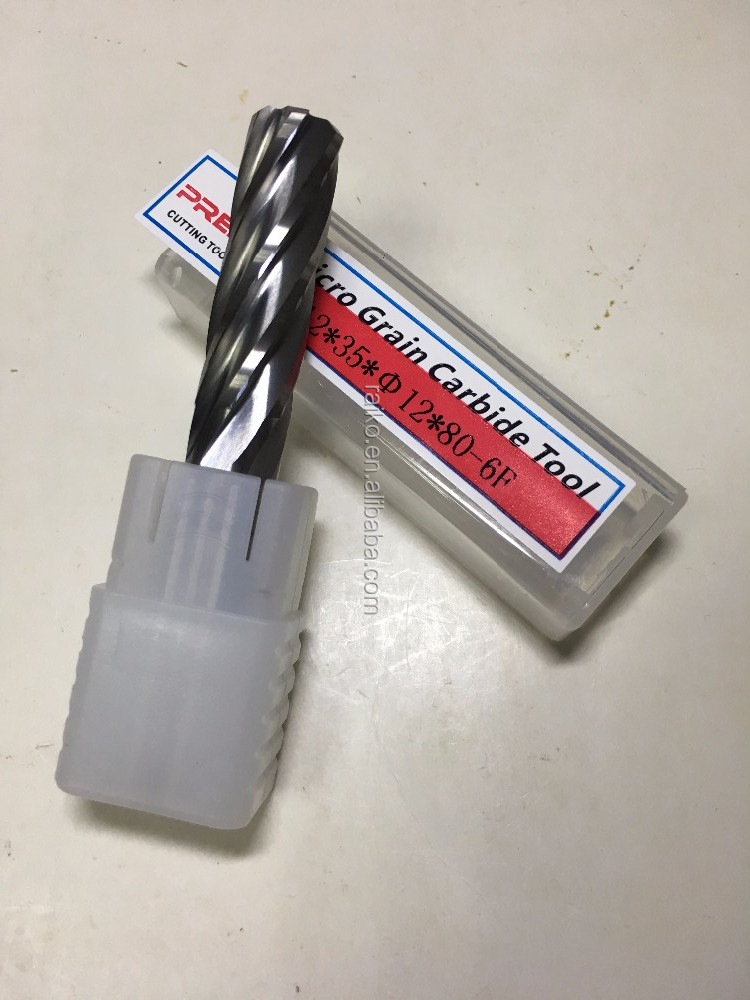

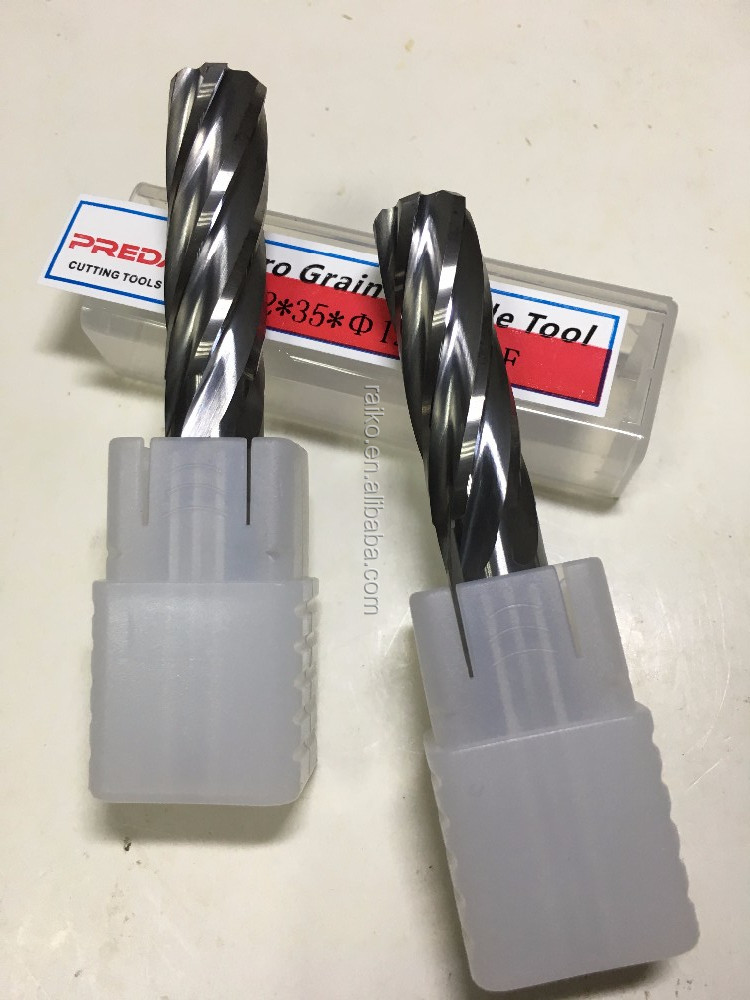

Product Image

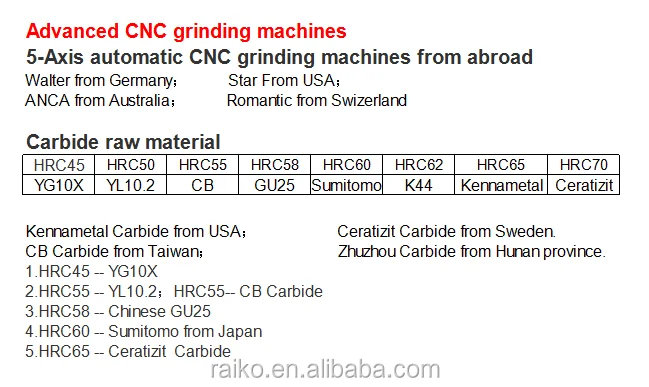

Raw materials
Packing & Delivery

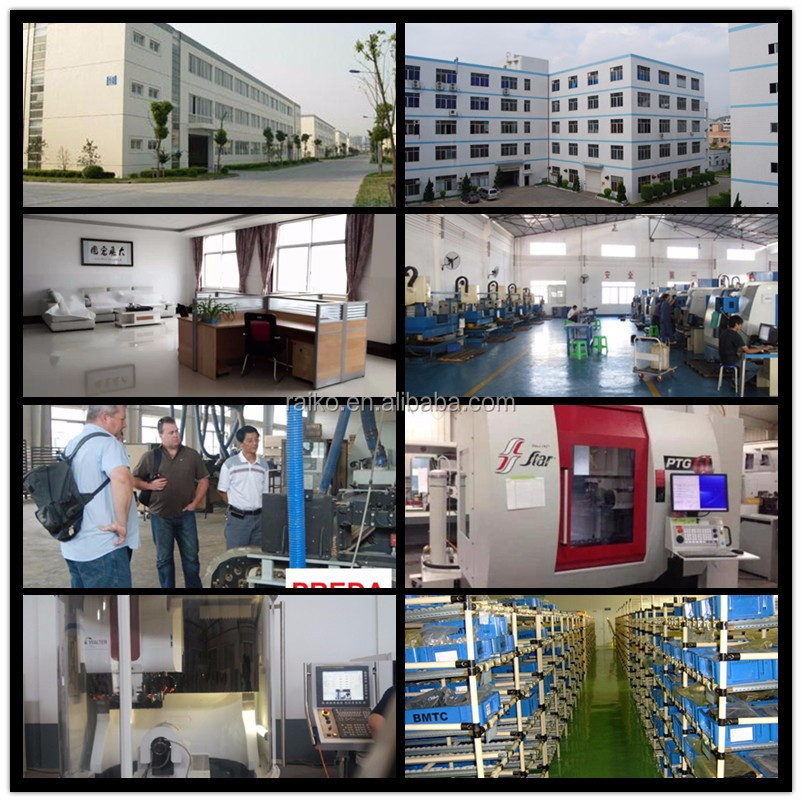

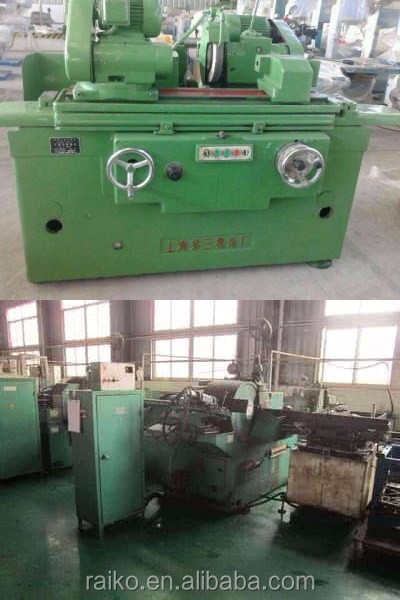

Factory Photo
Contact us
