Матрица 4x4 16 клавиш поли купольная мембранная переключатель клавиатура для электронных
- Категории: Keypads & Keyboards >>>
- Поставщик: Etouch,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
Front View

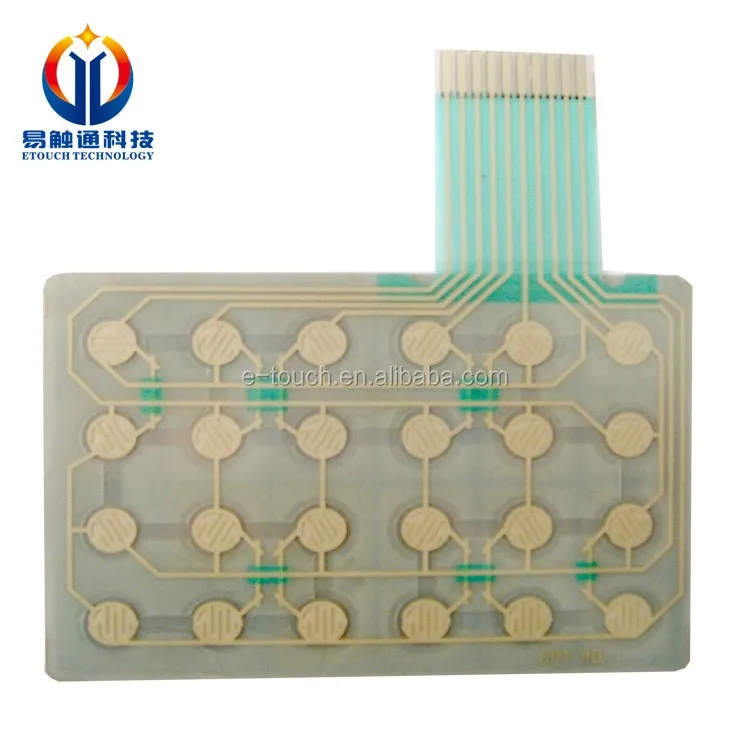

Poly dome+lower circuit
Back View
4X4 matrix 16 keys Poly dome membrane switch keypad for electronic scale | ||||||
1.Electrical Properties | ||||||
Electrical Level: | 35V(DC), 100mA,1W | |||||
Contact Resistance: | 10Ω~500 Ω | |||||
Insulation Resistance: | 100MΩ/100V | |||||
Dielectrics Voltage-resistance: | 250VRms（50~60Hz 1min） | |||||
Chattering Time: | ≤ 5ms | |||||
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | |||||
Tail Folding: | R>1,180 | |||||
2.Mechanical Properties | ||||||
Operating Force: | Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz) | |||||

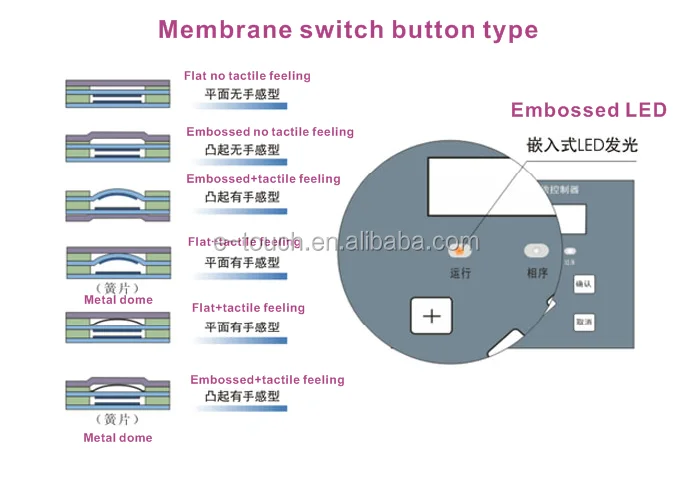

Switch Stroke: | Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm | |||||
3.Environmental and Storage Conditions | ||||||
Operation Temperature: | -40°C ~ +80°C | |||||
Storage Temperature： | -40°C ~ +70°C | |||||
Humidity: | 40°C, 90%~95%, 240 hours | |||||
Customer feedback

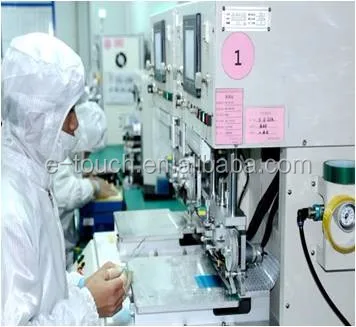

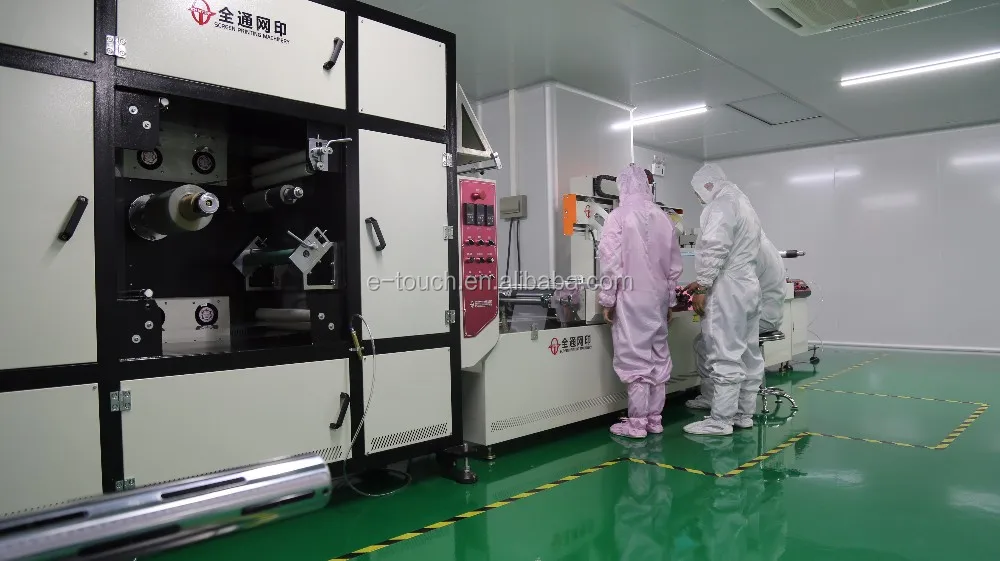

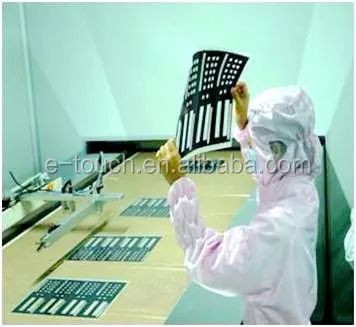

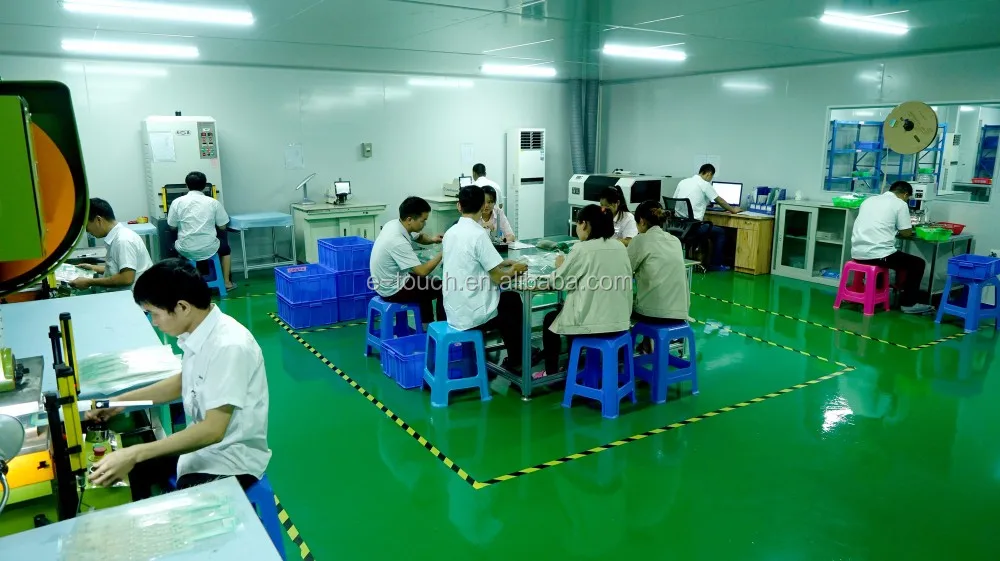

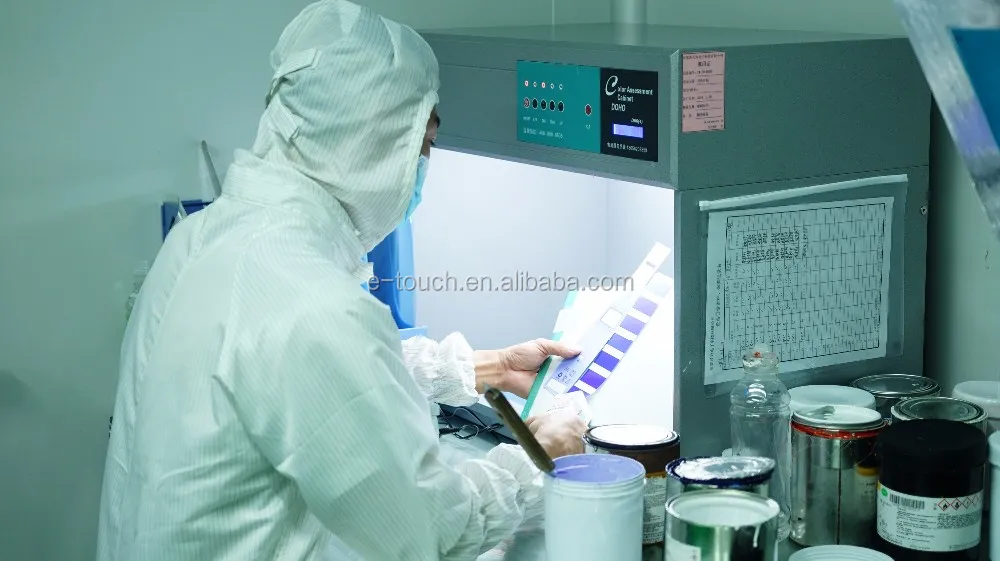

Our Factory

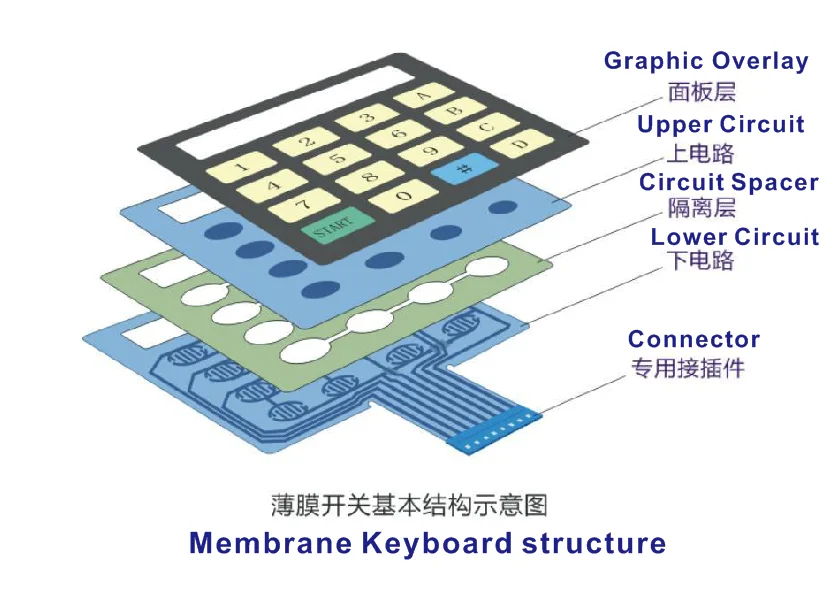

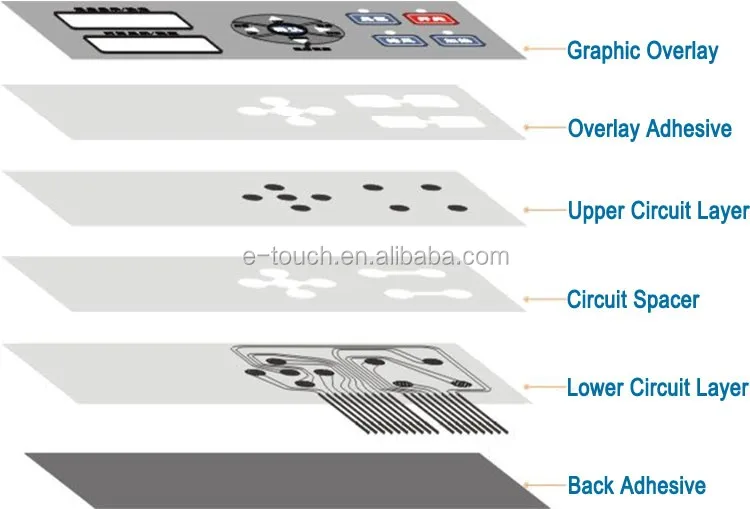

What is Membrane Switch

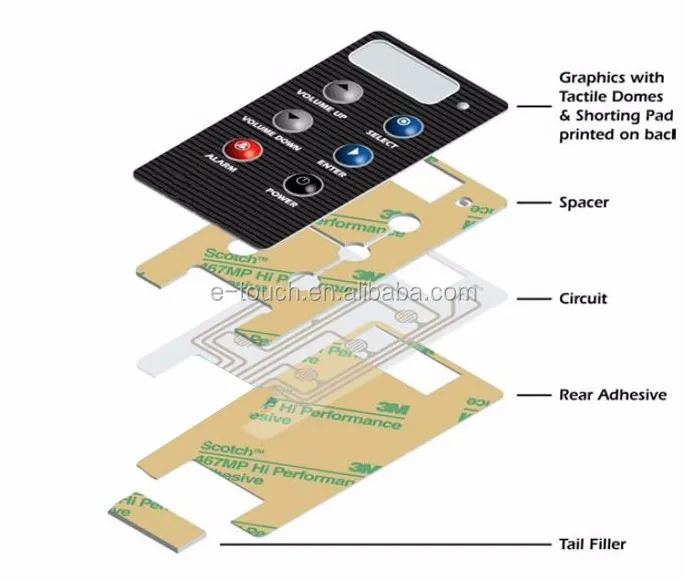

A membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhensives. The upper-most layer, called a graphic overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate film. Membrane switches can be constructed with multiple circuit layers, and more complicated graphic design features, such as domed key embossing. Designs that are more complex require, more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capablities to create the ideal custom user interface for their products.
Application
We have the capacity to provide 4X4 matrix 16 keys Poly dome membrane switch keypad for electronic scale, membrane switch panel with other special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard etc.
Instrument: Medical Instruments, Electric Instruments, Detecting Instruments, KIOSK, Teaching Instrument, Data Acquisition System, Electrocardiograph
Office Machines: Printer, Copier, Fax Machine, Projector, Entrance Guard Machine, Attendance Machine
Consumer Electronic: LCM/LCD, Computer/cell Phone, Digital Camera, Sound and Imaging Equipment, Electronic Toys, Remote Controller, Electronic Scale, Beauty Equipment

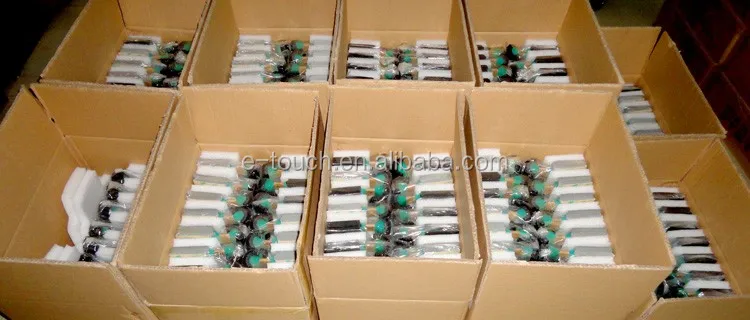

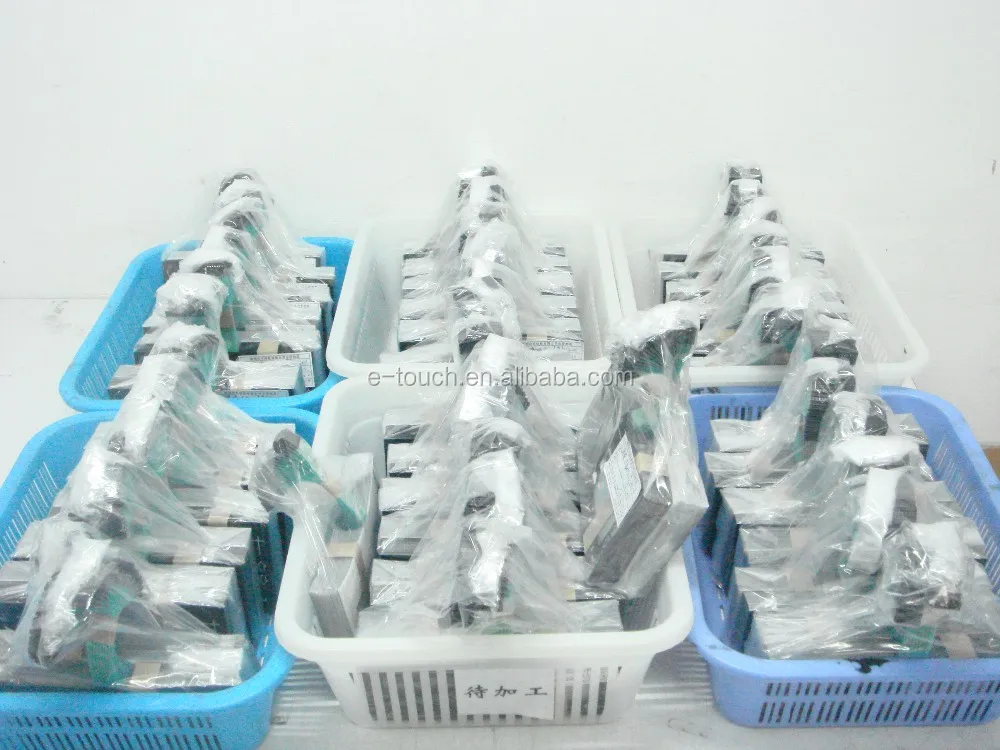

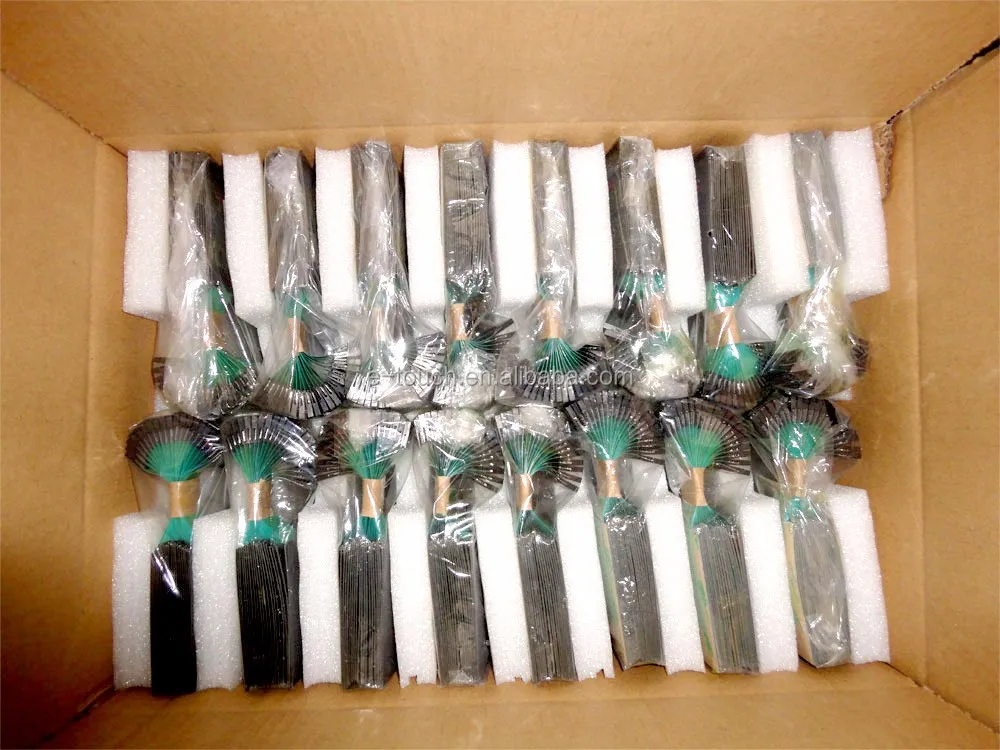

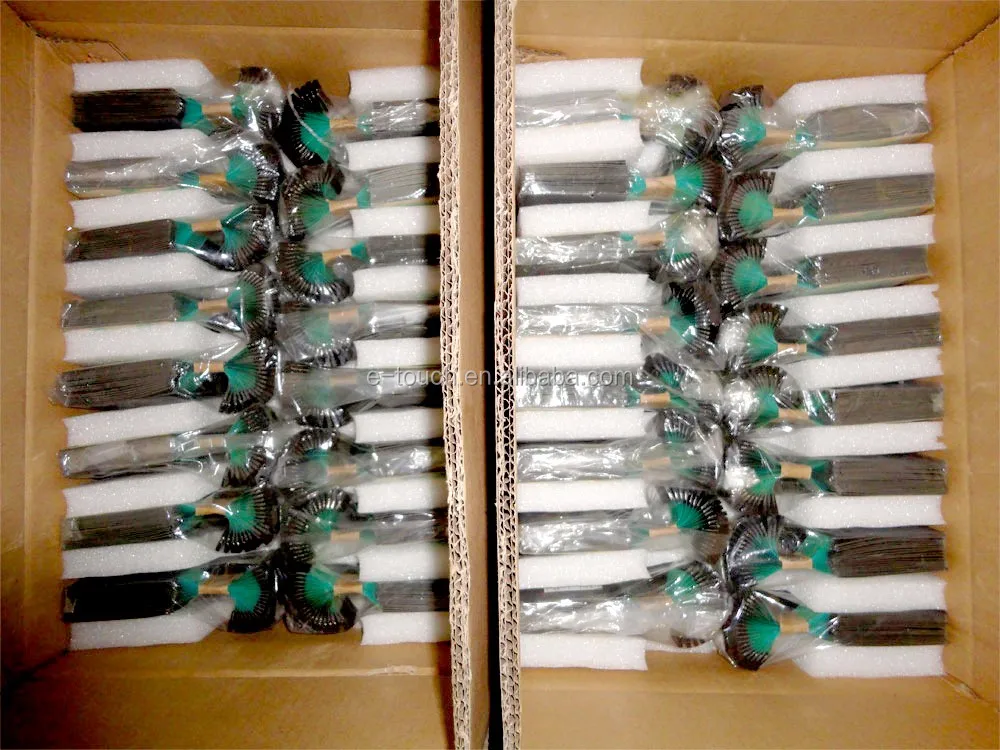

Packing & Delivery
