HD CCTV keyboard mouse switcher RS-232 IP control 8 Port USB HDMI KVM Switch
Product Description
This 8x1 HDMI KVM Switcher provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 8x1 HDMI KVM Switcher supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard
feature
l Using one USB console controls eight HDMI computer equipments
l Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
l Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
l Support auto switching to monitor computers in a specified time interval
l Support hot key commands and mouse gesture to switch inputs.
l Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch.
l Support keyboard and mouse smooth switch, no delay is introduced after switch channel.
l Support resolution up to 3840*2160@30Hz
l With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
packing list
Packing List:
1 * 8x1 HDMI KVM Switcher
1 * DC 12V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
specifitions
Model: | RS-232 IP control 8 Port USB HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | RS232 / IP | |
Technical: | ||
Resolution up | 3840x2160@30Hz | |
HDMI version | Yes | |
HDCP version | Yes | |
Auto to get EDID | Yes | |
Video bandwidth | 3 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |
Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 2 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | 3 Pins jack | |
LAN | 1xRJ45 | |
System ports | USB Data | 8 * USB Type B |
Video / Audio | 8 * HDMI Type A | |
ESD protection | Human body model - ±8kV | |
Mechanical: | ||
Chasing material | Metal | |
Product Dimensions | 415 (L) x 110 (W) x 45 (H) mm | |
Item Weight | 1800g | |

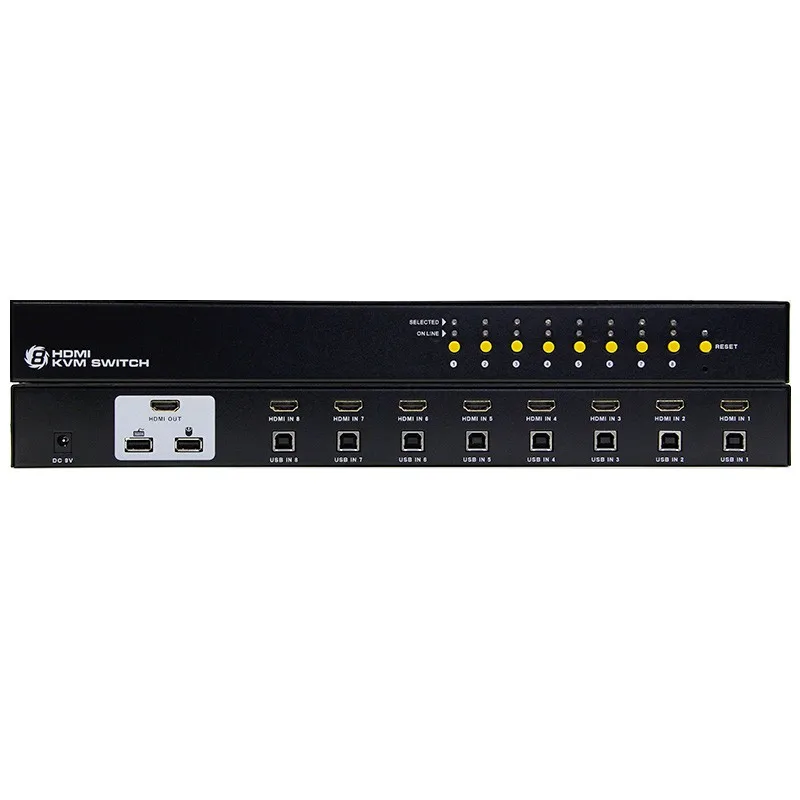

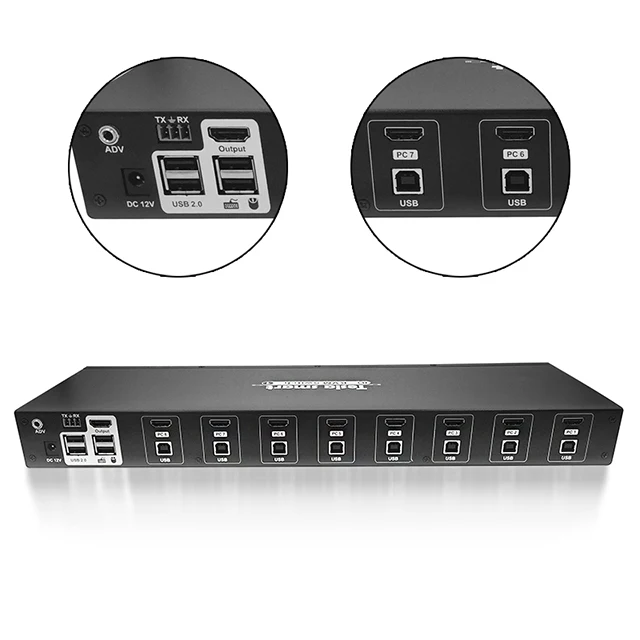

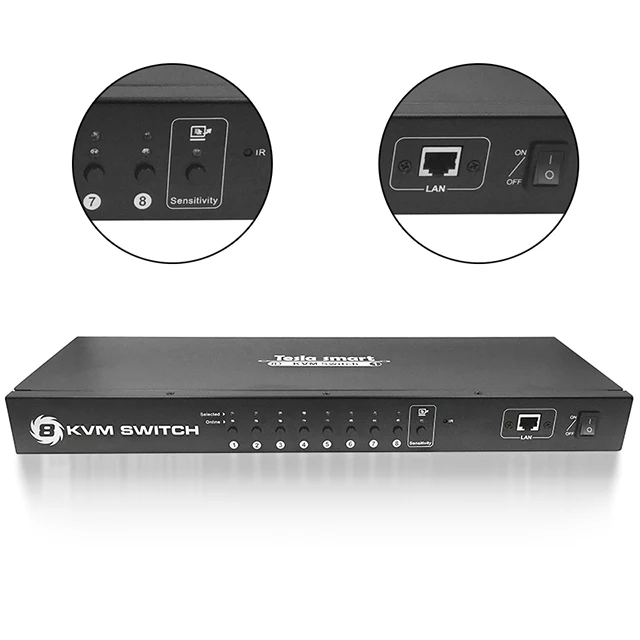

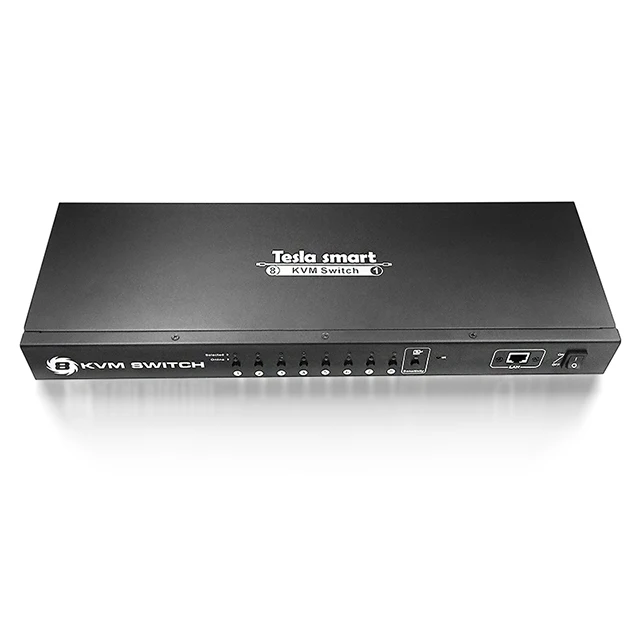

Product picture
Related Products
FAQ
- MOQ?
R: 10pcs
- Delivery date?
R: 3-5days after the payment confirmed
- OEM/ODM?
R: Welcome
- Sample Order?
R: Available
