1.Feature and Description

UM -1 is the basic thickness meter and UM-1D offers this special function, when there is oil paint on the surface of the object, the net thickness of the material can be directly measured without necessarily remove the paint.

General thickness measurement mode measures the thickness of an object by calculating the time difference T1 of the probe sending ultrasonic pulse to the object and the probe receiving the reflection from the first bottom echo(including the coating thickness).

Through coating mode measures the thickness of an object by precisely calculating the time difference T2 between two consecutive bottom echo (excluding the coating thickness).

UM series ultrasonic thickness gauge is extremely suitable for measuring the pipes about their thickness lose after corrosion.

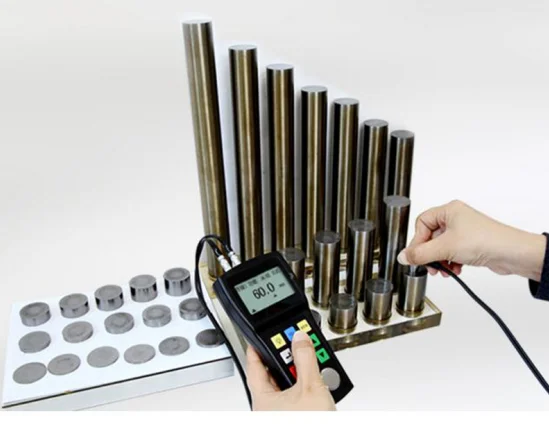

Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement.

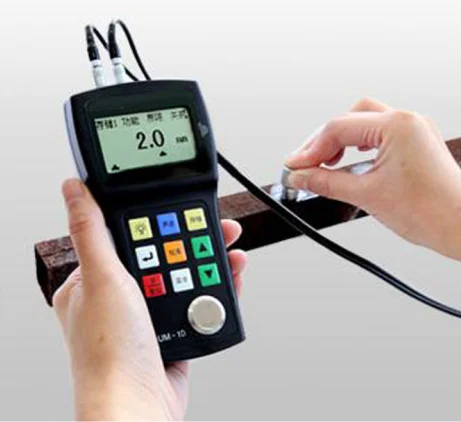

2.Picture for Our product

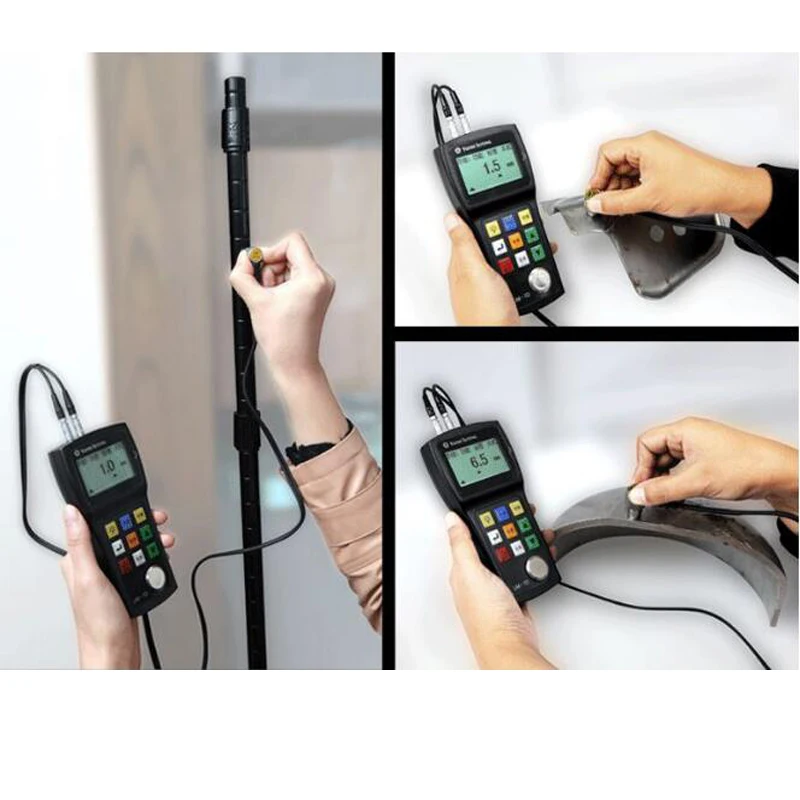

3.Usage and Application

It can measure the thickness of metal materials, high temperature pipes, pipes, plates (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials. Can be widely used in manufacturing, metal processing industry, chemical industry, commercial inspection and other testing areas, but also on the production equipment in a variety of pipes and pressure vessels to monitor their use in the process of monitoring the degree of corrosion after the reduction is Material protection necessary special equipment.

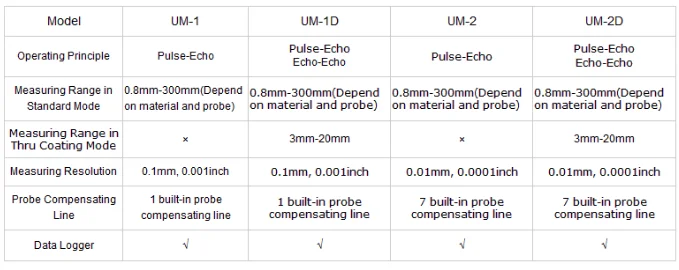

4.Technical data

5.Packing and Shipping

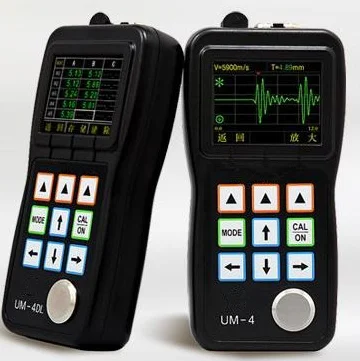

6.Related Product

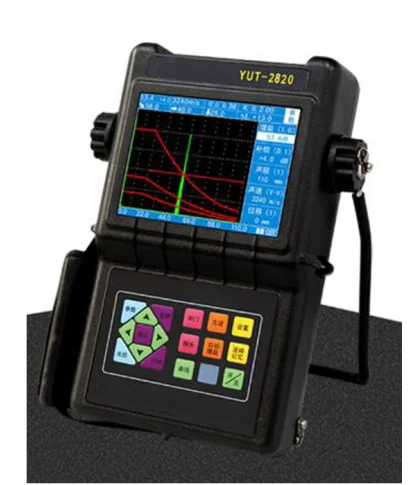

ultrasonic coating thickness gauge	ultrasonic flaw detector

1.Company Show

2.Factory Show

1.Certification

2.Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.

3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…

4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.

5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.

6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.

7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.

8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.

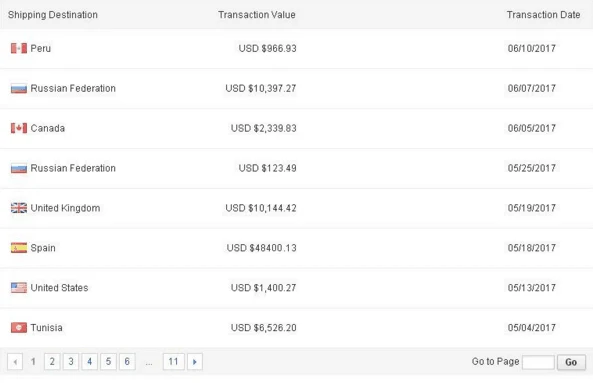

Transaction History
