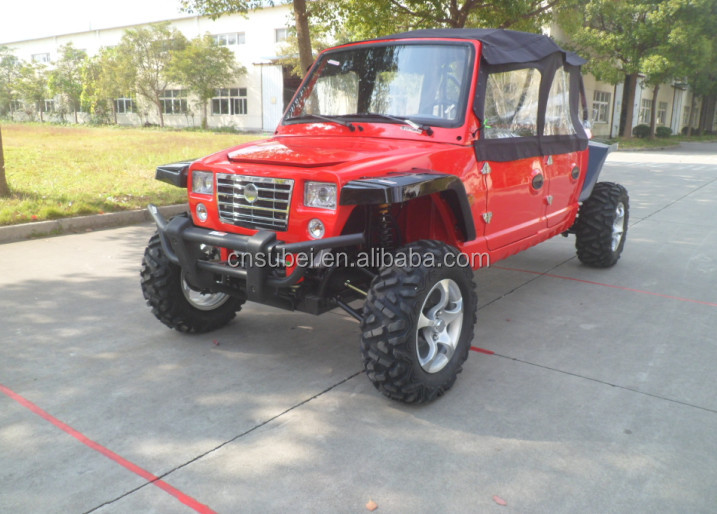

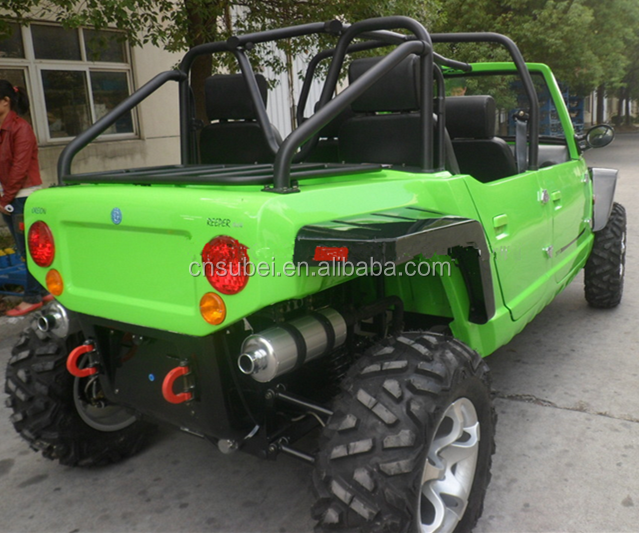

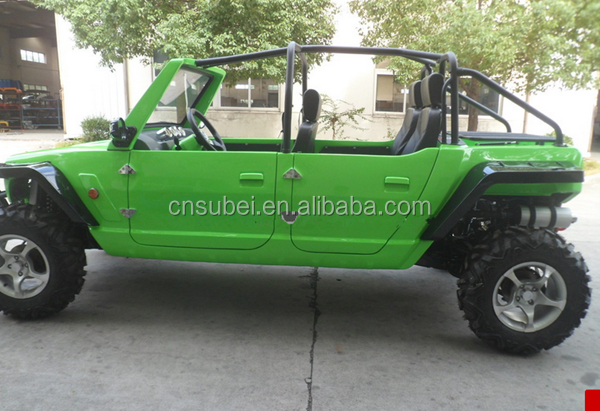

west potrs 800-1100cc 2/4seats UTV 4x4 for china

Model Type: SGJK800

Lubrication: SAE 15W-40/SF

Available Color: Black, Blue, Red, White

Transmission: 4-MT with reverse

Size: 3130mm x 1565mm x 1510mm

Maximum load: Double seats/250kg

Wheelbase: 2180mm

Fuel tank: 24L

Front track: 1360mm

Climbing: 25-30

Rear track: 1360mm

Top speed: 85km/h (or limited as customers request)

Ground clearance: 240mm

Front/Rear brake: Hydraulic disc, right foot control

Engine type: L3, 12 valves, DOHC

Front/Rear tire: AT27X8-14/AT27X11-14

Engine capacity: 800cc

Final drive: Shaft drive

Bore x Stroke: 72mm x 66.5mm

Carton size: 2950mm x 2115mm x 895mm

Corrected compression ratio: 9.5:1

Net weight: 580kg (EEC: 550kg)

Max output power: 39kw/6000rpm

Gross weight: 640kg

Max torque: 70Nm/3500-4000N.m/r/min

Quantity: 11pcs/40HQ; 4pcs/20GP

Starting: <10s

Optional parts: Electric winch,

MP3 with woofer, spare tire
