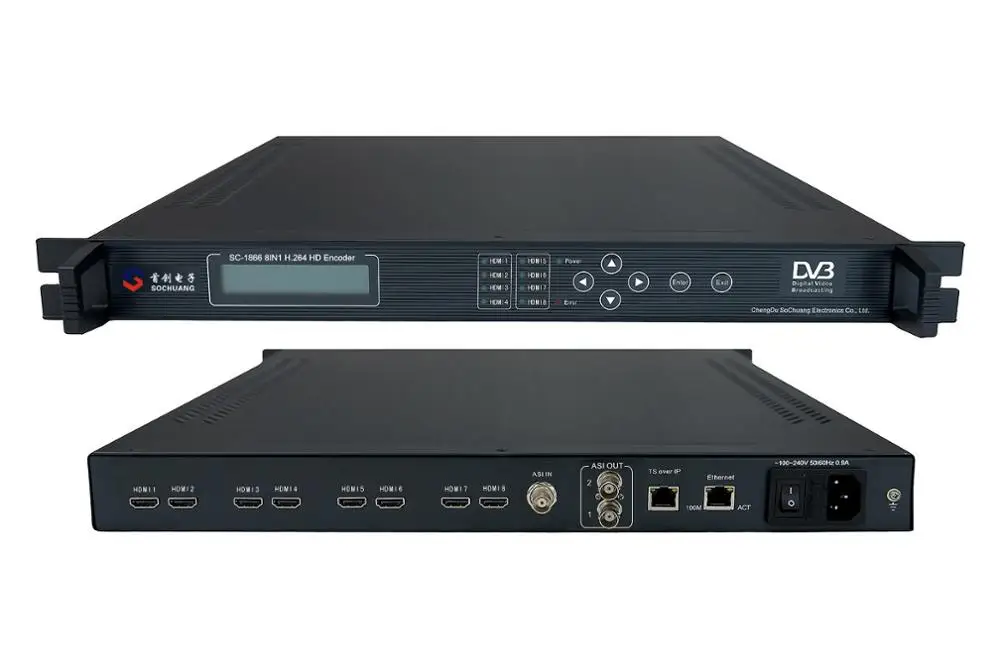

SC-1866 Cheapest H.264 8 channel HD hotel iptv live streaming full HD video encoder
Product Description
Overview
8IN1 MPEG-4 AVC/H.264 HD (High Definition) Encoder (with IP output) supports 8×HD and ASI input, and generates DVB transport stream (TS/ASI) and IP (TS over IP) output. It suits 1U rack and supports1080i, 720pand HDCP. Besides, it can be operated by both LCD/Keyboard and NMS (Network Management Software). Its high-integrated and cost-effective design makes it widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting and terrestrial digital TV, etc.
Features
H.264/MPEG-4 AVC High Profile Level 4.0 video encoding, advanced video pretreatment algorithm, MPEG-1 audio encoding
8×HD input
Support multiple HD formats including 1080P and 720p
LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input
8×HD
High Definition Multimedia Interface
Video Coding
4:2:0 encoding H.264 HP@L4 MP@L3
H.264 Adaptive Field Frame (AFF)
H.264 Field-Based (FB)
1920X1080X60/50i,1280x720X60p/50p
Standard
ISO/IEC14496-10(H.264/MPEG-4 AVC)
Audio
Bitrate
64, 128, 192, 256, 384Kbps
Property
MPEG-1Layer2
Sample Bitrate
32KHz,44.1KHz, 48KHz
Output
2×ASI
DVB standard,BNC interface
IP
IP/UDP (TS over IP, 1000M), SPTS/MPTS/Unicast/Multicast
Output Bitrate
1 to 20Mbps(4:2:0) per channel
Control
NMS(Ethernet port,RJ-45), Keyboard+LCD
General Features
Size
482mm×410mm×44mm
Temperature Range
0~45°C (Operation);-20~80°C (Storage)
Power
100-240VAC, 50Hz, 25W
Network Management

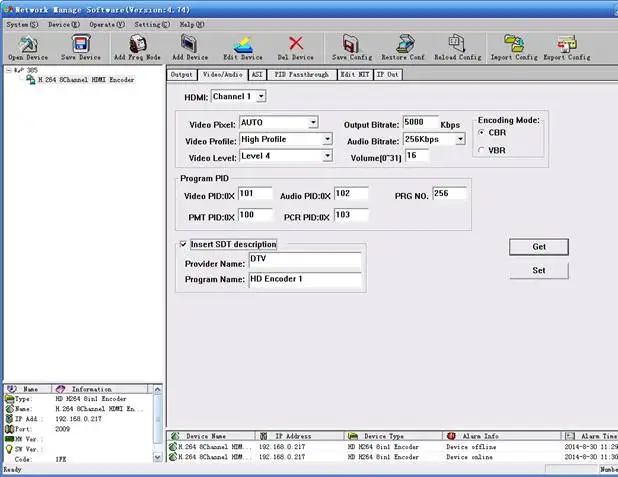

Device can be configured by Network Management Software. Below is an example of Video/Audio confirguration interface screenshot.
This product is mainly used for Cable Coaxial RF (DVB-C/DVB-T/DVB-S/S2) System, Hotel IPTV system, and CATV IP Headend Solution. It's called as IP encoder, HD to ASI encoder, HD to IP encoder, HD encoder, MPEG-4 encoder, H.264 encoder, MPEG-4 AVC encoder, digital tv encoder, cable tv encoder, catv encoder, etc.
