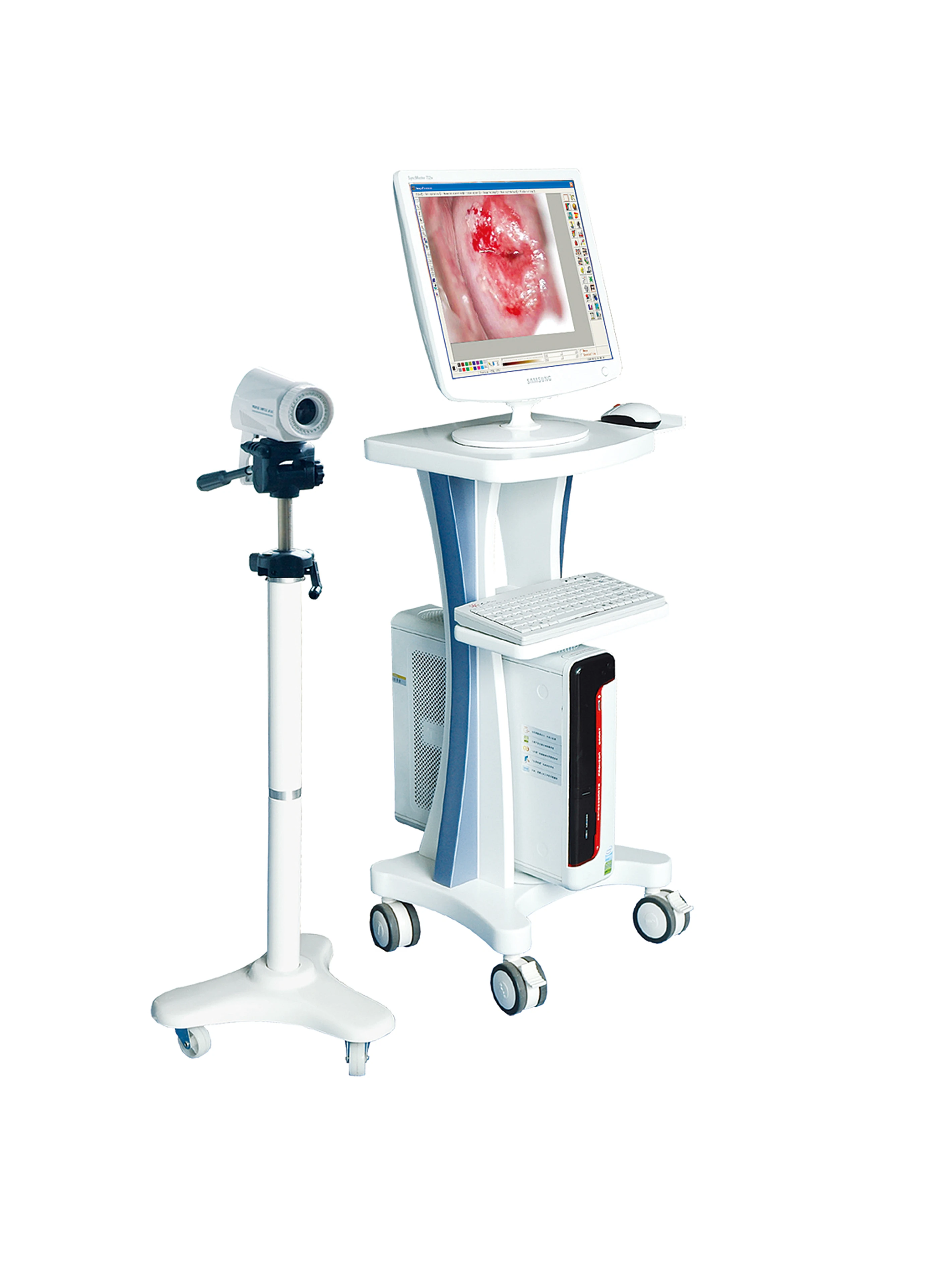

Hot Digital Colposcope Imaging System

Описание и отзывы

Характеристики

Features

Fashionable appearance, convenient design

Adopt the color digital CCD camera with high resolution and clarity.

Dismountable light source, which has got the patent.

Bulbs adopt supper cold LED light source whose diameter is only 2 mm.

There are “freeze, filter, zoom in, zoom out, white balance” buttons on the top of the camera for the speedy automatic functions.

Professional green-filter techniques

Image freeze

White balance

Auto focus

Timing of acetic acid and iodine reaction tests

Powerful image software and workstation system



Specification



Image Sensor	1/4” Sony CCD Image Sensor
Pixel	830,000
Mode	Green, Black/White,
Imaging Mode	Color
Image Freezing Control	Finger Control; Footswitch Control ,Camera control
Minimum Illumination	0.05Lux
Signal-to-Noise (SNR)	>50dB
Electronic shutter	1/10,000 Sed
Light Source	Multi-point surrounded high-brightness white cold light source
Back-lighted Compensation	Automatic
Focus Area	150mm-350mm
Focusing	Auto/Manual
Varifocal	Optical Varifocal :22 times
	Digital Varifocal: 8times
Dynamic Timing Control	Real-time display of acetic acid and iodine reaction tests
Video-Out	PAL/NTSC  1.0VP-P,75Ω
