Product Description

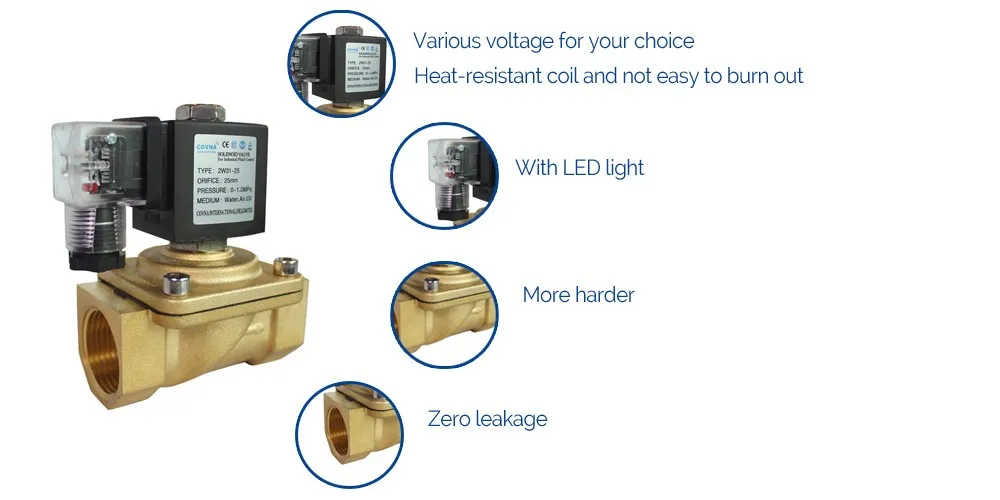

Features:
1. Direct lifting diaphragm construction
2. Open from 0bar for low pressure system use
3. High frequency of flying lead coil
4. Heat-resistant coil and not easy to burn out
5. Zero leakage

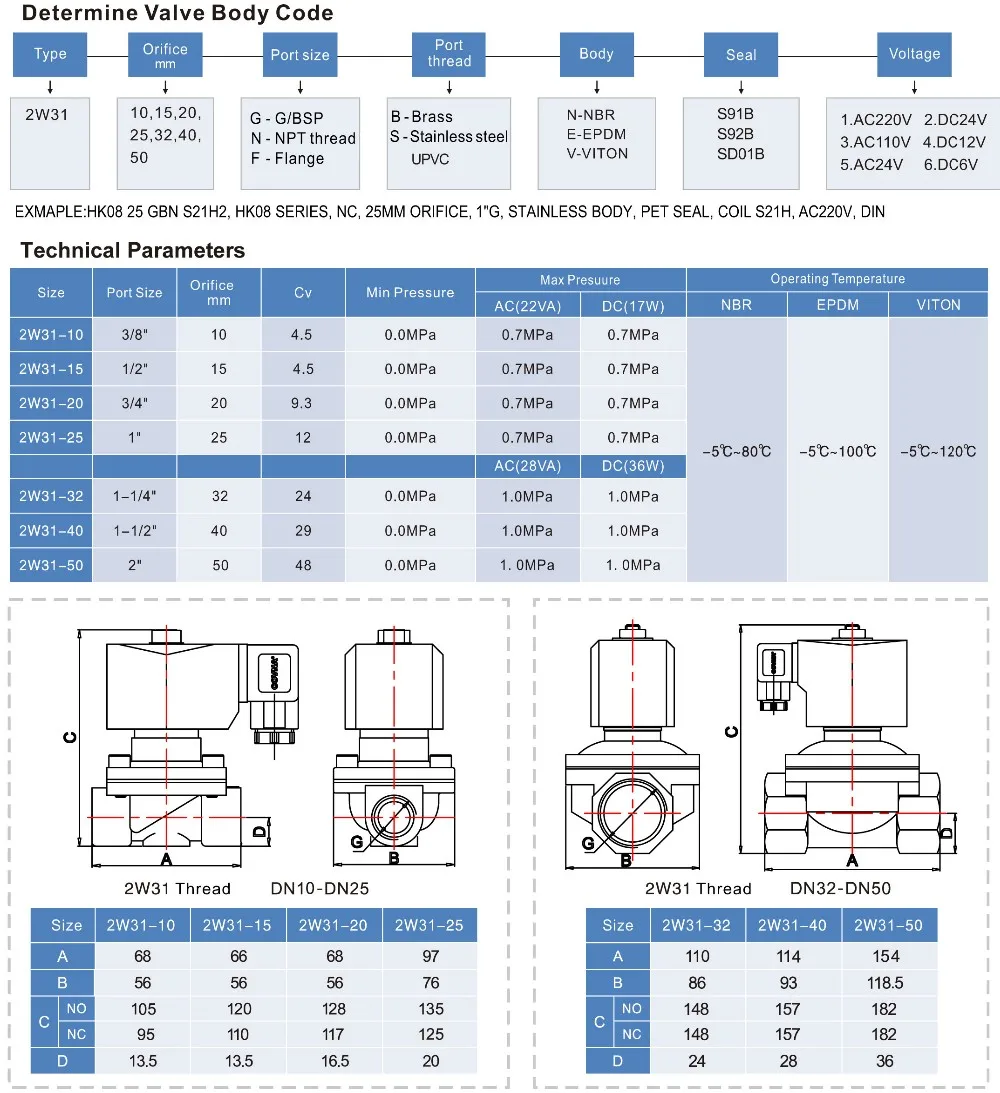

Item | COVNA Solenoid Valve Normally Closed Brass 24Volt 1/2 inch Solenoid Valve Water Gas Solenoid Shut Off Valve |
Medium | Air, water, steam, oil, etc |
Temperature | NBR: -10~80℃ EPDM: -10~120℃ VITON: -10~150 ℃ |
Pressure | 0-1.0MPa |
Port size | 1/8", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Port Thread | G, BSP, NPT, Flange |
Orifice(mm) | 12, 15, 20, 25, 32, 40, 50 |
Voltage | DC-12V, 24V AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
Tolerance | ±10% |

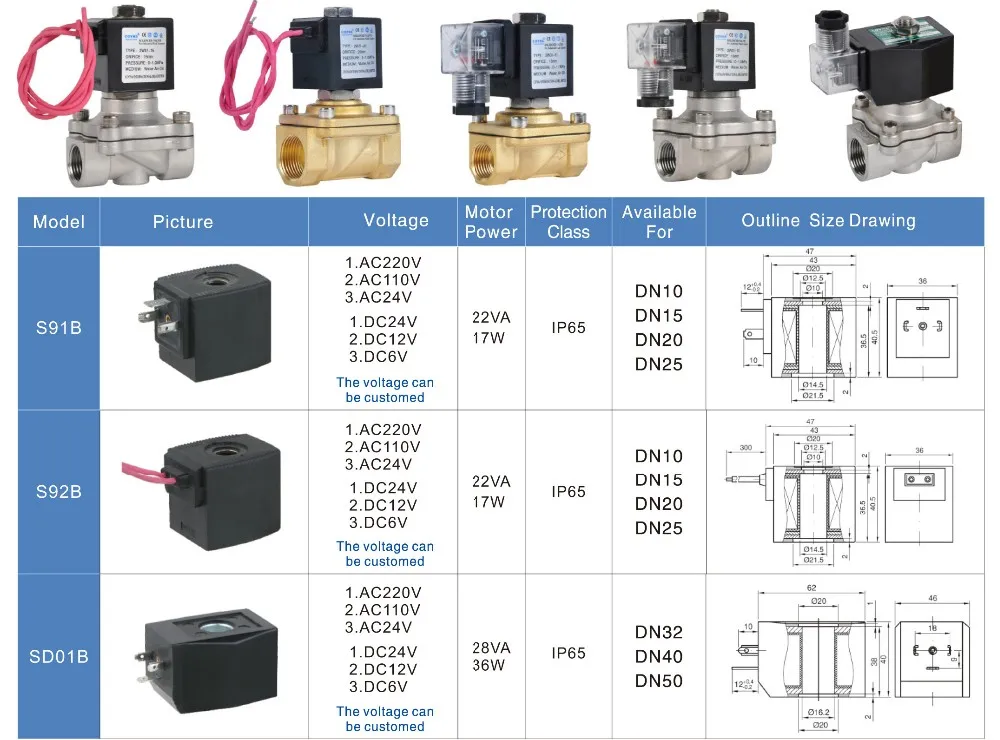

Coils | S51B,30VA(AC),24W(DC),IP65,100%ED S91B,22VA(AC),17W(DC),IP65,100%ED SD01B,28VA(AC),36W(DC),IP65,100%ED Y32B,40VA(AC),18W(DC),IP65,100%ED Y42B,50VA(AC),20W(DC),IP65,100%ED |
Material | Body- Brass or Stainless Steel Seal- VITON, NBR, EPDM Armature Tube- Stainless Steel 304 Plunger- Stainless Steel 430F Stop- SS 403F Springs- SS304 Shading Rings- Stainless Steel 304 |
All can be made to order:
1.Voltage: DC 12V 24V, AC 220V
2.Normally closed and normally open
3.Material: Brass, stainless steel 304/316 and plastic
4.Pilot-operated, diaphragm and piston\t
5.Coil with LED light
6.Coil with timer
7.Seal: NBR(≤80℃), VITON(≤130℃), PTFE(≤180℃), EPDM(≤100℃), PPL(≤250℃)
8. Any requires please let us know
About COVNA
Company Profile
COVNA Group Co.,Ltd is a manufaturer of solenoid valve, electric actuator valve, pneumatic actuator valve, ball valve, butterfly valve, check valve, gate valve, globe valve and so on. As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies.
20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Whatever you are a valve distributor, machine manufacturer or industries contractor, we will try our best to meet you requirements and offer the suitable valve with best price for you.
● If you are a valve distributor, we will share our market info to you and select the right valve basic on your market to help you earn more benefits.
● If you are a machine manufacturer, we will help you select the right valve basic on your system design and let your machine run well. Sample testing is available.
● If you are a industry contractor, as a one-stop valve solution provider, we will offer all the valves what you need and let your project runs well to improve the production efficiency.
Still confuse? Contact us! We are willing to help you resove the problem!
Project Reference:
Certifications
Factory Views

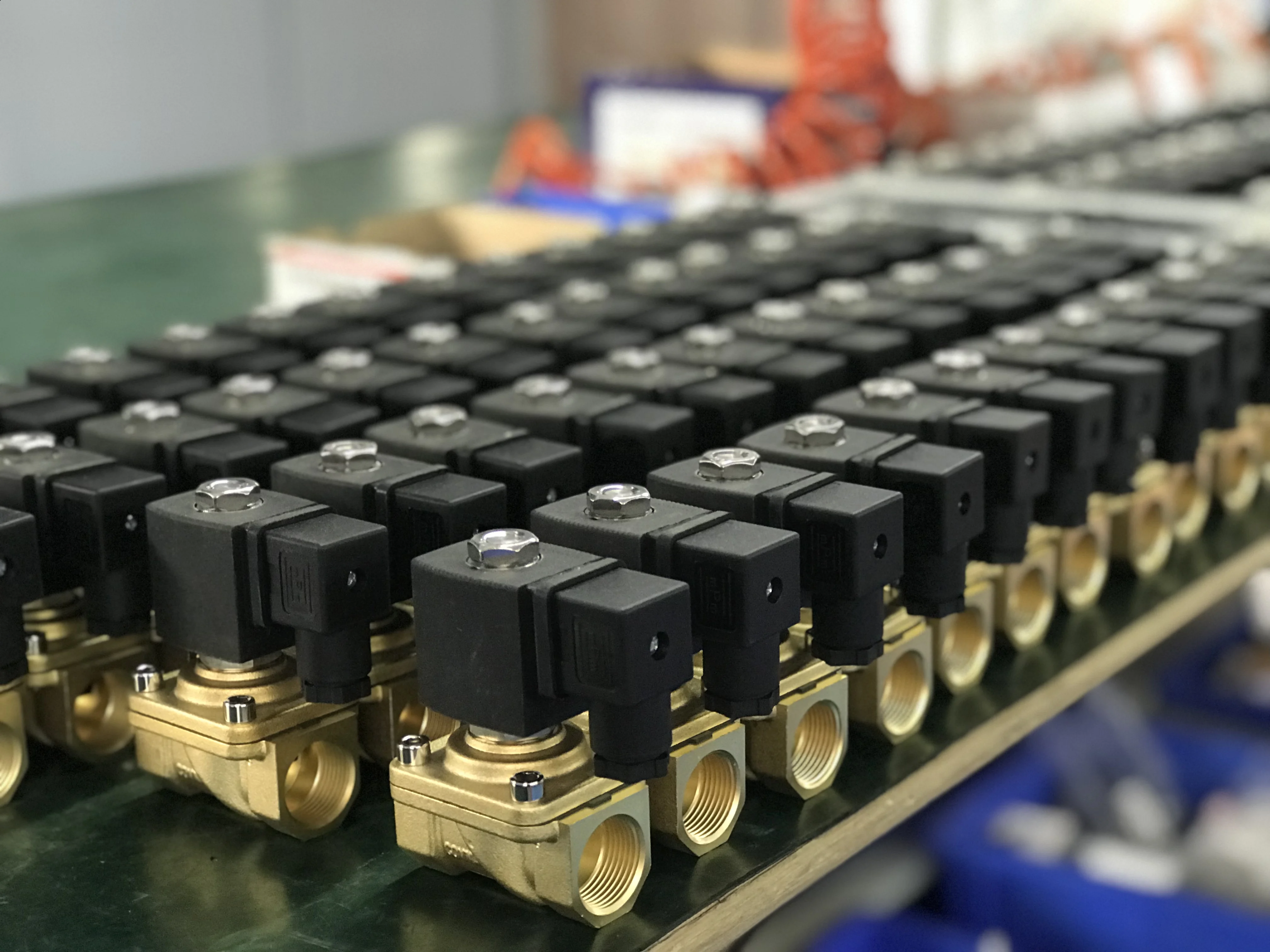

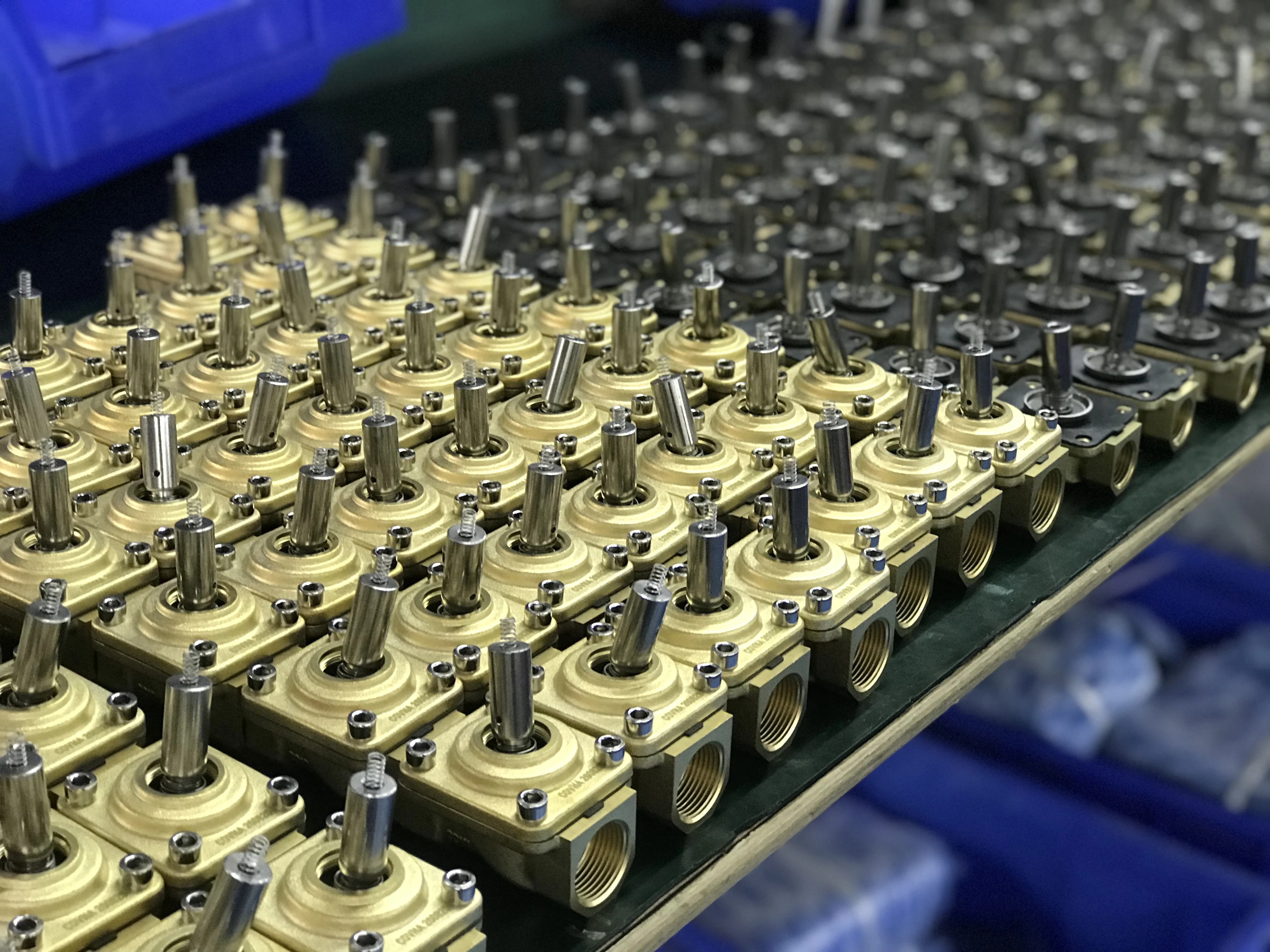

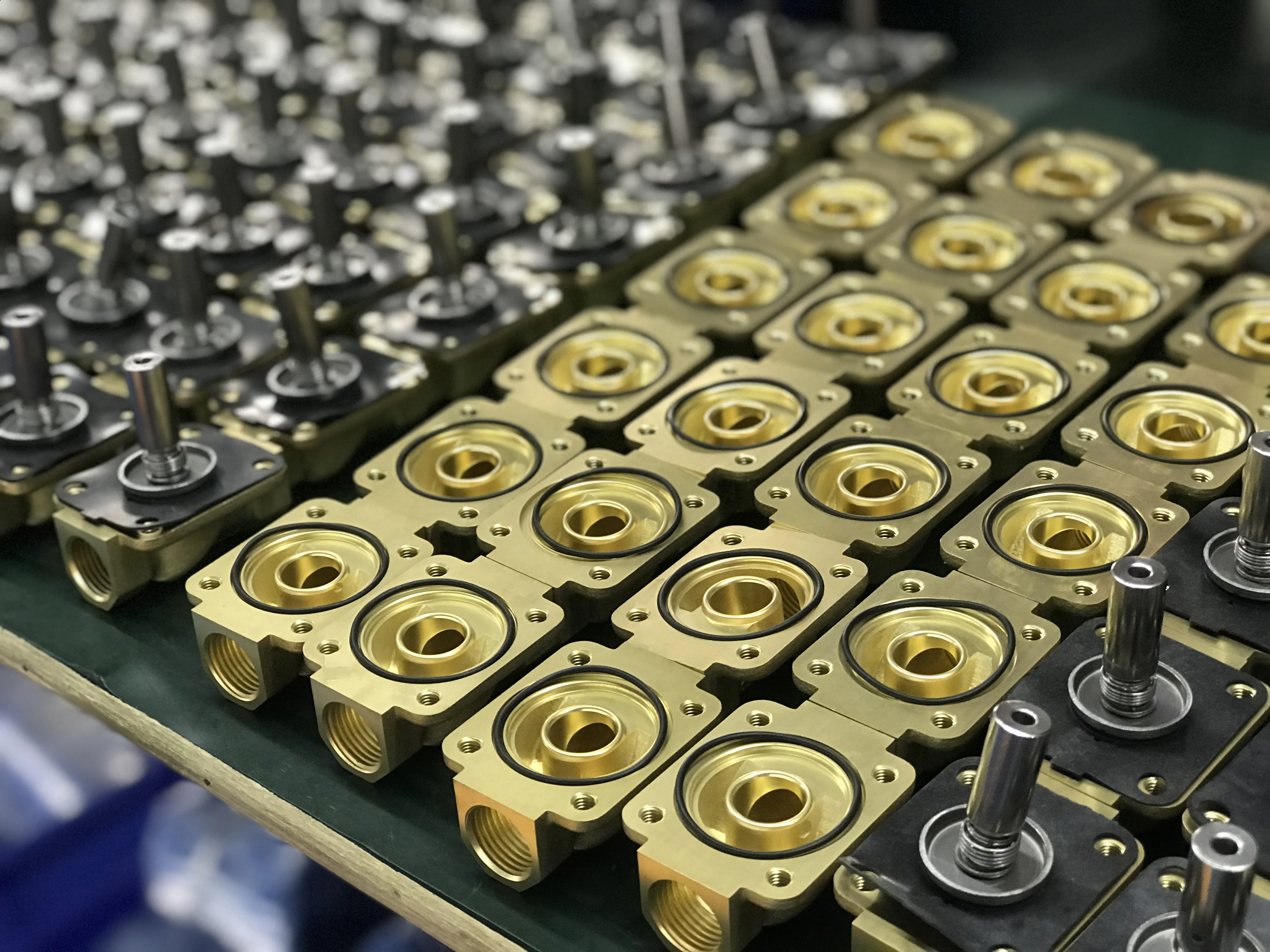

Production
#ALIBABA SELECTION SUPPLIER WITH 21 YEARS MANUFACTURING EXPERIENCE | ||||||
GERMAN TECHNOLOGY
COVNA havs invested in quality assurance, state-of-the-art machining and testing facilities in order to assist customers in safely controlling their processes.
MADE BY EXPERIENCED ENGINEERS
All products are designed, engineered and manufactured by experienced engineers to provide safe, reliable and dependable valves, actuators and solutions.
Packing
Packing: Electric valves packed with foam in carton.
Delivery Time: 7-10 working days after payment confirmed.
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
