Genyu OLED in Stock 0.91inch 128x32 oled Display
Product Description
Products: Organic light emitting diode (OLED)
Regular size, standing stock.
1. Features
(1) Display Type : Organic light emitting diode (OLED)
(2) Display Size : 0.91 inch oled
(3) Dot Matrix : 128x32 Dots
(4) Drive IC : SSD1306
(5) Viewing Angle : 160°
(8) Operating Tempeture : -20~70 °C
(9) Storage Tempeture : -30~80 °C
| Structure | LCD + IC + FPC |
| Module Size | 30.00*11.50*3.70 mm |
| VIEwing Area | 24.384*7.584 mm |
| Dot Size | 0.159*0.159 mm |
| Dot Pitch | 0.175*0.175 mm |
| Connection | COG + FPC |
Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour
NOTES:
OLED should be grounded during handling OLED.

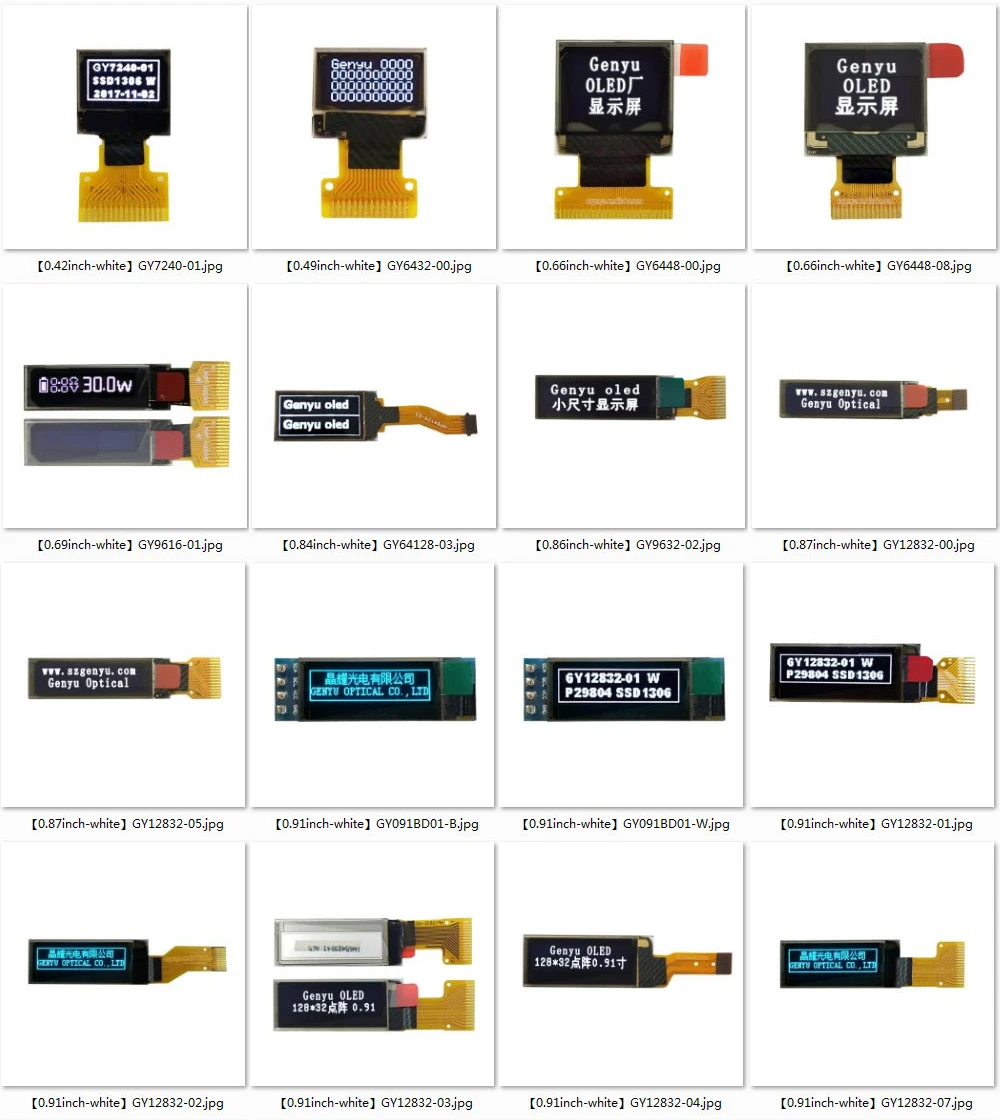

Detailed Images

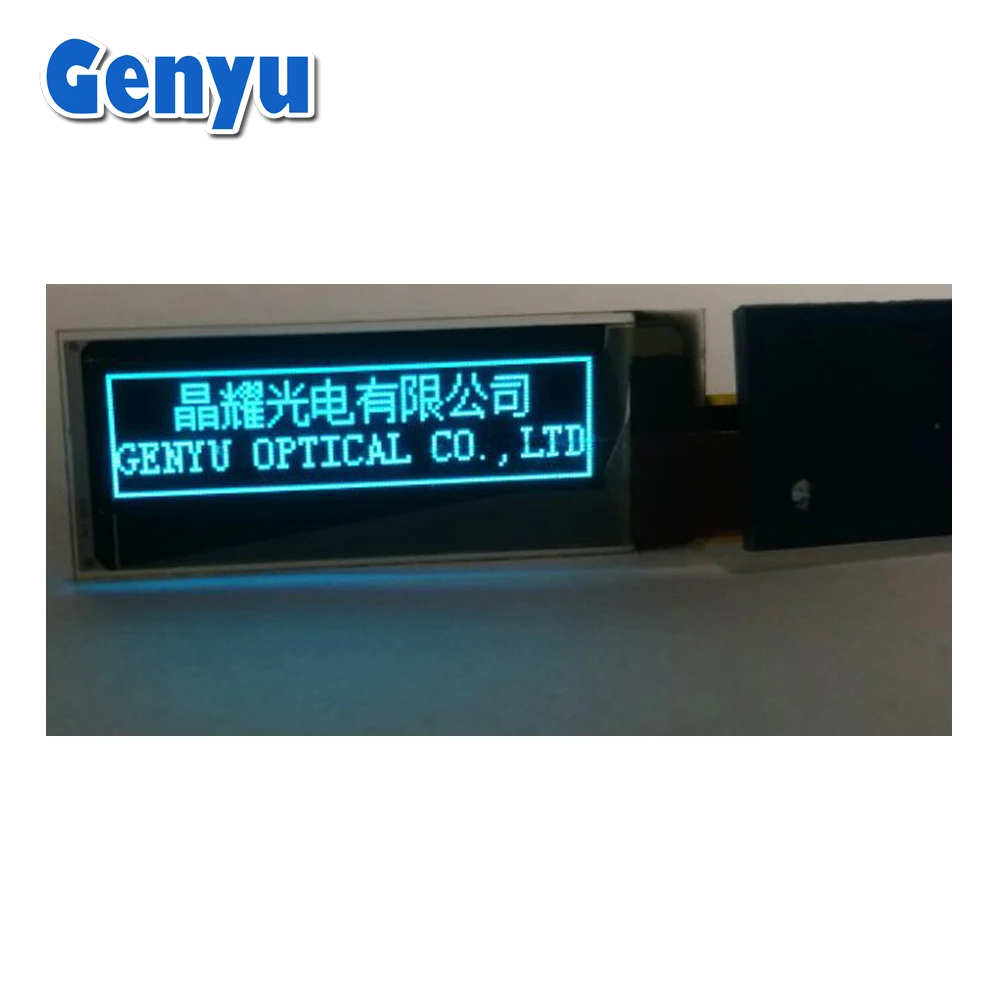

GY091BD01 OLED LCD module with PCB Board ⇓

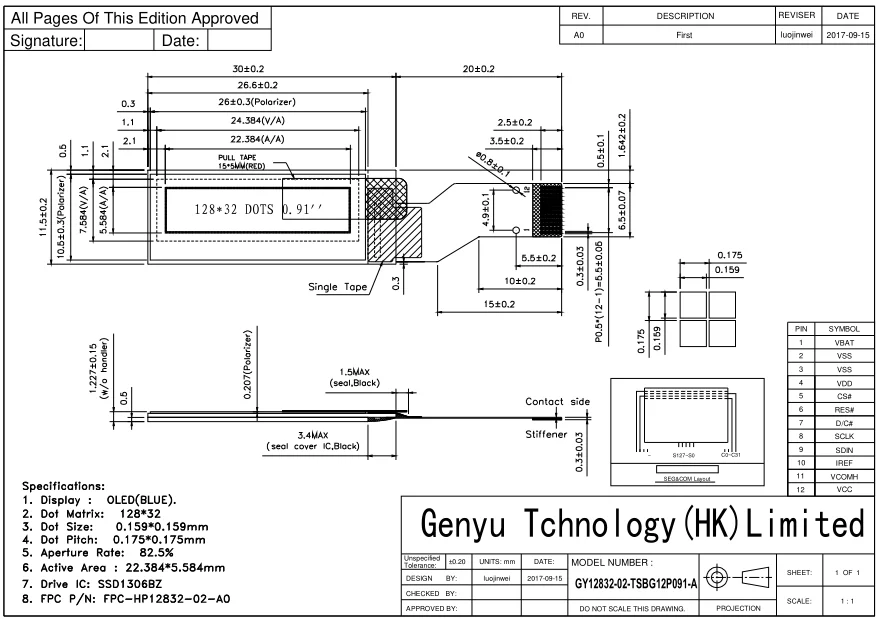

GY12832-01 OLED white color with i2c interface ⇓

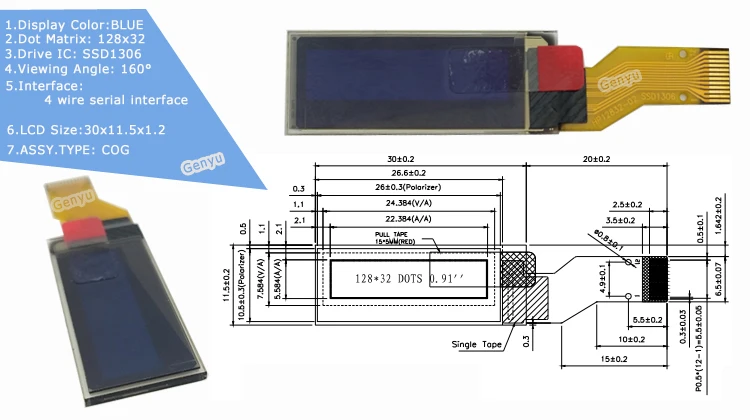

GY12832-02 OLED Blue color with 4 wire serial interface ⇓
Packaging & Shipping
Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....
Delivery
Items will be shipped within 3 working days on payment received.
By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.
Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
Company Information
Shen Zhen Genyu Optical Co.,Ltd.10 Years of Production Experience,We can design, develop and produce customized LCD, LCM,B/L, FPC and PCB board. We currently produce LCD,OLED and TFT lcd Module and Touch screen.
Shen Zhen Genyu Optical Co., Ltd. (established in 2003, the main investment direction is small and medium-sized LCD display LCD and its extension related products. Development so far,Genyu already has two factories in China, one is in Shenzhen, the other in DongGuang Province).
1). Datasheets
We will provide detailed datasheets of screen/module/driver IC and application circuit to you.
2). Source Code
We can provide whole source code or initial code to you.
3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.
4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.
5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.
Our Services
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd
1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
