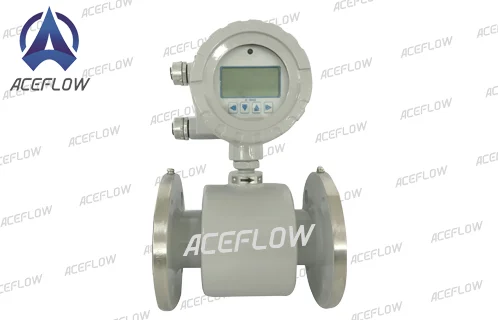

E-MAG Model Integrated and Remote type Liquid Water Electromagnetic Flow Meter



Product Name
E-MAG Model Integrated and Remote type Liquid Water Electromagnetic Flow Meter
Nominal Diameter
DN4~DN2000
Structure
Integrated type, Remote type, Immersion type, Explosion-proof type
Fluid Conductivity
Min. 5μs/cm (For fluid <5μs/cm, please use special converter for low conductivity)
Flow Velocity
0.3m/s~10m/s
Accuracy
±0.5% of the reading (Flow velocisty >0.6m/s)
Nominal Pressure
0.6Mpa~4.0MPa
Fluid Temperature
Integrated: -20℃~+70℃
Fluid Temperature
Remote:  -20℃~+60℃(CR/PU liner); -40℃~+160℃(PTFE/PFA/F46)
Ambient Temperature
-20℃~+60℃
Lining Material
CR, PU, PTFE, F46, PFA
Electrode Material
SUS316L, HB, HC, Ta, Ti, Pt
Measuring Tube Material
SUS304
Grounding Ring Material
SUS304, SUS316
Connection
Flanged, Wafer, Clamp(Sanitary) type
Flange Material
Carbon Steel, SUS304
Flange Standard
GB, DIN, ISO, JIS, ANSI, BS
Protection Class
IP65, IP67, IP68
Ex Mark
Ex d [ia Ga] IICT5
Power Supply
85~265V AC, 18~36V DC
Power Consumption
≤ 10W
Output Signal
4-20mA, Pulse, Frequency
Communication
RS485, HART






Wafer Connection

Easy for installation and maintenance
Mainly used in food industry like beverage, juice, beer, wine, dairy product, etc.


Large Size

Mainly used for drinking water, wastewater, sewage sludge, etc.


Remote Structure

Especially used for severe site condition like underwater or underground, high-altitude operation, or control room far away from the site.

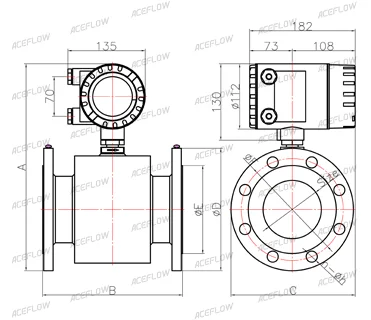

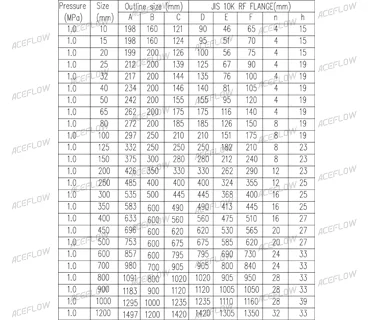

Integrated type  electromagnetic flowmeter dimension

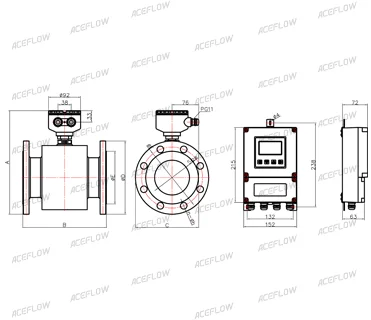

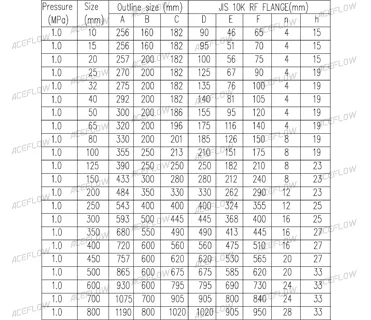

Remote type   electromagnetic flowmeter dimension










Factory

Workshop1

Workshop2





Production Equipments




Test Equipments




Warehouse


Office

Team1

Team2












Q: Are you trading company or manufacturer?

A: We are factory. Our flow meters are 100% calibrated before delivery.



Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer charged sample and the cost can be reduced from following batch quantity order. As our products are too heavy, sample freight will not be covered at our side.



Q: What is the MOQ?

A: For valves and flow meters, it is 1pc; for castings, it should be 10pcs at least.



Q: How long is your delivery time?

A: Generally it is 10-15 days. If it is not standard model, or necessary parts are not available in stock, the delivery time will be 20 days. For batch order, it will depend on quantity.



Q: What is your payment terms?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

     Payment>=10000USD, 100% irrevocable L/C at sight available upon request, with bank cost charged by separate.



Q: What is the warranty period?

A: Generally it is 1 year after the shipment date.
