Круглая 1 39 дюймовая Гибкая Сенсорная панель oled 400*400 MIPI с

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

round 1.39inch oled flexible 400*400 MIPI oled touch panel with CTP

1.Application :Smart watch

2.Features:

1)display color:16.7M(RGB*8bits)

2)Display format:1.4inch(400RGB*400)

3)Pixel arrangement:Real RGB arrangement

4)Interface:MIPI 1-lane

Mechanical Specifications

Item	Specifiaction	Unit
Dimension outline	38.640.50.69	mm
LTPS Glass outline	38.6*40.5	mm
Encapsulation Glass outline	38.6*38.6	mm
NUmber of dots	400(W)RGB400	dots
A.A size	Φ35.4	mm
Diagonal size	1.39	inch
Pixel pitch	29.5*88.5	um
Glass thinckness (LTPS/encapsulation glass)	0.2/0.3	mm

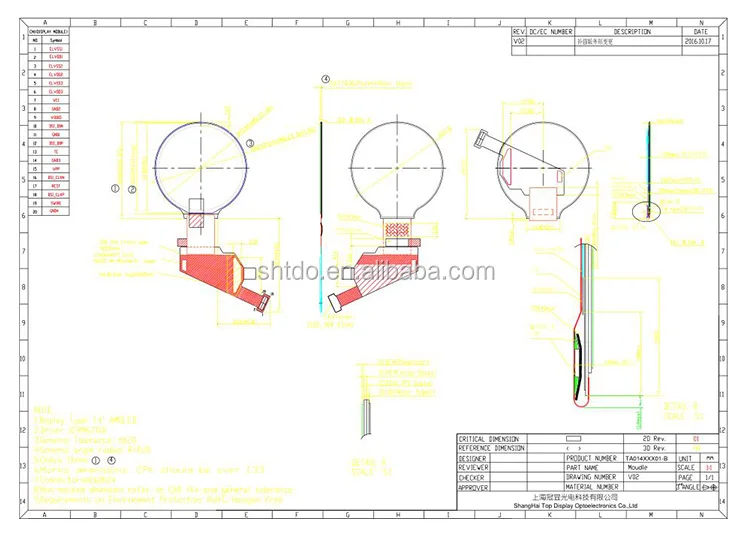

Note:Refer to 9 outline dimension drawing.

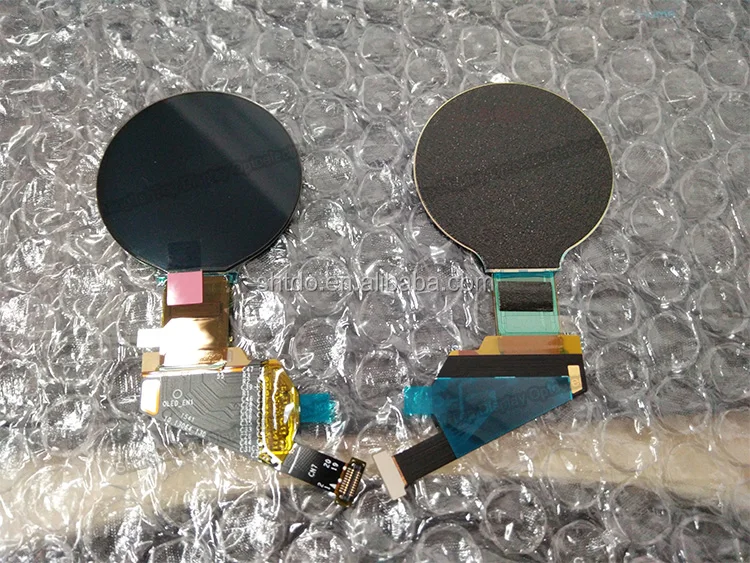

Picture for more

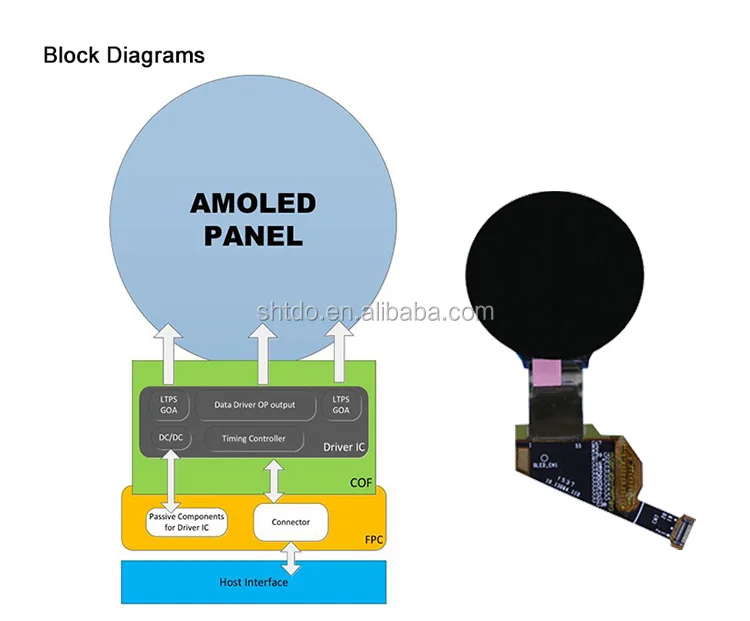

Structure diagram
