Electrolytic Recovery Machine of Precious Metals From Plating Solution and Electronic waste or jewelry deplating solution



 High-frequency pulse electrolytic recovery machine of precious metals that independently developed and researched by our company can effectively restore silver (or gold or copper or nickel) ions directly to metal block with automatic intelligent control. The purity reaches to 99.8%.



Recovering principle: The use of the principle of electrolytic adsorption to restore liquid metal ions to metal, and metal adsorbed on the cathode, peeling off the metal residue, re-refining and use.



Application: The machine focus on recovering gold , silver, platinum, rhodium in the plating solution,drag-out tank, strip solution, plating rinsewaters and Iodine and iodide etching solution. The machine also can recovery precious metal ( Au, Ag) from e-waste stripping solution,waste photography developing solution, electronic plating waste solution and gold/silver mine operations.







Recovery machine of gold, silver and other precious metals:

Model	Specification	Water Treatment Amount		Voltage	Power
		Silver	Gold
RY200	300*450*600mm	150-200L/day	100-150L/day	220V	300W
RY400	600*450*600mm	300-500L/day	200-350L/day	220V	350W
RY600	900*450*600mm	500-800L/day	300-500L/day	220V	400W
RY800	1200*450*600mm	600-1000L/day	500-800L/day	220V	500W

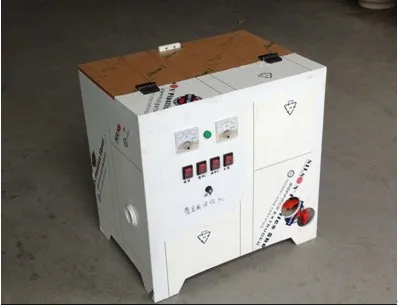

                RY200                                       RY400                                      RY600                                                RY800



Features of precious metals electrolytic recovery machine:



1. Simple: It is installed at the production line. Automatic electrolysis can be realized, transportation is not necessary.

2. High recovery rate: gold and silver ≥99%; copper and nickel ≥90%;

3. Convenient extraction: Recovered precious metals with high purity can directly cover the anode. Precious metal block can be taken away immediately after separation.

4. Operating costs low: the machine uses a rotating cathode, high frequency pulse intelligent electrolytic method to recover gold or other precious metal. Do not need to consume any consumables and electrolytic accelerator, only need to consume a small amount of electricity. Greatly reduce the operating costs.

5. The content of precious metals in waste liquid after recovery: silver be lower than 5-20ppm , gold be lower than 2-10ppm .

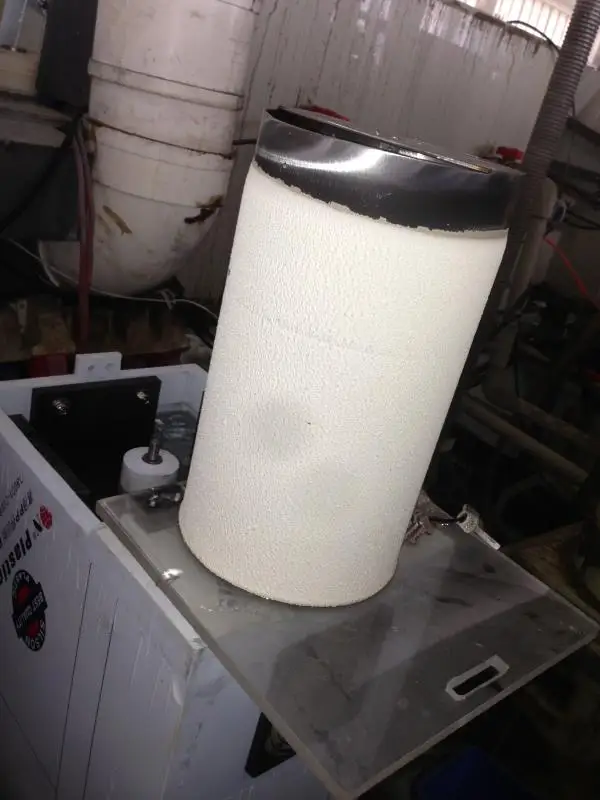

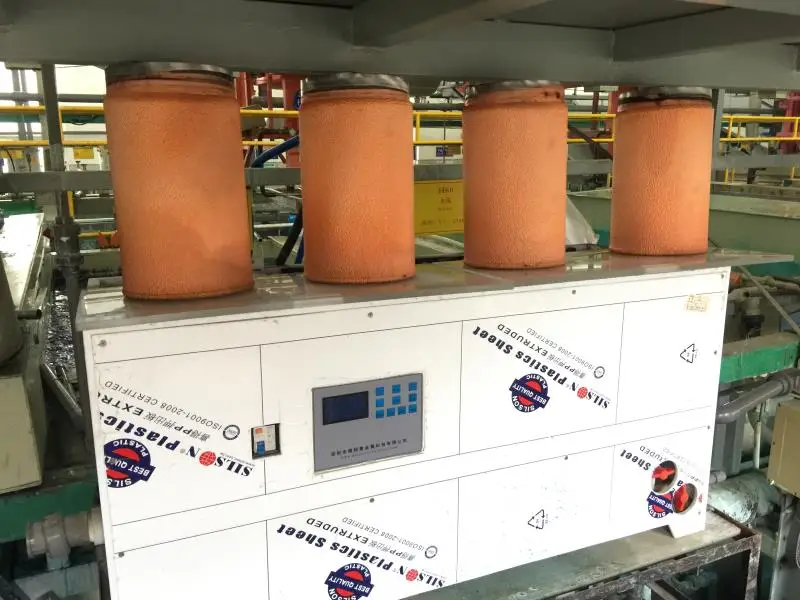

Installation case

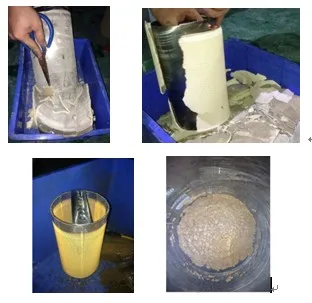

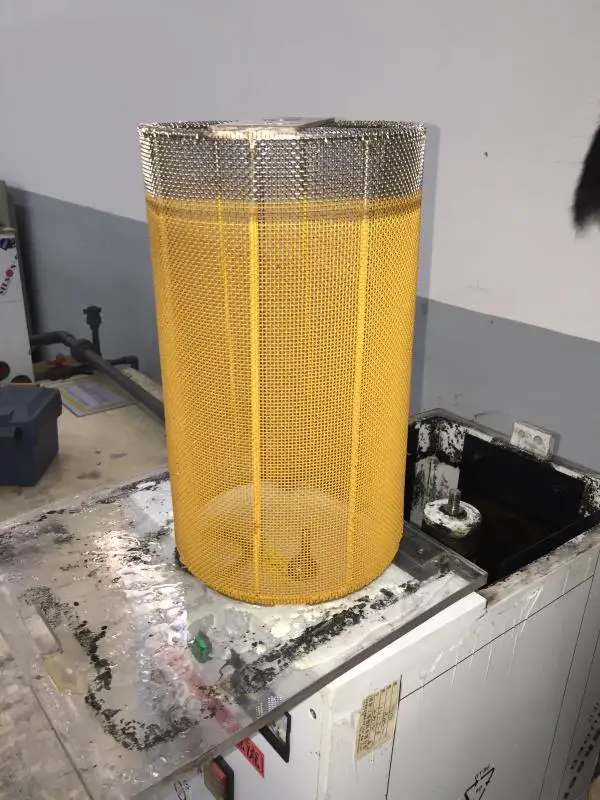

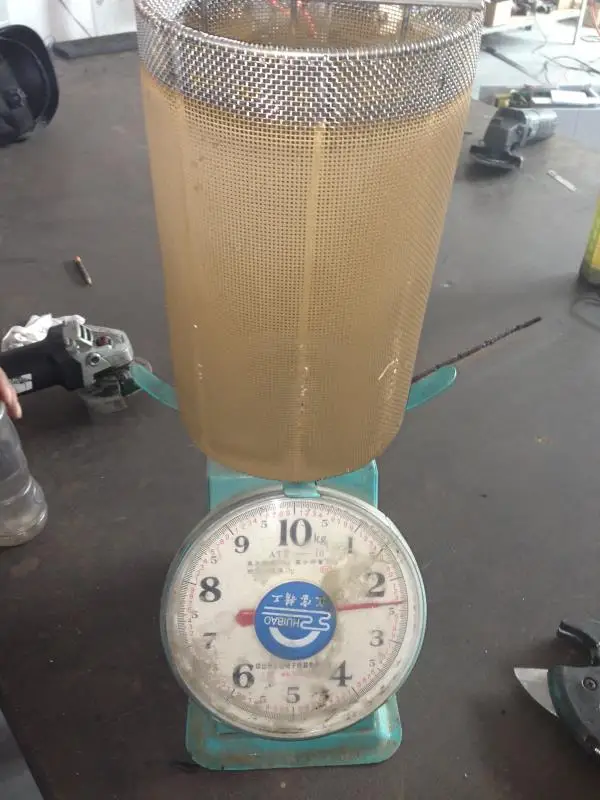

Recovery effect





The machine can realize on-line and off-line installation
