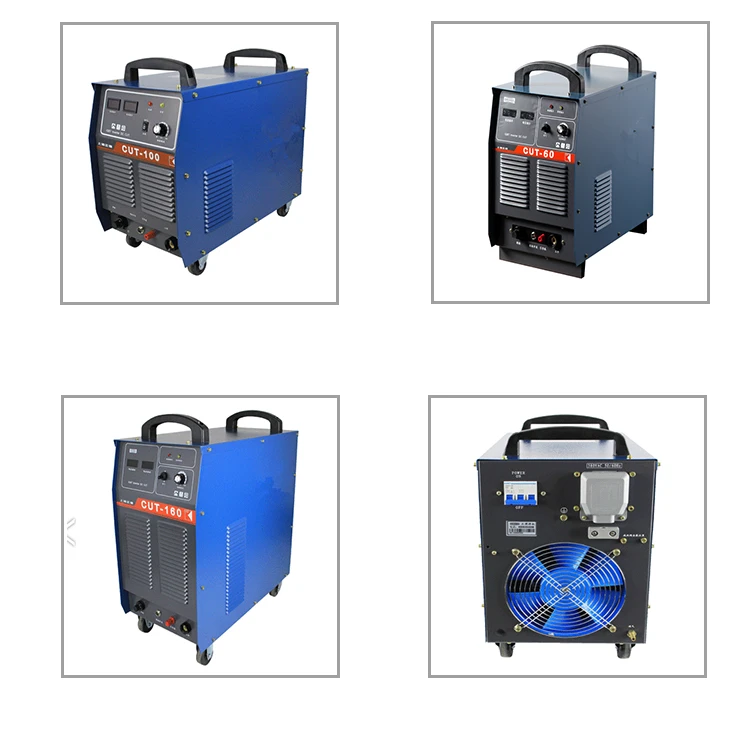

Inverter IGBT Plasma Cutting Machine.
Product Description
1.Light and small.Simple operation, suitable for thin plate cutting.
2.convenient to cut stainless steel and other metal materials.
3.Clean cut, no frisbee, no need to polish, fast speed, low cost, stable and reliable.
Model parameters | CUT 60 | CUT 100 | CUT 160 |
input voltage(V) | AC380V±15% | AC380V±15% | AC380V±15% |
frequency(Hz) | 50/60 | 50/60 | 50/60 |
Rated input current(A) | 13.5 | 26 | 44.3 |
Rated power(KVA) | 8.9 | 17 | 29 |
Open circuit voltage(V) | 295 | 268 | 307 |
Output current control(A) | 20-60 | 20-100 | 20-160 |
Output current control(V) | 104 | 120 | 144 |
Rated load duration.(%) | 60 | 60 | 60 |
No-load loss(W) | 60 | 80 | 80 |
Efficiency (%) | 85 | 85 | 85 |
Power Factor | 0.93 | 0.93 | 0.93 |
insulation grade | F | F | F |
Enclosure protection class | IP21 | IP21 | IP21 |
Striking way | Contact arc | Non-contact arc | Non-contact arc |
Recommended To Cut The Air Compressor Under Pressure(Kgf/cm2) | 4-5 | 4-5 | 4-6 |
Cutting Thickness(mm) | 1-20 | 1-35 | 1-40 |
Weight(kg) | 35 | 38 | 62 |
Overall Dimensions(mm) | 500×260×450 | 550×300×500 | 550×300×500 |
