JXPC Factory JOU Series очистительные элементы пневматического
- Категории: Пневматические детали >>>
- Поставщик: Ningbo,New,Jiaxing,Automatic,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

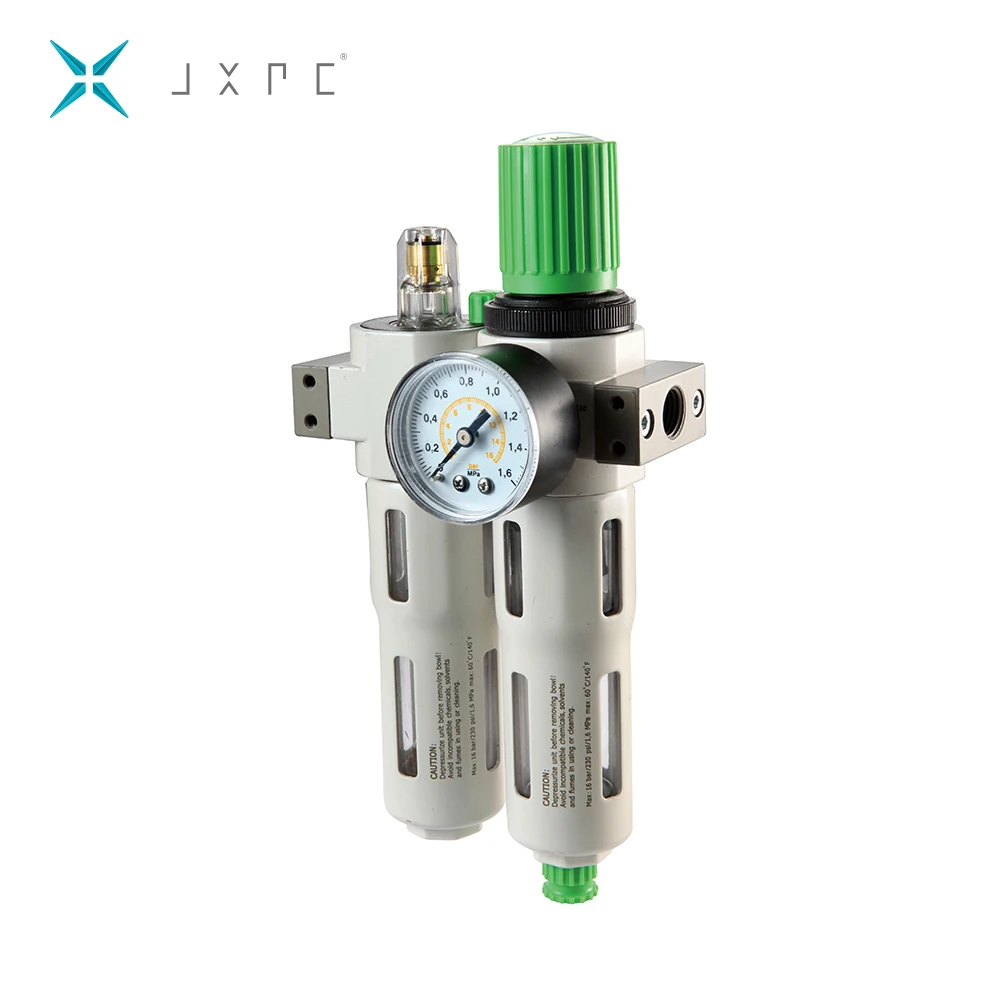

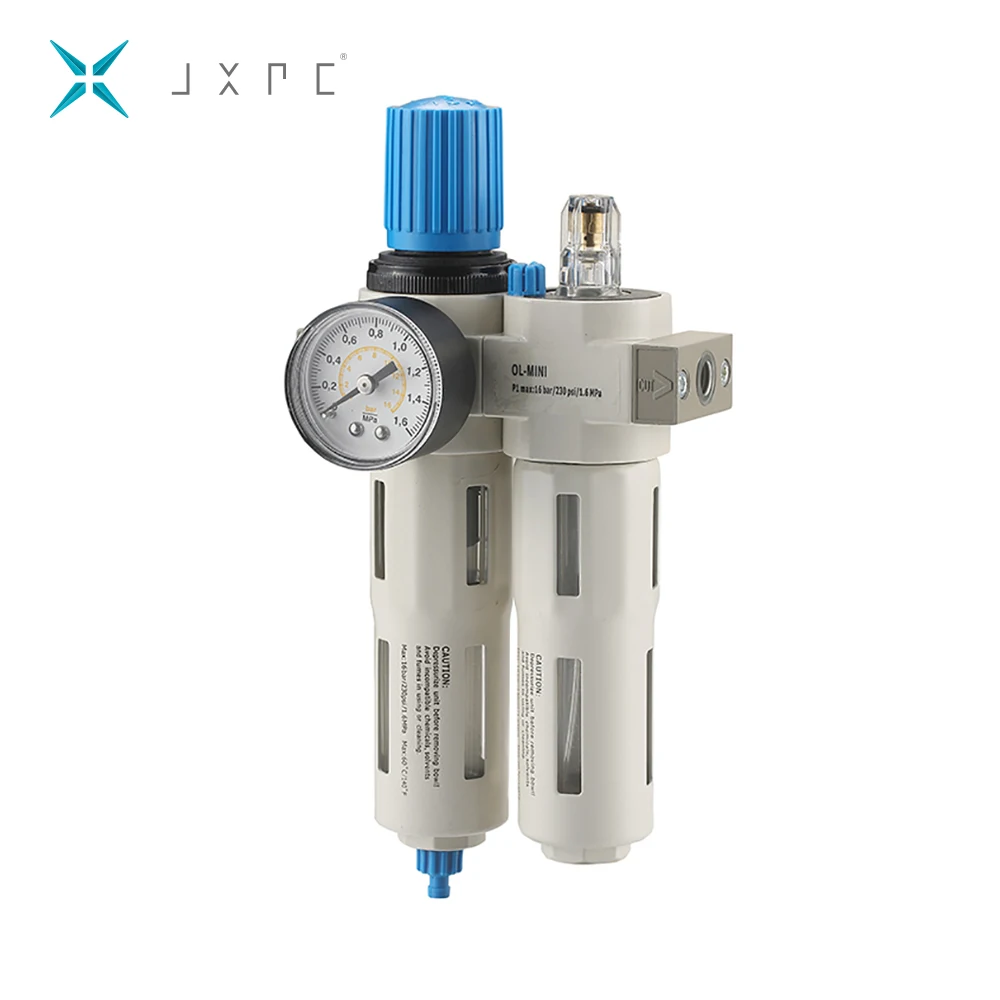

Product Description
* Temperature Range: 0-60 Degree
* Working Medium: Filtered compressed Air
* Body Material: Zinc Alloy

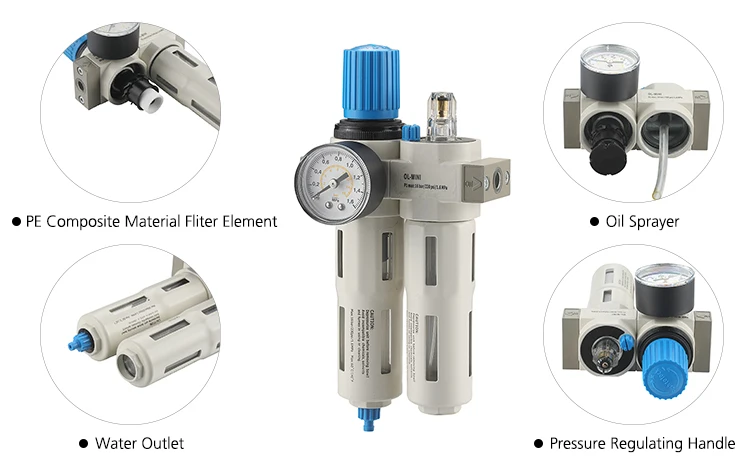

* Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
* The Filter Removes Solid Particles And Condensates With Compressed Air
* Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
* Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
* Protect Your Air Tools With Much Longer Life
* Working Medium: Filtered compressed Air
* Body Material: Zinc Alloy
* Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
* The Filter Removes Solid Particles And Condensates With Compressed Air
* Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
* Micro-Fog Lubricator Supplies Lubricating Oil To Working Pneumatic Equipment In Proper Proportion
* Protect Your Air Tools With Much Longer Life

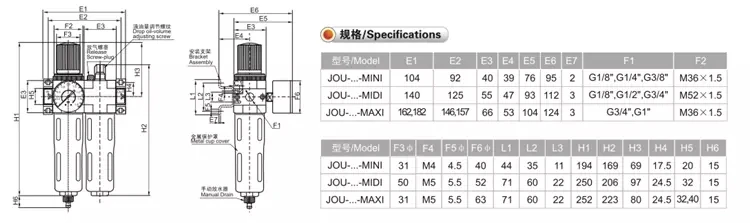

JOU | ||||||||||||||||
Model | MIN | MIDI | MAXI | |||||||||||||
JOU-1/8"-MINI | JOU-1/4"-MINI | JOU-3/8"-MINI | JOU-3/8"-MIDI | JOU-1/2"-MIDI | JOU-3/4"-MIDI | JOU-3/4"-MAXI | JOU-1"-MAXI | |||||||||
JOU-1/8"--7MINI | JOU-1/4"--7MINI | JOU-3/8"--7MINI | JOU-3/8"-7-MIDI | JOU-1/2"-7-MIDI | JOU-3/4"-7-MIDI | JOU-3/4"-7-MAXI | JOU-1"-7-MAXI | |||||||||
JOU-1/8"-5M-MINI | JOU-1/4"-5M-MINI | JOU-3/8"-5M-MINI | JOU-3/8"-5M-MIDI | JOU-1/2"-5M-MIDI | JOU-3/4"-5M-MIDI | JOU-3/4"-5M-MAXI | JOU-1"-5M-MAXI | |||||||||
Working Medium | Filtered compressed Air | |||||||||||||||
Features of Structure | Sintered filter with water separator The direct Constant-density Lubricator | |||||||||||||||
Mounting Type | Pipe mounting or foot mounting | |||||||||||||||
Assembly position | vertical±5 | |||||||||||||||
Connection | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | ||||||||
Standard Flow Rate | 700 | 1000 | 1200 | 2000 | 2600 | 2600 | 7000 | 8000 | ||||||||
800 | 1300 | 1500 | 2500 | 2800 | 2800 | 8500 | 8700 | |||||||||
600 | 850 | 1050 | 1700 | 1800 | 2100 | 6500 | 7200 | |||||||||
Working Pressure | 0.5-12 bar/0.5-7bar | |||||||||||||||
Working Temperature | 0-60°C | |||||||||||||||
Primary Pressure | Manual drain valve:1-16 bar; Automatic drain valve:1.5~12bar | |||||||||||||||
Grade of filtration | 40um/5um | |||||||||||||||
Max.Capacity | 22ml | |||||||||||||||
Recommended Oil | ISO VG32 or Equivalent Oil | |||||||||||||||
Min Lubricant Flow Rate | 3L/MIN | 6L/MIN | 10L/MIN | |||||||||||||
Main Products

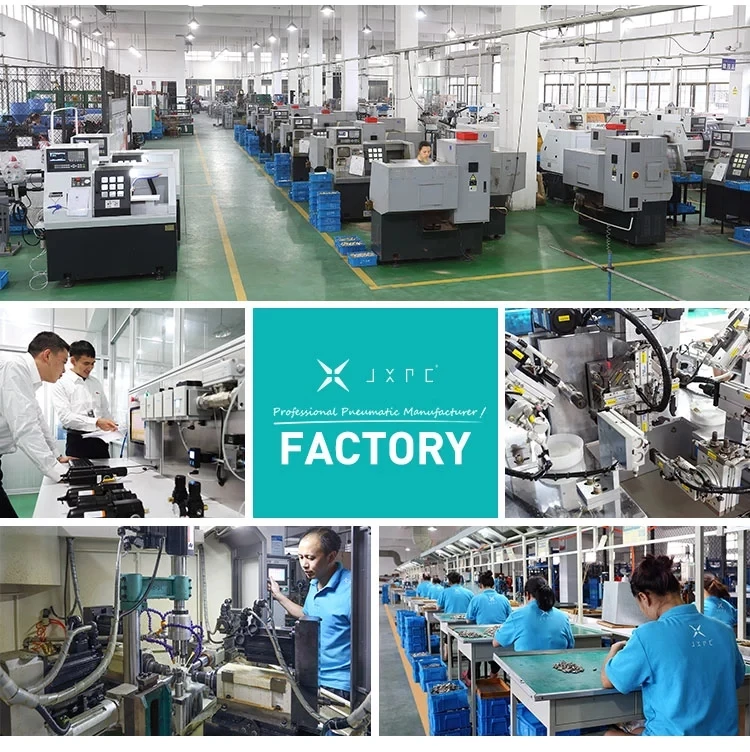

Factory Information
