Для серийной керамики AlN керамическая изоляционная Шайба из нитрида
- Категории: Electrical Ceramics >>>
- Поставщик: Xiamen,Mascera,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Name | TO Series AlN Ceramics Aluminum Nitride Ceramic Insulator Washer | ||
Material | Aluminum Nitride AlN Ceramics | ||
Color | Light Grey | ||
Usage | Electronic devices of high thermal conductivity requirement | ||
Aluminum nitride ceramic (AlN) has excellent properties such as high thermal conductivity, high strength, high resistivity, small density, low dielectric constant, non-toxic, and thermal expansion coefficient matching with Si. It is a new type ceramic material with excellent comprehensive performance. Due to its extremely high thermal conductivity, aluminum nitride can meet the heat dissipation requirements of high-power devices such as optical communication, microwave communication, LED, and high-speed rail. It is considered to be an ideal material for the packaging of new generation semiconductor substrates and electronic devices.
Typical properties of Aluminum Nitride:
●Very high thermal conductivity
●Excellent electrical insulation(Low dielectric constant and loss)
●Low density
●Similar linear expansion coefficient with Si
●Extremely high hardness
Typical properties of Aluminum Nitride:
●Very high thermal conductivity
●Excellent electrical insulation(Low dielectric constant and loss)
●Low density
●Similar linear expansion coefficient with Si
●Extremely high hardness
Data Sheet
Item | Unit | Technical Parameters |
Purity | % | 95 |
Color | - | Light Grey |
Density | g/cm3 | ≥3.3 |
Water Absorption | % | 0 |
Moh's Hardness | - | 8 |
Flexural Strength | Mpa | 365-420 |
Elasticity Modulus | Gpa | 310-320 |
Thermal Conductivity | w/mk | ≥170 |
Coefficient of Thermal Expansion (20~300℃) | 10-6/℃ | 4.6 |
Melting Point | ℃ | 2500 |
Volume Resistivity | Ω.cm | >1013 |
Dielectric Constant (1MHz, 25℃) | - | 9 |
Dielectric Loss (1MHz, 25℃) | - | 3.8x10-4 |
Dielectric Strength | kv/mm | 17 |

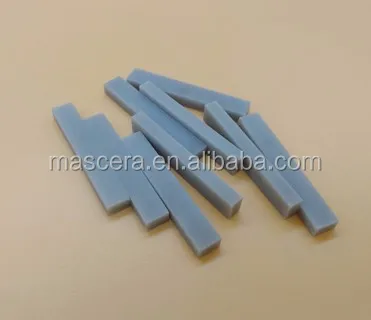

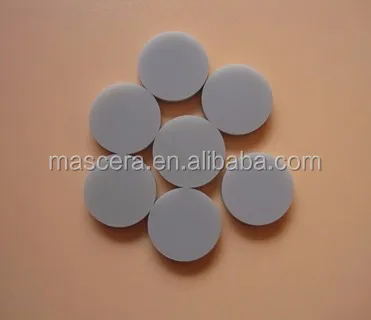

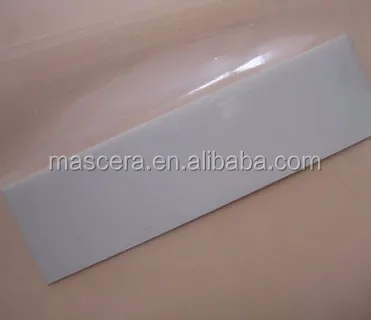

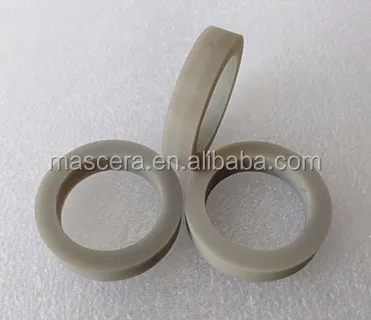

Products Gallery

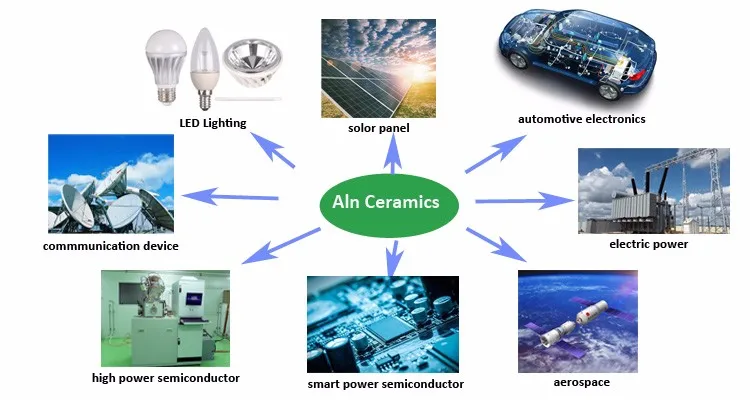

Applications
Package&Shipment
Company Introduction
XIAMEN MASCERA TECHNOLOGY CO., LTD. is a China supplier which specialized in R&D and custom manufacturing of technical ceramic components. We provide a broad range of high performance ceramic materials including alumina ceramic, zirconia ceramic, silicon nitride ceramic, silicon carbide ceramic, boron nitride ceramic and aluminum nitride ceramic.
We have completed production lines for molding, sintering, high precision machining, quality inspection of technical ceramic components. Our products are in conformity with ISO9001:2015 quality management system and we are capable to deliver ceramic components of fully dense, accurate size and surface finish control, prompt lead time.
Since our foundation, Mascera has committed to providing ceramic components of highest quality and has built faithful partnership with our customers. Currently, our products have been exported to more than 30 countries and widely applied in industries like machinery, automotive, chemistry, medical, energy, electronic, semiconductor, aerospace, telecommunication etc.
We have completed production lines for molding, sintering, high precision machining, quality inspection of technical ceramic components. Our products are in conformity with ISO9001:2015 quality management system and we are capable to deliver ceramic components of fully dense, accurate size and surface finish control, prompt lead time.
Since our foundation, Mascera has committed to providing ceramic components of highest quality and has built faithful partnership with our customers. Currently, our products have been exported to more than 30 countries and widely applied in industries like machinery, automotive, chemistry, medical, energy, electronic, semiconductor, aerospace, telecommunication etc.
FAQ
Q1: What is MOQ for production?
A: MOQ will differ in material, size, machining difficulty, we will let you know MOQ for each part when inquiry.
Q2: Can i get a sample for test?
A: For ceramic parts we have in stock, we can provide free sample if goods value is not high; for ceramic parts which is newly developed, mold cost or sample cost will be needed.
Q3. Can you produce according to the samples or drawings?
A: Yes. most of our ceramic parts are customized, we have rich experience in tailor-made parts. We have capability to control the parts in required size accuracy and surface finish
Q4. How can i pay to you?
A: We accept payment of T/T, credit card, Western Union, Paypal.Payment terms is 50% payment in advance and 50% before shipment.
Q5. Can i get a replacement for damaged or defected products?
A: Yes, we will remake new products for you when damage or defect are found, if you could not wait for extra time, we will refund to you or issue a credit to use in future orders.
A: MOQ will differ in material, size, machining difficulty, we will let you know MOQ for each part when inquiry.
Q2: Can i get a sample for test?
A: For ceramic parts we have in stock, we can provide free sample if goods value is not high; for ceramic parts which is newly developed, mold cost or sample cost will be needed.
Q3. Can you produce according to the samples or drawings?
A: Yes. most of our ceramic parts are customized, we have rich experience in tailor-made parts. We have capability to control the parts in required size accuracy and surface finish
Q4. How can i pay to you?
A: We accept payment of T/T, credit card, Western Union, Paypal.Payment terms is 50% payment in advance and 50% before shipment.
Q5. Can i get a replacement for damaged or defected products?
A: Yes, we will remake new products for you when damage or defect are found, if you could not wait for extra time, we will refund to you or issue a credit to use in future orders.
