Источник питания на DIN-рейку Meanwell MDR-20-24 24 В постоянного тока 1
Источник питания на DIN-рейку Meanwell MDR-20-24 24 В постоянного тока 1

Источник питания на DIN-рейку Meanwell MDR-20-24 24 В постоянного тока 1


Поделиться:

Цена:602,71 ₽ - 1 356,09 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

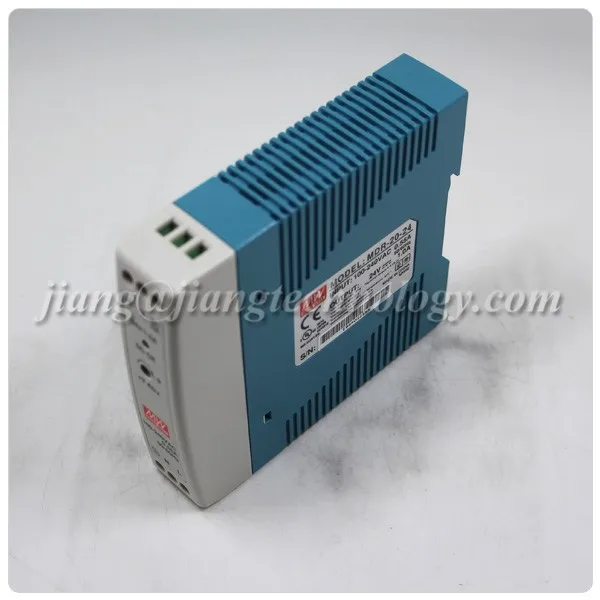

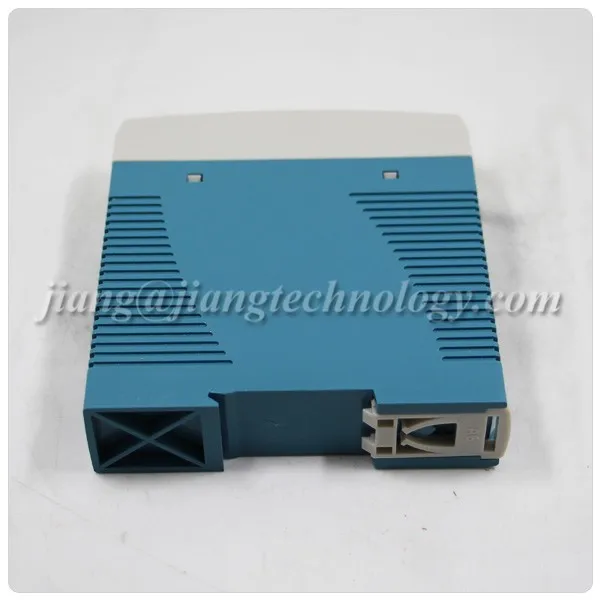

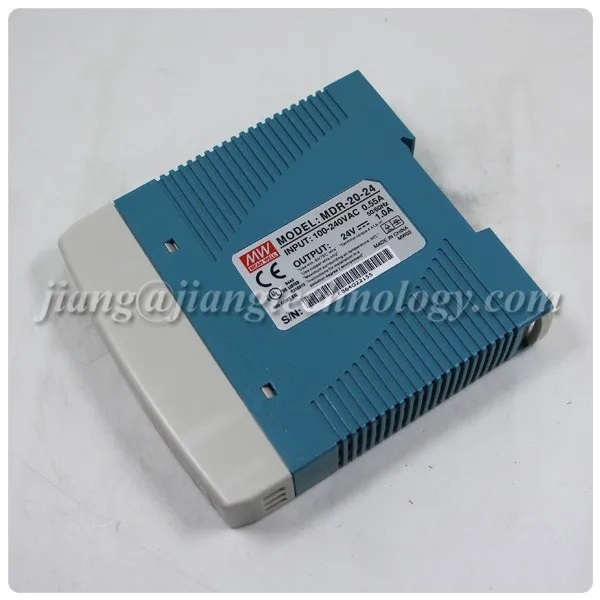

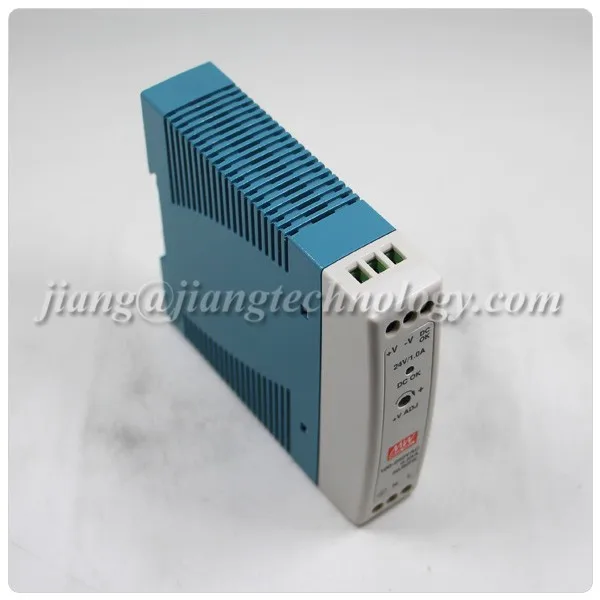

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Product Description


Meanwell MDR-20-24 24VDC 1A DIN Rail Power SupplyMeanwell MDR-20-24 24VDC 1A DIN Rail Power SupplyMeanwell MDR-20-24 24VDC 1A DIN Rail Power SupplyMeanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Features:

  • Meanwell 24Vdc Power Supply
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Buitl in DC OK active signal
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

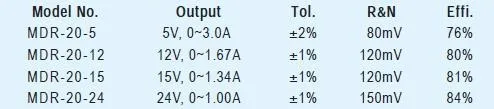

Model Series:

MDR-20-5 / MDR-20-12 / MDR-20-15 / MDR-20-24

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Detail:

MODELMDR-20-5MDR-20-12MDR-20-15MDR-20-24
OUTPUTDC VOLTAGE5V12V15V24V
RATED CURRENT3A1.67A1.34A1A
CURRENT RANGE0 ~ 3A0 ~ 1.67A0 ~ 1.34A0 ~ 1A
RATEDPOWER15W20W20W24W
RIPPLE & NOISE80mVp-p120mVp-p120mVp-p150mVp-p
VOLTAGE TOLERANCE ±2.0%±1.0%±1.0%±1.0%
LINEREGULATION±1.0%±1.0%±1.0%±1.0%
LOADREGULATION±1.0%±1.0%±1.0%±1.0%
SETUP, RISE TIME500ms, 30ms/230VAC          1000ms, 30ms/115VAC at full load
HOLD UP TIME 50ms/230VAC          20ms/115VAC at full load
INPUTVOLTAGERANGE85 ~ 264VAC          120 ~ 370VDC
FREQUENCYRANGE47 ~ 63HZ
EFFICIENCY 76%80%81%84%
AC CURRENT0.55A/115VAC          0.35A/230VAC
INRUSH CURRENTCOLD START 20A/115VAC          40A/230VAC
LEAKAGE CURRENT<1mA / 240VAC
PROTECTIONOVERLOAD105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE5.75 ~ 6.75V13.8 ~ 16.2V17.25 ~ 20.25V27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
FUNCTIONDC OK ACTIVE SIGNAL3.75 ~ 6V / 50mA9 ~ 13.5V / 40mA11.5 ~ 16.5V / 40mA18 ~ 27V / 20mA
ENVIRONMENTWORKING TEMP20 ~ +70°C   (Refer to "Derating Curve")
WORKINGHUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP HUMIDITY40  ~+85°C    10~95% RH
TEMPCOEFFICIENT±0.03%/°C (0~50°C)
VIBRATIONComponent:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC SAFETY STANDARDSU508, TUV EN60950-1 approved
WITHSTAND VOLTAGEI/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATIONRESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSIONCompliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITYCompliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A
QTHERSMTBF236.9K hrs min.    MIL-HDBK-217F(25°C)
DIMENSION22.5*90*100mm (W*H*D)
PACKING0.19Kg; 72pcs/14.7Kg/0.91CUFT

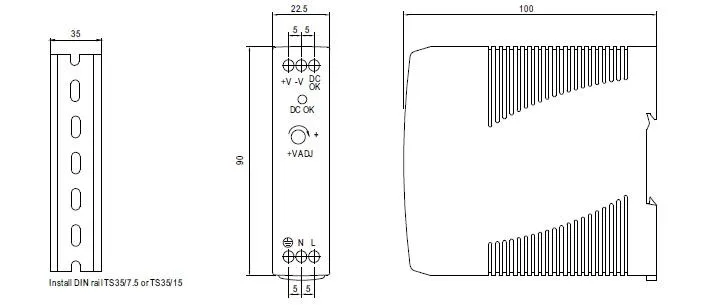

Mechanical Specification:

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Packing

Packing:

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Shipping:

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

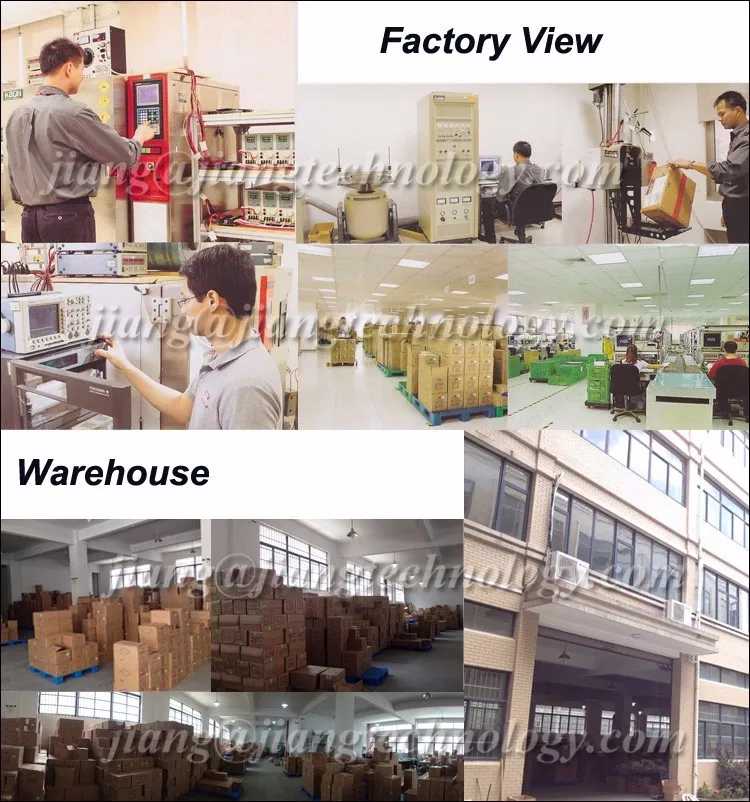

Factory View

Strict, professional production and test, large stock for fast shipping.

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Certifications

What Certification do we have?

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Application

What our Power Supply can do for you?

Meanwell MDR-20-24 24VDC 1A DIN Rail Power Supply

Why Choose us?

SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS

1. What we sell is 100% Genuine Mean Well Power Supply;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
