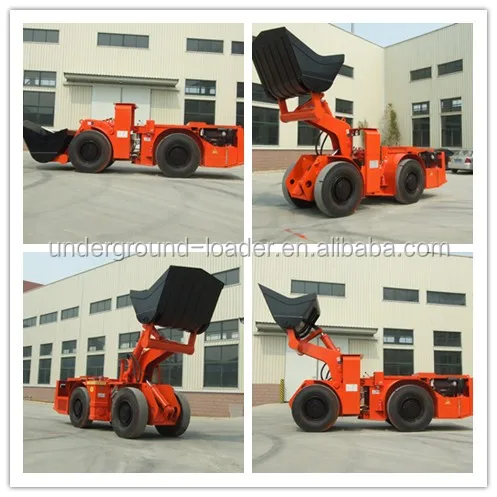

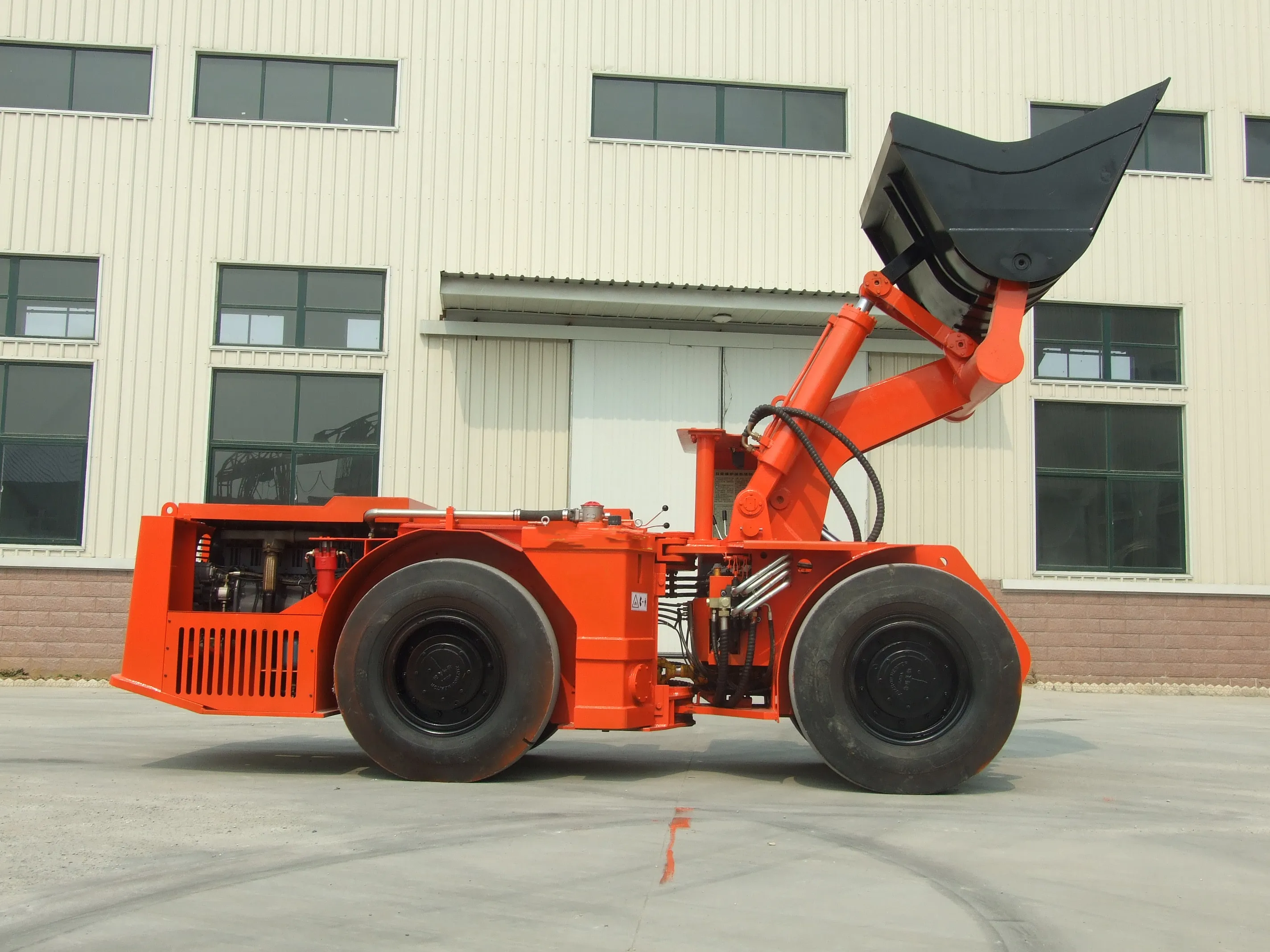

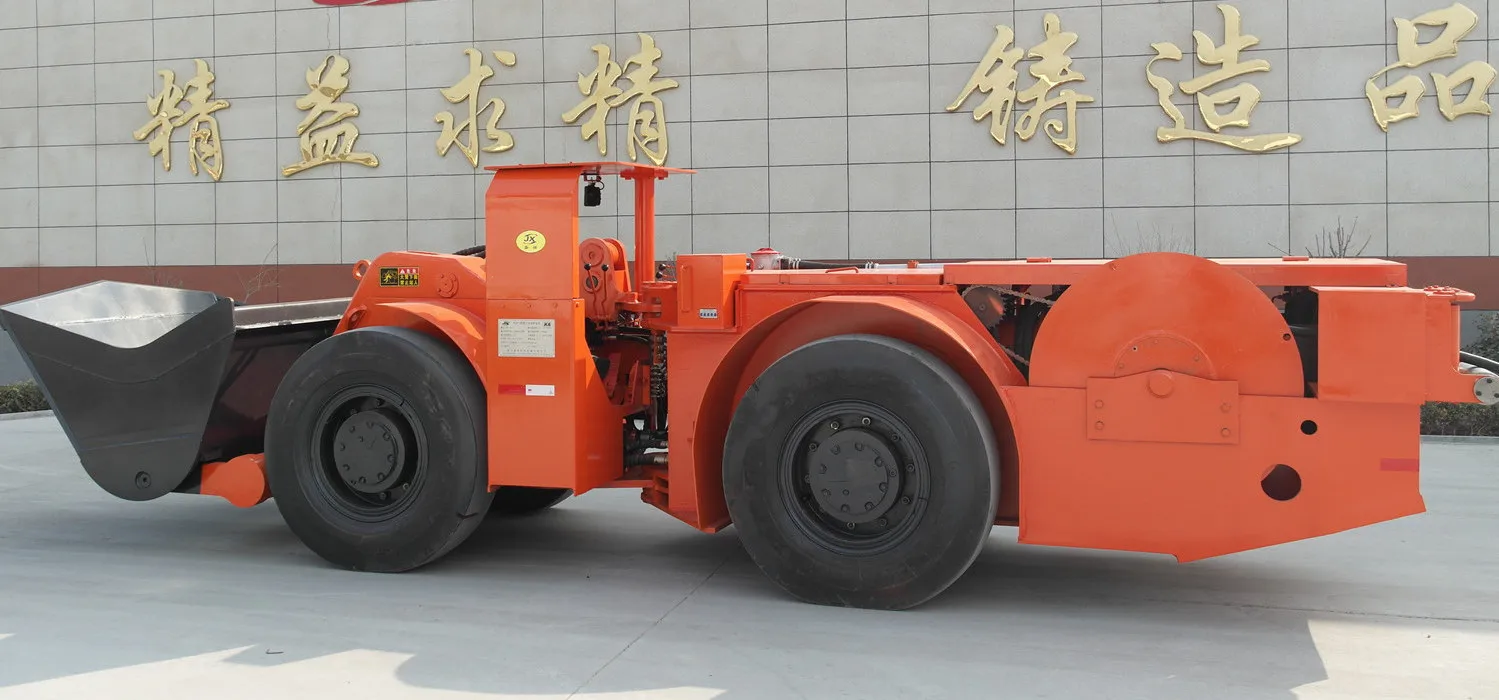

HKWJ-2 Underground Scooptram / Loader 2CBM
HKWJ-2 Underground Scooptram Made In China Technical Data:
Adopt DANA Torque Converter with hydraulic pump drive and power shift transmission.
SAHR brake(Spring Applied,Hydraulic Released)
Rear drive axle adopts double supports oscillating axle,front drive axle adopts No-spin differential
Main Configuartion,Technical Charactersistics and Parameters
Diesel Engine | German DEUTZ |
Torque Converter | DANA |
Transmission Case | DANA |
Drive Axle | No-spin antiskid differential |
Braking System | SAHR(Spring Applied Hydraulic Released) |
Bucket Capacity | 2m³ |
Rated Loading Capacity | 4000kg |
Max.Discharge Height | 1830mm |
Min.Discharge Distance | 880mm |
Max.Shovel Force | 102KN |
Max.Traction | 104KN |
Max.Climbing Ability | 16° |
Rear Drive Axle Swing Angle | ±8° |
Running Speed | First Gear 0-3.8KM/H Second Gear 0-8.5KM/H Third Gear 0-17.5KM/H |
Min.Turning Radius | 5040mm(Outer) 2800mm(Inner) |
Dimensions(transport) | Length 6830mm Width 1770mm Height 2050mm |
Weight | 13000kg |

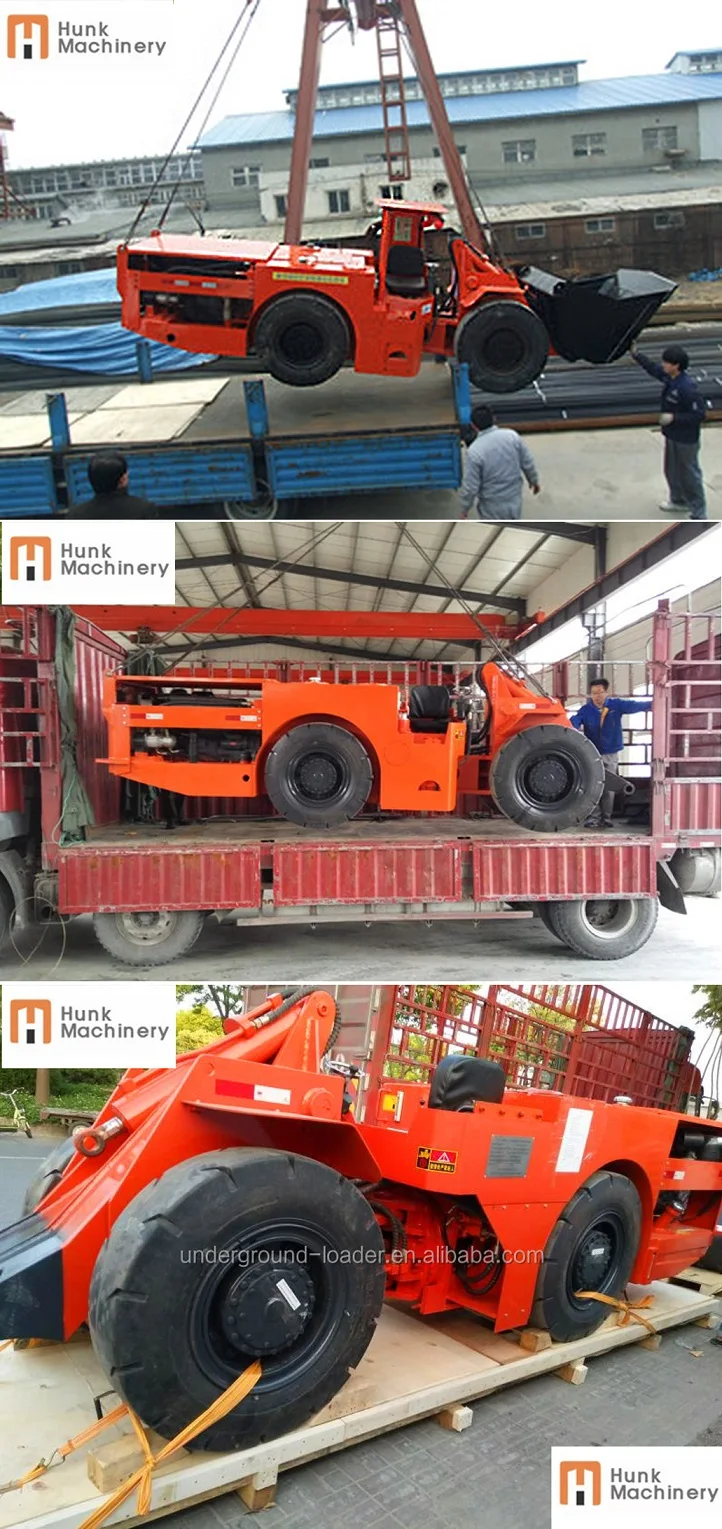

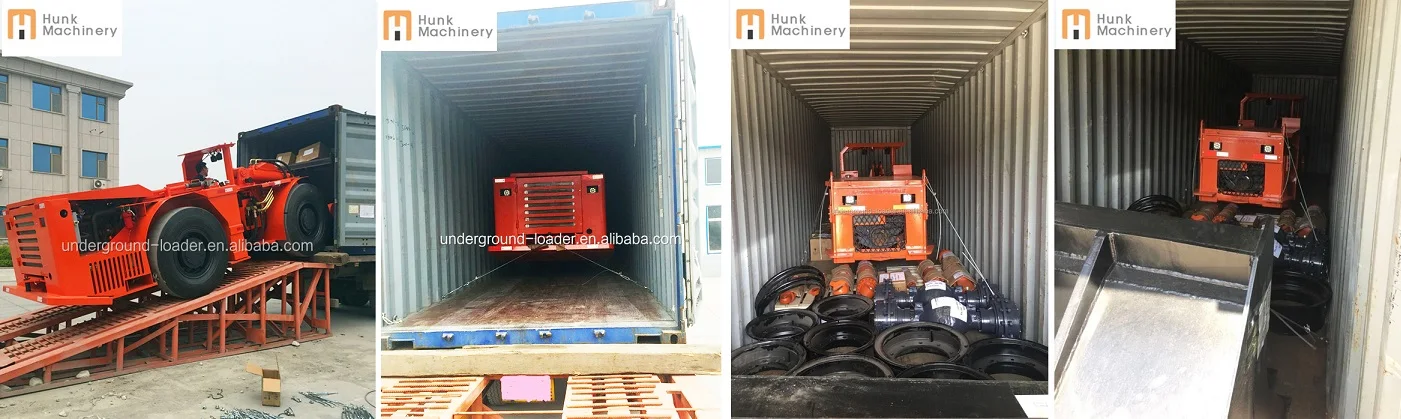

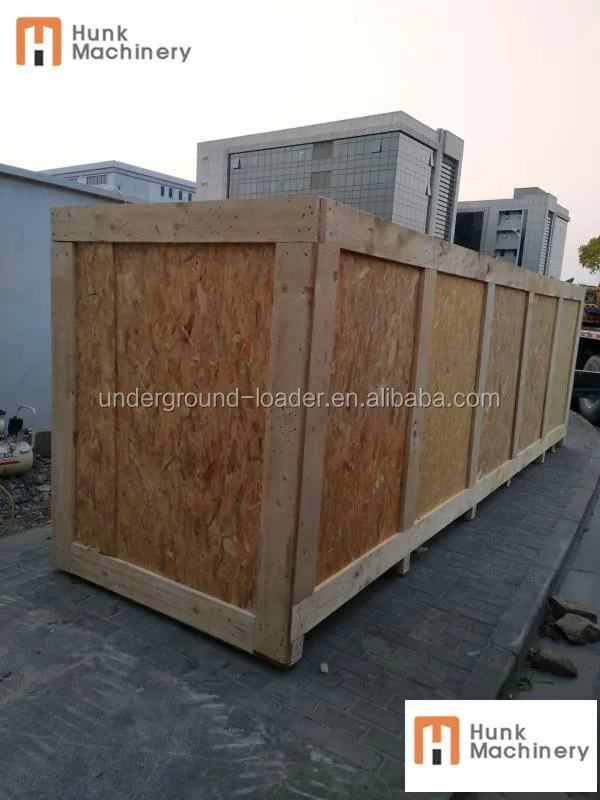

After loading on the truck or in the container, we will fixed the machine with the rope to avoid the moving and damage during transportation. If our customer required, we can also pack the machine in the plywood box for transportation.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
Service before delivery
* After finishing,offer the details photos or vedios for inspection
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.

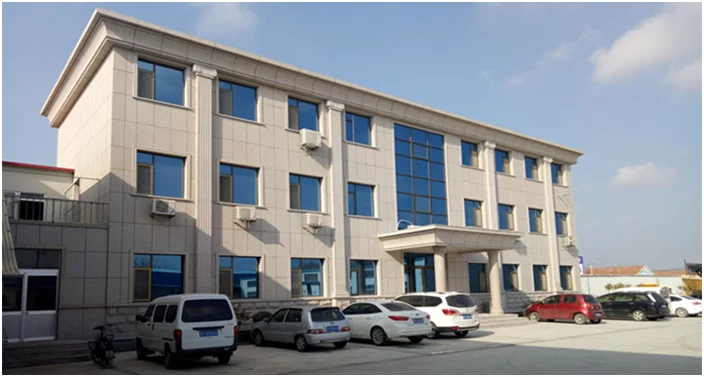

Yantai Hunk Mining Machinery Co.,Ltd is located in Yantai City, Shandong Povince, where the scenery is beautiful. transportation is convenient.

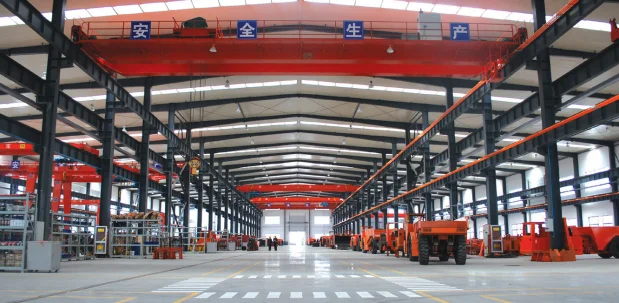

Our company is specialized in designing and manufacturing underground scrapers, spare parts for trackless mining equipment at home and abroad. After years of efforts, we formed a set of scientific management system, absorbed the advanced technology of the famous underground scrapers worldwide, we strictly keep JB/T5500-2004, JB/T5501-2004 and GB25518-2010 standards for producing.

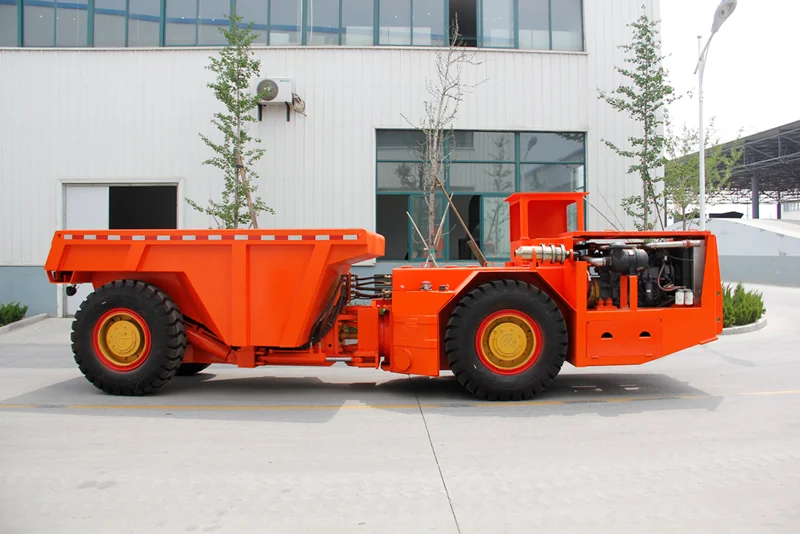

Up to now, our company has successfully launched the electric and diesel scrapers, ranging from 1 cbm to 4cbm.We also produce and supply ore trucks and relative spare parts. Now we are developing the scrapers for coal mine use, remote control type scrapers and many other products.
Depending on our fine machining process, strong technical team, and modern equipment, we are looking forward to serving all customers with our sincerity and quality.
