Product Description

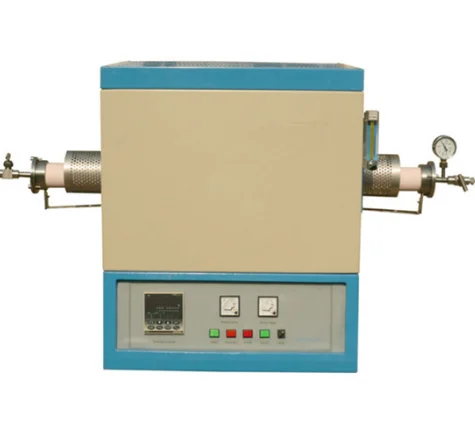

1700C Split Tube Furnace with Optional Quartz Tube 60 or 80mm
TMAX-KTL1700 is a CE certified compact and energy saving split tube furnace with a max. working temperature of 1700°C. Built-in precision temperature controller can provide up to 40 segments of heating and cooling steps with +/- 1 °C accuracy. The furnace include a working tube vacuum flange and refractory ceramic blocks based on your application needs.
SPECIFICATIONS:
Model | KTL1700-I | KTL1700-II |
Power | 4KW | 4KW |
Tube Size | 60mm O.D x 800mm L | 80mm O.D x 1000mm L |
Product Dimensions (mm) | 650x450x670 | 650x450x670 |
Heating Zone length | 260 mm heating zone | 260 mm heating zone |
Voltage | · AC 220 Single Phase, 50/60 Hz | |
Temperature range | 100~1600° C (Continuous); 1700 C (<1 hour) | |
Max. Heating Rate | <= 20° C /min | |
Temperature Controllers | · Digital controllers with 40 programmable segments for precise control of heating rate, cooling rate and dwell time. · Built in PID Auto-Tune function with overheating & broken thermocouple protection. · Over temperature protection and alarm allows for operation without attendant(s). · +/- 1 ºC temperature accuracy. · Two K-type thermocouples (one for each zone). · RS485 Communications Port. | |
Thermal Couples | · K type | |
Temperature Accuracy | +/- 1° C | |

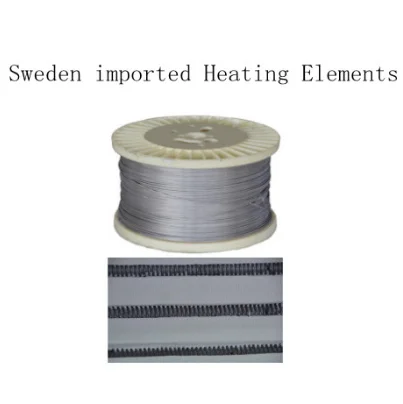

Heating Element | Fe-Cr-Al Alloy doped by Mo | |

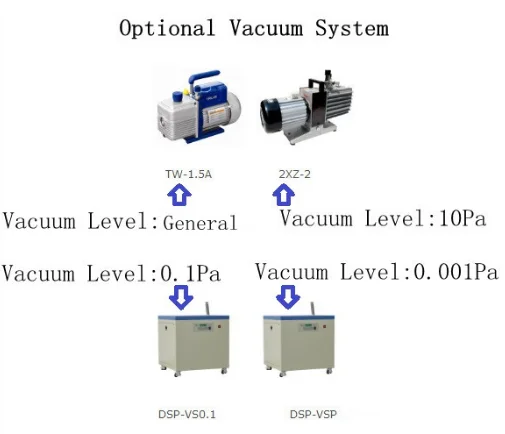

Vacuum Flange & Fitting Ports | · One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included · One Vacuum pressure gauge is installed, one digital vacuum gauge is available upon request at extra cost · The flange set has two 1/4'' Bard fittings, two needle valve, one set of KF25 quick clamp, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port. · Vacuum level can reach 10^-2 torr by quality mechanical vacuum pump and 10^-5 torr by molecular pump | |
Application Notes | · Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.Vacuum pressure may only be safely used up to 1000°C. The flow rate for gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube. · Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the pressure to below 3 PSI for safe operation. | |
Warranty | Two years limited warranty with lifetime support. | |
Compliance | CE | |
![AR%D[O8`1A_R]SZQU$99UXX.png](http://sc02.alicdn.com/kf/HTB157mirH1YBuNjSsze761blFXal/229835540/HTB157mirH1YBuNjSsze761blFXal.png)
P9K_P{HM2%0~AA47BDN[73.png" style="display: block; margin-left: auto; margin-right: auto;" ori-width="505" ori-height="434"/>
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
About Product
1.Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2.How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3.Products standards?
Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on
6.Packing method?
Standard export wooden box packaging
7.How about customers evaluation for your products?
Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek,our high quality products and first-class after-sales service.Our services get the trust of the customer satisfaction and recognition for themselves.
8.Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
10.How to ensure the customer standard use the instrument?
We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.
