Product Description

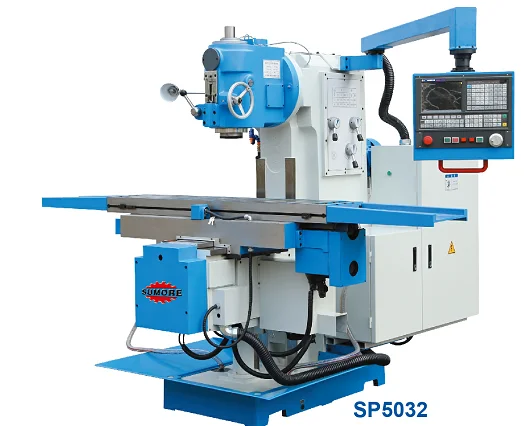

CNC MILLING MACHINE SP5032 specially designed for machining samll size parts, smaller CNC machine with linear guie-way, but concentrated all of functions as normal vertical machine center. Tools can be changed automatically with high speed and high efficiency.
- MACH & GSK & SIEMENS & FANUC Programming Systems
- Additional Computer Socket
- Powerful Brushless Motor & High Precision Axes Movements
- Fine Feedings on Every Directions
- Robust Construction & Stable Performance
- Professional Electronic System
- Cabinet Safety Lock & Considerable Safety Signs
| Model | SP5032 |
| Table size | 1600*320mm |
| T-slots (No./ Width/Pitch) | 3/18/70mm |
| Table travel (X/Y/Z) | 1300/320/450mm |
| Table rapid feed speed (X/Y/Z) | 4000/4000/3000mm/min |
| Spindle hole taper | 7:24 ISO50 |
| Spindle speed range | 12 steps 50-1475r/min |
| Stroke of spindle quill | 70mm |
| Max. swivel angle of vertical milling head | ±30° |
| Distance between spindle and table surface | 35-485mm |
| Distance from spindle center line to culumn | 378mm |
| Torque of X/Y/Z axis AC servo motor | 10/10/18N.m |
| Main motor power | 5.5KW |
| Overall size (L*W*H) | 2520x2100x2150mm |
| Net weight | 2900KG |
| Standard Accessories | Optional Accessories |
| Mill Chuck | Rotary Worktable (4th Axis) Package |
| Vice | Clamping Kit |
| Coolant Pump | Quick Vice / Angle Adjustable Vice |
| Oil Tray | Handwheel |
| Wrench Set | Drill Chuck |
| Operating Manual Instruction and Parts List | Boring Cutter with Arbor |
| Metric 2 Flute HSS End Mill Set (6 or 7 pcs) | |
| Engraving Tool Set | |
| Vice (Quick Vice / Adjustable Vice Available) | |
| Base Stand | |
| Computer Stand and Frame | |
| PCMCIA Parallel Card |
Packaging & Shipping
| Package | 1 set/polywood case (aluminum strips strengthen) |
| Minimum Order Quantity (MOQ) | 1 sets |
| Full Container Loading Quantity (FCL) | 36-60sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 25 calendar days after receiving of advance / full payment |
