poultry galvanized chicken storage feed silo for Farming House
Product description
With the advanced numerical controlled equipment ,Muhe silos feature low product data error ,high precision and the leading stability of international standard.We select dedicated outdoor galvanized plate,which has the advantage of corrosion resistant and long life span.The adoption of international advanced technology and the unique angle design ensure feed drop more smoothly.
Silo consist of main warehouse, flip, ladders, columns and other components. the main warehouse used 275g/m2, double hot dip galvanized sheet steel, has a lower conical holes to view feed level. silo volume according to different actual combinations.Hoarding water in a slope, in the horadings at the bottom flange, so that rain water away from the cutting area. Provide weather protection , regardless of the weather. the next round head screw connection cone inside, effectively reducing cutting resistance. Upper and lower cone by pressure off treatment,both to improve the cone and strength of cone bottom's overall, but also conducive to bilateral clay bar installation , enhanced sealing.

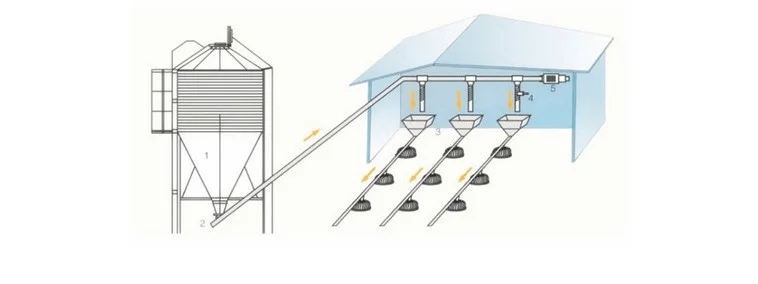

Feed silo is important component of main feeding system.This system include feed silo or hopper, conveying PVC pipe, auger or chain - disc, drop outlets, feed bin, feed senser and driving motor.
This system is mainly used to convey feed from the feed silo or hopper into the feed bin to achieve the aim of automatically feeding.
Using silos could save labor force and save large amount of packages, also keep feeder fresh and health and reduce raising cost greatly.
poultry galvanized chicken storage feed silo for salery Farming House
Technical parameter
NO
Volume
Capacity MT
Height/mm
layers
Material
Leg Numbers
01
4.7
3T
3700
1
Galvanizedplate
4
02
7.5
5T
4400
1
4
03
10.3
7.5T
5600
2
6
04
16.5
10.5T
5860
2
6
05
22.3
15T
6800
3
6
06
31
20T
7100
3
8
07
34.6
23.5T
6180
2
8
08
41.5
28T
7200
3
8
MUHE Best Design and Good Quality Hot Galvanized Feed Silo for Poultry Farming House

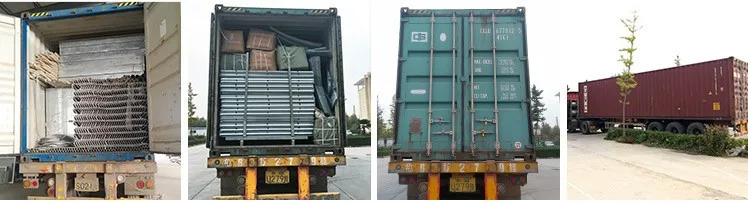

Packing
Standard export paper cards and packing belts
MUHE Best Design and Good Quality Hot Galvanized Feed Silo for Poultry Farming House
Related Products
MUHE Best Design and Good Quality Hot Galvanized Feed Silo for Poultry Farming House
FAQ
Trade Information:
1.Trade Terms:EXW,FOB,CFR and CIF
2.Payment Terms:T/T,30% deposit in advance,70% balance against B/L.Or 100% LC in sight.
4.Delivery Time:15 days after the deposit.
5.Packing:by carton
6.Shipping:by sea/air/express delivery
Warranty:
The motor,we have 2 year warranty.
The fan body,one year warranty.
Trade Progress:
MUHE high quality grain steel silo for farm

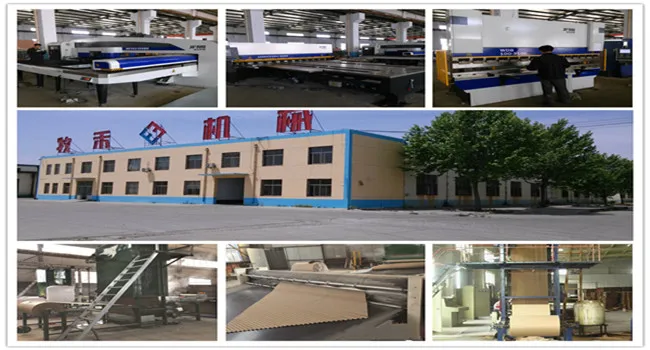

Company Information
Weifang Muhe machinery co., Ltd. is a company that engages in the research of air-flow dynamics and environmental control. It specializes in designing and manufacturing temperature controlling machinery. Through intensive cooperation with renowned universities in China,our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating, as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.

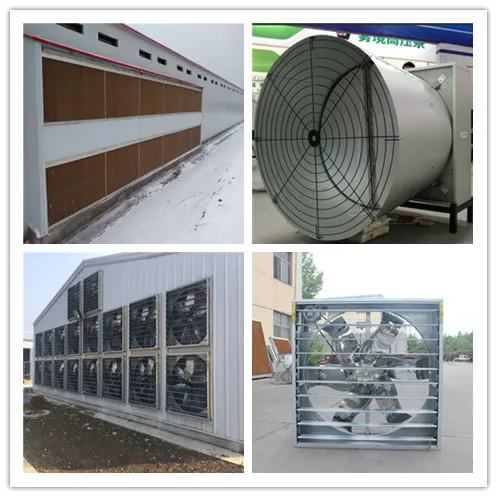

Weifang Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks. Muhe provides products in six series, as well as over thirty types of devices to include poultry fans, cooling pads, negative pressure blowers, gardening fans, roofing automatic ventilation devices, axial flow fans, air furnaces, various types of feeding equipment and so on. These products can be widely used in a variety of settings within both agriculture and industry.
We will, as always, continue to demonstrate extensive cooperation with all friends from all walks of life, hand in hand, for a wonderful new future.
