Automatic manufactory cloth shrinking machine/heat setting and preshrinking machine with low price

Product Description







Introduction

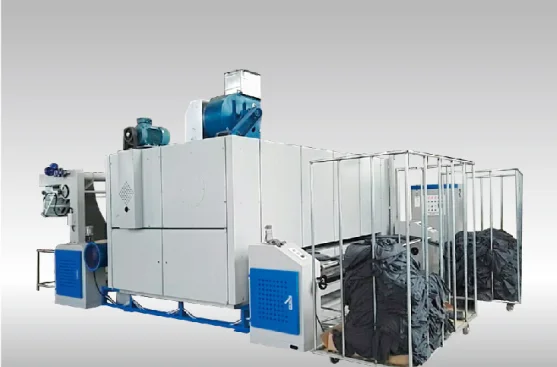

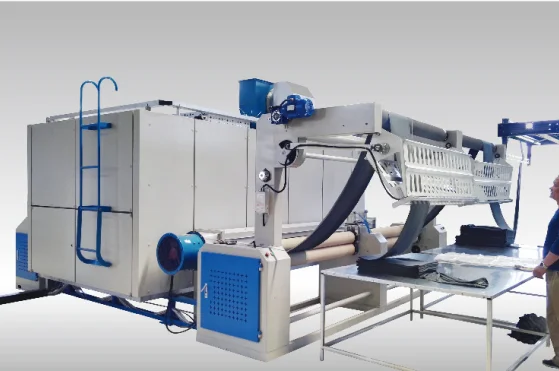

This machine is used for processing of tubular chemical fiber fabric, The machine makes use of synthetic and blended fabric obtained by heating a fixed size.With stainless steel poles.
The fabric into the heating chamber is heated under the poles support,It is out of the heating chamber and cooling, fixed size.
We can offer the following two machines according to the width of the heating chamber, :
GHDX2400,GHDX3800.
GHDX2400 type machine has two work modes: double and single.When processing a narrow fabric with double mode;When processing the width of the fabric with a single mode.Also can supply three road model of machine.
GHDX3800 machine adopt dual driving control mode alone,There is only one working mode: double way.Four road work patterns can be customized.
You can customize the mercy, volume, cutting knives, and doubles.
We can offer the following five different machine according to the heat source:
electricity, heat conduction oil, natural gas(direct combustion),
liquefied petroleum gas (direct combustion),  steam (2.8 MPa),  biomass fuel
We have been trying to do better in terms of energy saving and consumption,
Our machines will try to save cost for you, bring economic benefits.
 * The machine also can be made into electricity and natural gas (direct-fired), electricity and liquefied petroleum gas (direct combustion) dual energy combination.
* If the local preference policy allows heating HTF models,
The machines use high-temperature heat-conducting oil fired boiler output, the lowest operating costs.
* The machine can not be processed cotton fabric.

Design Drawing



Basic Info

ModelGHDX2400 Single Pipe
GHDX3800 Double Pipe
NameTubular Fabric heat setting machine
ApplicationTextile-finishing
Suitable FabricTubular chemical knitted Fabric

Technical Dates

1. Main Matching Fabric            Tubular chemical fiber
2. Max. Working Width:                    1400mm(single), 1200*2(double)
3. Supporting plateManually regulate
4. Machine Speed     3-20m/min
5. Chamber Width2400mm
6. Power Supply  380V·3P·50HZ
7. Main Color             Blue/Customize
8. Weight of Machine                     ≈5T(single),6.5T(double)
9. Drive installed capacity13kw(single);19.94kw(double)
10. Heat-setting Typehot air circulating
11. Fabric Breadth control                             Manually regulate
12. Driving type    Independently drive(single), double driving(double)
13. Temp. control type  Auto temp. Control
14. Compressed air               0.35-0.6MPa
15. Machine Size  L=6950mm ,W=3300mm(single)/4900mm(double)
 H=3300mm


Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be T/T or in irrevocable L/C at sight.
Delivery time: 30-60 days from the date of receiving down payment. All payment should be received before delivery in China.
