Сверхмощный гусеничный бульдозер SEM816 для


Поделиться:

Цена:6 120 816,00 ₽ - 7 651 020,00 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

 Heavy duty SEM816 crawler bulldozer for sale-1_01.jpg

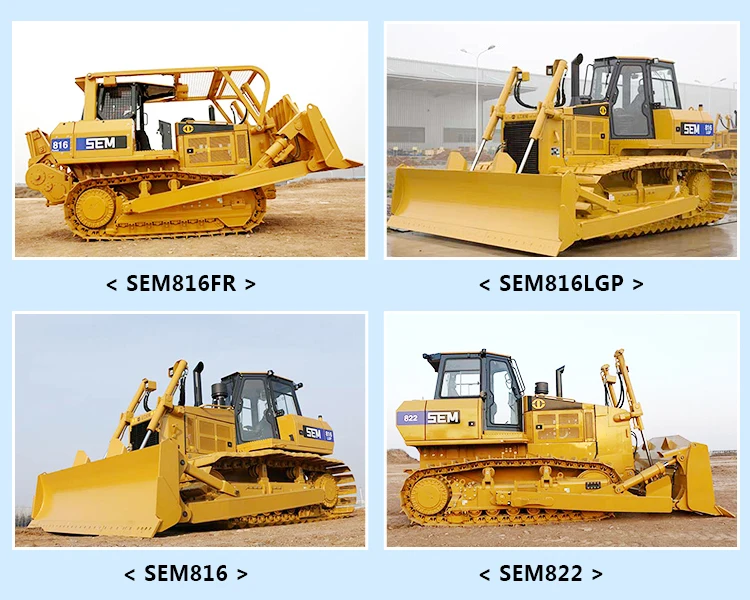

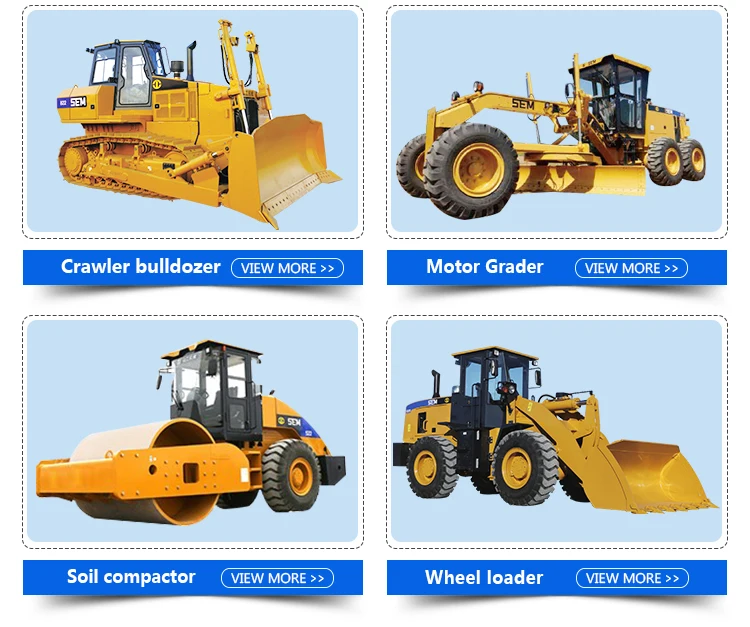

Our Products


Product Description



Main Specifications

Operating weight (Kg)

17230

Ground pressure (kPa)

68

Grand clearance  (mm)

410

Max.slope (°)

30

Engine

Model

Weichai WD10G 178E25

Flywheel power

120KW/160hp

Operating Specifications

Max. Rimpull  (kN)

50

Breakout Force  (kN)

49

Hydraulic system

Implement hydraulic system pressure(Mpa)

19

Type

Pilot control

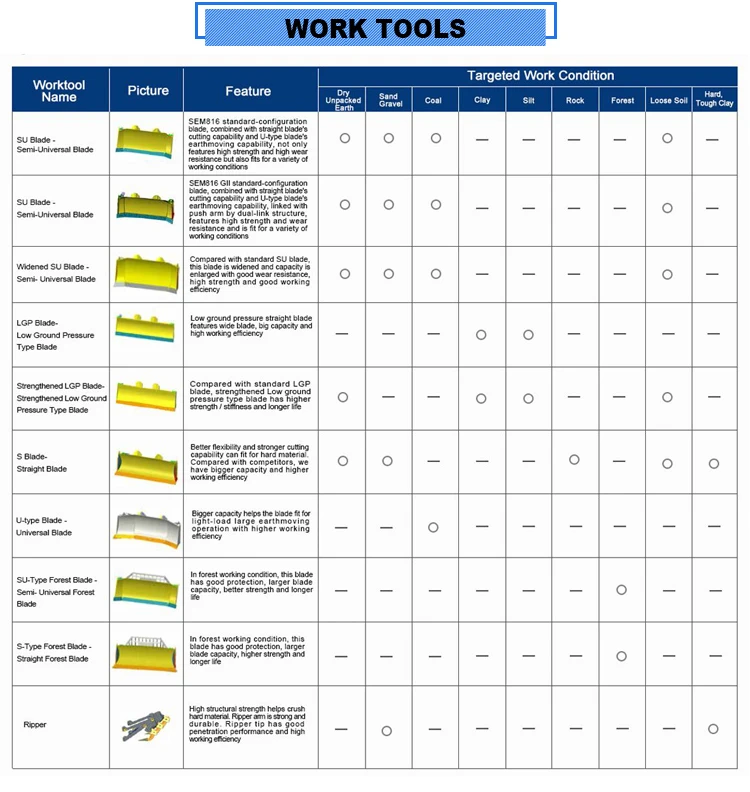

Working tool

Blade type

SU

Blade capacity   (m3)

4.3m3  (S3.4m3)

Blade width(mm)

3140 (S 3490)

Blade height (mm)

1240 (S1165)

Max.blade digging depth (mm)

430

Max.blade lift ground clearance (mm)

1041

Max.output rimpull (kN)

280

Max.digging depth of ripper (mm)

584

Max.clearance under tip (mm)

615

Power train

Type

Electronic control.dual-path,hydrostatic drive

Travel speed-F/R (km/hr)

0-10km/hr (infi nitely variable speed control)

Steering & brake

Hydrostatic steering,wet,multiple-disc brakes

Min. Steering radius

3610mm (counter - rotated available)

Service refill capacities

Cooling system  (L)

45

Hydraulic oil  (L)

40

Implement Oil  (L)

60

Fuel  (L)

320

Pivot shaft case (each side) (L)

1.2

Undercarrige

Track shoe width  (mm)

510

Track shoe quantity  (pc)

37

Length of track on ground (mm)

2430

Track gauge(mm)

1880

Track roller quantity

6/side

Carrier roller quantity

2/side

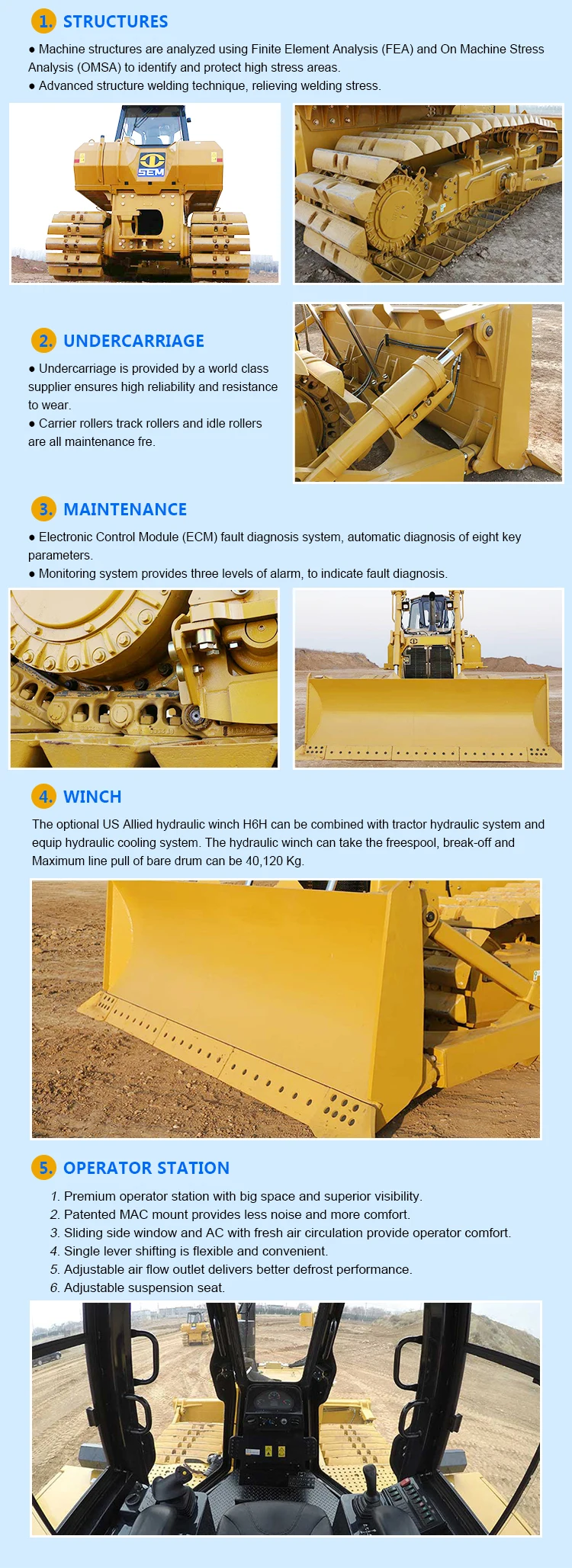

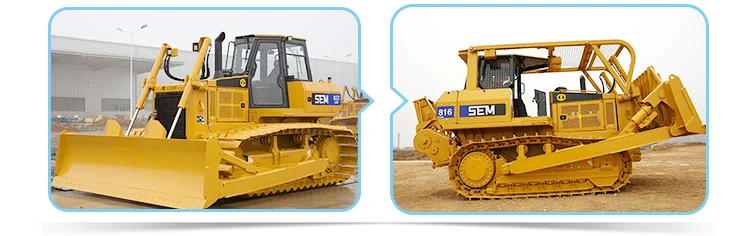

Product Details




Packaging & Shipping



Package :Nude or Polish with wax before shipping.


Shipping:Withing 45days after payment


Company Information


Jining United Import and Export Co.,Ltd is the authorized company of SEM. We supply Wheel Loader, Soil Compactor, Motor Grader, Track Type Tractor and also many kinds of normal products and customized products, to support parts maintenance, service and sales of all machines and 950GC.

Our company was found in 2011,located in Jining City, Shandong province,Before we worked as the construction machinery factory Jining Changhong Construction Machinery Co.,Ltd in Nov, 1996, mainly doing all construction machine spare parts, though all staff ‘effort and government`s support, We has quickly developed and expansion into overseas market.Now as a special spare parts and whole machine supplier, we have a complete set of service from before-sales to after-sales. Now our product have been sold all of the world,like Russia,India,Brazil,Southeast Asia,Africa and other countries.Warmly welcome all regular and new customers to visit our company.


FAQ

1, What’s your MOQ?

 Minimum order is 1 pc only, dealership is warmest welcome.

2,What’s the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

 2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

3, How do you transport the trucks?

 We transport the vehicle in nude or Polish with wax before shipping.

 Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.

 4, Can you satisfy my special requirement?

Yes, We can make customized design to utmost meet your special requirements.
