Description

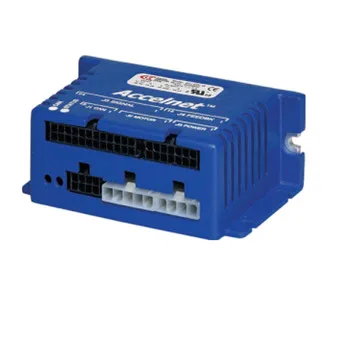

Accelnet Micro Panel is a compact, DC powered servo drive
for position, velocity, and torque control of AC brushless and
DC brush motors. It can operate on a distributed control
network, as a stand-alone indexing drive, or with external
motion controllers. Two versions are available to support digital
quadrature, or analog sin/cos encoders.



Indexing mode enables simplified operation with PLC’s which
use outputs to select and launch indexes and inputs to read
back drive status. Additionally,PLC can send ASCII data
that can change motion profiles so that one index can perform
various motions as machine requirements change. DeviceNet
capability enables multiple Accelnet drives to be controlled
from PLC’s that use this communication protocol.



The CANopen distributed control architecture is also supported.
As a CAN node operating under the CANopen protocol, it
supports Profile Position, Profile Velocity, Profile Torque,
Interpolated Position, and Homing.Up to 127 drives can
operate on a single CAN bus and groups of drives can be linked

via the CAN so that they execute motion profiles together.



Operation with external motion controllers is possible
in torque (current), velocity, and position modes. Input
command signals can be ±10V (torque, velocity, position),
PWM/Polarity (torque, velocity), or stepper format (CU/CD or
Step/Direction).
