Огнеупорная перегородка из силикатного алюминия с высокой термостойкостью 1700

Описание и отзывы

Характеристики

High temperature resistance aluminum silicate fiberboard fire baffle 1700 degrees



1. Base information:

Product name:aluminium silicate board

Product size:can customize the size (1200x600 or...)

Product type:fireproof board

Fire rating:A Class

Temperature resistance:1700℃

Application:

Power industry, power boilers, steam turbines and nuclear thermal insulation

Fire and heat insulation for the shipping industry

Construction, fire doors fire insulation

Wall lining of high temperature reaction equipment and heating equipment in chemical industry

Automobile, train manufacturing, fire protection, heat insulation

Kiln lining, furnace door, top cover tight

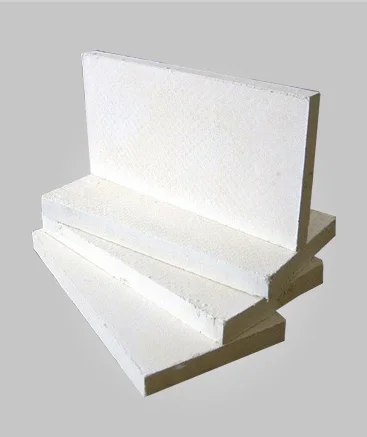

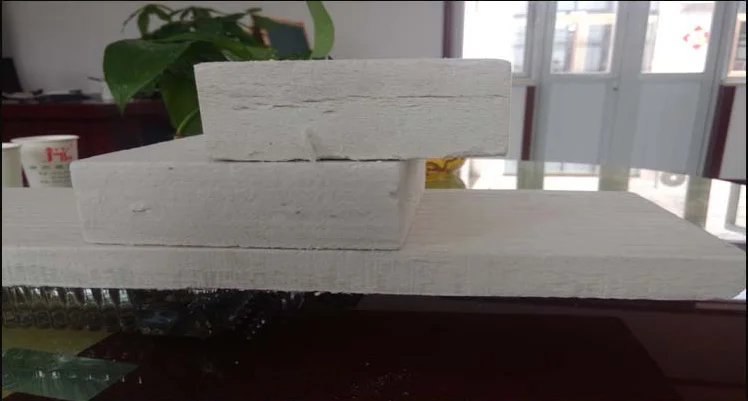

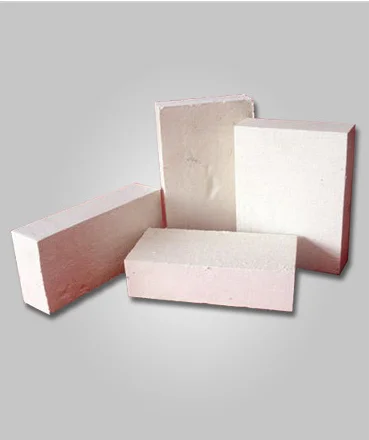

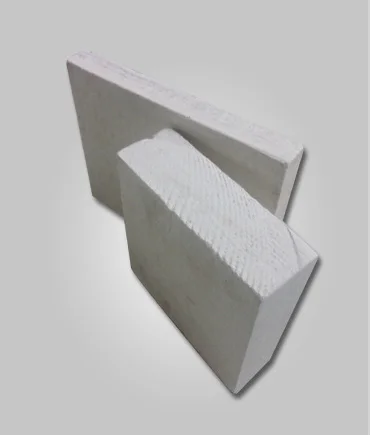

2. Product display

3.The production process

Filament ultralight aluminum silicate fiber board is selected high quality the chamotte by above 2000 ℃ electric stove melt, spray to blow fiber, even add special binder at the same time, prevent oil, hate water through heat curing.

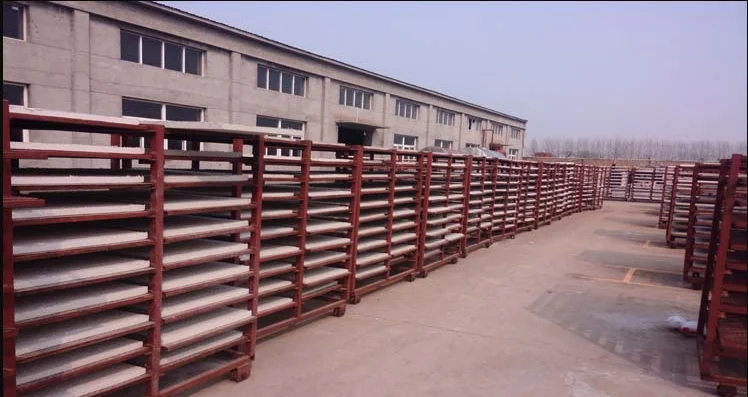

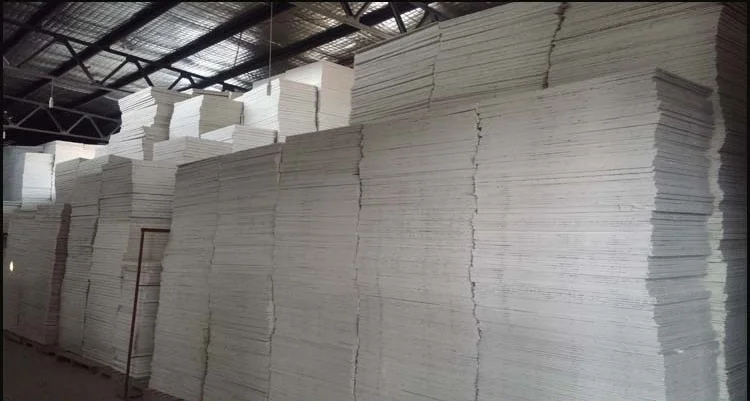

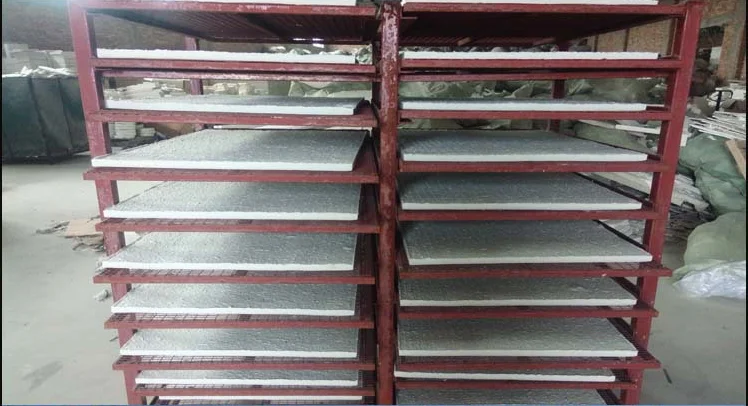

4.Production equipment

"Multi - machine body" one - time forming aluminum silicate sheet assembly line.

When the aluminum silicate cotton is sprayed, a certain proportion of binder is added to form the aluminum silicate felt blank. After the hot air of the curing chamber is passed through and shaped, the computer console automatically cuts and forms the aluminum silicate dry plate.

5.Specify

Aluminum silicate in use for the first time, when the component temperature exceeds 200 ℃ aluminum silicate, there will be a mild smoke, this is aluminum silicate binder volatilization, inside short time aluminum silicate will become brown, run 1-3 days after the aluminum silicate nature to restore the original white, and the quality of product will not cause any influence.

6.Technical indicators

Item	Normal aluminum silicate plate	High density aluminum silicate plate
Color	White	White
density(kg/m^3)	150(±5)	170-600(±5)
Thermal conductivity   (w/m.k)	0.035(20℃) 0.09(400℃) 0.126(600℃) 0.159(800℃)	0.035(20℃) 0.085(400℃) 0.124(600℃) 0.16(800℃)
Permanent line shrinkage(%) (Keep warm for 24 hours)	-4.0 (900-1000℃)	-4.0 (900-1000℃)
shot content(%)φ>0.25mm	10.2	10.5
Fibre fineness(μm)	2-3	2-3
Remark: The above data can be measured according to international standard test methods   7.Range of application  1) Application of civil housing 2) Application of entertainment venues 3) Office applications 4) Application of industry 5)Other applications
