Кабель для лифта TVVBP с защитой от

Описание и отзывы

Характеристики

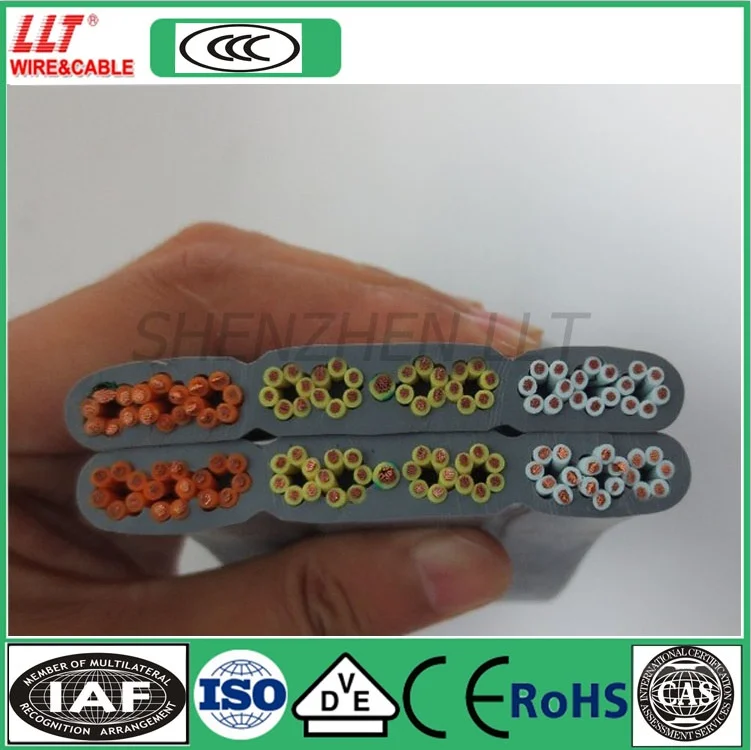

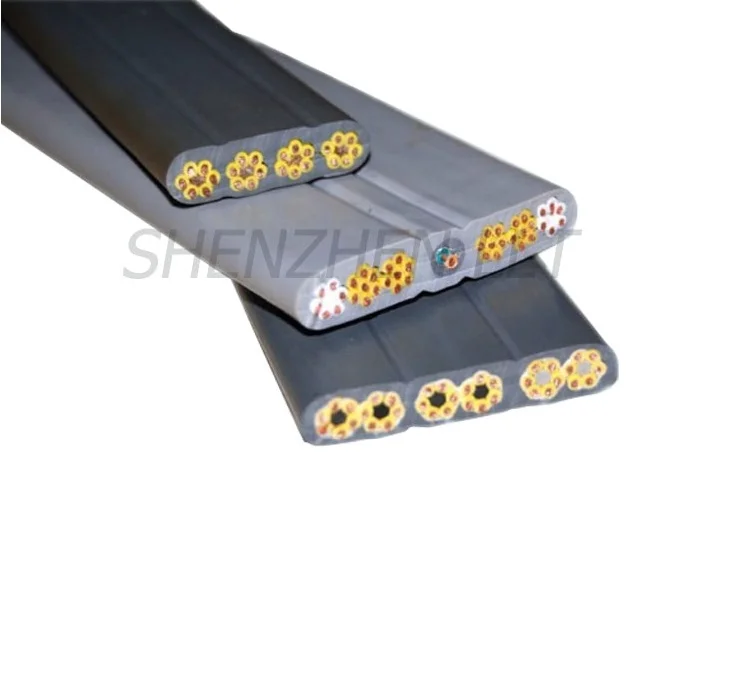

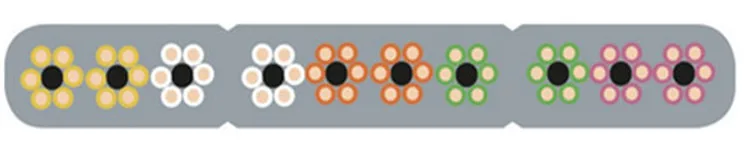

Electric Wire Elevator Flat Cable

LLT Elevator Flat Cable Type:

1.LLT-01-TVVB



Cores count	Nominal cross section(mm²)	Nominal thickness of insulation(mm)	interval/mme1	Nominal thickness of sheath(mm)		Min.Insulation Resistance at 70℃(MΩ.KM)
				e2	e3
3-60	0.75	0.6	1.0	0.9	1.5	0.011
3-60	1	0.6	1.0	0.9	1.5	0.01
3-60	1.5	0.7	1.0	1.0	1.5	0.01
3-60	2.5	0.8	1.5	1.0	1.8	0.009
3-24	4	0.8	1.5	1.2	1.8	0.007
3-24	6	0.8	1.5	1.2	1.8	0.006
3-24	10	1.0	1.5	1.4	1.8	0.0056
3-24	16	1.0	1.5	1.5	2	0.0046
3-24	25	1.2	1.5	1.6	2	0.0044

Feature:

1. PVC insulation, PVC sheath

2. Rated voltage: 300/500V

3. Rated temperature: Lower than 70°C

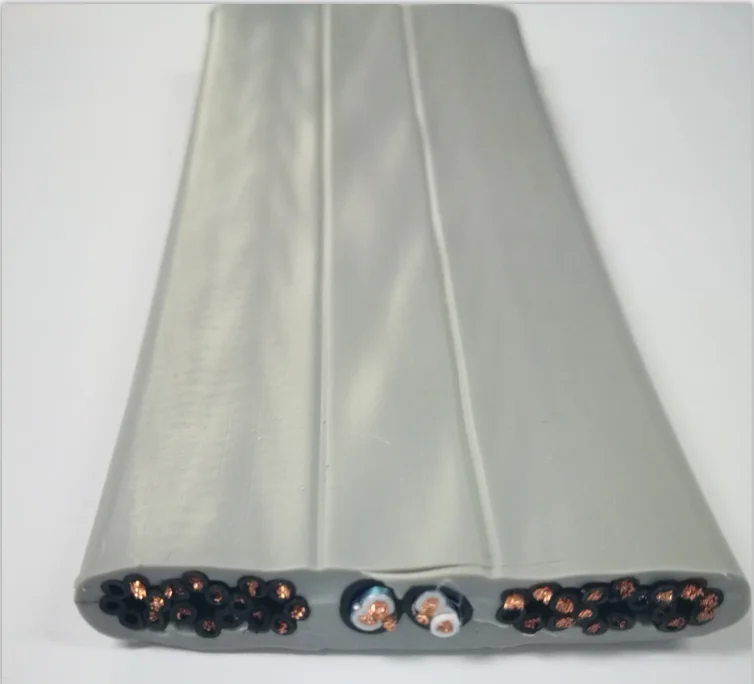

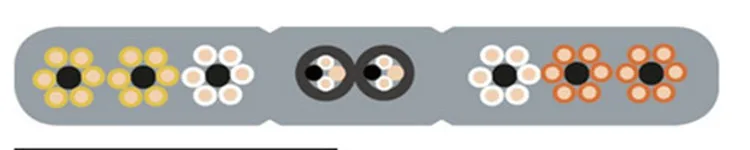

2.LLT-01-TVVBP



Cores count	Nominal cross section(mm²)	Structure of conductor	Max. size of shape(mm)
34	30×0.75+2×(2×0.75)P	30×30/0.18+2×(2×30/0.18)	52.0×9.5
40	36×0.75+2×(2×0.75)P	36×30/0.18+2×(2×30/0.18)	56.0×9.5
52	48×0.75+2×(2×0.75)P	48×30/0.18+2×(2×30/0.18)	68.0×9.5





Feature:

1. PVC insulation, PVC sheath

2. With shielded pairs

3. Rated voltage: 300/500V

4. Rated temperature: Lower than 70°C



Application

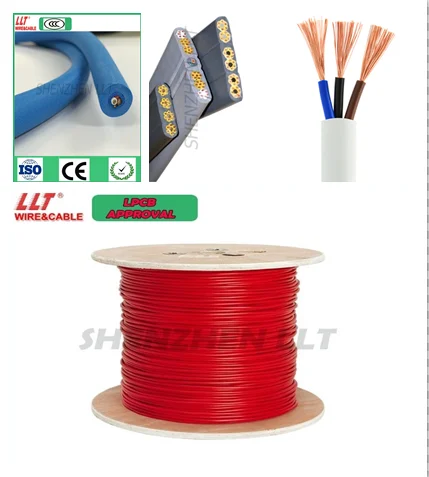

Other products

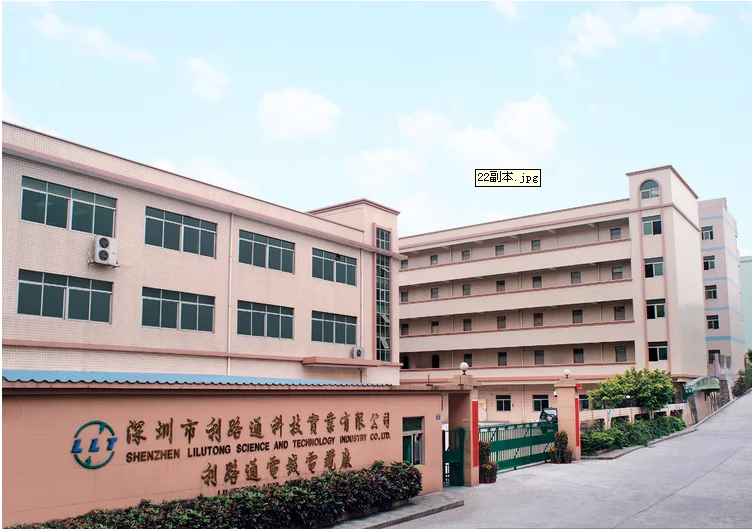

LLT Profile

      Shenzhen Lilutong Tehcnology Industry Co.,Ltd  is an enterprise group,integrated research,manufacture&trade. The group has

total capital RMB 13 million&o occupied area 1300 thousand sqm including building area 500  thousand sqm. The group has more

than 80 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1 billion, 300 employees and

nearly domestic& overseas representative offices or branch companies.



We mainly produce 10 categories(thousands of kinds)cables, such as LPCB fire resistance cable,audio&video cable, elevator cable,

data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.



With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa.

And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC

certificate, US UL certificate, European Union CE Certificate, German TUV, LPCB ,Quality system certification certificate ISO9001:2000.



And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China

Cable Manufacturer TOP100.

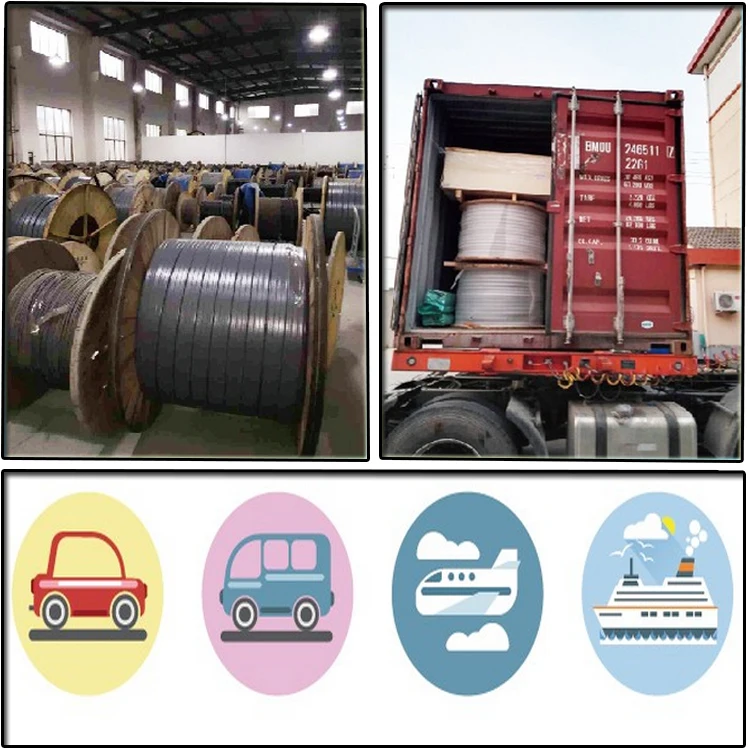

Packing&Shipping
