Модель LWY вкручиваемый и фланцевый ЖК-дисплей высокоточный цифровой расходомер жидкостной
- Категории: Расходомер >>>
- Поставщик: Dalian,Ace,Flow,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

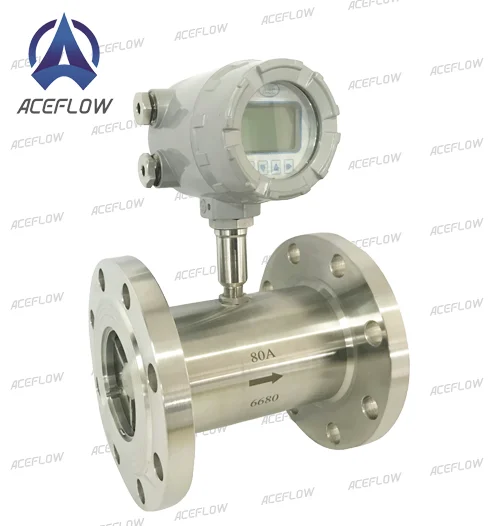

LWY Model Screwed and Flanged LCD Display Digital Liquid Turbine Water Flow Meter
Product Name | Screwed and Flanged LCD Display Digital Liquid Turbine Water Flow Meter |
Nominal Diameter | DN4~DN300 |
Medium | Clean liquid with low viscosity |
Accuracy | 1.0%, 0.5% |
Nominal Pressure | 1.6MPa(Flange), 6.3MPa(Screw) |
Fluid Temperature | -20℃~+80℃, 80℃~120℃, 120℃~180℃(High Temperature type) |
Ambient Temperature | -20℃~+55℃ |
Connection | DN4-DN40: PT SCREWED, DN25-DN300: FLANGED |
Body Material | 304, 316 |
Vane Material | 420, Duplex Stainless Steel 2205 |
Guide Material | 304, 316 |
Amplifier Material | 304 |
Flange Material | 304, 316 |
Flange Standard | DIN, JIS, ANSI |
Power Supply | AC85-230V, 50/60Hz or DC24V or Battery |
Output Signal | 4-20mA + Pulse |
Accuracy | ±1%(Standard), ±0.5%(Option) |
Protection Class | IP65 |
Ex Mark | ExdIIBT4 |
Field Display
LCD display, support 4~20mA+Pulse output.
4~20mA output
High Temperature type
Workable for high temperature Max. 120℃ and 180℃.
Screwed Connection:

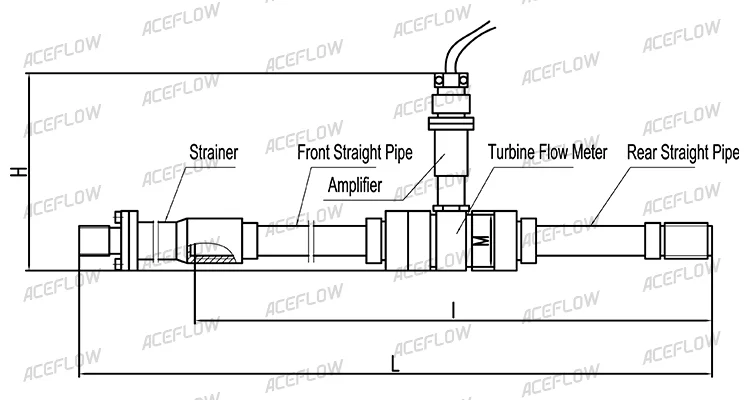

Size: 4~10mm
Size | Max. Pressure | Dimension(mm) | ||||||
mm | MPa | L | I | H | M | |||
4 | 6.3 | 275 | 215 | 145 | G1/2 | |||
6 | 6.3 | 275 | 215 | 145 | G1/2 | |||
10 | 6.3 | 455 | 350 | 165 | G1/2 | |||

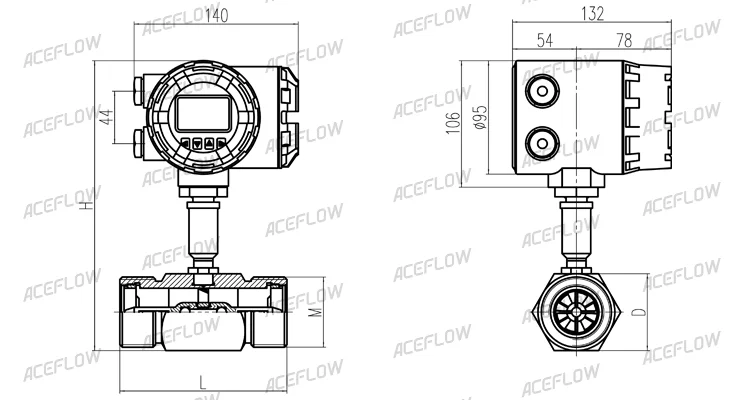

Size: 15~40mm
Size | Max. Pressure | Dimension(mm) | ||||||
mm | MPa | L | H | D | M | |||
15 | 6.3 | 75 | 210 | 250 | G1 | |||
20 | 6.3 | 90 | 216 | 285 | G1 | |||
25 | 6.3 | 105 | 222 | 340 | G1 1/4 | |||
32 | 6.3 | 140 | 228 | 340 | G1 1/2 | |||
40 | 6.3 | 140 | 236 | 340 | G2 | |||

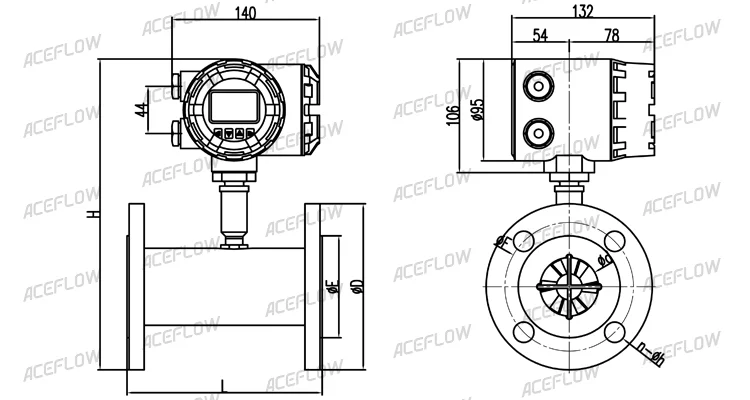

Flanged Connection:
Size: 25~300mm
Size | Pressure | Outline Size(mm) | DIN PN16 RF FLANGE(mm) | ||||||||||
mm | MPa | L | H | D | E | F | n | h | |||||
25 | 1.6 | 100 | 260 | 115 | 65 | 85 | 4 | 14 | |||||
40 | 1.6 | 140 | 280 | 150 | 84 | 110 | 4 | 18 | |||||
50 | 1.6 | 150 | 295 | 165 | 99 | 125 | 4 | 18 | |||||
65 | 1.6 | 180 | 313 | 185 | 118 | 145 | 4 | 18 | |||||
80 | 1.6 | 200 | 327 | 200 | 132 | 160 | 8 | 18 | |||||
100 | 1.6 | 220 | 346 | 220 | 156 | 180 | 8 | 18 | |||||
125 | 1.6 | 250 | 377 | 250 | 184 | 210 | 8 | 18 | |||||
150 | 1.6 | 300 | 406 | 285 | 211 | 240 | 8 | 22 | |||||
200 | 1.6 | 360 | 500 | 340 | 266 | 295 | 12 | 22 | |||||
250 | 1.6 | 400 | 570 | 405 | 319 | 355 | 12 | 26 | |||||
300 | 1.6 | 420 | 615 | 460 | 370 | 410 | 12 | 26 | |||||
DALIAN ACE FLOW TECH CO., LTD was established as a joint venture with South Korea in 2009, mainly in business of valves, flow meters and other pneumatic parts.
Our Turbine flowmeter main has material SS304, SS316, SS2205, etc. It is widely used in industrial and civil system like Petroleum and Petrochemical, Natural Gas, Power station, Ships, Boilers, Water supply and drainage for high buildings, Medicine, Food processing, and so on.
The company has absorbed Korean advanced production technique and provided valve parts machined by MAZAK CNC center for many Korean famous factories.
For valves, there is mainly Globe Control Valve, High Performance (Double Eccentric) Butterfly Valve, Pressure Reducing Valve, Steam Trap, Air Release Valve, Triple Duty Valve, Suction Diffuser, Pneumatic/Electric Ball Valve& Butterfly Valve, etc.
For flow meters, there is mainly Electromagnetic flowmeter, Turbine flowmeter, Vortex flowmeter, Oval gear flowmeter, Ultrasonic flowmeter, etc.
It also provides special OEM and ODM service for various kinds of machining parts, which is professional in design and exploitation, production, assembly and service all-in-one.
Our Turbine flowmeter main has material SS304, SS316, SS2205, etc. It is widely used in industrial and civil system like Petroleum and Petrochemical, Natural Gas, Power station, Ships, Boilers, Water supply and drainage for high buildings, Medicine, Food processing, and so on.
Our Turbine flow meter has good quality and competitive price, thus enjoy high reputation in the international market. We are devoted to provide professional service, and work hard to satisfy the increasing demand from all the customers.

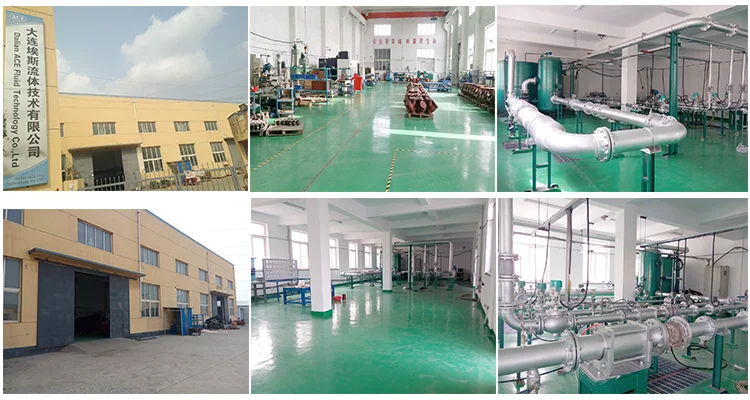

Workshop
Production Equipments
Test Equipments
Warehouse
Office
Team1
Team2
1set per carbon box; Export standard package (Plywood case, Pallet, etc)
1. Are you trading company or manufacturer?
We are factory. Our digital liquid turbine water flow meters are 100% calibrated before delivery.
2. Do you provide samples? Is it free or extra?
Yes, we could offer charged sample and the cost can be reduced from following batch quantity order. As our products are too heavy, sample freight will not be covered at our side.
3.What is the MOQ?
For valves and flow meters, it is 1pc; for castings, it should be 10pcs at least.
4. How long is your delivery time?
Generally it is 10-15 days. If it is not standard model, or necessary parts are not available in stock, the delivery time will be
20 days. For batch order, it will depend on quantity.
5. What is your payment terms?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Payment>=10000USD, 100% irrevocable L/C at sight available upon request, with bank cost charged by separate.
6. What is the warranty period?
Generally it is 1 year after the shipment date.
We are factory. Our digital liquid turbine water flow meters are 100% calibrated before delivery.
2. Do you provide samples? Is it free or extra?
Yes, we could offer charged sample and the cost can be reduced from following batch quantity order. As our products are too heavy, sample freight will not be covered at our side.
3.What is the MOQ?
For valves and flow meters, it is 1pc; for castings, it should be 10pcs at least.
4. How long is your delivery time?
Generally it is 10-15 days. If it is not standard model, or necessary parts are not available in stock, the delivery time will be
20 days. For batch order, it will depend on quantity.
5. What is your payment terms?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Payment>=10000USD, 100% irrevocable L/C at sight available upon request, with bank cost charged by separate.
6. What is the warranty period?
Generally it is 1 year after the shipment date.
