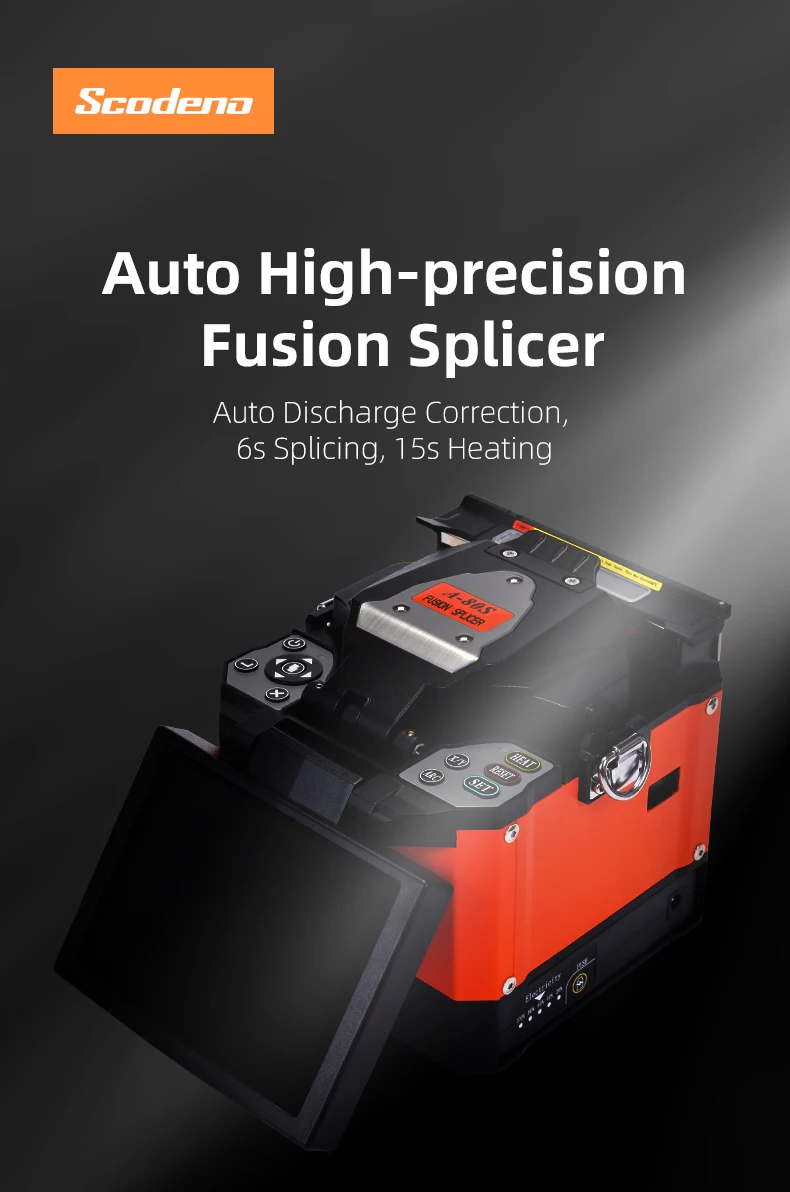

Scodeno ударопрочный сопротивление падению оптический Волоконно-оптический сращиватель термический волоконно-оптический кабель термическая сращивающая

 Applicable fibers

 SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types

 Splicing Loss

 0.02dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS)

 Return Loss

 ≥60dB

 Tension Test

 Standard 2N (optional)

 Fiber Diameter

 Cladding diameter 80-150um, coating layer 250-1000um; 16mm

 Cutting Length

 Coating≤250um: 8-16mm; Coating 250-1000um;16mm

 Magnification

 400 times (x-axis or y-axis)

 Heat Shrink Sleeve

 Display

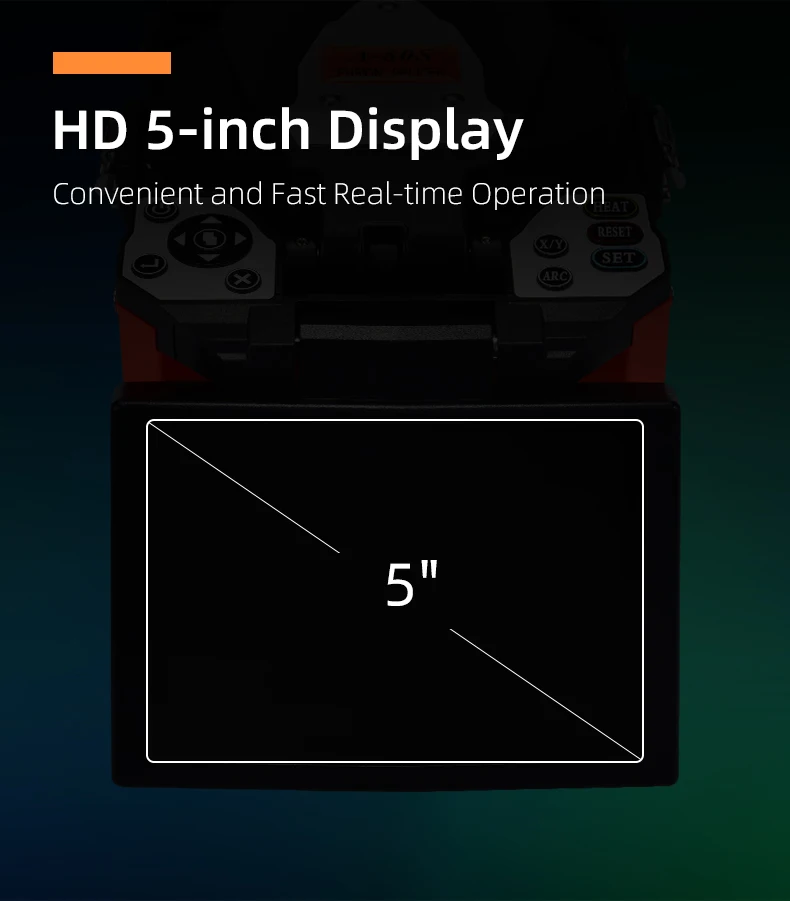

 5.0-inch TFT color LCD display, reversible content, convenient for two-way operation

 External Interface

 USB interface

 Fusion Mode

 17 group of operation modes

 Heating Mode

 9 group of operation modes

 Continuous Loss Storage

 Built-in memory holds 5000 latest continuous results

 Power Saving Function

 15% lithium battery capacity can be saved in typical environment

 Power Supply

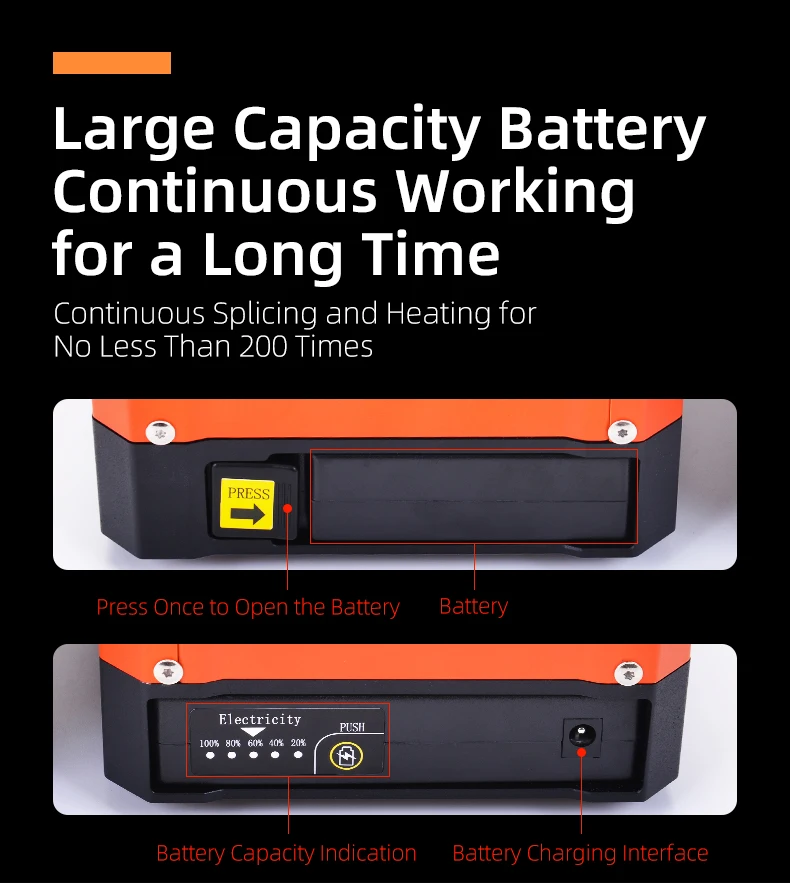

 Built-in lithium battery 11.8V, charging time ≤3.5 hours.

 IExternal power adapter, Input AC100-240V 50/60HZ, Output DC 13.5V/4.81A

 Operating Environment

 -10~50°C, humidity < 95%RH (no condensation)

 Working altitude 0-5000m, maximum wind speed 15m/s

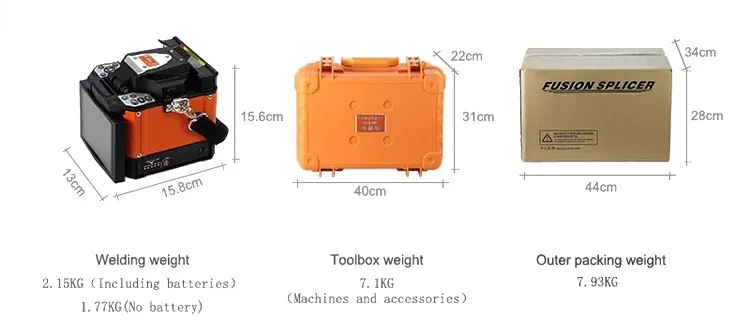

 Dimensions

 158*130*156mm(L*W*H)

 Weight

 1.17kg (without battery) 2.14kg (with battery)
