Product Description

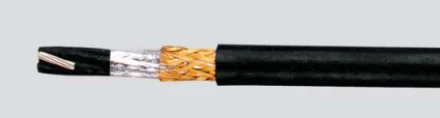

Item name: Flexible LMGSGO 300/500 V Light power cables for marine halogen-free screened
APPLICATION
For fixed installation on marine craft above and below deck.
The definitions for installation in BV 3400 apply.
GLOBAL DATA
Type designation LMGSGO
Standard VG 95218 Part 61
CONSTRUCTION
Conductor Copper, round stranded, in accordance with VG 95218 part 61
Insulation Crosslinked polyalkene compound
Core identification According to VG 95218 part 61
Core arrangement Lapped foil over the laid-up cores
Screen Plain copper wire braid. Over the braid is a transparent foil.
Outer sheath Compound from crosslinked elastomer, colour: black
CHARACTERISTICS
According to VG 95281 part 61 screened.
No loss of insulation if directly exposed to fire. No special fire-proofed layer necessary
Nominal voltage 500 V
Max. permissible operating voltage AC 0.318/0.55 kV
Max. permissible operating voltage DC 0.413/0.825 kV
AC test voltage 2.5 kV
Current Carrying Capacity description The definitions in BV 3400 apply
CHEMICAL PARAMETERS
Smoke emmission according to VG 95218-2
Acidity of fire gases according to VG 95218-2
Flame propagation according to VG 95218-2
Resistance to oil according to VG 95218-2
Resistance to chemicals according to VG 95218-2
THERMAL PARAMETERS
Max. permissible temperature at conductor 90 °C
Max. short circuit temperature of the conductor 250 °C
Laying temperature min. -15 °C
MECHANICAL PARAMETERS
Max. tensile load on the conductor 50 N/mm²
Min. bending radius 5 x D
Packaging & Shipping
Flexible control cable NYSLY 300/500V DIN VDE 0245 PVC insulated and sheath UV flame retardant
1,100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Our Services
Flexible LMGSGO 300/500 V Light power cables for marine halogen-free screened
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Company Information
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
Flexible LMGSGO 300/500 V Light power cables for marine halogen-free screened Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Flexible LMGSGO 300/500 V Light power cables for marine halogen-free screened Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
FAQ
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
