Off Grid System Energy Home Soler 5kw 48v Power Pure Sine Wave Mppt Solar Inverter
Product Description
- Pure sine wave inverter
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications

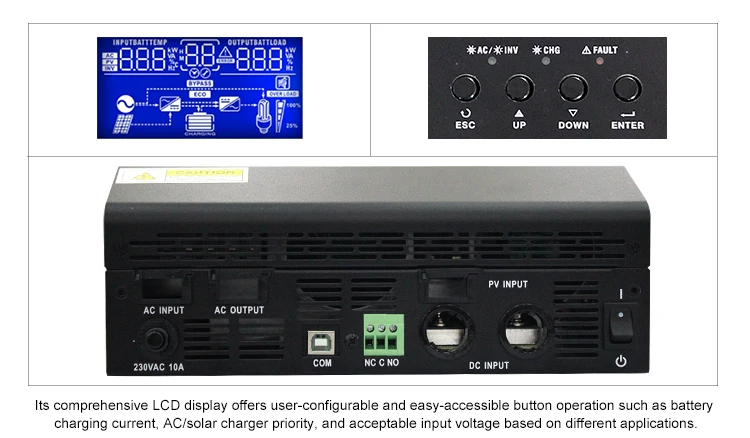

- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Parallel operation with up to 6 units only available for 4KVA/5KVA
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Optional Remote Control Panel availabletery
| Model | PH20-1000 | PH20-2000 | PH20-3000 | PH20-3000 | PH20-4000 | PH20-5000 |
| DC VOLTAGE | 1K-24v | 2K-24v | 3K-24v | 3K-48v | 4K-48v | 5K-48v |
| RATED POWER | 800W | 1600W | 2400W | 2400W | 3200W | 4000W |
| INPUT | ||||||
| Voltage | 230 VAC | |||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |||||
| 90-280 VAC (For Home Appliances) | ||||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||
| OUTPUT | ||||||
AC Voltage Regulation | 230VAC ± 5% | |||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Efficiency (Peak) | 90%-93% | 93% | ||||
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||||
| Waveform | Pure sine wave | |||||
| BATTERY & AC CHARGER | ||||||
| Battery Voltage | 24 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC | |
| Floating Charge Voltage | 27 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC | |
| Overcharge Protection | 31 VDC | 31 VDC | 31 VDC | 62 VDC | 60 VDC | |
| SOLAR CHARGER & AC CHARGER | ||||||
Maximum PV Array Power | 600 W | 600 W | 600 W | 900 W | 3000 W | |
MPPT Operating Voltage | 30V~66VDC | 30V~66VDC | 30V~66VDC | 60V~88VDC | 60V~115VDC | |
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 75VDC | 102VDC | 145VDC | |
Max Solar Charge Current | 25A | 25A | 25A | 18A | 60A | |
| Max AC Charge Current | 20A | 30A | 30A | 15A | 60 A | |
Maximum Charge Current | 25A | 30A | 30A | 18A | 120A | |
| AC and solar charger can't work at the same time | ||||||
| Maximum Efficiency | 98% | |||||
| Standby Power Consumption | 2 W | |||||
| PHYSICAL | ||||||
| Dimension D*W*H | 100*272*355 (mm) | 140*295*540 (mm) | ||||
| Net Weight (kgs) | 6.8 | 7 | 7.4 | 12.5 | 13.5 | |
| OPERATING ENVIRONMENT | ||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
| Operating Temperature | 0°C - 55°C | |||||
| Storage Temperature | -15°C - 60°C | |||||
