Product Description
4k 60Hz 4x1 HDMI KVM Switch
#HKS0401A1U
This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you
available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Features
Using only 1 set of keyboard, mouse and monitor to control 4 computers
Available to use keyboard without any delay after switching input source
Support hot key commands and mouse gesture to switch inputs
Support resolution up to 3840*2160@60Hz 4:4:4
Complaint with HDCP 2.2
Support USB2.0 for printers, USB drives, etc
With EDID emulators in each input port, keep PCs always having correct display information
Support front panel buttons, IR signals, keyboard hot keys to control KVM switch
Support Unix/Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based systems
Support auto switching among all devices so as to monitor the devices in a specified time interval
Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
Support analog L/R audio output
Support HDR 10
Panel Description
Connection Diagram
Specification
HKS0401A1U | 4x1 HDMI KVM Switch | |||||
Functionality: | ||||||
Auto Scan | Yes | |||||
Port selection | Front panel buttons | Yes | ||||
Keyboard hotkeys | Yes | |||||
IR remote control | Yes | |||||
Console commands | No | |||||
Technical: | ||||||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |||||
Auto to get EDID | Yes | |||||
Data rate | 18 Gbps | |||||
Auto scan interval | 1~250 Seconds | |||||
Beep Sound | On/Off | |||||
OSD | No | |||||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |||||
Console ports | Keyboard emulation | 1 * USB Type A | ||||
Mouse emulation | 1 * USB Type A | |||||
USB 2.0 Hub ports | 1 * USB Type A | |||||
Video /Audio | 1 * HDMI Type A | |||||
RS232 | NA | |||||
LAN | NA | |||||
System ports | USB Data | 4 * USB Type B | ||||
Video / Audio | 4 * HDMI Type A | |||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||||
Mechanical: | ||||||
Chasing material | Aluminum Alloy | |||||
Product dimensions | 300 (L) x 117 (W) x 27 (H) mm | |||||
Item weight | 800g | |||||
Details Images
Packing and Shippment

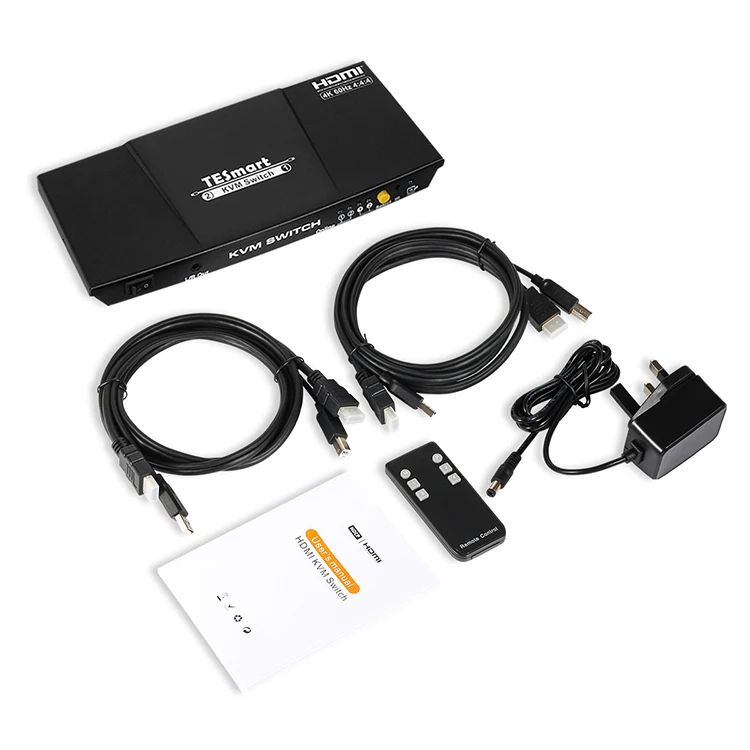

Packing list
1 * 2x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * Quick-Start Guide
HDMI + KVM Cables are not included
DHL, UPS, EMS, FedEx, TNT, Air freight supported.
FAQ
1. What is KVM Switch?
A KVM (keyboard, video, mouse) switch is a hardware device that allows a user to control multiple computers from one set of keyboard, video monitor, and mouse. Previously KVM's were mostly seen in data centers but in recent years have expanded to the consumer market due to the number of video devices that many homeowners use (computers, streaming devices, game consoles, security systems, etc.)
2. How long of a cable can I use?
A cable that is 30 ft or less can transmit High Def quality at 60Hz
A cable that is 15 ft or less can transmit Ultra HD quality at 30Hz
A cable that is 10 ft or less can transmit Ultra HD quality at 60Hz
A cable that is 15 ft or less can transmit Ultra HD quality at 30Hz
A cable that is 10 ft or less can transmit Ultra HD quality at 60Hz
3.What can I do if the mouse does not respond correctly?
Occasionally the mouse movement for Mac operating systems may jump. Please try using the USB2.0 port for your mouse input. If problems continue, please confirm the mouse works correctly when plugged directly into the PC that exhibits the issue.
Company Profile
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter. Also, our company enjoys the top 3 in the domestic KVM industry.
We have a R&D team with over ten years experience providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Our company is a National Innovation company, certified by Torch High Technology Industry Development Center, Ministry of Science & Technology.
We had been a member of HDMI adopters and HDCP adopters. The TESmart trade mark had been registered in most of the countries including America, Europe, Australia etc.

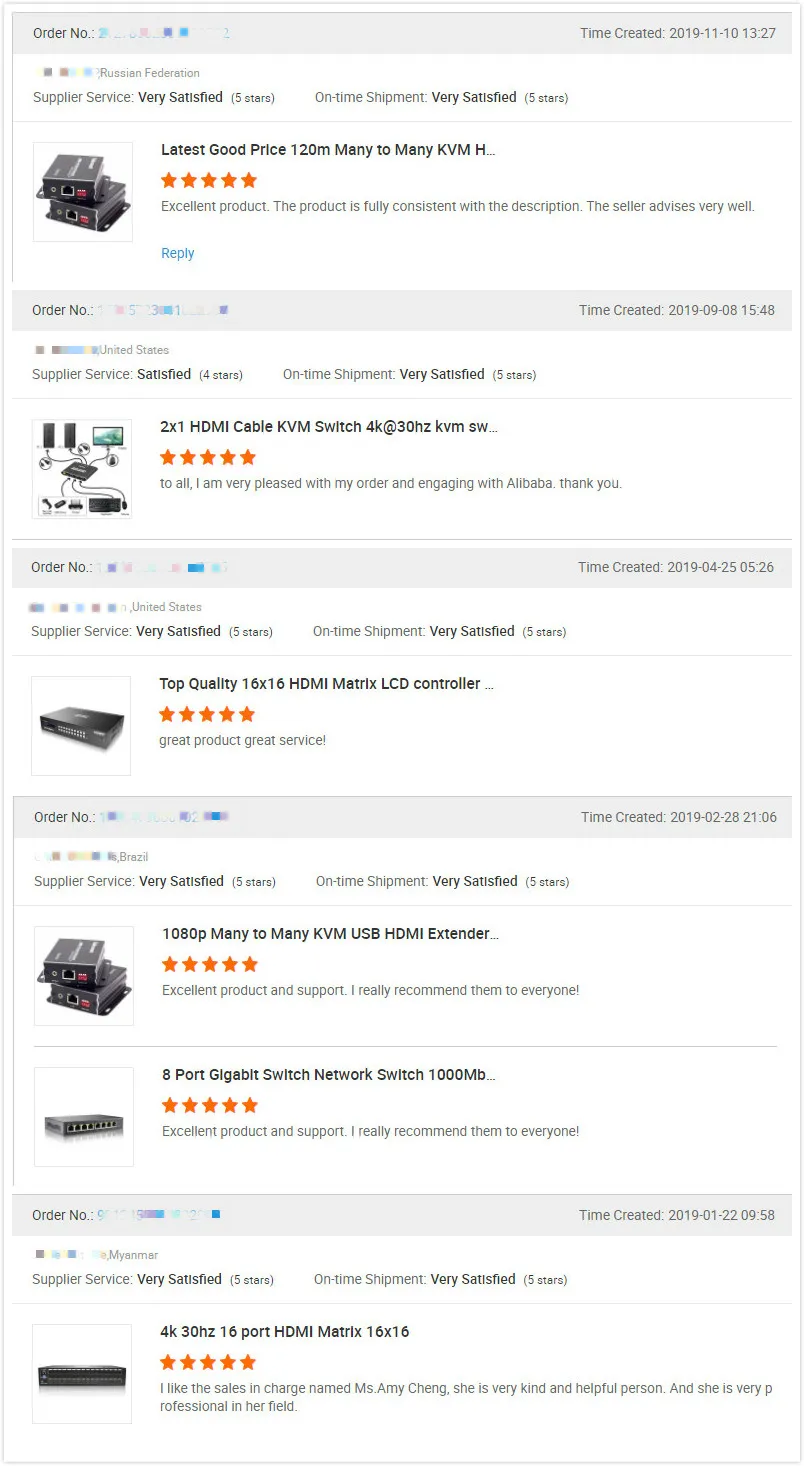

Reviews from customers
