 Corrugated Sheet Metal Structured Packings

Description of Corrugated Sheet Metal Structured Packings

Corrugated Sheet Metal Structured Packings is generally used in medium to small diameter columns for separations that require a maximum number of theoretical stages in the minimum column height. As there are many small spines due to surface pitting, the separation efficiency are improved with prolonged retention time on the surface and more sufficient exchange of vapor and liquid drop. The diameter of the filler hole is 0.4 ~ 0.5mm, which is usually made of ultra-low carbon corrosion resistant stainless steel material, used for oil industry, fine chemical industry, pharmaceutical equipment, etc.

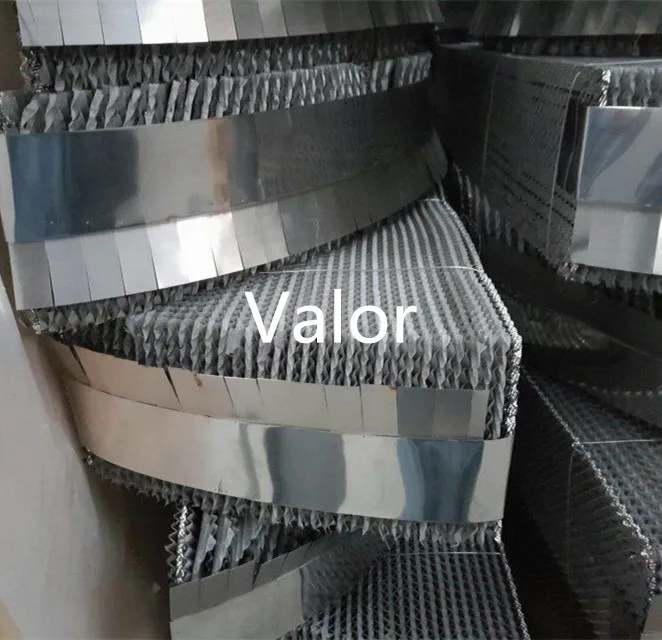

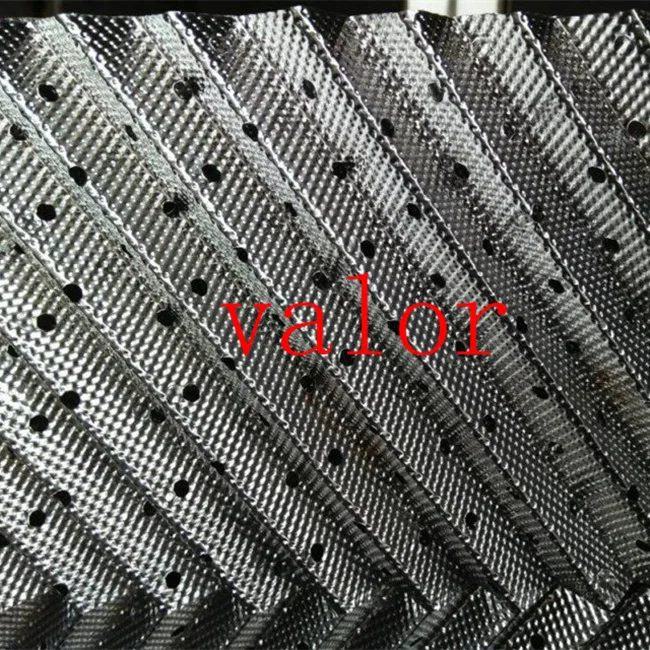

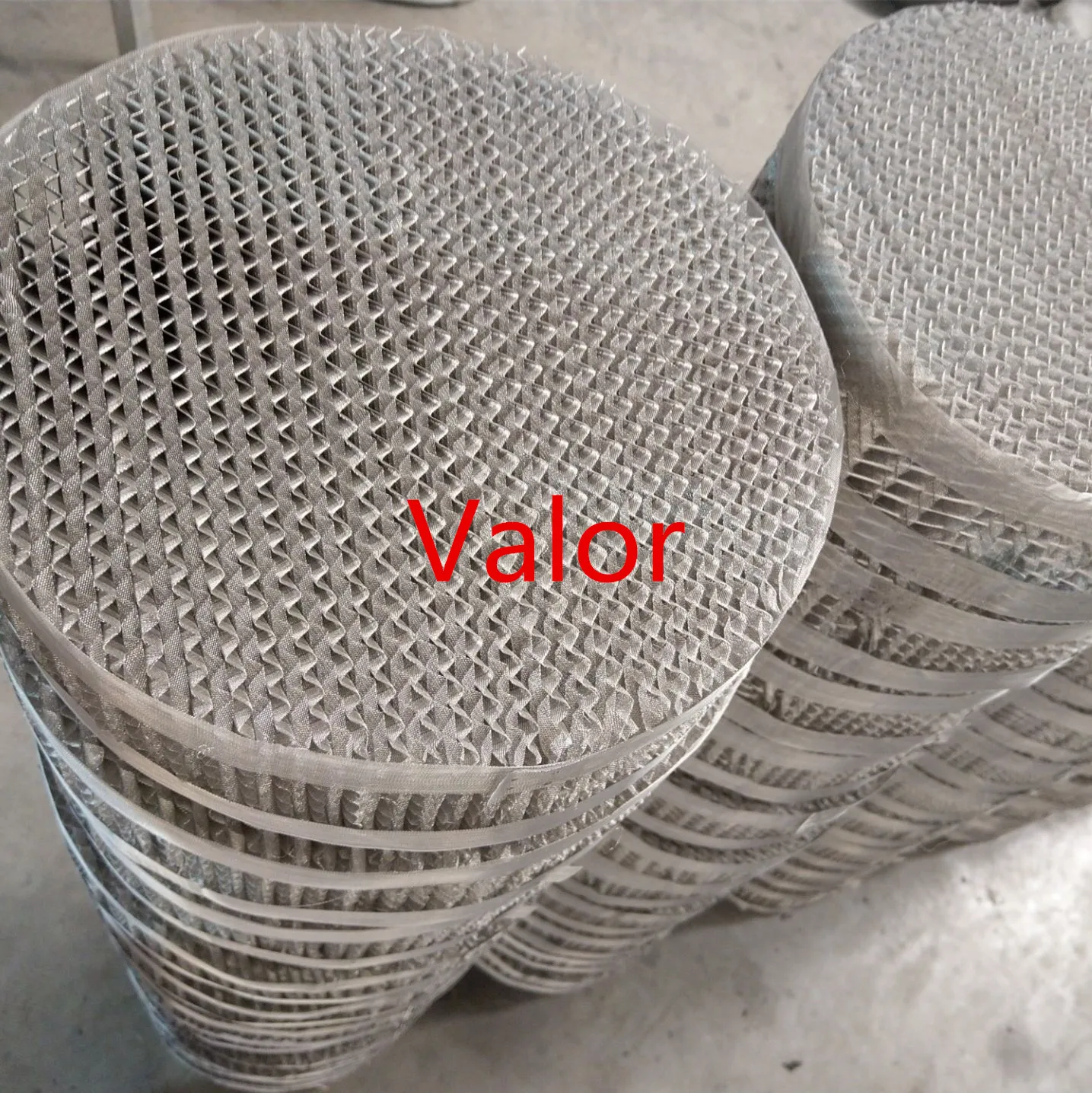

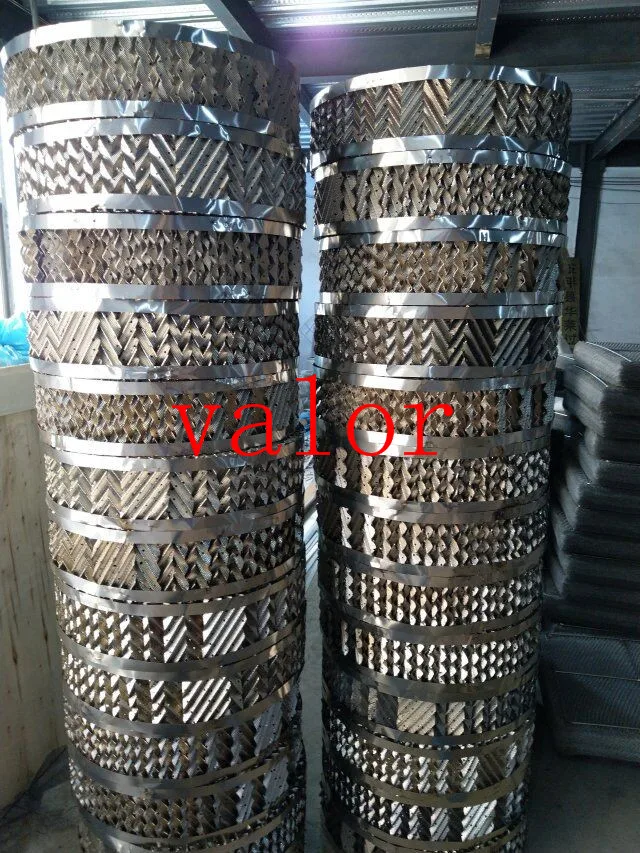

Images of Corrugated Sheet Metal Structured Packings











Applications of Corrugated Sheet Metal Structured Packings

Refinery columns (atmospheric and under vacuum).
Petrochemical columns.
Natural gas glycol dehydration.
Wastewater treatment stripping columns.
Atmospheric pressure and high pressure columns.



Features of Corrugated Sheet Metal Structured Packings

Its high mass transfer surface area is suitable for close boiling components distillation due to shorter columns.
Its structured arrangement ensures no channeling of liquid and requires minimum liquid redistribution.
Due to its very low pressure drop, it is recommended for vacuum distillation systems.
It has higher vapour load capacity as compared to random packing and trays.
It provides low liquid hold-up.



Specifications of Corrugated Sheet Metal Structured Packings

Surface areas: 250 m²/m³, 500 m²/m³, 750m²/m³, 1000m²/m³, 1200m²/m³ etc.

Material: AISI304, AISI304L, AISI316, AISI316L, carbon steel, etc.

Specifications of Metal Wire Gauze Packing
Packing type	Specific surface area m2/m3	Bulk density kg/m3	Void volume m3	Pressure drop per plate Pa/n	HETP mm	Theoretical plate number m-1	F factor m/s0.5	Stage height m
250 (AX)	250	125	0.95	10-40	100	2.5-3	2.5-3.5	5
500 (BX)	500	250	0.90	40	200	4-5	2.0-2.4	3-4
700 (CY)	750	350	0.85	67	400-333	8-10	1.5-2.0	5

250 (AX) Precision rectification for high productive capacity and less theoretical plate number.

500 (BX) Vacuum rectification for thermo sensitive system and hard separation system, especially suitable for rectification with pressur lower than 7KPa.

700 (CY) Separation of isotopic compound and isomeric compound.
