72v 8000 Вт мотор для центрального движения комплект переделки электрического велосипеда электрических
- Категории: Electric Bicycle Motor >>>
- Поставщик: Changzhou,Ncyclebike,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

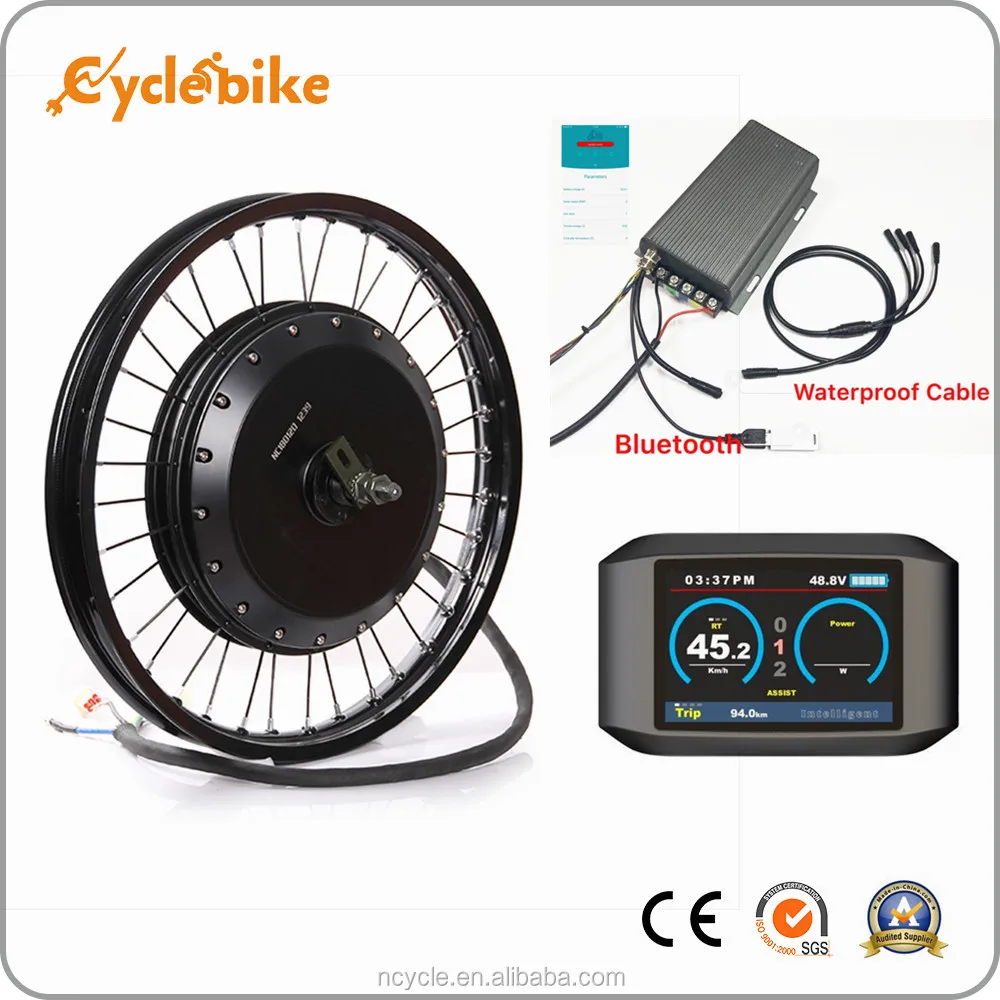

48V/60V/72V/ 8000w electric bike conversion kit for electric bicycle
1:Motor : 48-72v 8000w rear hub motor brushless gearless design.
2:Wheel size :Motorcycle rim: 18''/19''
3:TFT display :3.2'' TFT display
4:Controller : 48v-72v 150amp Sabvoton controller with bluetooth ,programmble , sine wave , 24mosfets 4110,function : 3 speed, regen.braking, voltage meter, key lock, throttle, brake lever, Reversing, Connector for TFT color display .
5.Bluetooth
6.Electric brake levers : wuxing brand
7.Throttle type : water proof cable thumb throttle
8.water proof cable
9.Manual : book manual,ties
Spec. 25-80km/h speed, 150kgs max loading
10.Package : carton box with form
2:Wheel size :Motorcycle rim: 18''/19''
3:TFT display :3.2'' TFT display
4:Controller : 48v-72v 150amp Sabvoton controller with bluetooth ,programmble , sine wave , 24mosfets 4110,function : 3 speed, regen.braking, voltage meter, key lock, throttle, brake lever, Reversing, Connector for TFT color display .
5.Bluetooth
6.Electric brake levers : wuxing brand
7.Throttle type : water proof cable thumb throttle
8.water proof cable
9.Manual : book manual,ties
Spec. 25-80km/h speed, 150kgs max loading
10.Package : carton box with form
Detailed Images

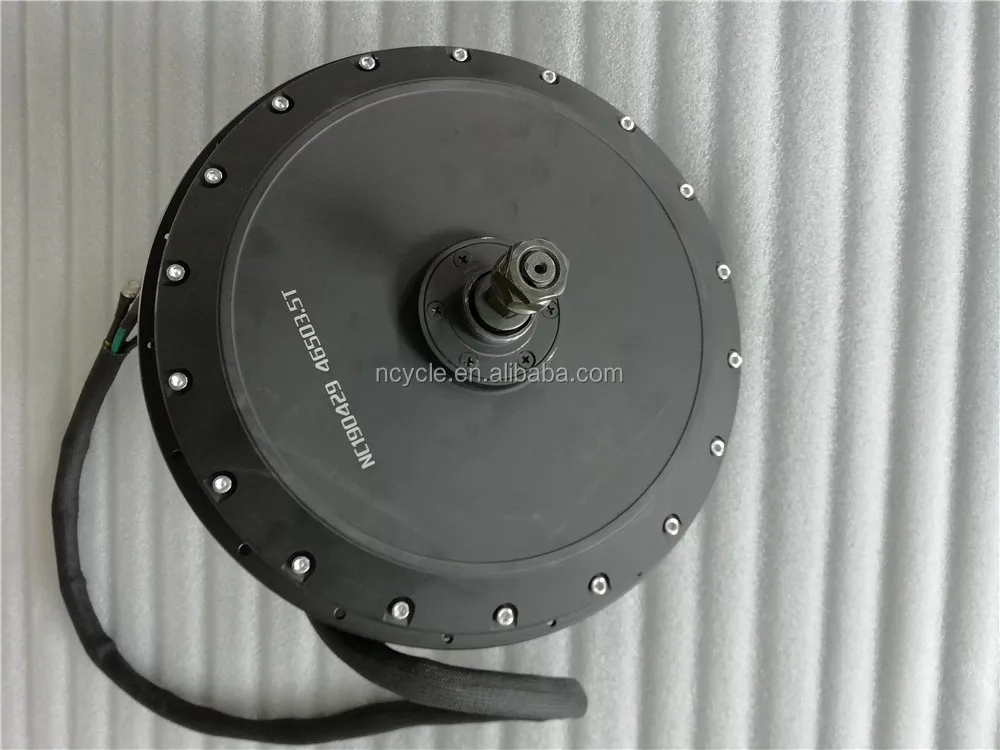

Motor Type:BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand:QS Motor,QSMOTOR
Motor Design:Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size:24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
Magnet Height:40mm, 16 pole pairs
Stator:Aluminmum Core
Rated Power:8000W
Rated Voltage·80KPH as default (24-120KPH, optional)
72V as default (48V-96V, optional)
Speed:80KPH as default (24-120KPH, optional)
KV:11.46/12.46/13.54/15.69/17.71etc.
Max Torque:approx 182N.m
Max Efficiency:86-91%
Working Temperature:70-120℃ , peak 150 ℃
Drop-outs/Rear Fork Width for installation:155mm
N.W /G.W:18.2KGS/20KGS
Drawing of QS 8000w brushless gearless hub motor for electric bike conversion kit and electric bicycle
UKC1 display
36v-72v UKC1 rotatement display setting:5 levers speed control;wheel size choose;password setting;distance;time
Sabvoton controller
Controller Programmable through PC and Bluetooth Adapter(IOS/Android);
36v-72v Sabvoton Controller,24mosfet;Simple and clear line;Bluetooth allows you to program on your phone
18inch , 19inch motorcycle rim (aluminum rim with 10G spokes )
.
1T4 waterproof system can better protect the charger and controller,etc.
wuxing electric brake lever
wuxing brand thumb throttle or twist throttle
Packing & Delivery
8000w electric bike conversion kit
W.G: 23KGS
N.G: 21KGS
18inch carton size :
55*55*25cm
19inch carton size :
60*60*25cm
