Y оси токарный станок с ЧПУ фрезерный CK46D-8 жизни инструмент 5
- Категории: Токарный станок с ЧПУ >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

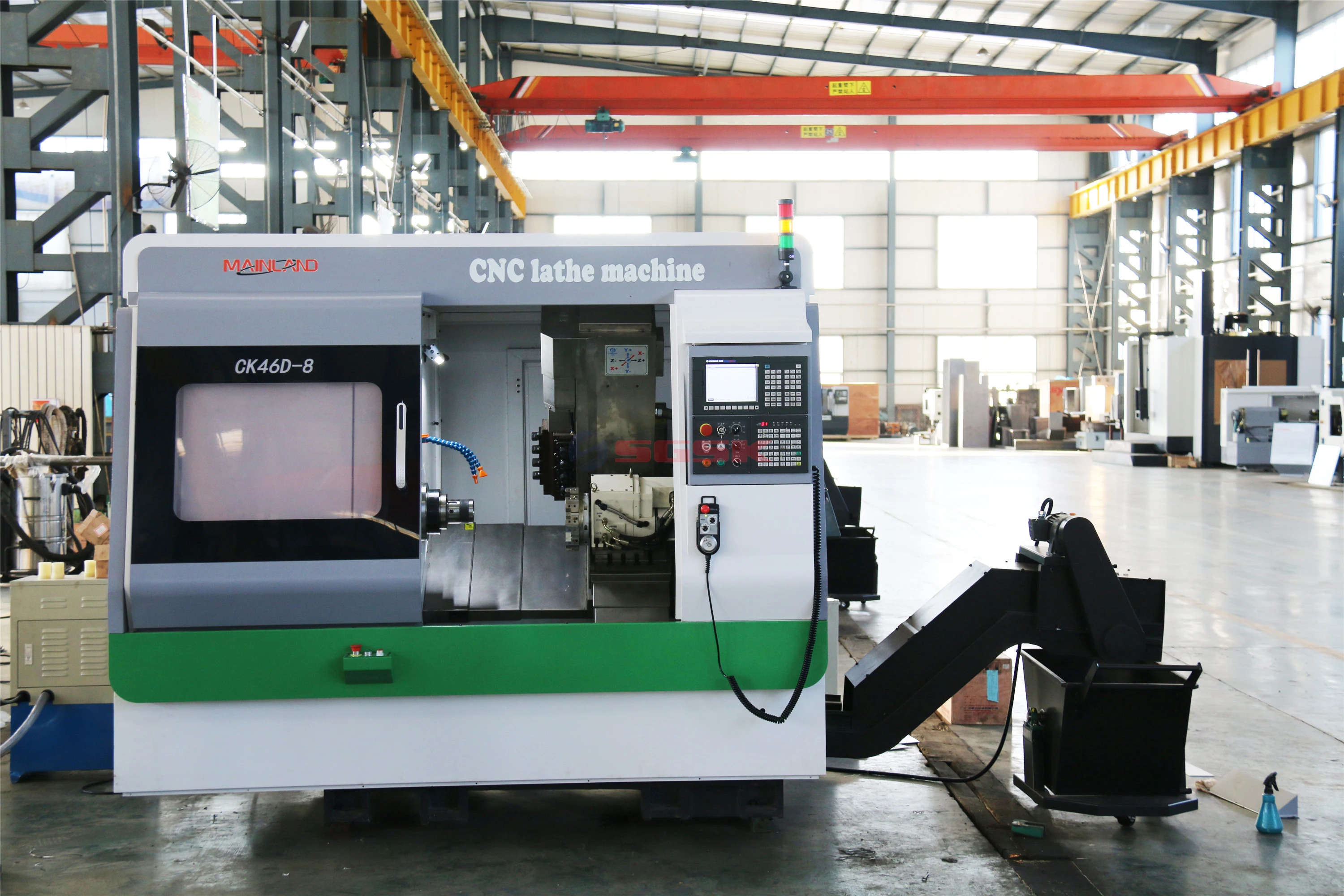

Y axis CNC Lathe milling machine CK46D-8 Living tool 5 axis cnc lathe fanuc
VR
Products Description

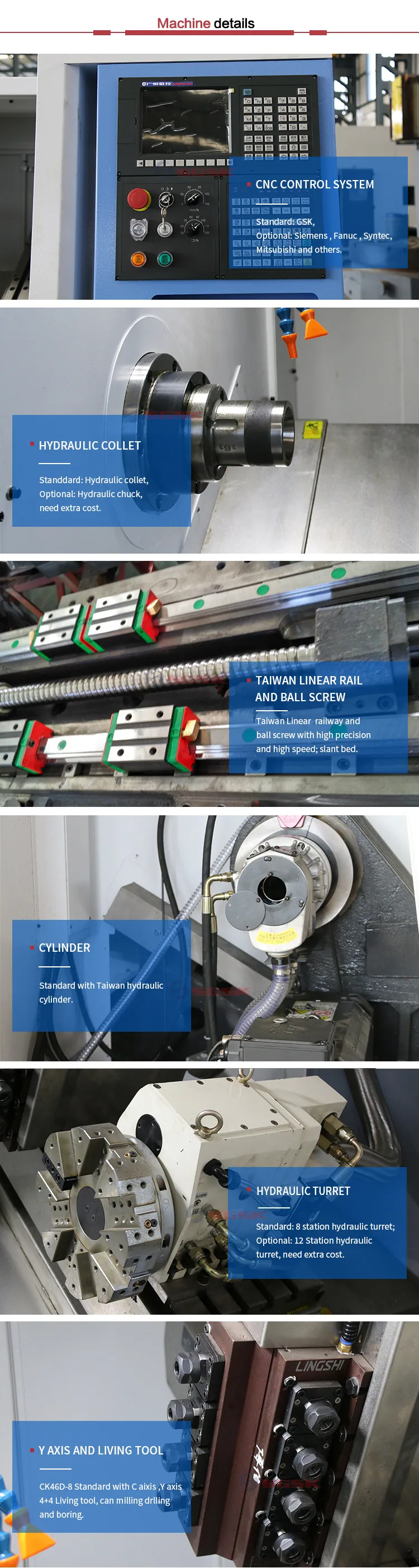

Details Images
Product Paramenters
Features:
C axis
Y axis
4+4 milling head
Y axis
4+4 milling head
Product main technical specifications:
SPECIFICATIONS | Units | CK46D-8 |
Swing over bed | mm | 450 |
Swing over cross slide | mm | 130 |
Distance between centers | mm | 450 |
Spindle bore | mm | 56 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 4500 |
Turret/tool post | - | Hydraulic turret, 4+4 milling head |
Tool size | mm | 25 x 25 /ER25 |
X axis travel | mm | 500 |
Z axis travel | mm | 450 |
Y axis travel | mm | 240 |
X axis rapid traverse | mm/min | 24000 |
Z axis rapid traverse | mm/min | 24000 |
Y axis rapid traverse | mm/min | 15000 |
Milling head type | - | Nose 4+ Side 4 |
Milling head power | kw | 1.3 |
Milling head speed | r/min | 3000 |
Distance of each milling head | mm | 60 |
X/Y/Z Positioning accuracy | mm | 0.003mm |
X/Y/Zrepositioning accuracy | mm | 0.006mm |
Spindle (C Axis) dividing positioning accuracy | ” | 0.02” |
Spindle (C Axis) dividing repositioning accuracy | ” | 0.006” |
Main spindle (C Axis) motor | kw | C Axis 7.5 |
Guide rail type | - | Linear rail |
Machine weight | kg | 3000 |

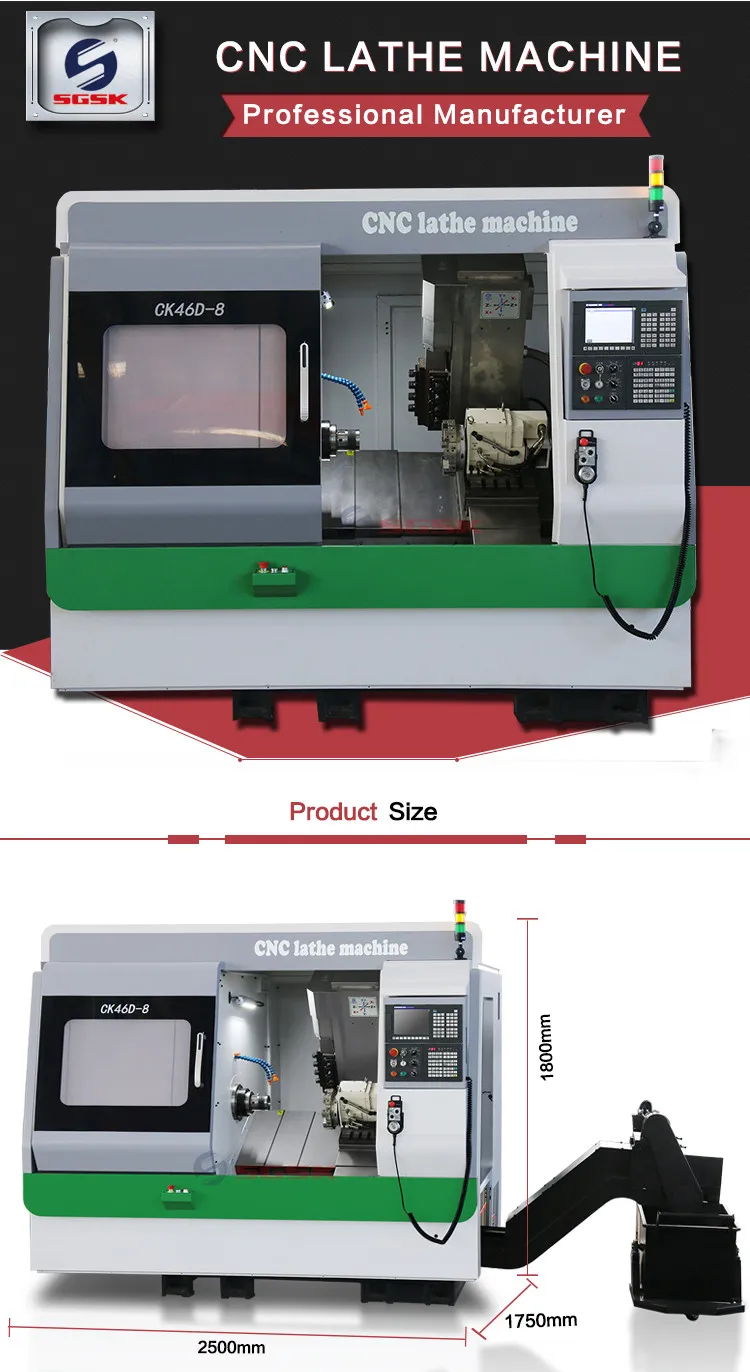

Overall dimension | mm | 2500x1750x1800 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
