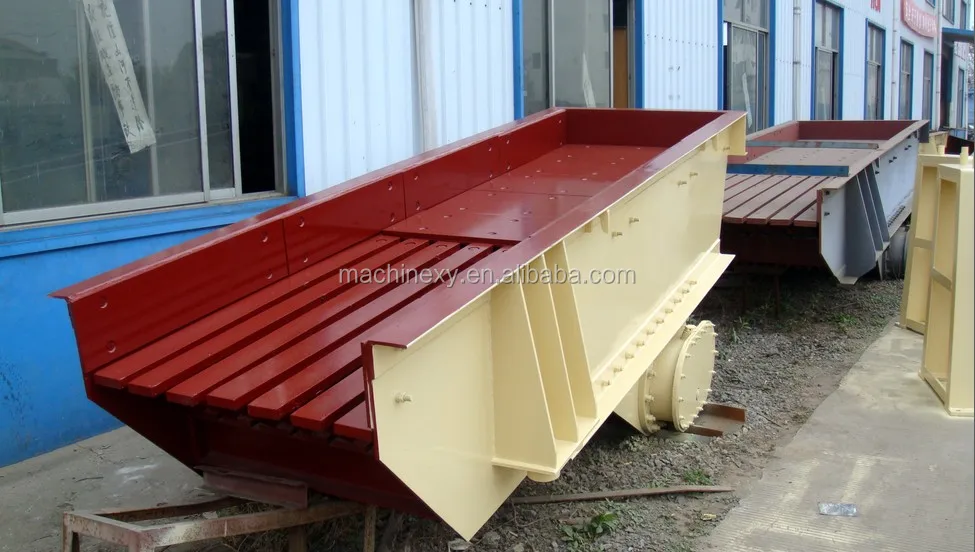

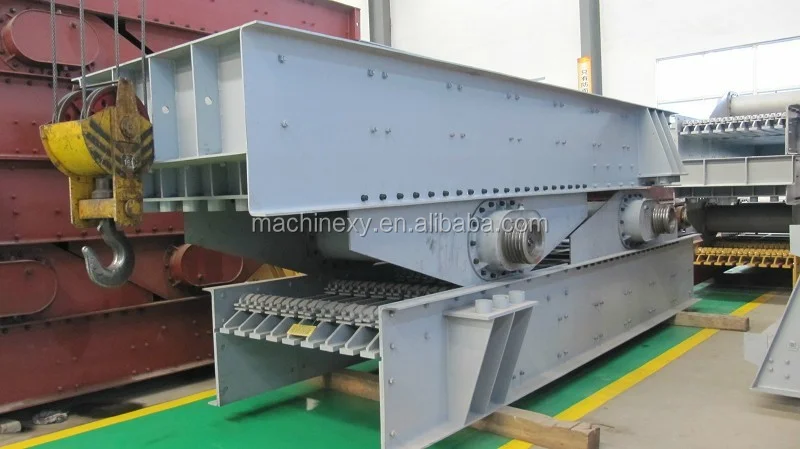

(1)Introduction
ZSW Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful. It has the advantages of smooth vibration and feeding, adjustable grizzles, big handling capacity, easy maintainance. It is widely used in mining, building materials, cement, transportation, energy and chemical industries.
(2) Features and Benefits
1 Smooth vibrating and feeding
2 Eccentric shafts make big vibrating force, more efficient

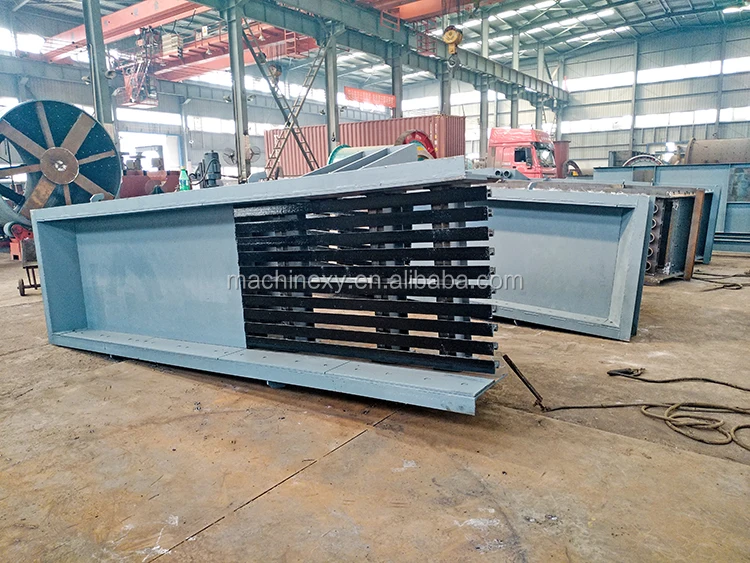

3 Adjustable grizzles be fixed by manganese steel bolts

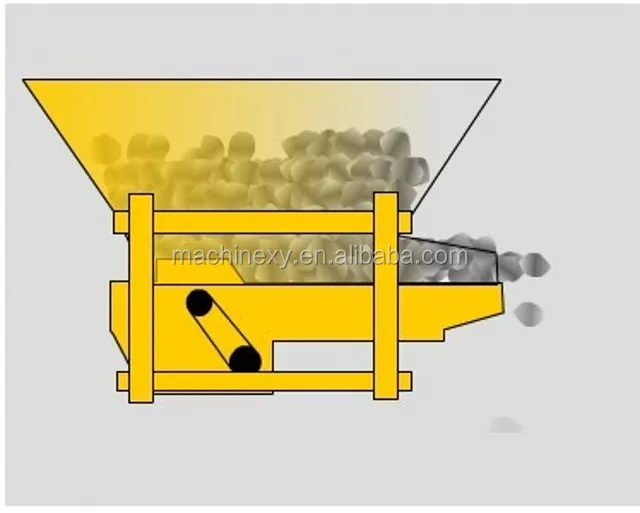

(3)Working Priciple

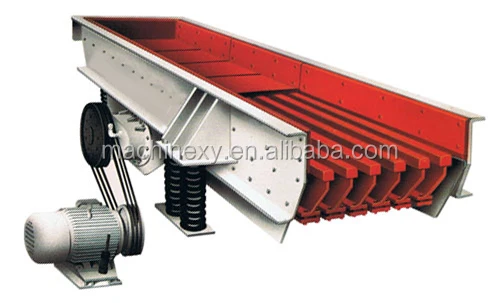

It consists of frame, motor, rubber spring, spring support. The exciter is made by two meshing gears of specific-location eccentric shaft. When assembled, the gears must mesh well by mark and makes the two eccentric shafts revolving by motor driving. The body is forced to make the forward 45-degree linear motion on the spring support, the vibration is taken as driving force. Materials make the sliding & throwing movements, so the materials move forward and achieve the feeding purpose. When materials get through the sieve on the funnel, the smaller material can fall through the sieve gap and make a screening effect without going through the next crushing process.
(4)Technonogy Parameter
| Model | Hopper Size (mm) | Max. Feed Size (mm) | Production Capacity (t/h) | Eccentric Shaft Rotation Speed (r/min) | Motor Power (t) | Weight (t) | Overall Dimension (mm) |
| GZD-250×75 | 2500×750 | 300 | 50-80 | 1.5×2 | 1.29 | 2580×1430×600 | |
| GZD-300×90 | 3000×900 | 450 | 80-100 | 3.0×2 | 2.96 | 3050×1430×1550 | |
| GZD-370×100 | 3700×1050 | 500 | 100-150 | 3.7×2 | 3.7 | 3980×1878×866 | |
| GZD-490×110 | 4900×1100 | 580 | 120-280 | 5.5×2 | 4 | 5200×1900×950 | |
| GZD-500×120 | 5000×1200 | 600 | 200-400 | 5.5×2 | 5.2 | 5450×2000×900 | |
| ZSW-380×96 | 3800×960 | 500 | 100-160 | 500-720 | 11 | 4.21 | 3882×1684×1340 |
| ZSW-490×110 | 4900×1100 | 580 | 120-280 | 500-800 | 15 | 5.41 | 4957×1841×1365 |
| ZSW-590×110 | 5900×1100 | 600 | 200-350 | 500-800 | 22 | 6.05 | 6000×1841×1365 |
| ZSW-600×130 | 6000×1300 | 600 | 400-560 | 500-800 | 22 | 7.5 | 6028×2580×2083 |

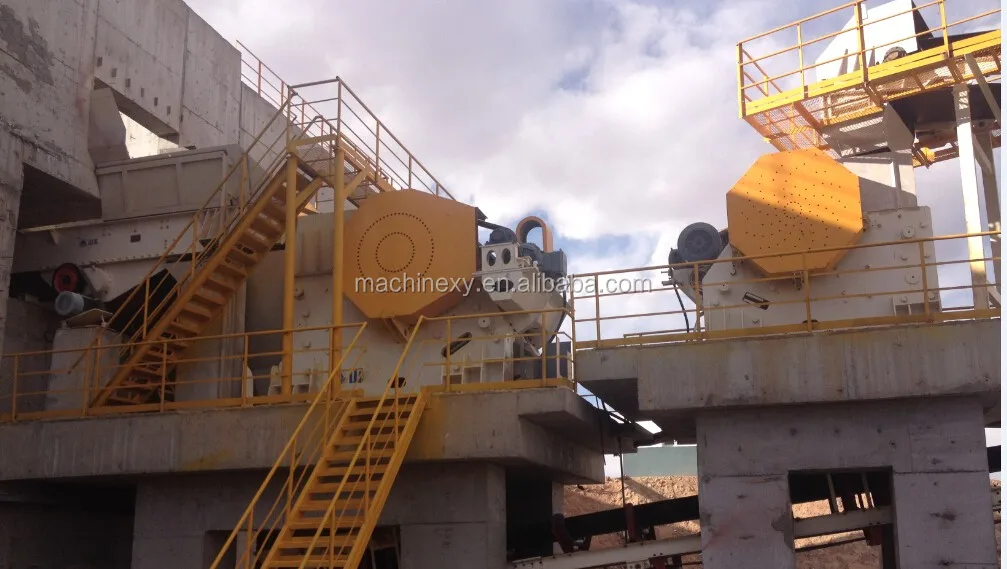

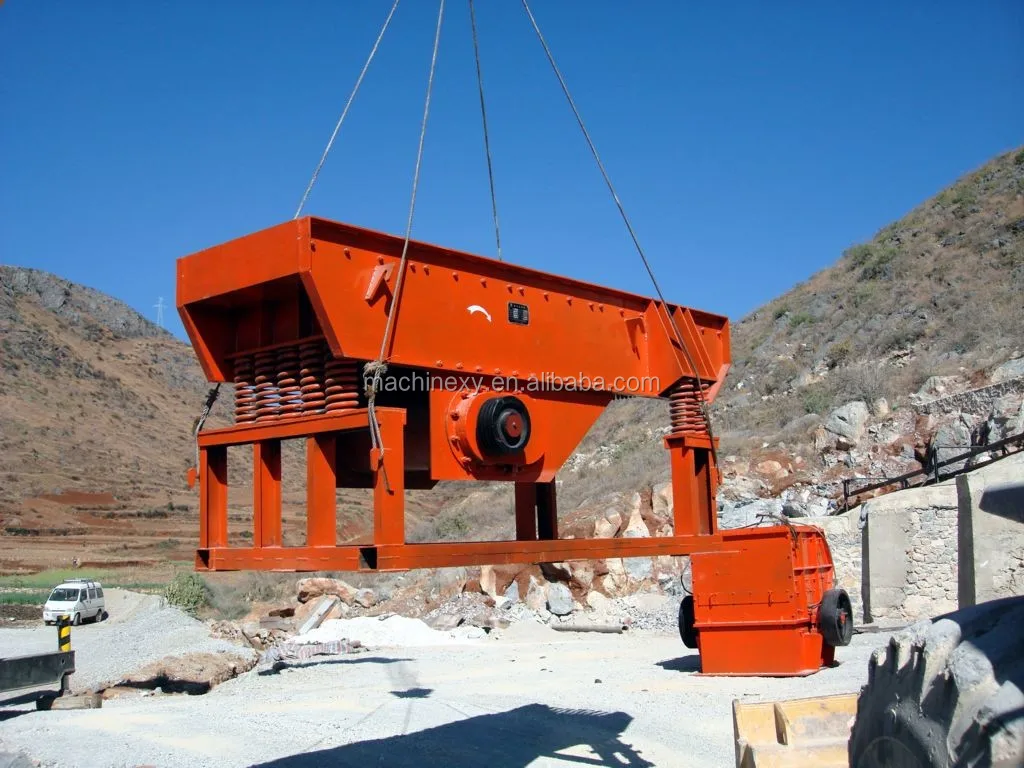

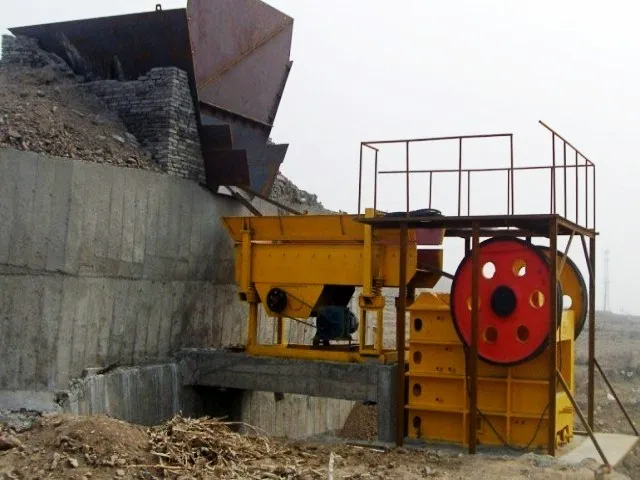

Vibrating feeder working site:

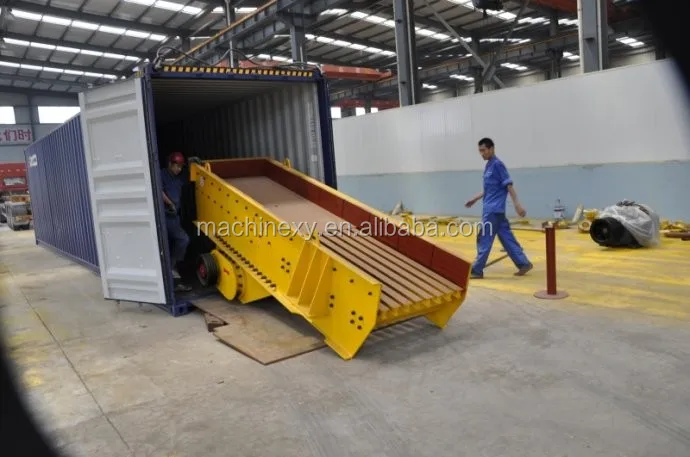

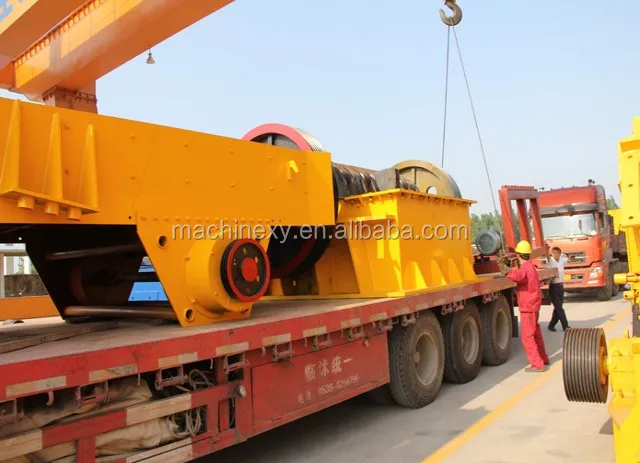

Packaging & Shipping
Our Services
According to the client supply information and requirement choose the suitable equipment.
* Design the crushing plant work flow.
* Choose the suitable machinery.
* Planning and designing the machinery installation.
* Guide the machinery installation.
* Train the labor how to use the machinery.
* Supply the spare part and wear parts in lower price in whole using life.
Why do clients choose us ?
Over 20 years experience in this field.
Exported to more than 30 countries in Africa, Asia, America.
Processional Research and Development team; Strict quality control.
Provide complete service equipment installation, testing ,maintenance and staff training.
Welcome your inquiry !
If you are interested in our equipments , please do not hesitate to contact us.
We will reply you the details ASAP.
Please don't hesitate to let us clear know all your questions about machines.
Company Information
he Mining Equipment produced by our company can provide you with all-around technical support. The whole line consists of vibrating feeder, jaw crusher, vibrating screen, Ball Mill ,Magnetic Separator, Flotation Machine, Spiral Classifier, Dryer, Mixer, Concentrator, Filter press and belt conveyor and so on. According to specific requirements, we can combine different models together to meet various needs.
According to different customers and different mine, my company for you design different beneficiation complete sets of equipment.
