9716ZY 24V 450W Permanent magnet DC motor for lawn mower
We could make as your requirements, also we could jointly develop new products.

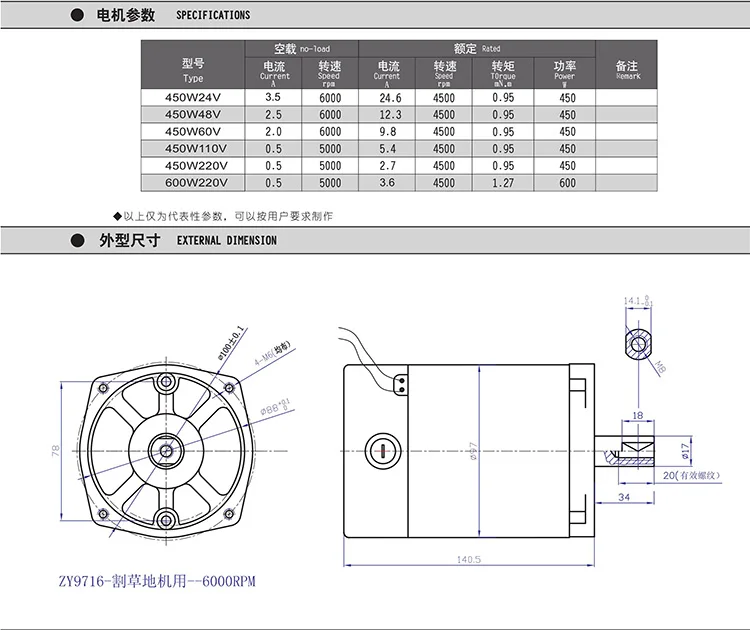

Votage |
No-load speed |
No-load current |
Loaded speed |
Loaded current |
Torque |
Output power |
24V | 6000rpm | 3.5A | 4500rpm | 24.6A | 0.95N.m | 450W |
48V | 6000rpm | 2.5A | 4500rpm | 12.3A | 0.95N.m | 450W |
HENGBAN was established at year 1996. We devote in developing PMDC motor, BLDC motor and controller, AC motor, planetary reducer, worm reducer & ect.
Our company is running according to requirement of ISO9001. Till now, most products have CE and CCC appliance.
We own strong research and development team, will bring out "Innovate, Green, Super' products continuously. Pls kindly contact with us, maybe you will search more for your business. Thank you!
1. Power-on operation check should be done before the installation of motor.
2. Outgoing leads should not be strongly pulled.
3. Direct strikes and pressure on the output shaft are not allowed.
4. Try not to appear stall running during the process of motor's installation, testing and using.
5. Make installation screw at a suitable length, or structural parts inside motor may be damaged.
6. Motor should be run in ventilated, dry and clean place.
