SAN Y JIUHE CIFA factory hot sale diesel trailer concrete pump high pressure concrete pump DHBT50 DHBT60 DHBT80 for sale
Product Introduction
Brief introduction
On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system taken rid of PCL, constent pressure pump, accumulator and approach switch that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover delivery capacity from 30-120m³/h and delivery pressure from 5-20Mpa.
Full hydraulic control features and advantages of the hydraulic system
Extend component life
Overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't need electric signals.After improving,the machinery have a little impact and a low noise during the commutation process, so the service lives of the hydraulic pump and valves are obvious
lengthened.
Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.
Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced and the system gets more compact, so the oil leaking possibility is decreased at the same time.
Reduce maintenance costs
Full hydraulic commutation system takes rid of extremely damageable four parts in the electronic commutation system,so it could reduces equipment maintenance costs.
Technical Parameters
Item | Unit | DHBT100S-21-186 |
Max.theoretical capacity | m³/h | 100 |
Max. delivery pressure | Mpa | 21 |
Hydraulic pressure | Mpa | 32 |
Diesel engine (Optional) |
| VOLVO/DEUTZ |
Main oil pump |
| HAWE, REXROTH, Handok or Japanese KAWASAKI |
Main oil cylinder dia./pole dia. × stroke | mm | Φ180/Φ125×1800 |
Delivery cylinder | mm | Φ230×1800 |
Diesel engine power | Kw | 186 |
Theoretical Vertical delivery distance | m | 260 |
Theoretical horizontal delivery distance | m | 600 |
Capacity of hydraulic oil tank | L | 500 |
Hopper capacity | m³ | 0.6 |
Overall weight | Kg | 7600P |

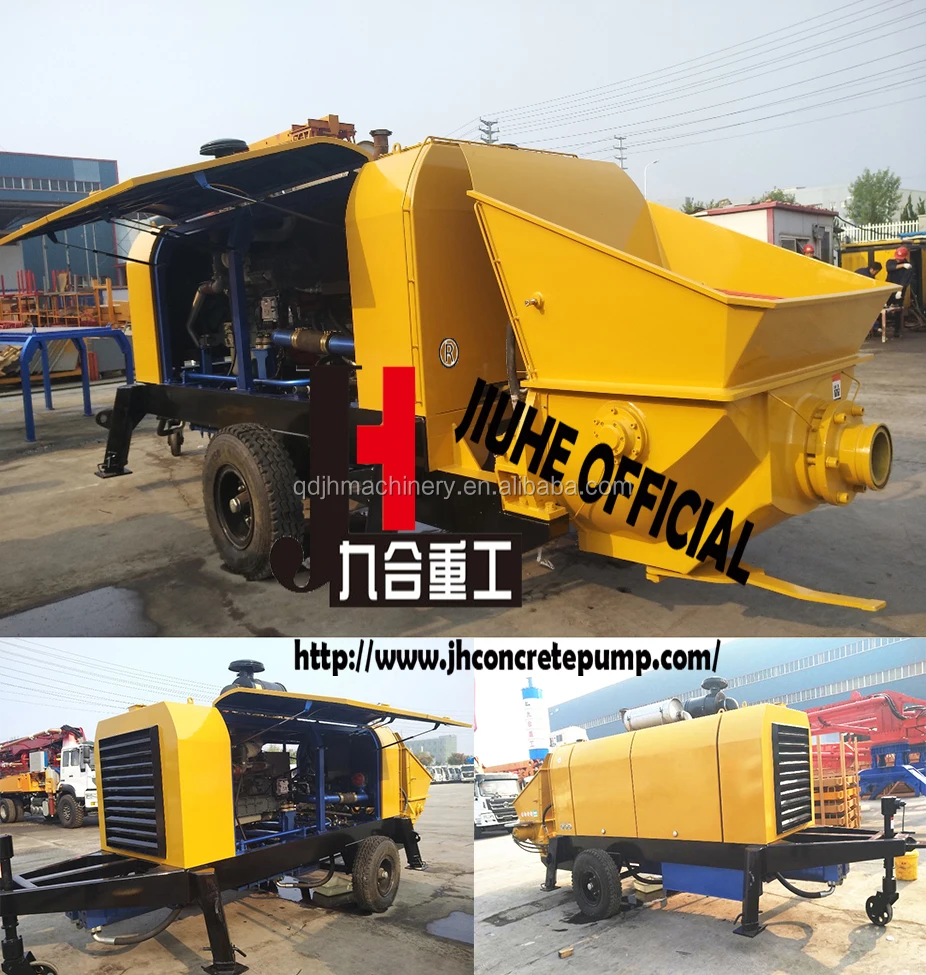

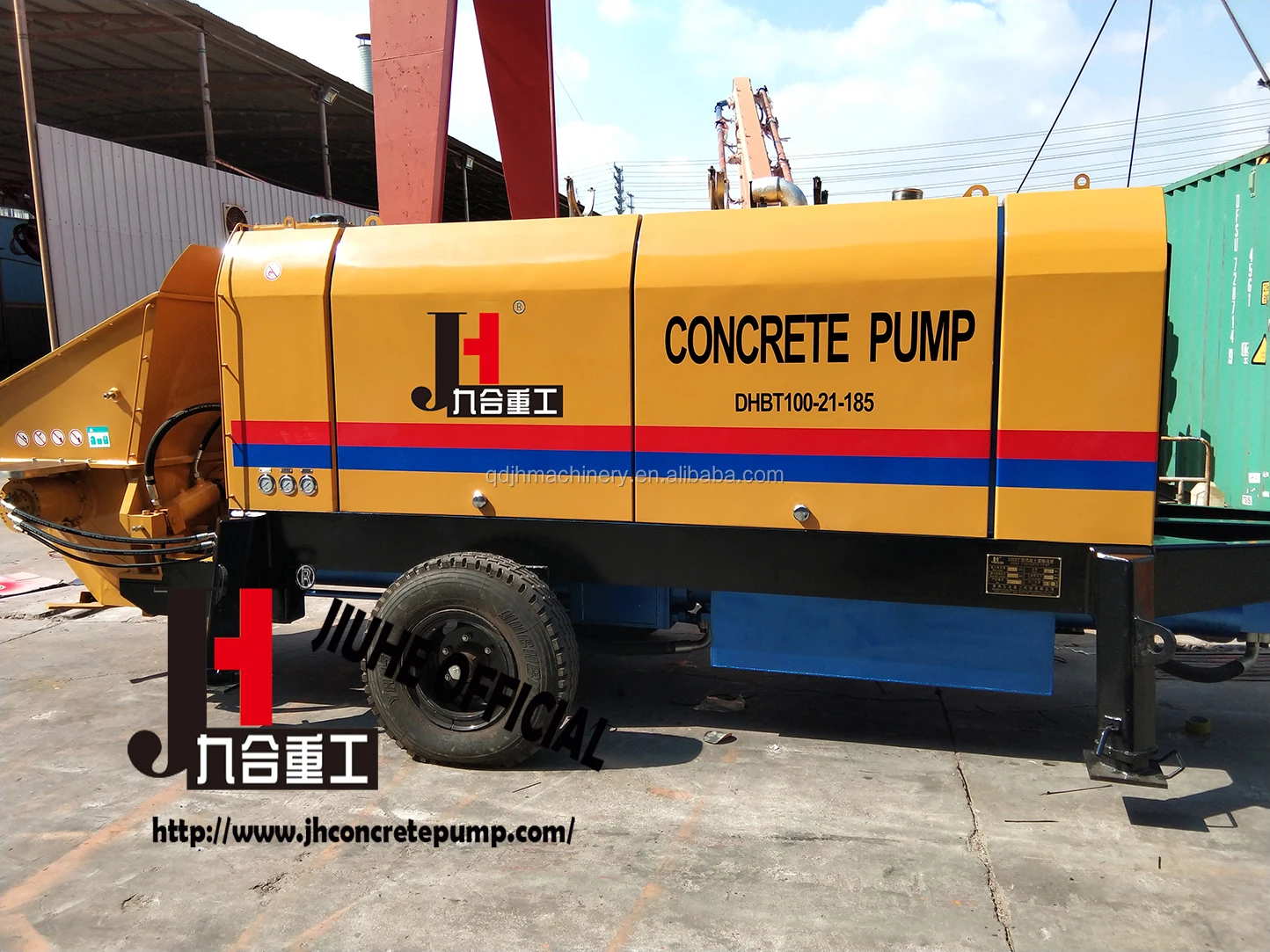

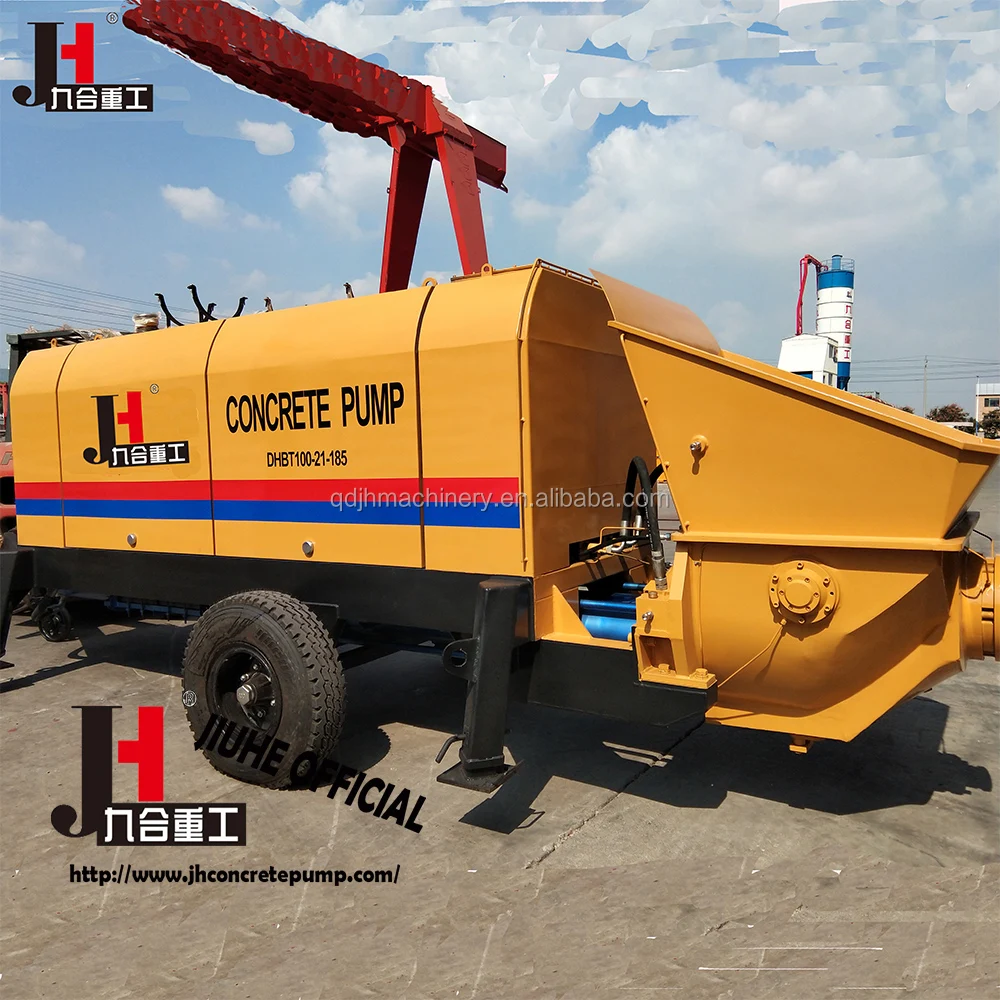

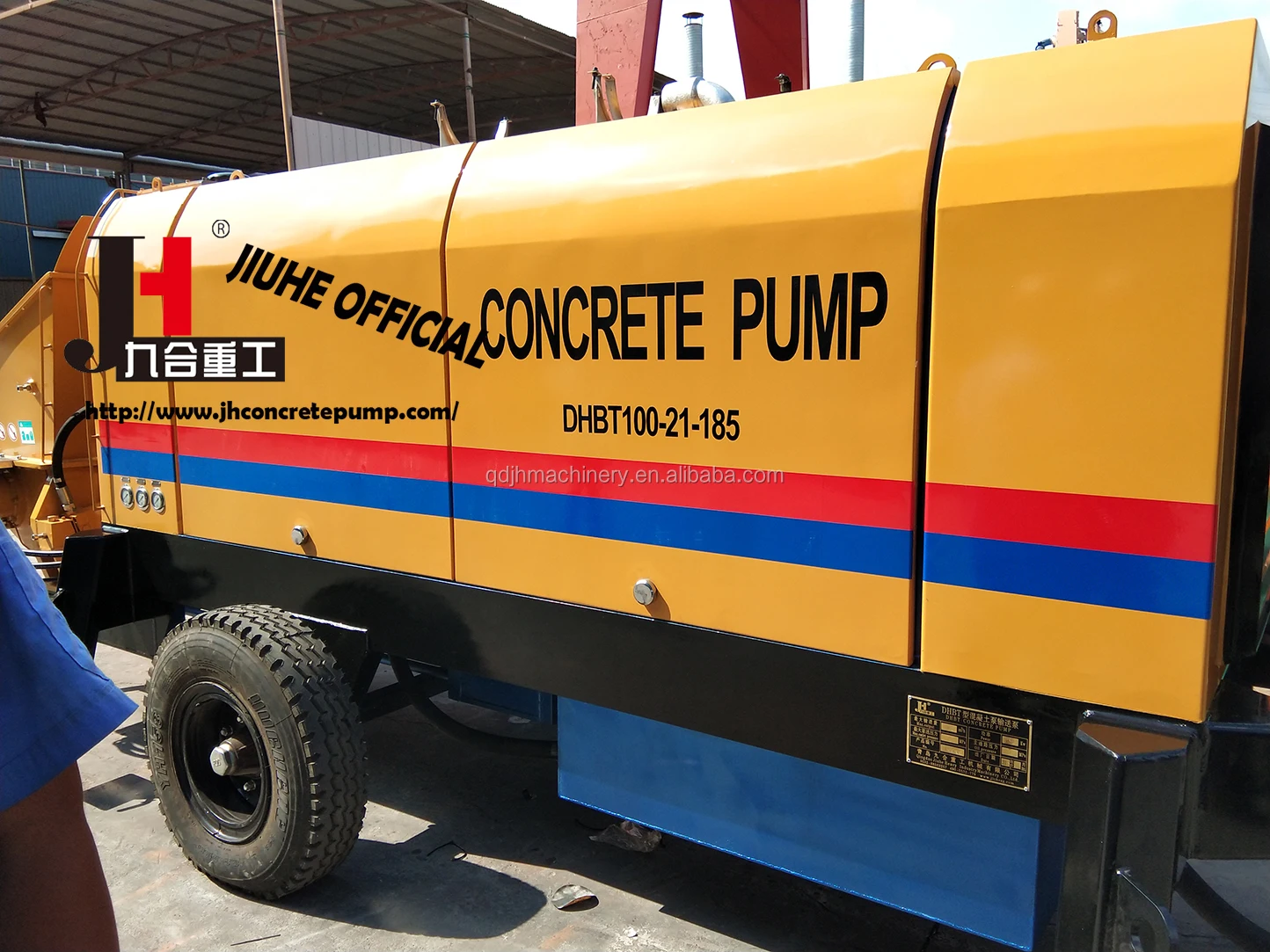

Product picture

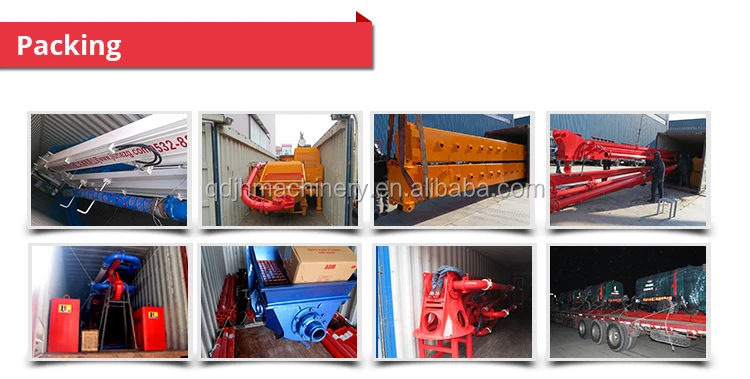

Packing
Company Introduction
Jiuhe Heavey Industry is a professional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been a global famous brand in construction machinery industry.

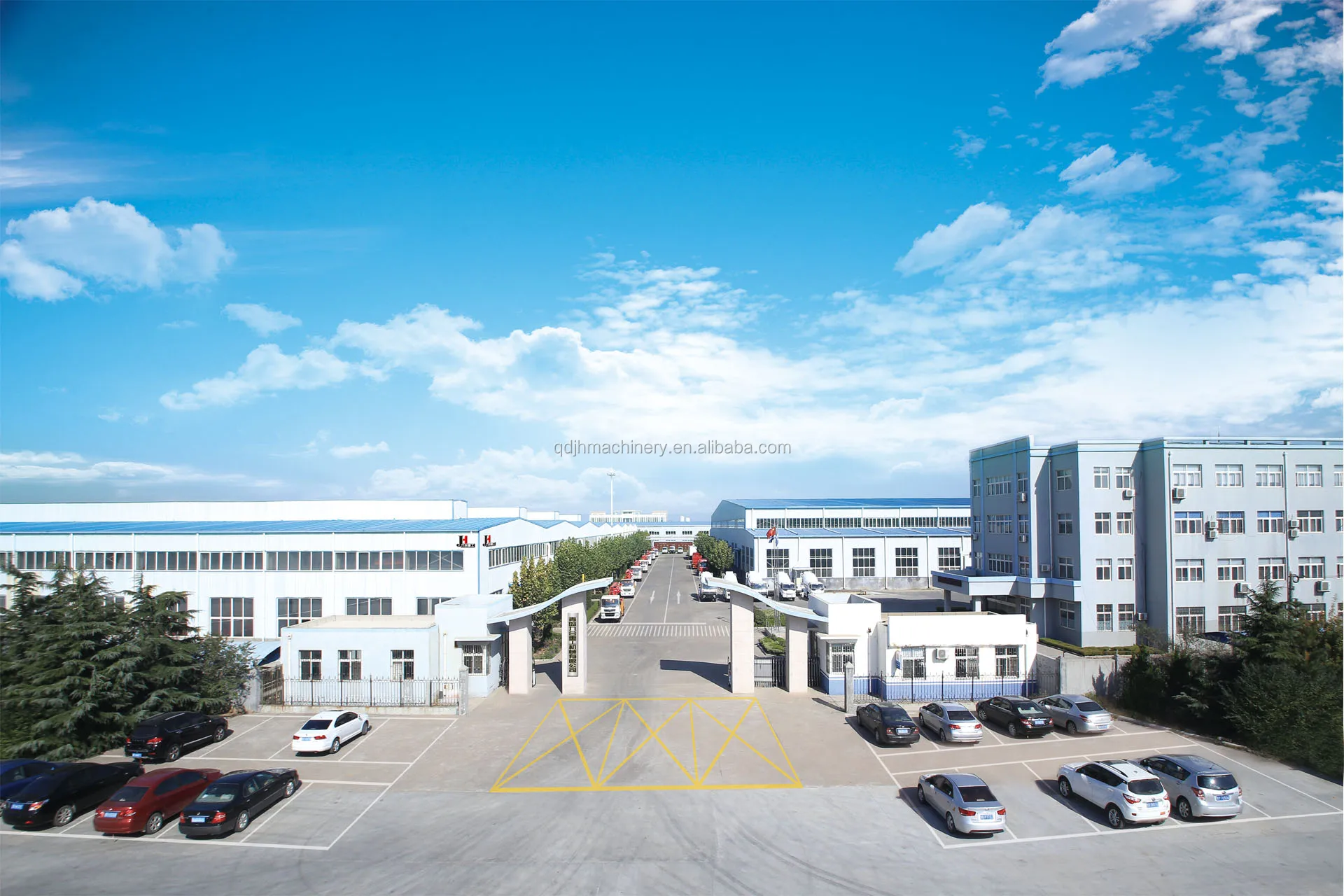

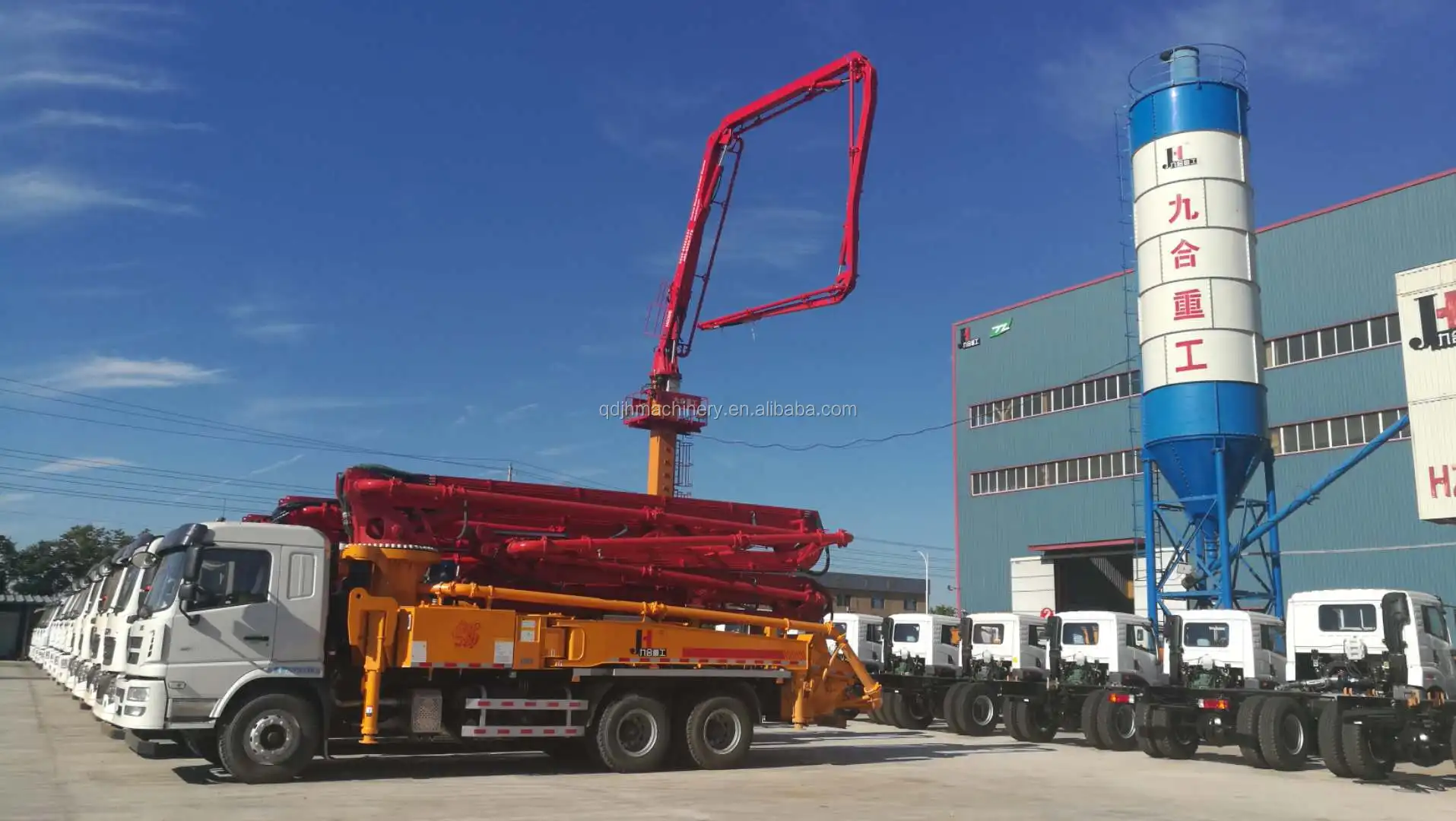

Our workshop
Our certificate
Our exhibition
