Эмульсионная битумная установка

Описание и отзывы

Характеристики









Performance of Modified Emulsion Bitumen Plant:

1. Modified Emulsion Bitumen Plant has large touch screen, human interface, convenient for operating, and adopt high grade PLC control, safety and reliable.

2. The components are high quality materials/products imported from abroad and local domestic markets. It is extremely resistant to corrosion.

3. Pneumatic valve adopts Shanghai fluorine-lining valve, Messenger return machine adopt Italy coil

4. Asphalt pump and finished pump are developed according to Qingtian Screw pump.

5. Lotion pump adopts famous brand special pump, Emulsifier tank and latex tank adopt high quality stainless steel 3074

6. Mix tank and register tank adopt plastic inside steel tank, soap delivery pipe adopts fluorine-lining steel pipe

7. Heat recycle installation adopts stainless steel removable plate heat exchanger of Chinese famous brand with high efficiency and convenient maintenance.







DKR6 Emulsion Bitumen Plant Main Technical Parameters
category	name		unit	remark
model	DKR6
name	Emulsion asphalt plant
productivity	6		T/h
total power	≤30		kw	mulser
dimension	7000×2200×2310		mm
type	Mobile combined structure
oil-water ration	5:05
category	name	parameter		remark
		Flow	Ability
Emulsion  system	mulser	6T/h		30KW
Bitumen  compound system	Hot bitumen pump	3T/h		frequency control
	buffer tank of base asphalt		5m³	hot oil heat preservation
emulsion compound system	emulsion supply pump	110L/min		frequency control
	emulsion  preparation tank		2.4m³	standard 2 units
	configuration tank stirrer			vertical type mixer
Water inflow system	Water pump	12.5m³/h
Emulsion bitumen  output system	finished product transfer pump	6T/h
	emulsion bitumen storage  tank		2.25m³
Heating system	hot oil boiler capacity		300,000 kcal

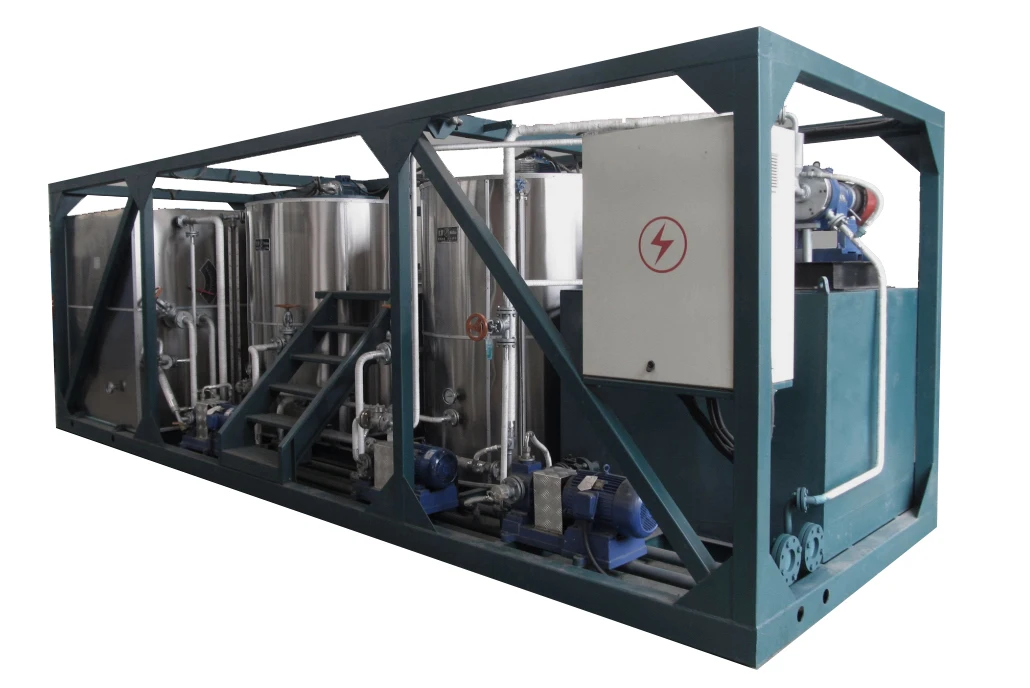

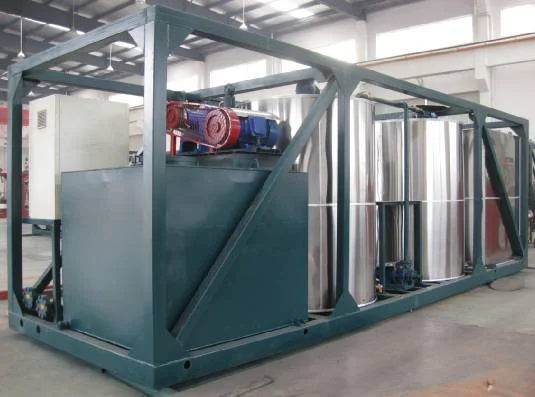

                    Emulsion bitumen plant                                        300,000kcal hot oil boiler





















♦ Pre-Sales Service                                                ♦ After-Sales Service
* Inquiry and consulting support.                                  * Training how to install / use the machine.
*Technical information provide.                                     * Good and fast arrangement for the shipment
* Price offer with detail configuration.                            * Engineers available to service machinery overseas.


♦ Strong logistics
Not only take care of your products,but also get fastest shipment to reach lead time;

♦ Wholehearted service
Not only complete order process,but also provide professional consultation
