High Performance taper roller bearing HM125948/HM125910 inch size













Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.



Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

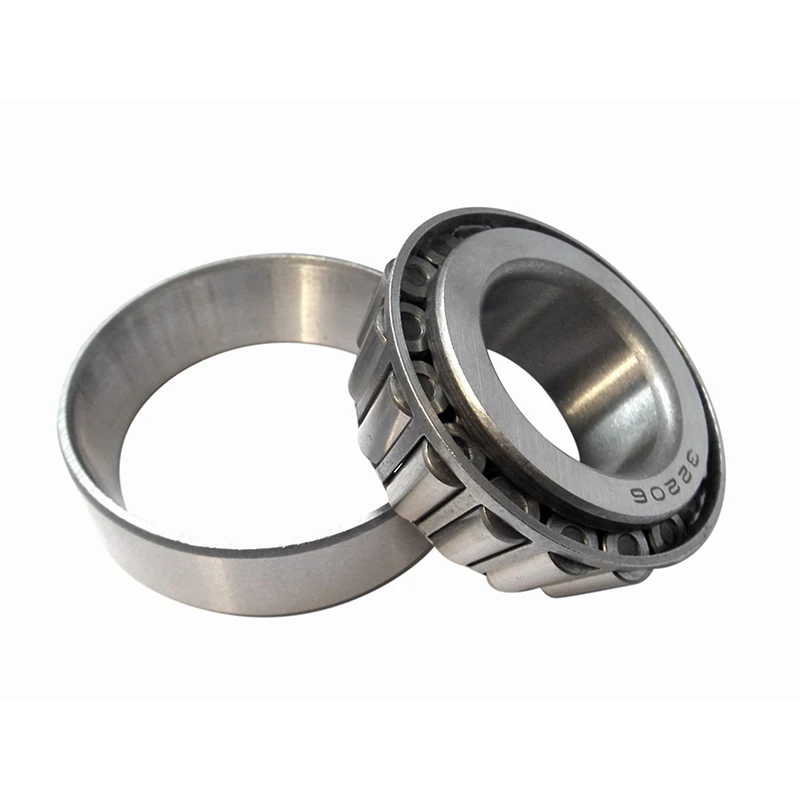

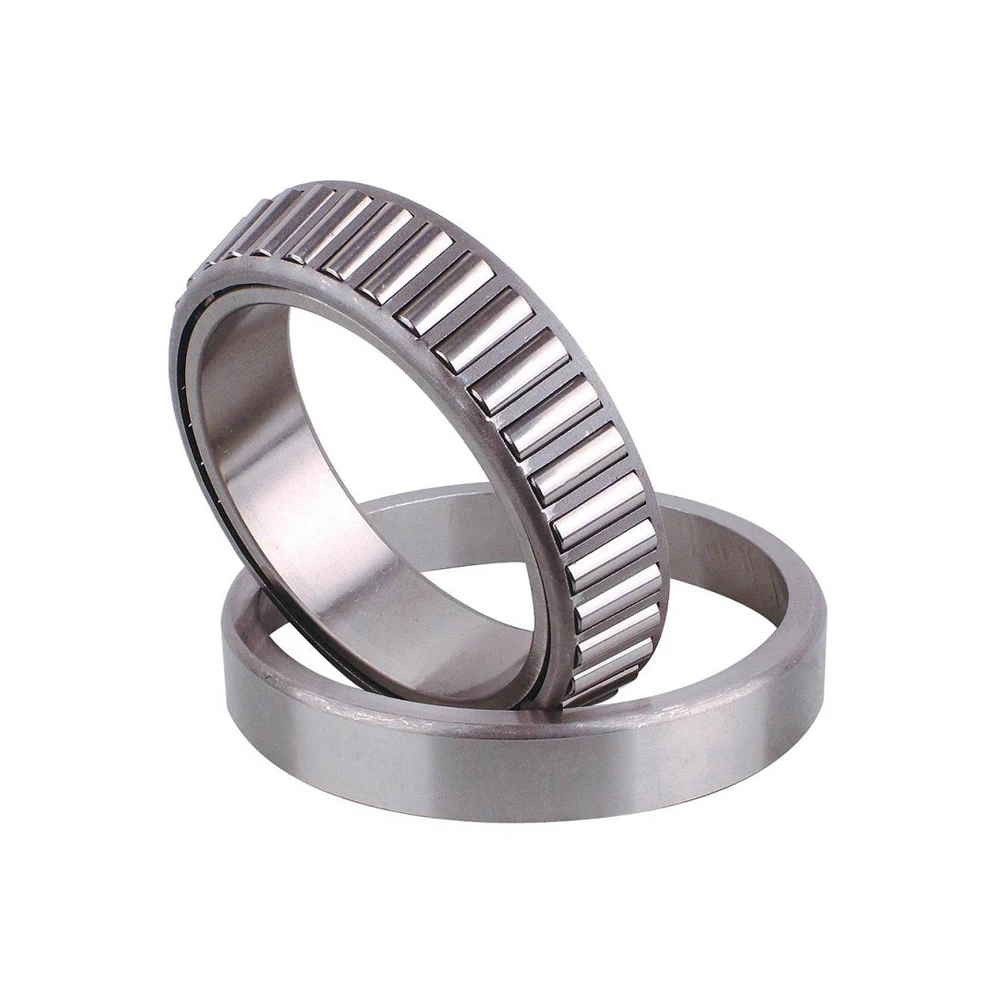

Taper roller bearing HM125948/HM125910 are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.



Tapered roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Series	HM125900
Cone Part Number	HM125948
Cup Part Number	HM125910
Design Units	Imperial
Bearing Weight	7.1 Kg
Cage Type	Stamped Steel

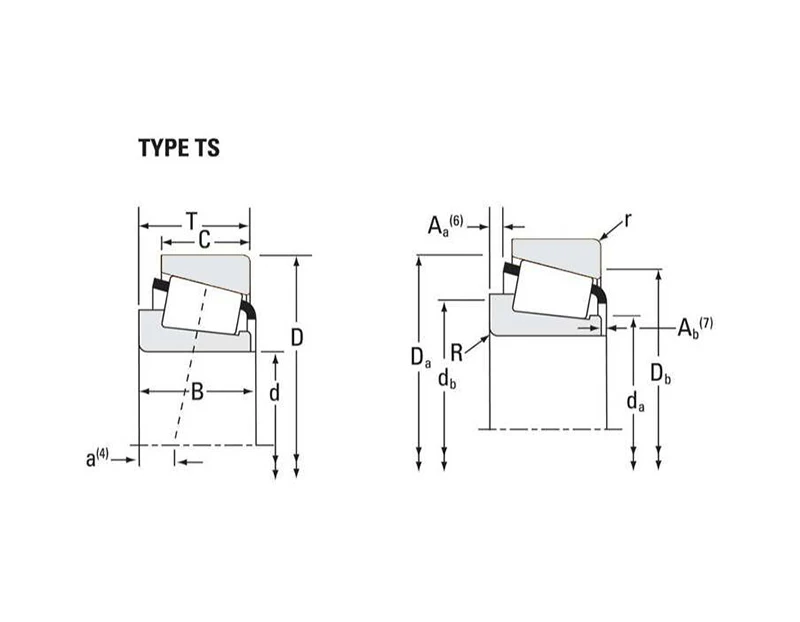

d - Bore	123.825 mm
D - Cup Outer Diameter	204.775 mm
B - Cone Width	60.325 mm
C - Cup Width	45.237 mm
T - Bearing Width	55.565 mm

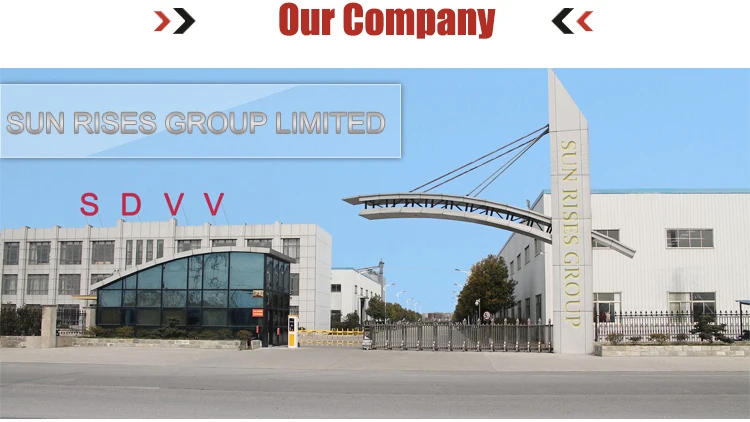

Sun Rises Group Limited was established in 1986, is a professional exporter of bearings and other industrial products. Our own brand is SDVV and we also agent for many world-famous bearings, the bearing brands include: SKF,FAG, INA, TIMKEN, KBC bearings and a series of Japanese bearings (NSK, NTN, KOYO, IKO, NACHI, ASAHI, FYH, NMB, THK bearings and so on).



In the industrial fields, we have many years' experience of bearing supporting and industrial service. Quality, value and service are the cornerstone of our company, certificate of origin and certificate of quality can be provided.



In order to supply bearings timely, we have set up many warehouses all over the world, which enables us to send bearings directly from stock and saves time spent in domestic transportation and export custom clearance. So our company has a large factory of various bearings and quick delivery. Also we have great advantage over any other sources in supplying bearings and accessories.



You may just feel free to contact us whenever you are in need of any kind of bearings. It would be our great honor to develop business cooperation relationships with esteemed companies all over the world.

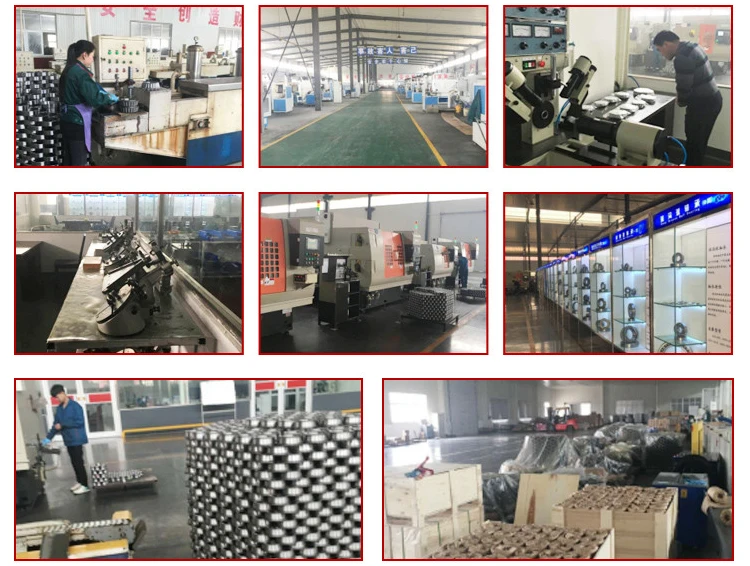

We have a professional factory, exhibition hall, and a team of highly skilled workers.Inventory can meet the needs of the vast majority of customers, and the delivery process has also undergone decades of development to ensure the speed and safety of delivery.





SDVV Bearing Co., Ltd was established in 1986, is a leading supplier and manufacturer of bearings. We specialize in bearing designing, producing, exporting and we have got ISO 9001 and ISO/TS 16949:2009 certificates and the other certificates as well as we have more than 20 years experience in bearing manufacture.





Each year, we receive customer from various countries, mainly the United States, Europe, Russia, India, Saudi Arabia, Myanmar, Brazil, Spain and so on.













Q:What’s your after-sales service and warranty?

A: We promise to bear the following responsibility when defective product is found:
1. 12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize bearings in different styles, and sizes in different brands.

Q:How does your factory do regarding to quality control?
A: Quality is priority, we always attach great importance to quality control from the beginning to the end of production. We conform with ISO standards strictly and have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.

Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

Q:What’s your main products?
A:Our main products include all kinds of ball bearings and roller bearings and also world-famous brand bearings like Sweden SKF Bearing, Japan NSK Bearings, NTN bearings, KOYO bearings, FYH Bearing, NACHI Bearing, USA TIMKEN Bearing, Germany FAG Bearing, INA bearing and SDVV bearing and so on.
