Product Description

Caster-T328 is a real-time transcoding of IPTV streams turn-key solution which producing Mobile TV, Internet TV, IPTV and broadcast live video services from a single platform, eliminating the need for separate headends. The transcoder delivers high-quality services to tens of thousands of users worldwide, from bandwidth-limited mobile delivery to up to full 1080p HD over high-speed networks for traditional TVs or big screen smart mobile devices.

Caster-T328 can transcode MPEG-2 or H.263 or H.264/AVC content to multiple codecs, profiles and streams in different protocols, enabling new multiscreen services. Thanks to 3th Generation STREAM compression engine, Caster provides the higher bandwidth efficiency on the market, and the best video quality and Highest cost effective to end users. With a huge number of transcoded channels, Caster reaches one of best density of the market. Each Blade is including 25 channels transcoding and Two GbE port in/out, total reach 200Channels in 8 blades of 3RU chassis.

Caster-T328 runs on powerful hardware, enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming and some other servers base on UDP/RTP/RTSP /MMS/ HTTP/FTP/RTMP/HLS protocols.

Features


1.High density 3-RU platform can transcode up to 200*SD or 96*720p or 40*FullHD profiles

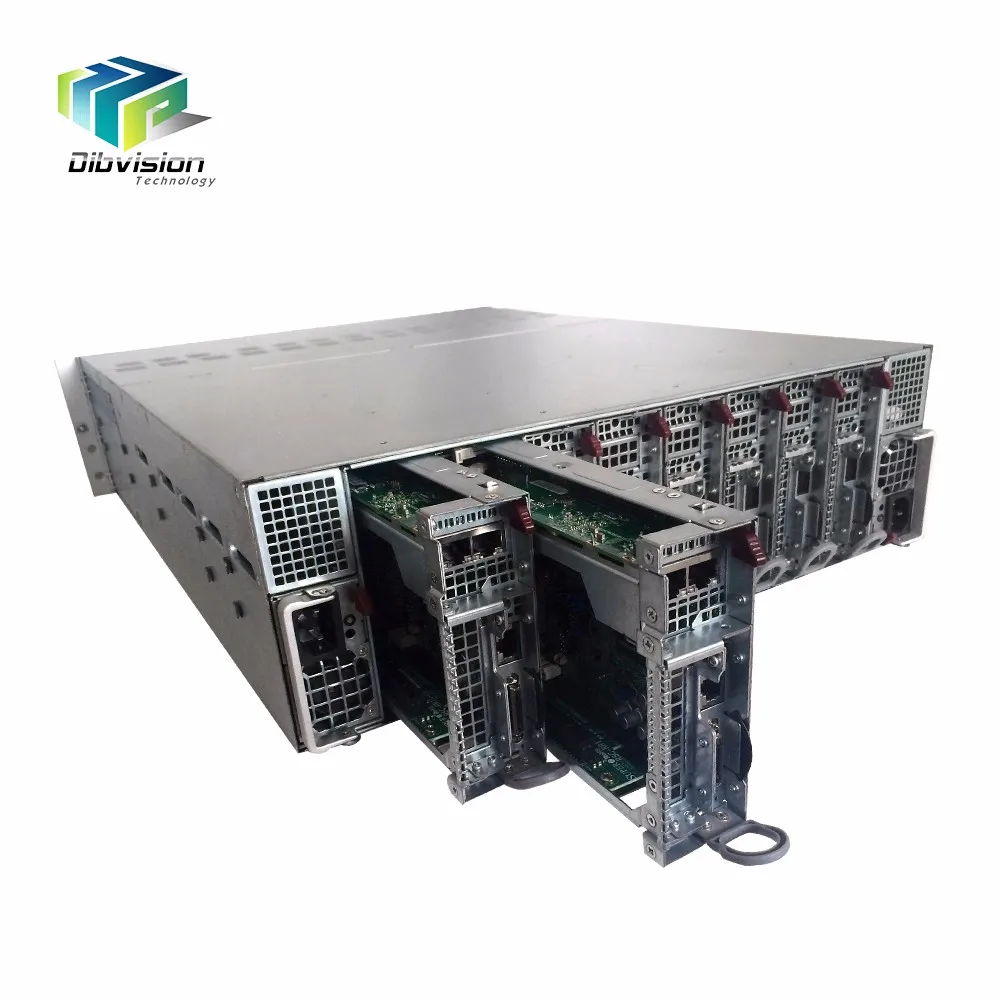

2.Max.25 channels per blade, A total of 8 blades in 3RU chassis

3.Superior video quality at low bitrates, generally video bitrate advised SD about 1500kbps, 720p about 3mbps, 1080p about 6mbps for lowest bitrate

4.Creates simultaneous High, Medium and Low bitrate streams (profiles) of MultiScreen IPTV application

5.Optional H.265 transcodes by software licensed

6.Baseline, main & high profile with variable GOP

7.Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

8.HD-to-SD down, SD-to-HD up conversion

9.GbE IP Inputs and outputs – UDP,RTSP,RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files

10.Picture-in-picture (PIP) operation supported

11.Flexible GOP structures with Reference-frame and B-frame edit

12.Frame rate down- and up-conversion

13.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

14.Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency

15.Based on embedded Ubuntu Linux via flashdisk

16.DVB Subtitle and Logo insertion

17.High contrast LCD display

18.Parameter template settings and imports

19.Real time preview of input video stream in encoding and parameter configuration

20.Real-time dynamic monitoring of each transcoding channel operation

21.Dual hot-swappable power supply

22.Easy configuration via Web GUI

23.Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

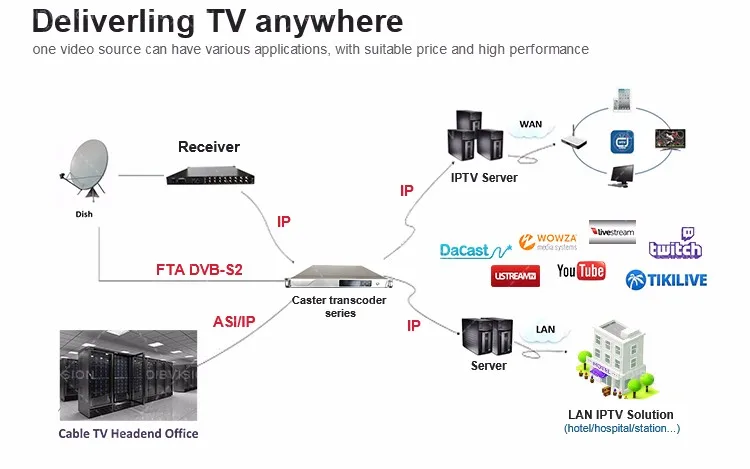

Main Application


1.Distribute HD Video to Ethernet

2.Transcoding low bitrate in limited bandwidth for Terrestrial and Cable TV operator

3.IPTV live stream transcoding

4.Transcoding for multi-screens and devices

5.Small/Middle-Scale Headends for Multiple System Operators

6.Deliver Huge transcoding Streams in most cost effective solution

Specification
\t
Inputs and Outputs
\t
\t
Two Gig Ethernet Port per blade, Up to 8 hot plug blades
\t
RJ45 100/1000M - Auto Negot
\t
MPEG-TS(MPTS or SPTS) Over IP input
\t
MPEG-2 TS (SPTS) Over IP out
\t
TS  Over UDP/RTP/HTTP
\t
RTP over HTTP
\t
FLV Over HTTP
\t
RTMP
\t
MP3 over HTTP
\t
FLV
\t
ASP
\t
HTTP Live streaming Apple HLS (m3u8)
\t
Pre-processing
\t
Subtitle Overlay
\t
LOGO insertion/ Image cropping
\t
Option Static or roll subtitle, up to 3 way
\t
Deinterlace
\t
default, Close, Linear, Blend, Bob, Yadif
\t
PID Configuration
\t
PMT/Video/Audio PID;
\t
PCR delay/disp interval
\t






Advanced Processing
\t
In-loop De-blocking filter Scene detection,
\t
CABAC.CAVLC Entropy coding Automatic
\t
PicAFF,MBAFF Interlaced coding Automatic
\t
Flexible Macroblock Ordering(ASO) and Arbitrary
\t
Slice Ordering(ASO) in Baseline profile
\t
Flexible Macroblock Ordering(FMO) and Arbitrary
\t
Slice Ordering(ASO) in Baseline Profile
\t
8x8 vs, 4x4 Transform Adaptivity in High profile
\t
Quantization Scaling Matrices in High profile
\t
I,B and P Slices,Multiple Reference Frames
\t
Video Processing
\t
Bitrate Control
\t
VBR,CBR,ABR,NearCBR
\t
Frame rates
\t
2-30fps
\t
Screen Ratio
\t
4:3, 16:9
\t
Option
\t
Multiple concurrent outputs per each encoding input
\t


Video codec
\t
H.264 Main/High Profile 3.0- 5.1
\t
H.263 Profile Levels 10, 20, 30
\t
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
\t
H.264 Baseline Levels 1, 2, 3
\t
Encoding delay
\t
1000-1500ms
\t
B-Frame
\t
0-5
\t
Reference Frame
\t
1-6
\t
Key frame rate
\t
1-18
\t
Video Bitrate
\t
32kbps to 10Mbps
\t
Video Delay
\t
0-1000ms
\t
Scale
\t
Ordinary, Auto Padding intelligent Scale
\t
Fast Mode
\t
Quality Priority, Balanced, Speed Priority
\t
MPEG-2 Input
\t
H.264 Output
\t
Qty
\t
SD/480i inputs @4Mbps
\t
SD @2Mbps, 480i
\t
25x8
\t
720p inputs @10 Mbps
\t
720p @4Mbps
\t
12x8
\t
1080i/p inputs @18 Mbps
\t
1080p @ 6Mbps
\t
5x8
\t
Resolution
\t
1920x1080p,1280x720p, 720x576p,720x480p, 640x480p, 480x360p, Configurable
\t
Audio Processing
\t
Numbers of encoding
\t
2 audio Channels per one video source
(Provides up to 8 audio channels for customization)
\t


Audio encoding
\t
AAC,AACv2,AMR
\t
D Digital(AC-3)
\t
D Digital Plus(EAC-3)
\t
MP2A,MP3A,Transparent
\t
Audio Channel
\t
Single, Dual, 5.1 Channel
\t
Audio Track
\t
0, 1, 2, 3
\t
AV Sync
\t
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
\t
Sample rate
\t
8khz to 48khz
\t
Bitrate rate
\t
8kbps to 384kbps
\t
Volume
\t
Ordinary, Intensity1, Intensity2, Intensity3
\t
AGC
\t
On, Off
\t
Management
\t
Local interface
\t
Power On/Off button
Power LED; Blade status LED
\t
Configuration
\t
Web-based user's interface
\t
Port
\t
RJ45, 10/100/1000M Base-T
\t
Language
\t
English
\t
Environment
\t
Fans
\t
4x 8cm Heavy duty fans with optimal cooling zone
\t
Form Factor
\t
3RU
\t

Power Supply
\t
Dual hot-swappable
\t
1000W:100-120V,50-60Hz,12-10Amp
\t
1620W:180-240V,50-60Hz,10.5-8Amp
\t
Operation temperature
\t
0~50℃ (32 -122°F)
\t
Storage temperature
\t
-40-70°C (-40-158°F)
\t
Power consumption
 (per blade)
\t
1620W high-efficiency redundant
\t
Dimensions
\t
590mm (W) x 440mm (L) x 140mm (H)
\t
Weight
\t
40kg (62.2lbs)
Related Products

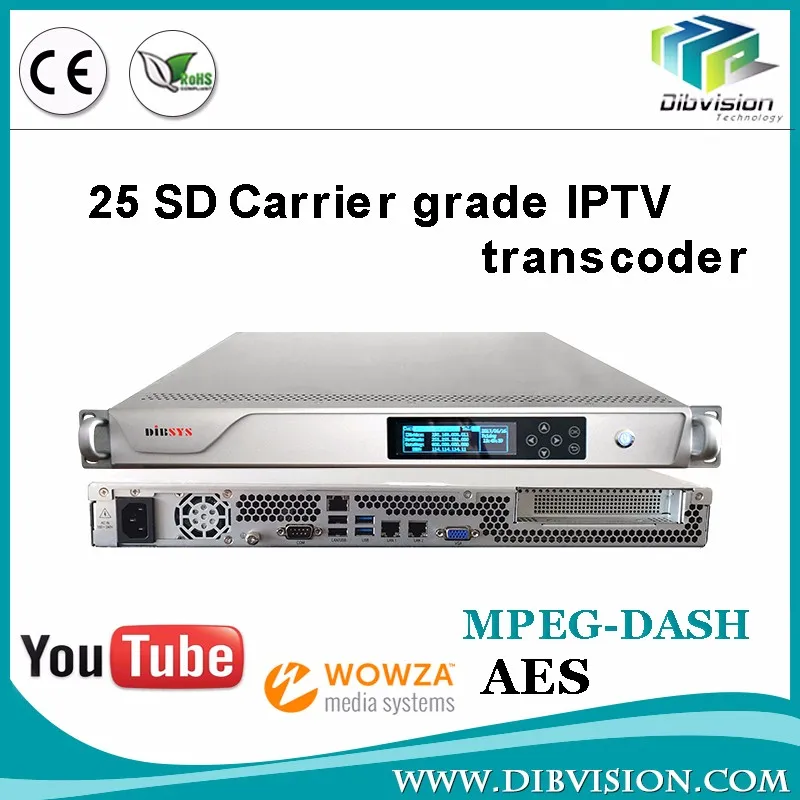

25 SD IPTV transcoder Caster-T322

  SDI  PTV encoder Caster-T315

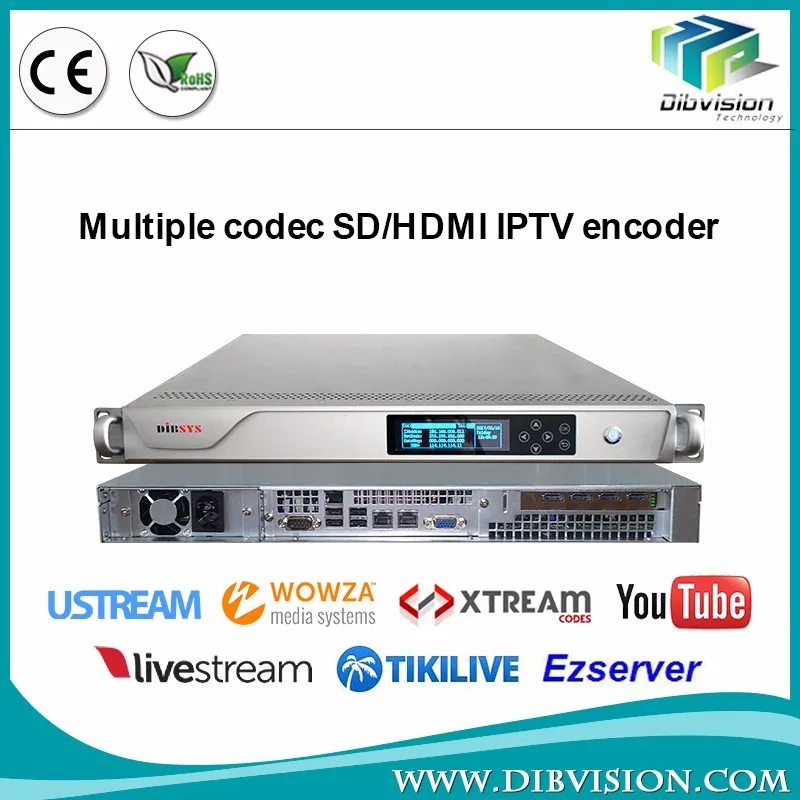

            IPTV SD encoder

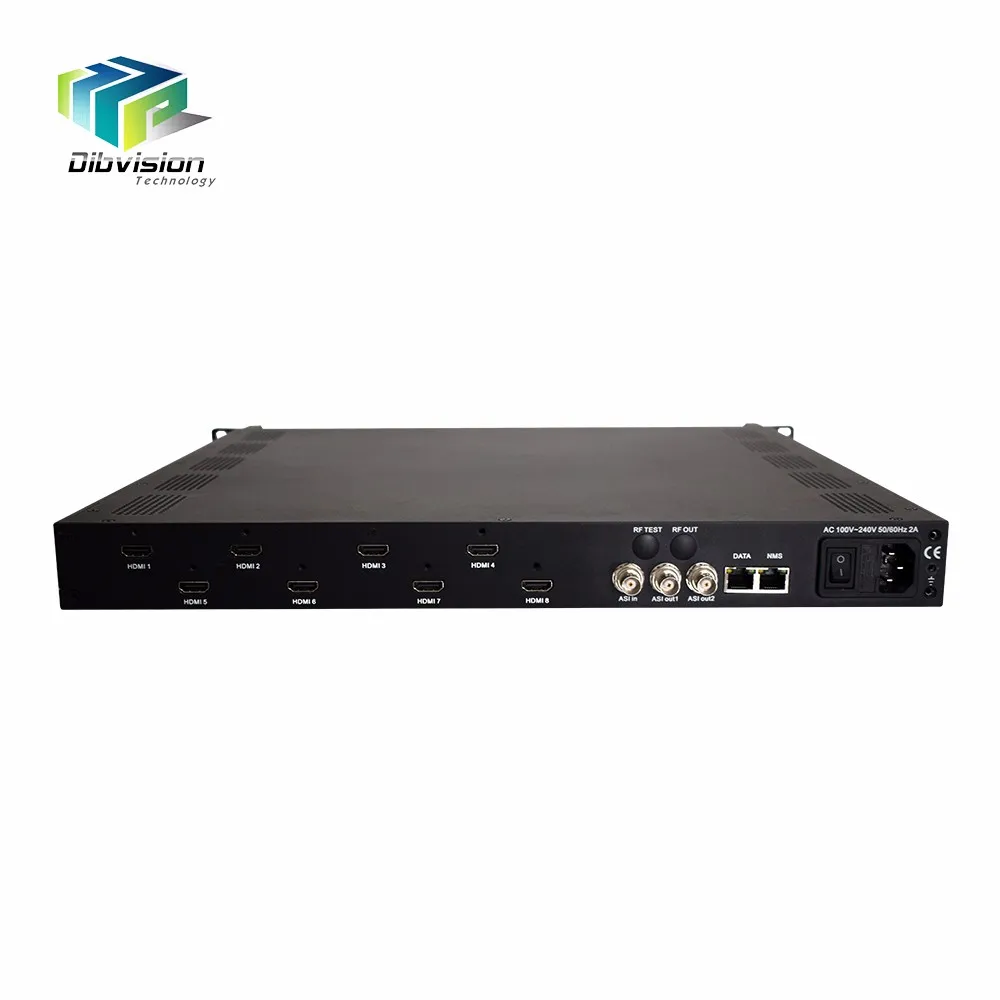

8x HD MI Full HD broadcast encoder ENC3381

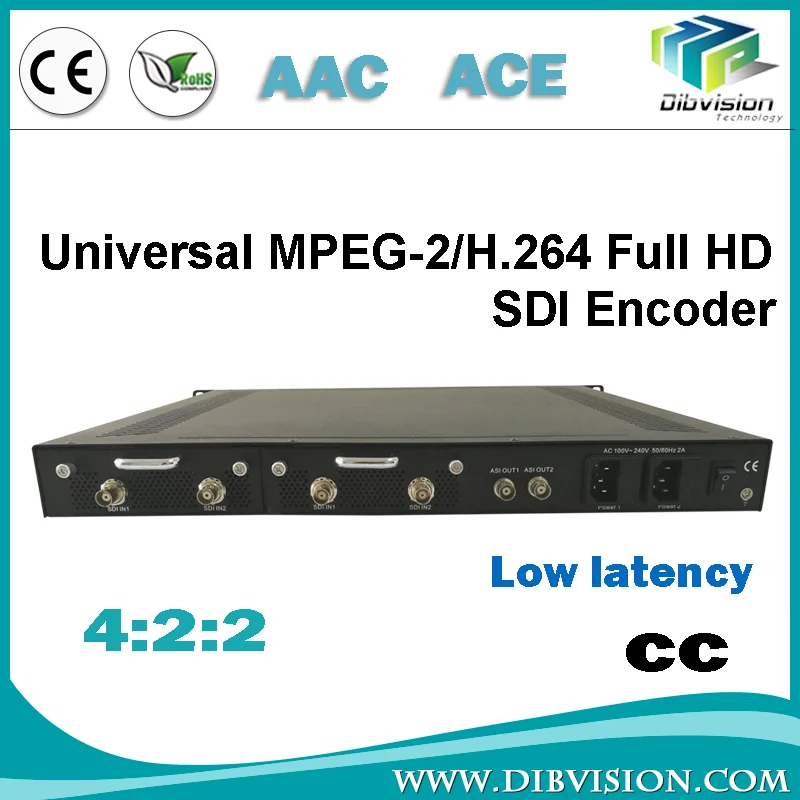

4x HD-SDI MPEG-2/H.264 encoder ENC3445
