KBQ-01A Пневматический Магнитный Привод переключателя управления с

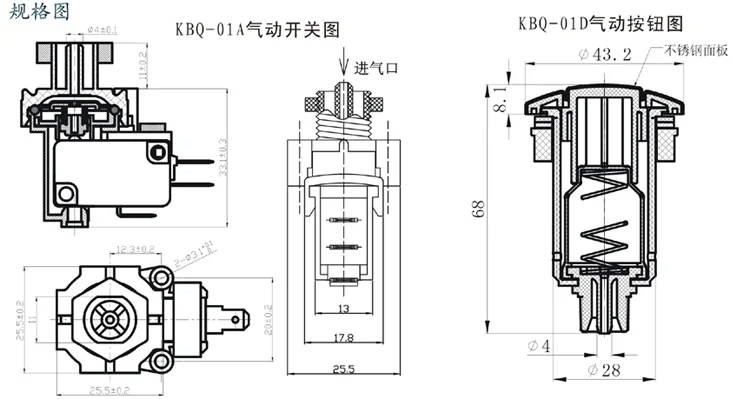

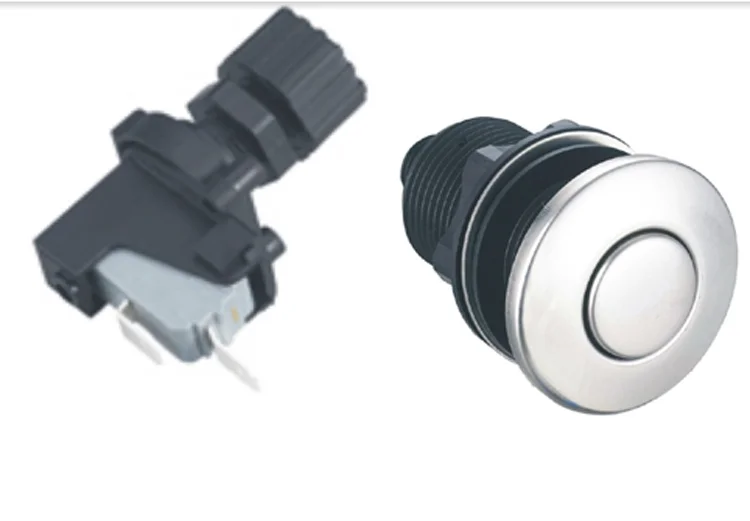

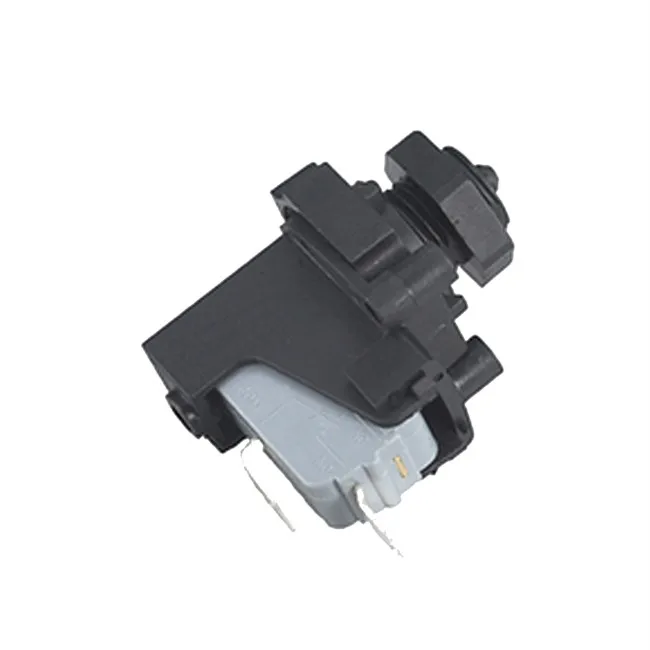

KBQ-01A Series pneumatic switches adopt micro-switch design to make the switch to have high current, single-pole double-throw contact mode, switch dead zone (mechanical differential and lag) and other features. The compact design and low cost make the switch become an ideal OEM product.

The switch can be used along with the start button for the purpose of remote control. It is widely applied to food waste disposers, hot springs, hot bathing pools, cleaning equipments,

outdoor machines, medical equipments, etc. As a remote control device, it has advantages of small volume and availability of being built in the connection box of most motors.

It carries out the below 2 possible actions:

1).Instantaneous action: press the pneumatic button to start the pneumatic switch instantly; release the pneumatic button to turn off the pneumatic switch instantly.

2).Alternating action (also referred to as latch or bistable state): press the pneumatic button the first time to start the pneumatic switch; release the pneumatic button and the switch

still remains the start state, press the pneumatic button the second time and release it to turn off the pneumatic switch

We  located on the southeast seashore of China and at the south foot of the beautiful Yandang Mountain, is specialized in producing electronics components, power switch,plugs & sockets, connectors applied to TV sets, recorders, CD players, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big,mid or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength,complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U.S.A or TUV Approbation of German Rheinland Technical Co.,Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U.S.A For instance, the power switch of KAG-01, KDC-A05series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.

1. Q: Are u a factory or trading company?

A: We are a factory which has own trading company.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, We can offer some samples free for you to test by DHL,TLT,UPS and son on, but the courier cost is on customer.

3.Q:How long can I get samples?

A: After we confirm the price and type and you pay for the samples charges, our factory need 3-5 days to make the samples.

4. Q: How long for mass producing?

A:It depend on the order quantity. If order quantity is less than 1000pcs, delivery would be within 5 working days.

5. Q: Can you OEM?

A: we welcom OEM
