Небольшая Водонепроницаемая винтовая установка GPS glonass 4G LTE 2 4 ГГц WIFI антенна gps 2g 3g lte

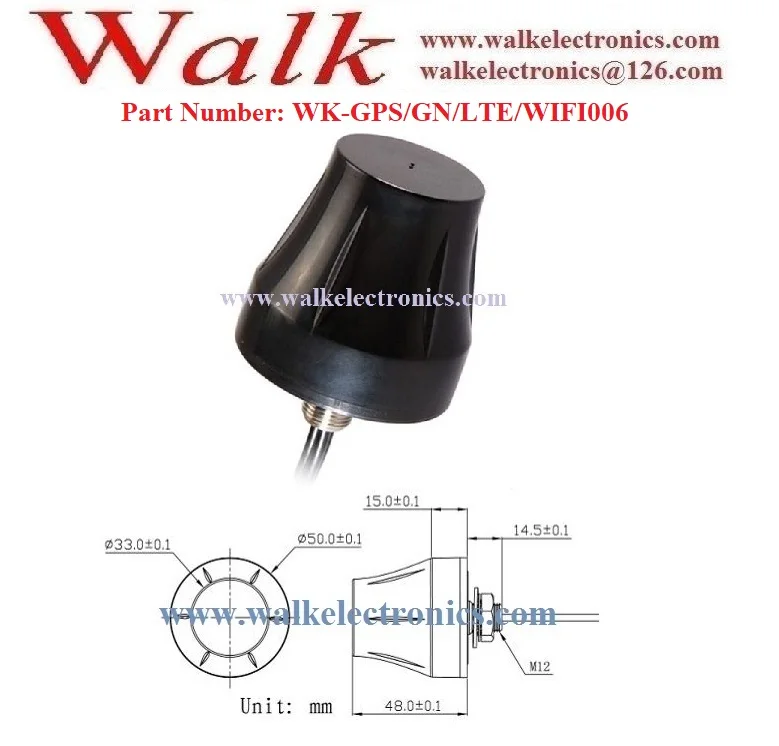

Part Number: WK-GPS/GN/LTE/WIFI006

Dielectric Antenna Specification

Size

25×25×4mm

Frequency Range

1575-1610MHz

Center Frequency

1590MHz+/-3MHz

(GPS:1575.42Hz, GLONASS:1602MHz)

V.S.W.R

1.5:1

Band Width

±5 MHz

Attenuation

fo±100MHz>30dB

Impedance

50 ohm

Peak Gain

>3dBic, Based on 7×7cm ground plane

Gain Coverage

>-4dBic at –90°<0<+90°(over 75% Volume)

Polarization

Right-handed Circular (RHCP)

LNA Specifications

LNA Gain

(Without cable)

28dB Typical

Noise Figure

1.5dB

V.S.W.R

<1.65

DC Voltage

2.7V-5.0V±0.5V

DC current

15mA   Max (5V DC)

4G LTE Specifications

Frequency Range

698-960/1710-2700MHz

V.S.W.R

2.5:1

Gain

3.0dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

50

Impedance

50 ohm

WIFI Specifications

Frequency Range

2350-2500MHz

V.S.W.R

1.5:1

Band Width

±50 MHz

Gain

2.5dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

50

Impedance

50 ohm

Mechanical Specifications

Weight

<350g

Size

Ø50×48mm

Cable

GPS GN: 4m RG174 cable

4G LTE: 4m RG174 cable

WIFI: 4m RG174 cable

Connector

GPS GN: SMA male straight

4G LTE: SMA male straight

WIFI: RP-SMA male straight

Other Cable

RG316, LMR100 or others

Other Connector

SMB, FME, FAKRA, MMCX or other

Mounting

Screw (M12)

Housing

Black ABS

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

Waterproof

100% Waterproof
