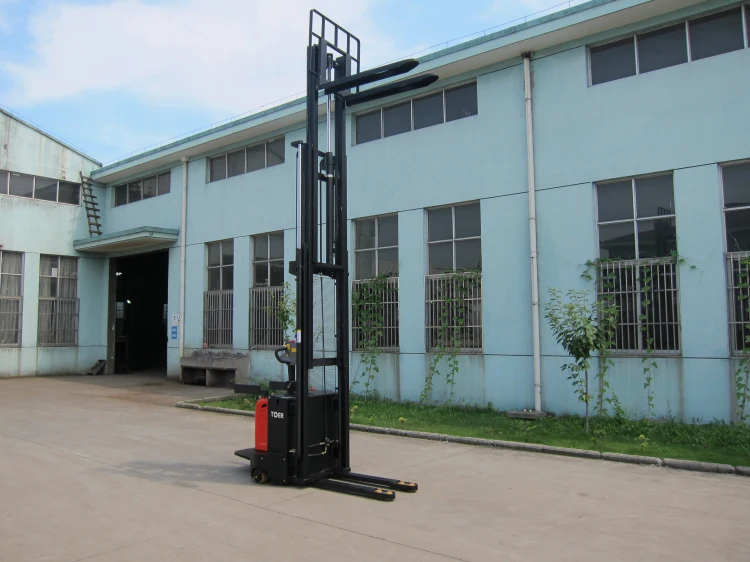

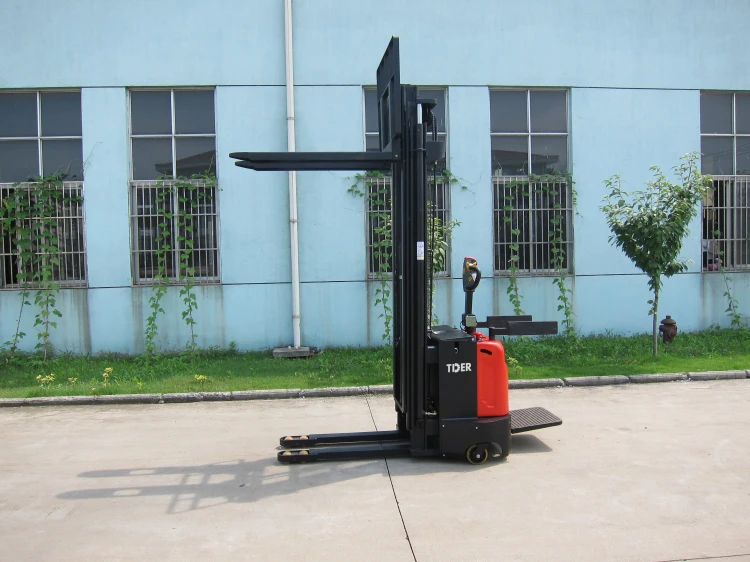

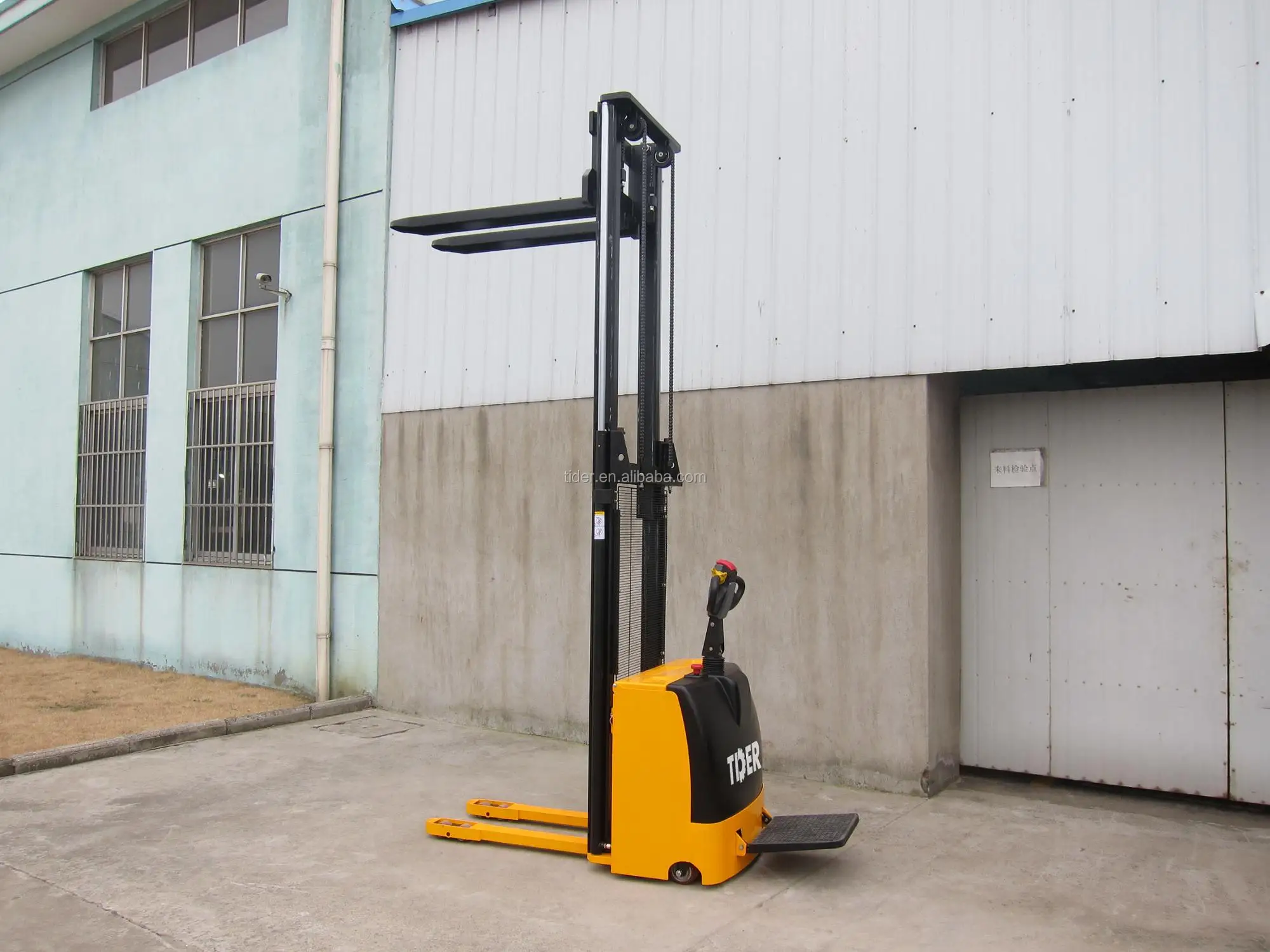

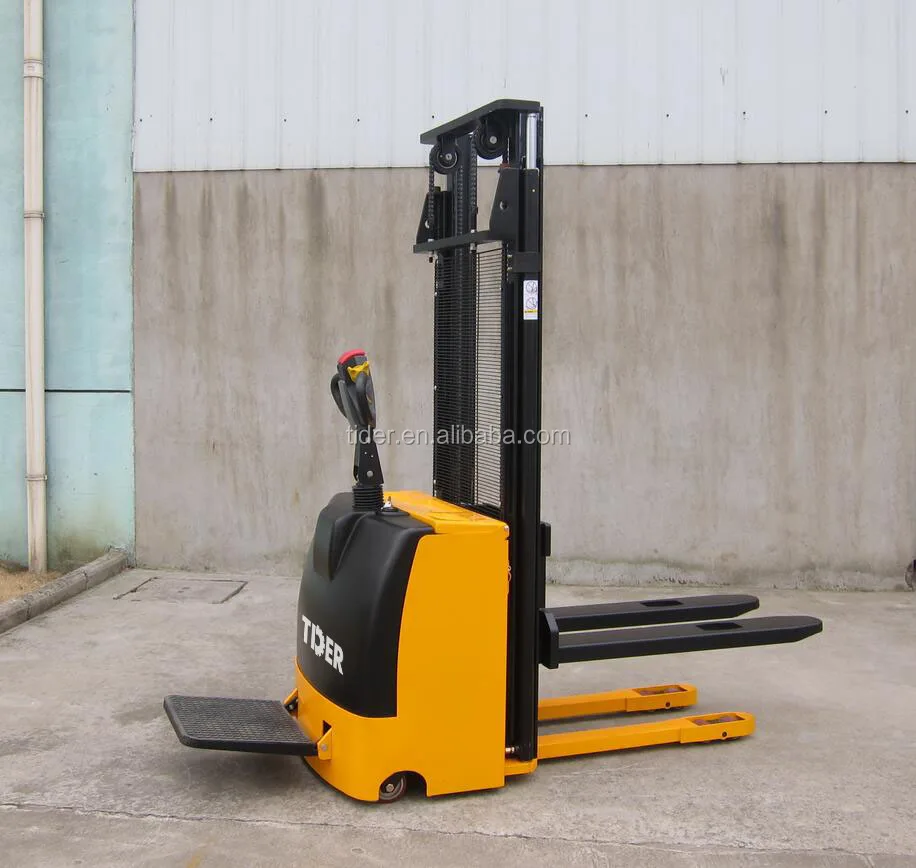

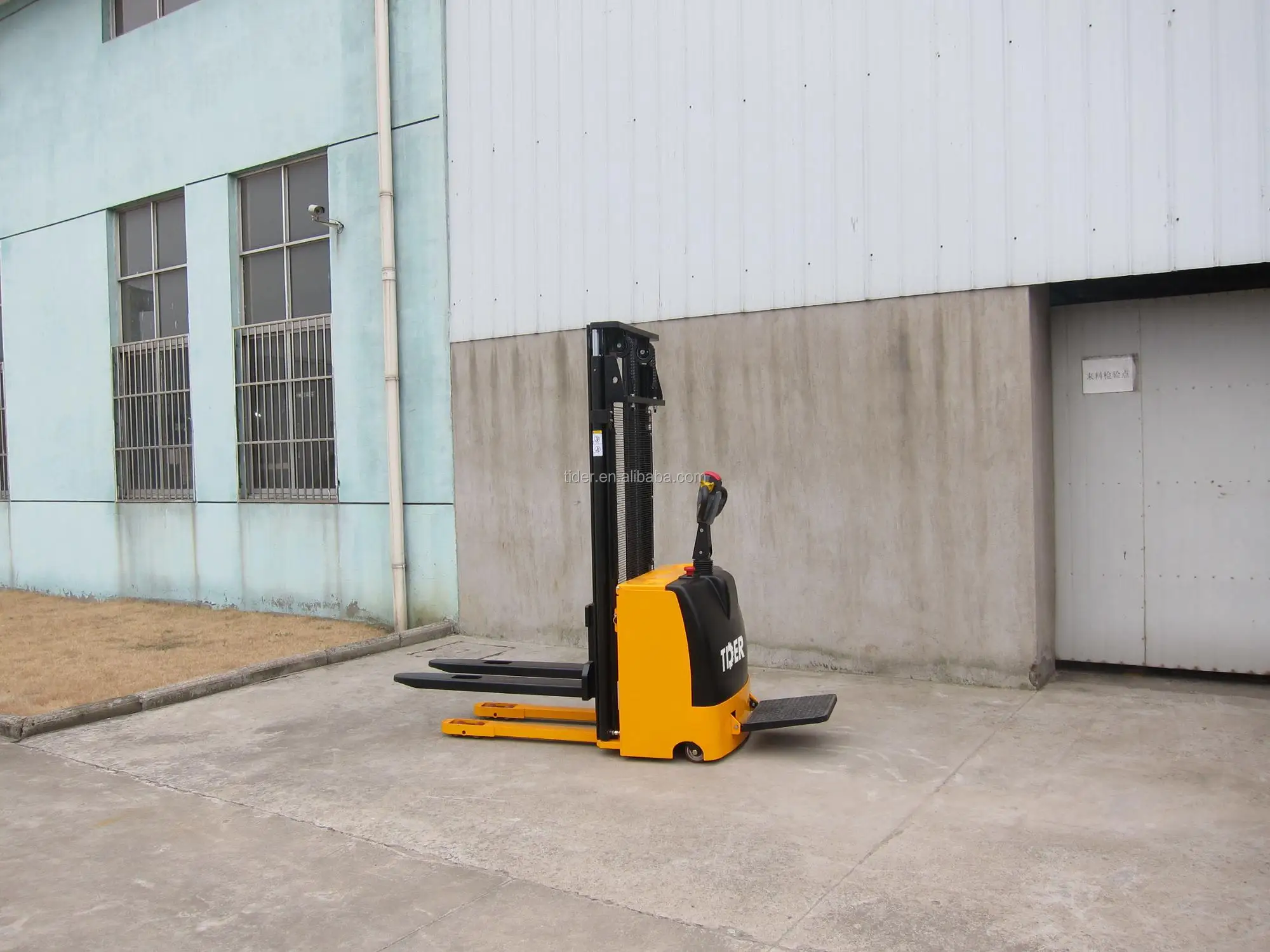

TIDER battery operated stacker forklift 1000kg 1500kg 2000kg electric pallet stacker with 1.5-5 meter lifting height
Product details
Product Description

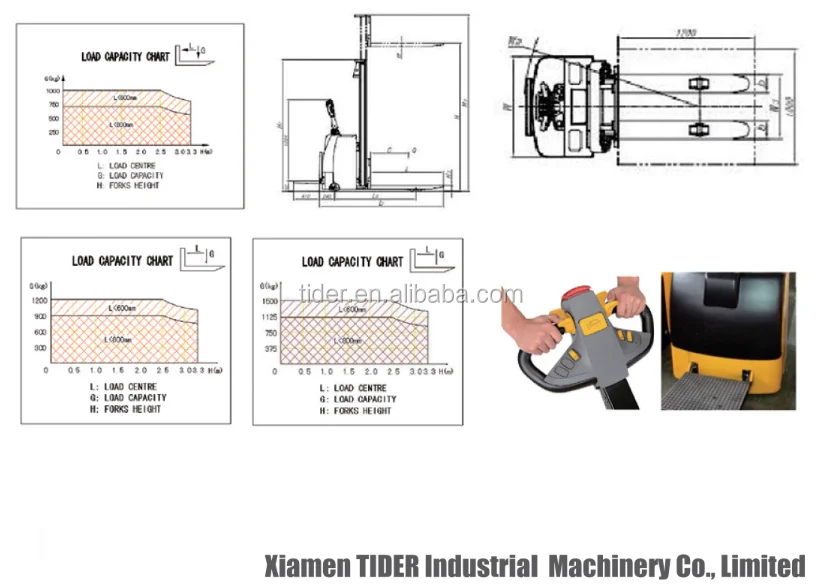

Feature | ||||
Model | TES-10D/TES-12D/TES-15D | |||
Driving style | kg | Walkie/Rider | ||
Load capacity Q | mm | 1000/1200/1500 | ||
Load center C | mm | 600 | ||
Overall length L1 | mm | 1960 | ||
Overall width W | mm | 875 | ||
Min.overall height H1 | mm | 2050/1750/2050/2200/2350 | ||
Fork dimension L×B×M | mm | 1150/1200×160×56 | ||
Outside width of forks D | mm | 560/680 | ||
Ground clearance x | mm | ≥30 | ||
Base distance L0 | mm | 1283 | ||
Wheel material | ||||
Driving wheel size | mm | 250×80 | ||
Front wheel size | mm | 78×70 | ||
Balance wheel size | mm | 125×75 | ||
Min.steering radius Wa | mm | 1540 | ||
Min.width of aisle | mm | ≥2400 | ||
Max.height of forks H | mm | 1600/2500/3000/3300/3500 | ||
Max.overall height H2 | mm | 2070/2970/3470/3770/3970 | ||
Min.height of forks H3 | mm | 90 | ||
Travel speed(laden/unladen) | km/s | 4.5/5.5 | ||
Lift speed | mm/s | 90/160 | ||
Lower speed | mm/s | 95/120 | ||
Brake type | Electromagnetic | |||
Power of driving motor | kw | 1.2 | ||
Power of lift motor | kw | 2.2 | ||
Battery capacity/voltage | Ah/ v | 165/24 240/24 | ||
Weight of battery | kg | 160/210 | ||
Net weight | kg | 610/690/705/735 | ||

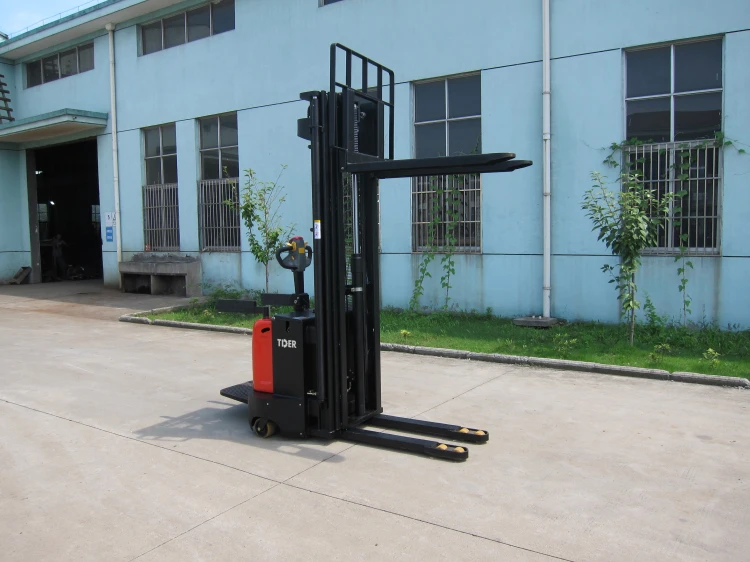

The features of 1500kg electric stacker:
1.Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering, fully humanized design.
3. The equipment using the German imports of seal, bearing and electrical components,further to ensure the reliability of the vehicle.
4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

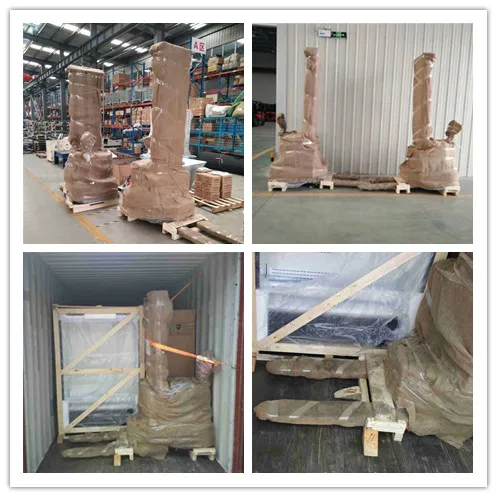

Packing & Delivery
Related Products

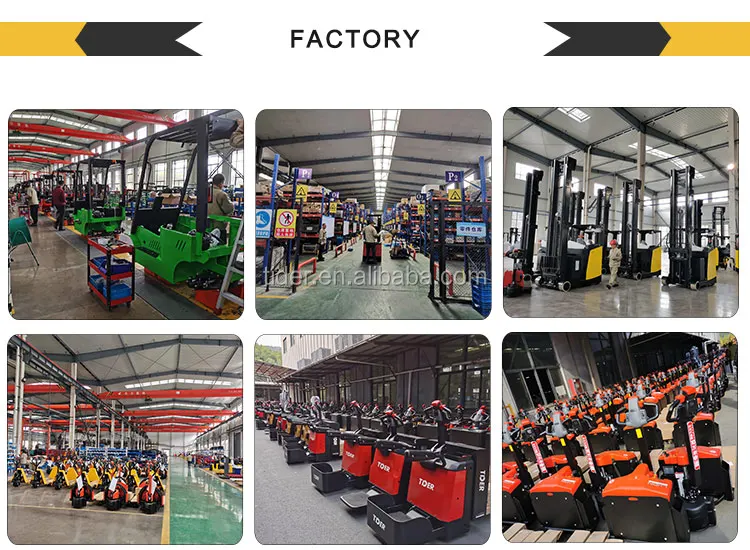

Our Company
Our Team
Our Service
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.

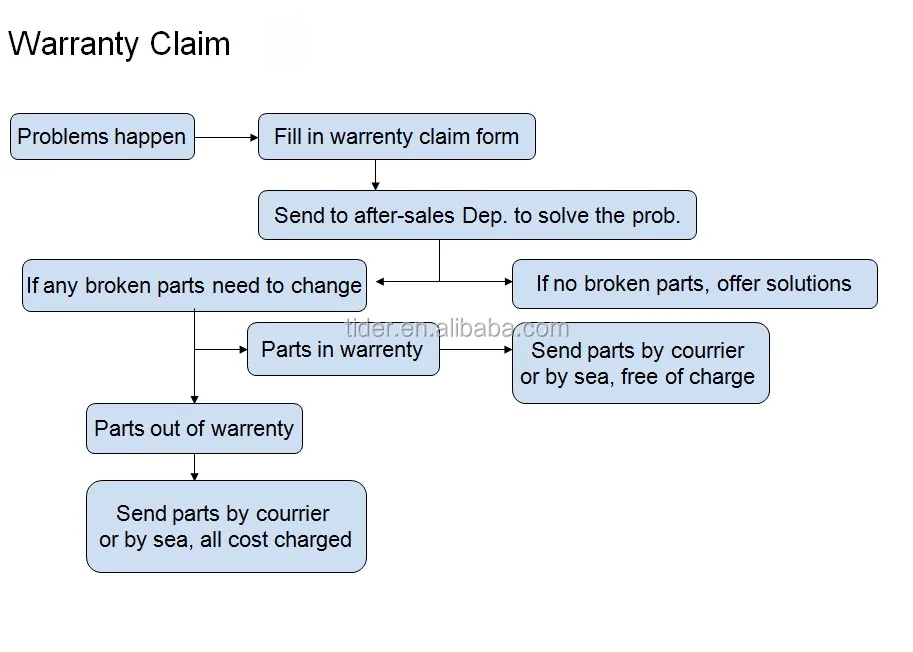

All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
FAQ
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
2. What is the product range of our factory ?
Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
